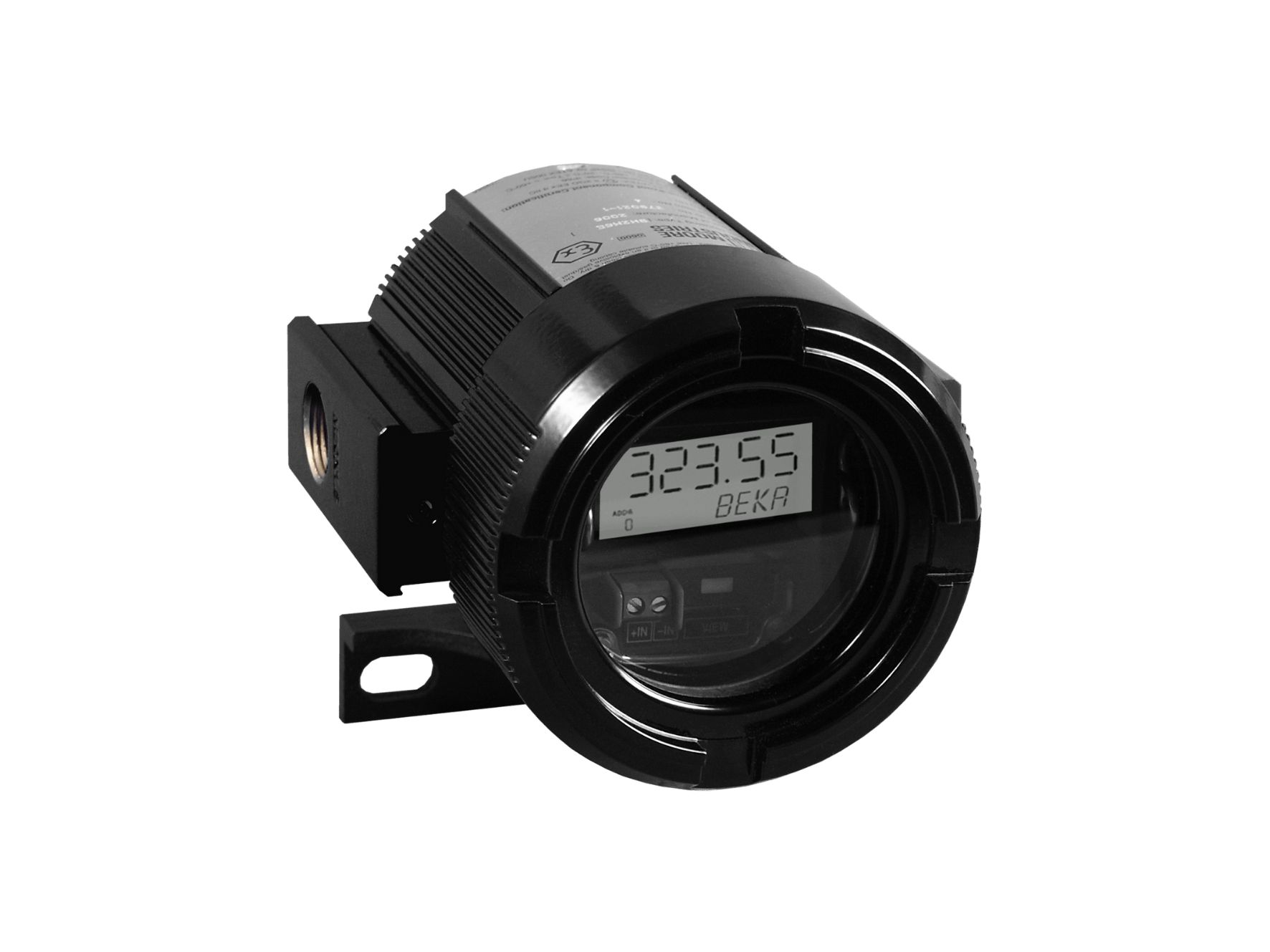

BEKA BR323AL Explosion Proof 4/20mA Loop Powered Indicator, Aluminum

BEKA BR323AL Explosion Proof 4/20mA Loop Powered Indicator, Aluminum

SKU BR323AL Categories Indicators and Displays, Process Instruments and Electrical

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

The BR323AL is a flameproof field mounting loop powered indicator that only introduces a 2.3V drop making it suitable for inclusion in almost any 4/20mA loop. It is housed in an epoxy painted aluminum enclosure and provides IP66 and NEMA Type 4X protection.

Indicator configuration and calibration is performed for no additional charge so indicator arrives ready for use.

Supported by a three year guarantee.

Also available in Stainless Steel: BR323SS

We are an authorized BEKA distributor shipping to locations in the United States.

$1,068.00

Variations:

Clear

Select One or More Configuration Cables (Required)

RS232 Cable: Connects BR323 indicator to serial communications port or to USB serial converter. (+$85.00)

Chipi-X10 Cable: converts USB to RS232 serial port. USB port must be configured as COM 1, 2, 3 or 4. (+$85.00)

***NOTE: The Chipi-X10 Cable requires the RS232 Cable.***

Description

ATEX gas & dust flameproof certification
4/20mA input, loop-powered
10mm high digits ±99999 main display, plus 6mm high engineering units display
Epoxy painted aluminum body
NEMA 4X and IP66 rating
-20°C to +60°C operation
Root extractor and linearizer
Configurable with free Windows® software

Additional information

Weight	5 lbs
Dimensions	8 × 8 × 8 in
Variations:	BR323AL-M: M20 x 1.5 Cable Gland Entry, BR323AL-N: 1/2" NPT Cable Gland Entry

Technical Data

*Mounting & Enclosure*	Epoxy painted aluminum
*Protection*	IP66, NEMA 4X enclosure
*Display*	5 digits 10 mm high

Approvals

Europe ATEX

ATEX Group II Category 2GD Exd T6 -20°C < Ta < +60°C
