BEKA BR323SS Explosion Proof 4/20mA Loop Powered Indicator, Stainless Steel

BEKA BR323SS Explosion Proof 4/20mA Loop Powered Indicator, Stainless Steel

SKU BR323SS Categories Indicators and Displays, Process Instruments and Electrical

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

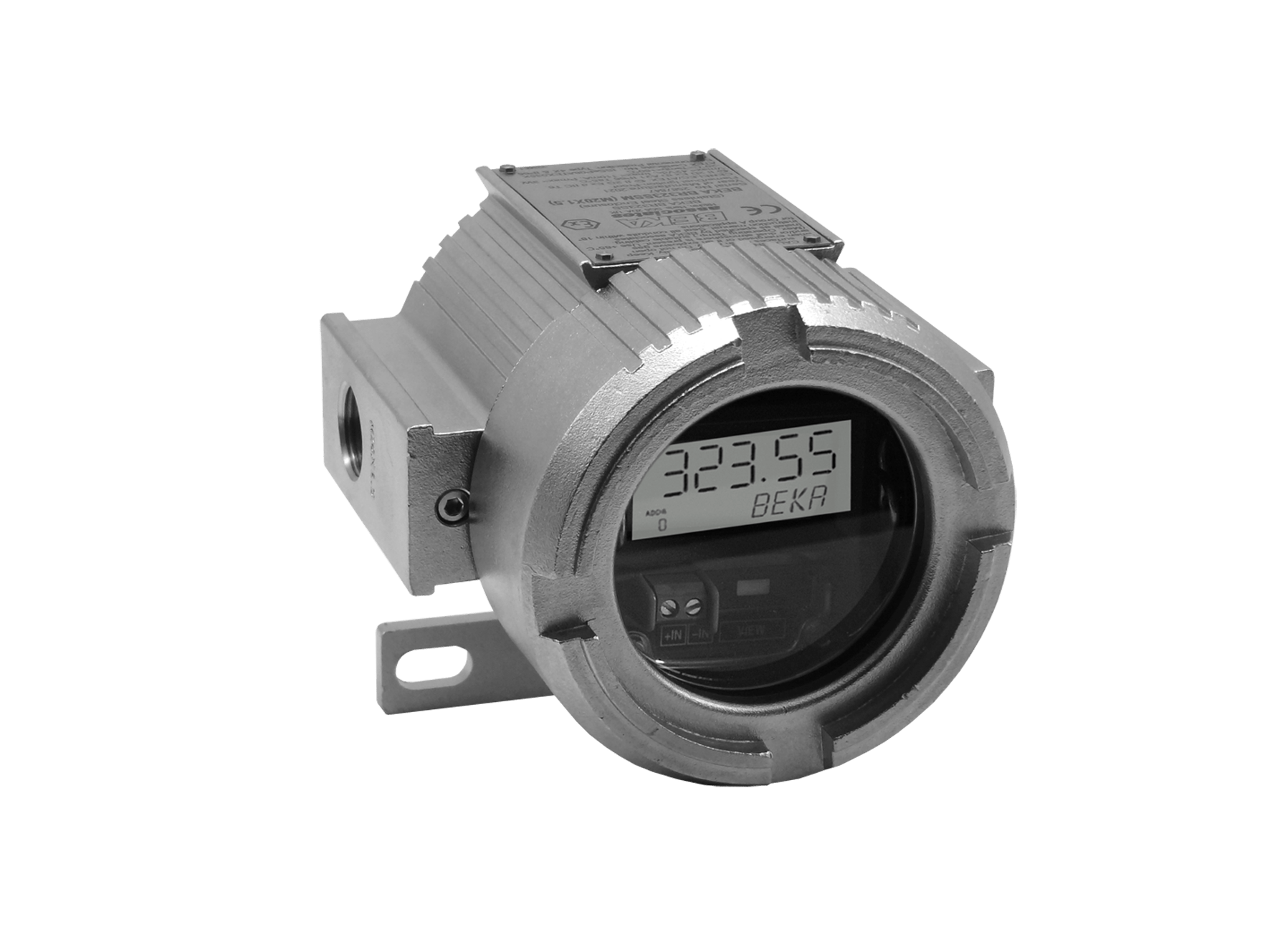

The BR323SS is a flameproof field mounting loop powered indicator that only introduces a 2.3V drop making it suitable for inclusion in almost any 4/20mA loop. It is housed in a stainless steel enclosure. It provides IP66 and NEMA Type 4X protection.

Indicator configuration and calibration is performed for no additional charge so indicator arrives ready for use.

Supported by a three year guarantee.

Also available in Aluminum: BR323AL

We are an authorized BEKA distributor shipping to locations in the United States.

$1,474.00

Variations:

Clear

Select One or More Configuration Cables (Required)

RS232 Cable: Connects BR323 indicator to serial communications port or to USB serial converter. (+$85.00)

***NOTE: The Chipi-X10 Cable requires the RS232 Cable.***

Description

ATEX gas & dust flameproof certification
4/20mA input, loop-powered
10mm high digits ±99999 main display, plus 6mm high engineering units display
316 Stainless Steel body
NEMA 4X and IP66 rating
-20°C to +60°C operation
Root extractor and linearizer
Configurable with free Windows® software

Additional information

Weight	5 lbs
Dimensions	8 × 8 × 8 in
Variations:	BR323SS-M: M20 x 1.5 Cable Gland Entry, BR323SS-N: 1/2" NPT Cable Gland Entry

Technical Data

*Mounting & Enclosure*	316 Stainless Steel
*Protection*	IP66, NEMA 4X enclosure
*Display*	5 digits 10 mm high

Approvals

Europe ATEX

ATEX Group II Category 2GD Exd T6 -20°C < Ta < +60°C
