Get the Picture in Hazardous Locations and Extreme Environments
Class I, Division 1, FM Approval for USA & Canada
| iCAM502 Auto Focus – Specifications | |
| FM Certification for USA & Canada |
Class I, Div 1, Grps ABCD, T4 Ta= –20°C to +55°C when using Duracell Plus or Procell MN1500 batteries; Class I, Div 1, Grps ABCD, T3C Ta= –20°C to +50°C when using Duracell Procell PC1500 or Energizer E91 batteries |
| ATEX Certification for European Community |
II 1 G Ex ia IIB T4 Ga, II 2 G Ex ia IIC T4 Gb, -20°C ≤Ta≤ +60°C I M1 Ex ia I Ma 0°C ≤Ta≤ +60°C |
| IECEx Certification for Accepting Regions |
Ex ia IIB T4 Ga, Ex ia IIC T4 Gb, -20°C ≤Ta≤ +60°C Ex ia I Ma 0°C ≤Ta≤ +60°C |
| Operating Ambient Temperature Range |
USA & Canada: +4 to +140°F / –20°C to +55°C max. depending upon battery. See user manual for usage table. ATEX/IECEx Group II hazards: +4 to +140°F / -20 to +60°C ATEX/IECEx Group I hazards: +32 to +140°F / 0 to +60°C |
| Image | 3.1 Megapixel, 2048 x 1536 resolution, jpeg format |
| Optical Lens | Autofocus lens, effective focal length 3.39mm, F2.8, 68° diagonal field of view |
| Focal Distance | 5cm to infinity |
| Viewfinder | Two-element optical viewfinder |
| Flash | 4-LED flash giving 131 lux.seconds of energy at 67ms exposure |
| Audio Recording | .wav format, files correspond to image filenames |
| Memory | On-board 1GB NAND flash; holds approx. 5,000 jpeg images without audio recording, additional 960 Kbytes per minute for audio. |
| Time & Date |
Time and date stamping of stored images and file names. Time and date set via Picture Transfer Protocol (PTP) automatically. |
| Connectivity | USB 1.1 via mini-USB socket. CAUTION: for use in un-classified locations only. |
| OS Support | PTP imaging device in Windows 2000, XP, Vista, 7 and 8, and most versions of Linux. USB firmware upgrade utility available for Windows 2000, XP, Vista, 7 and 8 only. |
| Dimensions | 5.20″ x 1.26″ x 0.87″ / 132 x 32 x 22 mm |
| Weight | Approx. 7oz. / 200g including batteries |
| Environmental Protection | IP65; injection molded anti-static plastic housing. |
| Relative Humidity | 95% RH non-condensing |
| Power Source | 2x Duracell Plus / Procell MN1500, Duracell Procell PC1500, Energizer E91, or Panasonic LR6XWA alkaline AA batteries depending upon applicable regional certification and maximum ambient temperature. No substitutions permitted. See certification and user manuals for applicable choices. May only be changed in unclassified area. |
| Power Modes | Operate, and auto power-down (after 3 min.) |
| Battery Life |
Up to 600 shots without flash, or up to 100 shots with flash, all made in quick succession. 170 shots as per the CIPA DC-002 standard (mixed mode shots with and without flash). Performance is influenced by many factors including ambient temperature, length of time camera is powered up, number of voice recordings, and frequency and length of time camera is connected to PC for data download. |
| Compliance |
EMC: EN 55022 1998 class B, EN 55024 1999, LV: EN 60950 2002, FCC Class A device, compliance through verification route. |
| In the Box | iCAM501U / iCAM502 digital camera, lanyard/wrist strap, removable silicon rubber sleeve, 2x AA alkaline batteries. |

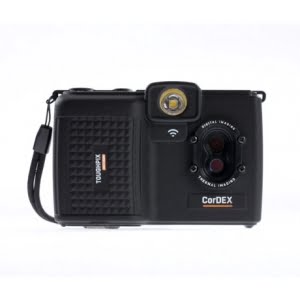

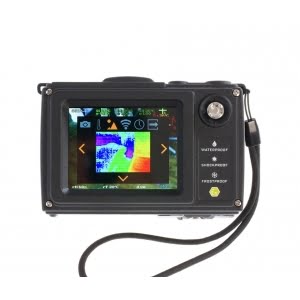

The TOUGHPIX DIGIHERM pocket size digital and thermal imaging camera, compact enough to fit into any work pocket but rugged enough to take the hits, TOUGHPIX DIGITHERM is a go-anywhere camera providing the power and resilience to get the job done. Every time.
Rugged, powerful and with ground-breaking affordability, CorDEX DIGITHERM sets the standard with compact digital imaging cameras. With must-have features including; 5 megapixel visual camera, LED flash, real-time visual/thermal image blending, wireless connectivity, CorDEX DIGITHERM brings a new dimension to the task of finding, documenting and sharing problems..
Tested to extremes every single component in TOUGHPIX DIGITHERM has been selected with one goal in mind, quality that’s built to last. From being frozen to -4°F and dropped from a meter, to being blasted with water and dirt as part of industry leading Ingress Protection testing. TOUGHPIX DIGITHERM has been pushed to extremes.
Ideally suited for your TOUGHPIX DIGITHERM camera, Made from a durable material this camera case will give a perfect fit for your TOUGHPIX DIGITHERM and the cushioned interior guarantees excellent protection from scratches.
| iCAM502 Auto Focus – SpecificationsTOUGHPIX DIGITHERM TP3rEX – Specifications | |
| ATEX / IECEx Certificate No. | ATEX / IECEx Certificate No. |
| ATEX / IECEx Certificate Type | EX II 2G / Ex ib op is IIC T4 Gb |
| Ambient Temperature | Tamb -10°C to +40°C |
| Image Download | WIFI & removable memory card (safe area only) |
| Image Storage | 8GB |
| Standard Image Capture Resolution | 5 Megapixel |
| Screen Size | 2.8 inches |
| Lens & LCD material | Armoured Glass |
| Weight | 13.4oz / 380g |
| IP | 54 |
| Body Material | Anodized aluminum with polymeric materials |
| Dimensions | Length: 4.45 in Height: 2.99 in Width: 1.77 in Length: 113 mm Height: 76 mm Width: 45 mm |
| Battery Type | Removable & Rechargeable Ex Power Battery |
| Capacity | 1900mAh |
| Cell Type | Lithium Ion |
| Sensor | 80×60 Pixel Array |
| Imaging | Adaptive thermal blending for dual mode imaging |
| Low Range | -10°C to +140°C with +/-2°C or +/-2% accuracy |
| High Range | -10°C to +380°C with +/-5°C or +/-5% accuracy |
Make composition easier when using your iCAM in low light conditions

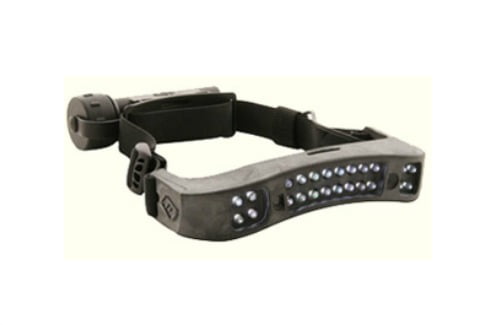

The Performance is approved for use in Class I hazardous locations even where group A & B gases may be present. These include hydrogen and acetylene, and means that it may be used in all Class I, Division 1 & 2 locations without having to consider which gas hazard is present.
Designed for use with or without a safety helmet the Performance has an attached battery pack* containing four AA batteries, yet the weight is only a fraction over 10 ounces. The low profile LED light bar may be tilted downwards by 45 degrees, and power is turned on & off by a simple tap switch. It works best for activities within a 20 foot range, but can illuminate up to 150 feet away.
*Note that operation in hazardous locations requires that the battery pack may not be opened. Batteries may only be changed when the headlamp has been returned to a non-hazardous location.
Similar in concept, the Signature headlamp has a fixed bumper style housing to protect the LEDs, and the wide body design includes additional peripheral lighting. It is approved for use in Division 1 classified locations involving Group C&D gases, and Division 2 areas involving gas groups A,B,C,D.
| Performance & Signature Helmet Headlamp – Specifications | ||
| Model | Performance | Signature |
| Style |
 |
 |
| I.S. Approval |
Class I, Division 1, Groups A-D, T6; Class I, Division 2, Groups A-D, T6, by MET to UL 913 |
Class I, Division 1, Groups C&D, T6; Class I, Division 2, Groups A-D, T6, by MET to UL 913 |
| Light Output | 555 CP / 44.2 Lumens | 480 CP / 38.2 Lumens |
| Light Field |
Field of vision: 45° Distance vision: 120-150 feet / 36-45 meters Peripheral vision: up to 60 feet / 18 meters Light bar may be tilted downwards by up to 45° |
Field of vision: 45° Distance vision: 120-150 feet / 36-45 meters Peripheral vision: up to 60 feet / 18 meters |
| Light Source | 24 white LEDs | |
| Environmental | Impact resistant; waterproof to 20 feet / 6 meters | |
| Materials |
Housing: polycarbonate Headband strap: elastic silicon Wiring: PVC jacketed cable |
Housing: SARLINK high temperature thermoplastic elastomer Headband strap: elastic silicon Wiring: silicon coated, Teflon jacketed cable |
| Weight |
Total: 10.1 oz / 287 g Headband: 3.4 oz / 97 g Battery pack: 6.7 oz / 190 g |
Total: 11.9 oz / 337 g Headband: 5.2 oz / 147 g Battery pack: 6.7 oz / 190 g |
| Power | 4x AA battery (battery pack is integral and NOT remotable) | |
| Battery Life |
Full power: up to 8 hours,
Reserve power: up to 12 hours, dependent upon battery quality and ambient temperature. |
Full power: up to 8 hours,
Reserve power: up to 16 hours, dependent upon battery quality and ambient temperature. |
| Warranty | 24 months | |
| Ordering Code: | 400-FF417-2 | 200-FF261-2 |
The iCAM100 is designed for use in hazardous areas where surveillance is required in tight spaces. The camera is a perfect choice for use in a CCTV network, or simply as a single point monitor of a process operation.
ATEX certified for Zones 1, 21, & 2, 22, and has IP65 ingress protection against harsh environments. 316L stainless steel and GRP construction.
The iCAM100 uses a high specification color CCD sensor operating down to 0.5 Lux and producing 380 line output in PAL format. Connection to a video monitor such as the iVID100 monitor below or CCTV system is made using either 75Ω coax or 150Ω differential signal cable outputs.
The iVID101 consists of a 12.1 TFT LCD display mounted in an ATEX explosion proof enclosure behind a glass viewing window. It can be connected to various types of video input signals including the iCAM100 and similar CCTV cameras. 24 VDC output is available to power the camera.
Options are available on request including external push buttons for pan, tilt, & zoom, video multiplexing, and full/quad screen functions. Other custom engineered solutions are available on request to meet your specific needs.
