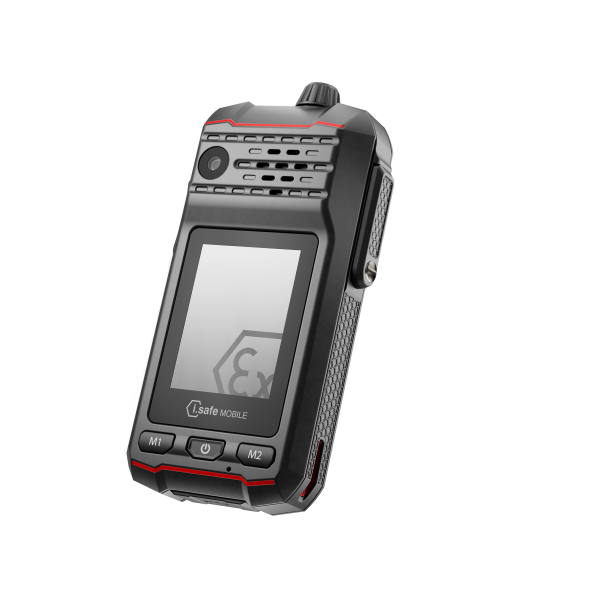

i.safe MOBILE IS440.1 Intrinsically Safe (Zone 1/21) 5G Radio

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

**C1/D1 CERTIFICATION PENDING**

The 5G radio ensures secure and failure-free PoC communication via public or campus networks (4G or 5G) or Wi-Fi® in Ex-Zone 1/21. A gateway makes the IS440.1 interoperable with previous radio technologies and enables a seamless integration into existing systems. The 5G radio offers a user-orientated look & feel, a replaceable battery, large buttons for PTT, SOS, talkgroup selection, a powerful front speaker, an ISM interface and a functional fixing clip. Includes a 2-year warranty.






We are an authorized i.safe Mobile distributor shipping to locations in North America.

$1,700.00

Product total
Options total
Grand total
Connect with Hazardous Area Expert

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Channel selector e.g. for PTT applications
  • Programmable red key (e.g. for lone worker protection/SOS)
  • Programmable side key (e.g. for PoC/PTT)
  • Additional programmable buttons, M1 & M2, assignable via Button App
  • 8-pin ISM interface for optional audio accessories
  • Powerful 4800 mAh battery for extreme runtime as an optional accessory
  • Amplified loudspeaker for noisy work environments
  • Integrated belt clip for safe carrying
  • 2-year warranty

Technical Data

Operating system ISM-OS
Processor Qualcomm® QCM6490 Octa Core
Memory 4 GB RAM
64 GB internal memory
Frequencies 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B68/B71
4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions Size: 5.38 x 2.81 x 1.26 in
Weight: .71 lbs
Display 2,4″ (6,096 cm) Corning® Gorilla® Glass V3
Battery 2400 mAh
replaceable
Camera 8 MP AF front
Connectivity Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot
Bluetooth® 5.2
GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS
Near Field Communication
Types of protection IP68 dust-/waterproof
MIL-STD 810H
Usable from -20 °C to +55 °C

Resources

Approvals





ATEX Approved (Europe)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

IECEx Approved (International)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

Included

  • 5G Radio
  • Battery
  • i.safe PROTECTOR 2.0
  • Power Adapter universal
  • Safety Instructions
  • Screwdriver
  • Display Protection Foil
  • Quick Start Manual
