i.safe MOBILE IS-VS1A.1 Intrinsically Safe (C1/D1) Valve Sense Mobile Inspection System

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

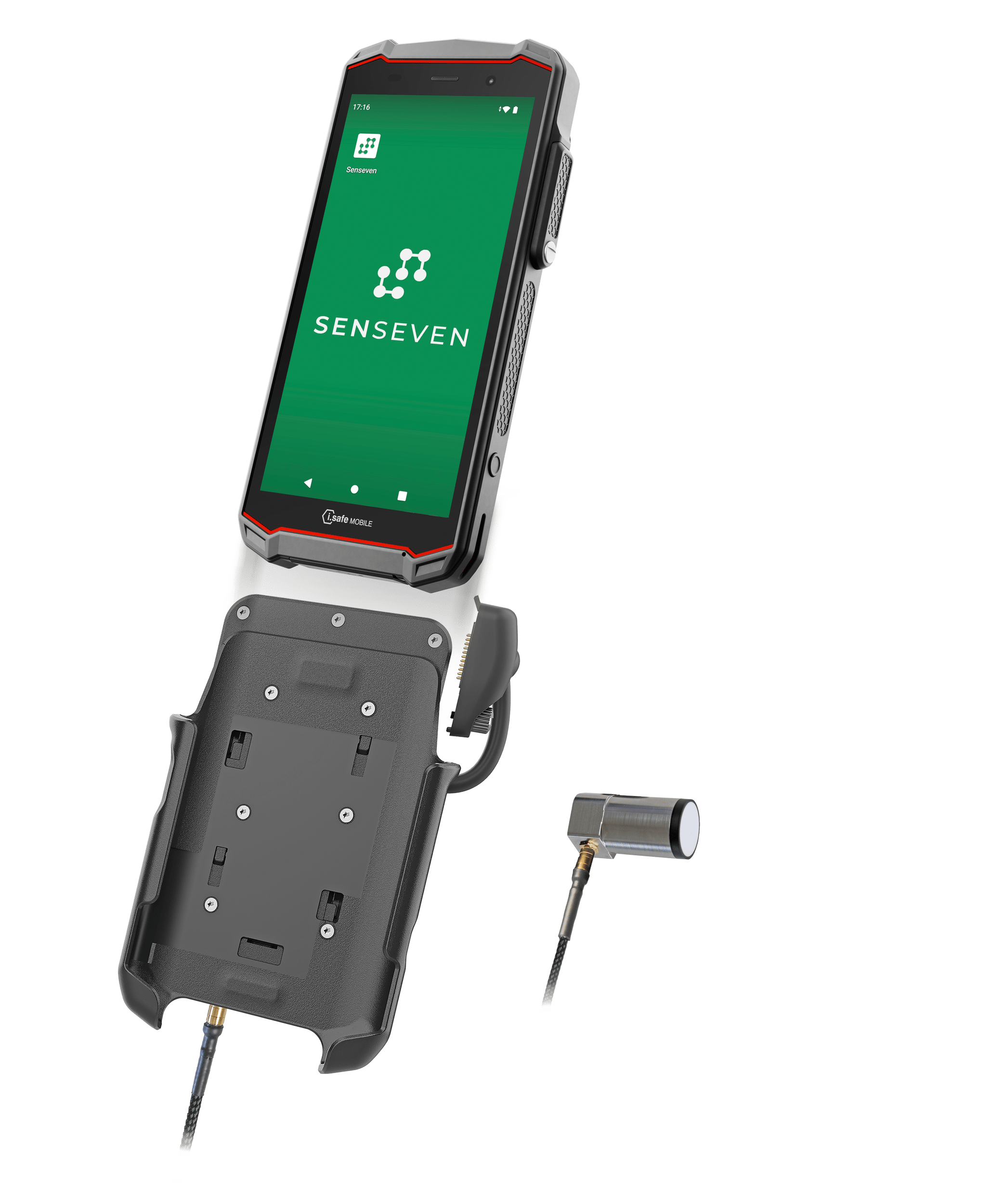

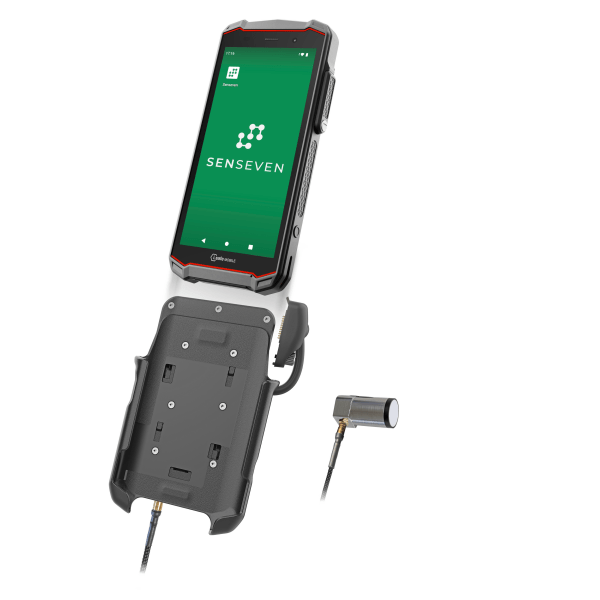

The Valve Sense mobile inspection system for leak detection in valves combines high-quality acoustic emission sensors with the 5G smartphone IS540.1 and the Senseven software. Intuitive operation, automatic leak detection, structured data management and a high-quality processor for fast data processing make it a unique maintenance tool in demanding industrial environments. Includes a 2-Year Warranty.





We are an authorized i.safe Mobile distributor shipping to locations in North America.

Connect with Hazardous Area Expert

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • User-friendly application without expert knowledge
  • Leakage detection through algorithms and artificial intelligence
  • Software-guided inspection process
  • Automated data transfer in cloud-based back office
  • Cost savings through predictive maintenance
  • Avoidance of unplanned production downtimes
  • 2 Year Warranty

Technical Data

Analog band width from (kHz) 20
Analog band width to (kHz) 500
Input range 94 dBAE / 100 dBAE
Sampling rate Res.: 2 MHz / 16 bit
Noise floor <12 μVRMS (95 – 300 kHz)
Power consumption <700 mW
Dimensions Size: 5.56 x 3.78 x 2.04 in
Weight: .48 lbs
Types of protection Usable from -20 °C to +55 °C

Resources

Approvals





ATEX Approved (Europe)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

IECEx Approved (International)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

NEC500 (North America) **Applied For**
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1

Included

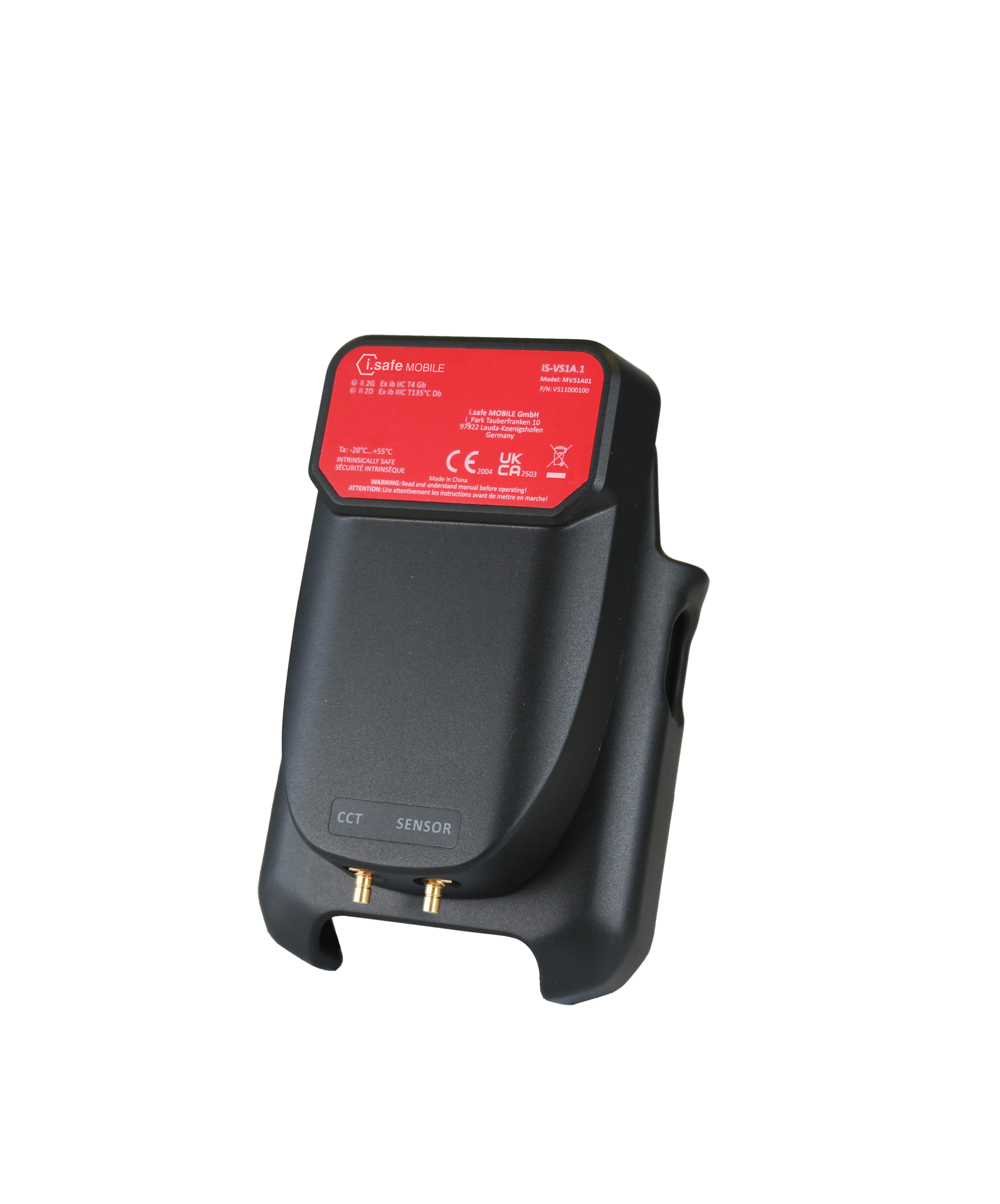

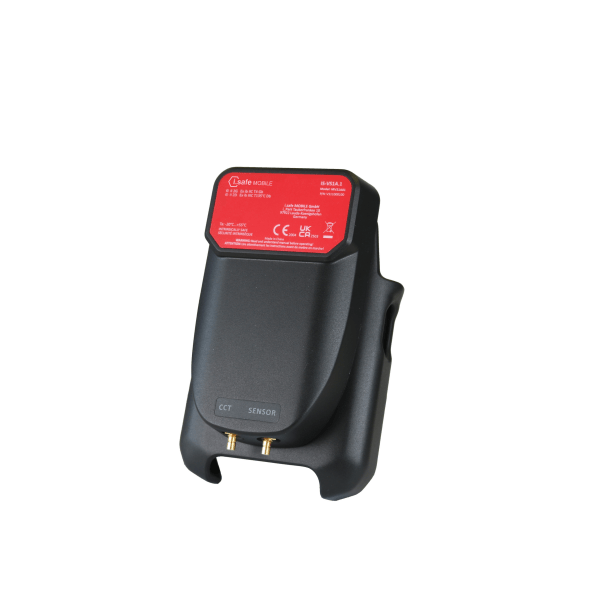

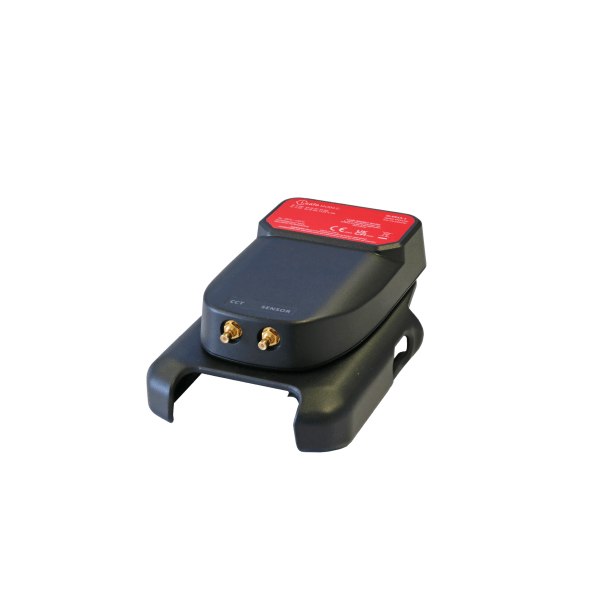

  • Measuring electronic IS-VS1A.1

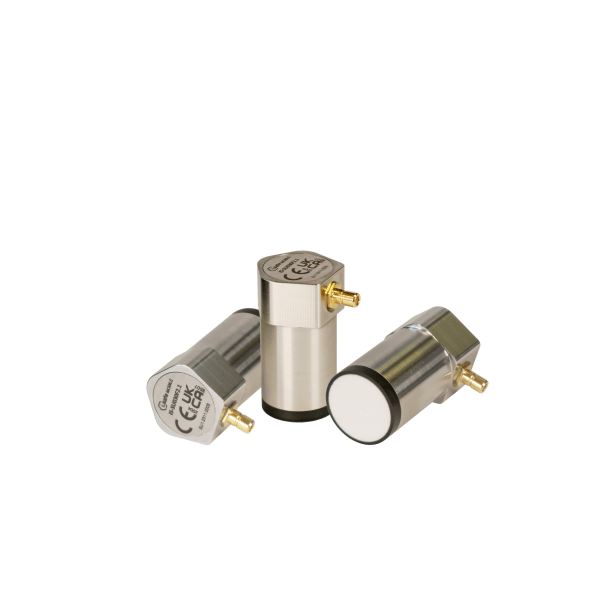

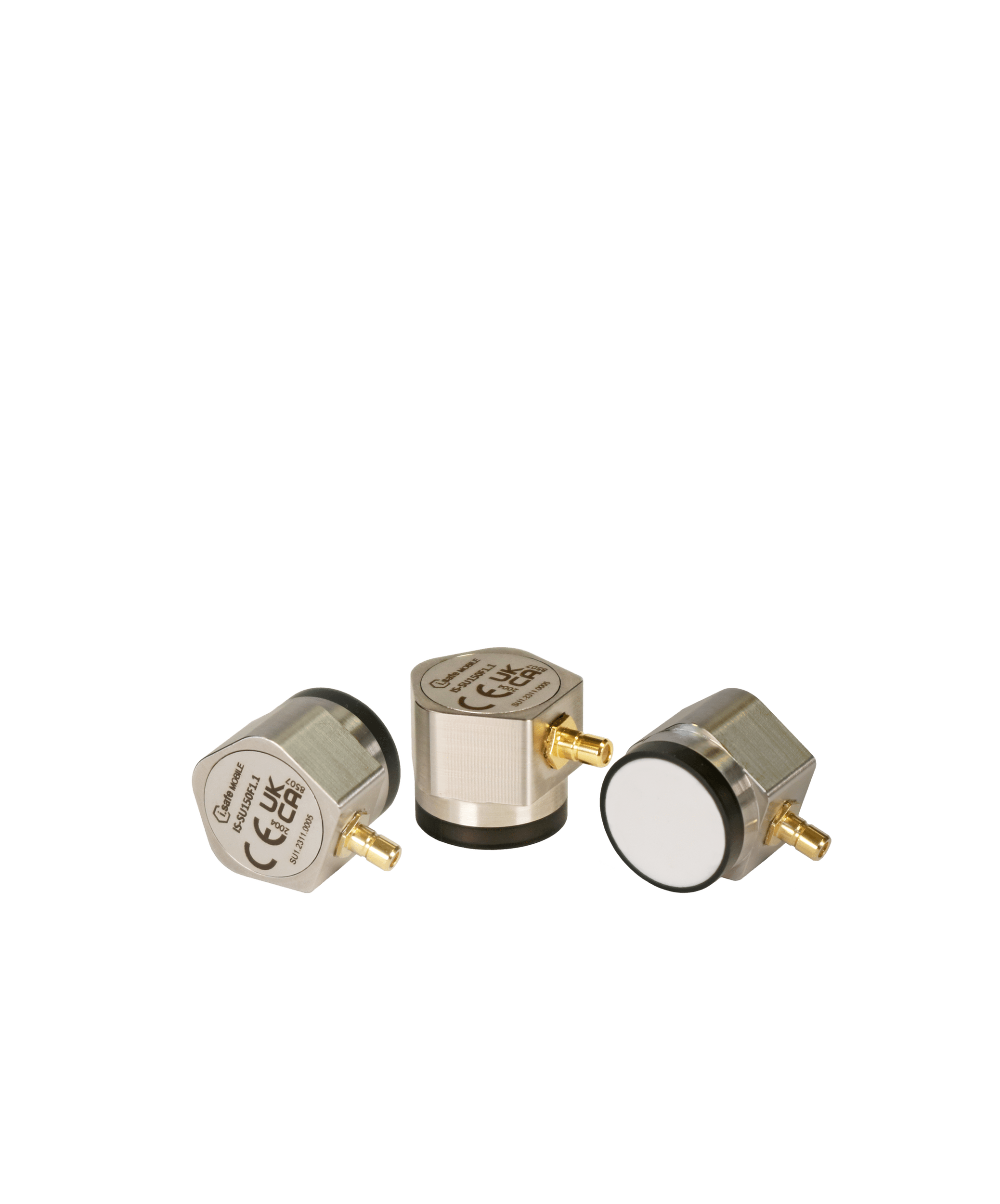

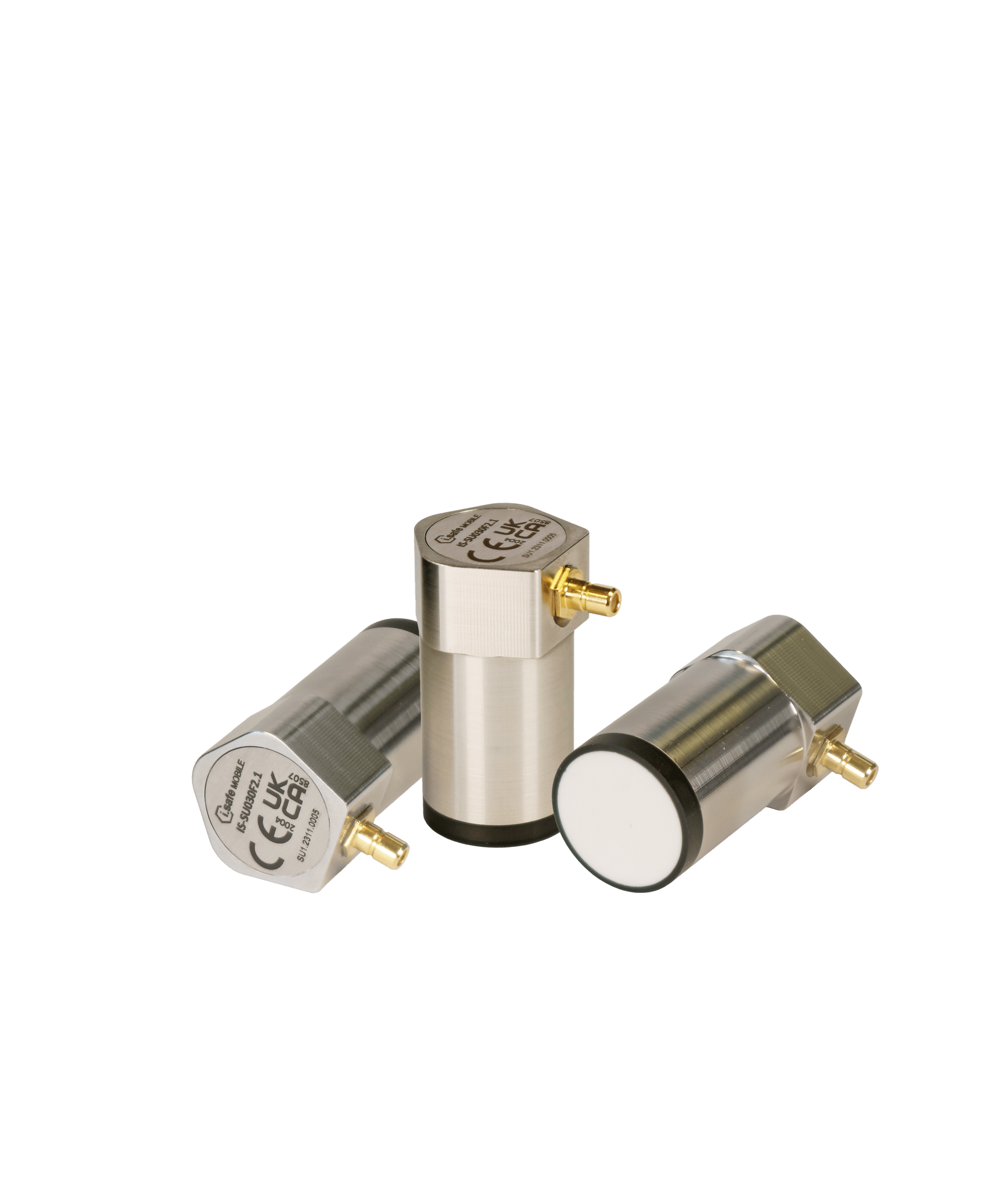

  • Sensor IS-SU150F1.1
  • Sensor IS-SU150F2.1
  • Waveguide Lock IS-WGLF1.1
  • Waveguide IS-WGxx.1
  • Sensor Cable
  • Coupling medium
  • Coupling film
  • Smartphone IS540.1
  • Battery
  • i.safe PROTECTOR 2.0
  • Power Adapter universal
  • Screwdriver
  • Safety Instructions
  • Quick Start Manual
  • Display Protection Foil
  • Display cleaning cloth
  • Carrying case
