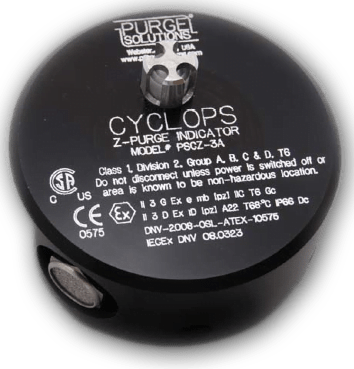

Purge Solutions CYCLOPS Z – Purge Indicator

SKU Cyclops Z Category

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-978-2040.

The CYCLOPS Z – Purge Indicator for use in Division 2 and / or Zone 2 hazardous areas, which monitors purge pressure in one (1) pressurized enclosure. Type “Z” purging reduces the classification within a protected enclosure from Division 2 and / or Zone 2 to non-hazardous.

Purge gas inlet kits are available with each controller. Contact us at 281-978-2040 for further details.









We are an authorized Purge Solutions distributor shipping worldwide.

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Low unit & installation cost
  • Simple to install & use
  • No tubing or conduit
  • Reliable & maintenance free
  • Built in primary exhaust vent
  • Local indicator & remote status alarm standard
  • Anodized aluminum or 316 stainless-steel
  • 12 or 24 VDC & 115 or 230 VAC
  • Continuous Dilution or Leakage Compensation Protective Gas Inlet Kits
For Z type purging, failure to maintain pressure within the protected enclosure is detected locally by a green LED visual indicator and for remote monitoring a dry contact is standard on the CYCLOPS Z – Purge Indicator. The dilution purge time is a manual operation and once the enclosure has been purged of ignitable or flammable concentrations, only positive pressure is required to be maintained within the enclosure and it is not necessary to remove power from the protected equipment upon the loss of purge pressure.
The enclosure exhaust vent is an integrated part of the CYCLOPS Z – Purge Indicator casing, which comes standard in anodized aluminum and as an option in 316 stainless-steel, with voltage options in 12 or 24 VDC and 115 or 230VAC. The CYCLOPS Z – Purge Indicator mounts directly to the enclosure being purged. This means no additional holes, sheet metal, or plumbing is required for installation of the CYCLOPS Z – Purge Indicator.
The CYCLOPS Z – Purge Indicator provides objective evidence of the presence of adequate positive purge pressure above 0.20 inches of water column (0.50mbar) from a single pressure point within electrical equipment enclosure. When the monitored enclosure registers a pressure of at least 0.20 inches water column (0.50mbar) above the reference atmospheric pressure surrounding the enclosure, CYCLOPS’s local green LED indicator will light up. A manually controlled time delay may then begin. Typically, a minimum time delay is specified to ensure that at least five (5) times the volume of free space in the enclosure is exchanged before power is manually applied to the electrical equipment being monitored by the CYCLOPS Z – Purge Indicator.
After the manual time delay has elapsed and the CYCLOPS’s local green LED indicator light is still illuminated, showing that the monitored enclosure pressure is being maintained above 0.20 inches of water column (0.50mbar), power may be manually applied to the electrical equipment within the protected purged enclosure. For further information refer to Sales Brochure, or User’s Manual.
Purge Solutions, Inc. CYCLOPS Z Purge Indicator is certified to ATEX, IECEx, NEC/NFPA, UL, CEC and CE Mark standards or guidelines by recognized third party notified bodies for use in hazardous areas worldwide.

Technical Data

Unit WeightCYCLOPS Z – Purge Indicator, Anodized Aluminum = 2.5 lbs. (1.2 kg)
CYCLOPS Z – Purge Indicator, 316 Stainless Steel = 6.7 lbs. (3.1 kg)
Continuous Dilution Protective Gas Inlet Kit, Small, Anodized Aluminum = 2.0 lbs. (0.9 kg)
Continuous Dilution Protective Gas Inlet Kit, Small, 316 Stainless Steel = 2.8 lbs. (1.3 kg)
Continuous Dilution Protective Gas Inlet Kit, Med. & Large, Anodized Aluminum = 3.0 lbs. (1.4 kg)
Continuous Dilution Protective Gas Inlet Kit, Med & Large, 316 Stainless Steel = 4.2 lbs. (1.9 kg)
Leakage Compensation Protective Gas Inlet Kit, Small, Anodized Aluminum = 4.0 lbs. (1.8 kg)
Leakage Compensation Protective Gas Inlet Kit, Small, 316 Stainless Steel = 5.5 lbs. (2.5 kg)
Leakage Compensation Protective Gas Inlet Kit, Med & Large, Anodized Alum. = 4.8 lbs. (2.2 kg)
Leakage Compensation Protective Gas Inlet Kit, Med. & Large, 316 Stainless = 6.9 lbs. (3.1 kg)
Back-Up Vent, Small, Side or Top Mount, Anodized Aluminum = 1.3 lbs. (0.6 kg)
Back-Up Vent, Small, Side or Top Mount, 316 Stainless Steel = 2.4 lbs. (1.1 kg)
Back-Up Vent, Medium, Side or Top Mount, Anodized Aluminum = 2.3 lbs. (1.0 kg)
Back-Up Vent, Medium, Side or Top Mount, 316 Stainless Steel = 4.0 lbs. (1.8 kg)
Back-Up Vent, Large, Side or Top Mount, Anodized Aluminum = 4.9 lbs. (2.2 kg)
Back-Up Vent, Large, Side or Top Mount, 316 Stainless Steel = 11.8 lbs. (5.4 kg)
Operating Temperature Range– 40ºF to 150ºF (- 40ºC to 65ºC)
Minimum Overpressure Switch Settings0.30 inch H2O (0.75 mbar) for gas hazardous locations
0.50 inch H2O (1.25 mbar) for dust hazardous locations
Ingress ProtectionAnodized aluminum and 316 Stainless Steel = NEMA 4X (IP66)
Power Input/
Consumption
0.5 Watts maximum
Voltage12 VDC Model, polarity-protected
24 VDC Model, polarity-protected
115 VAC Model, 50 / 60 Hz
230 VAC Model, 50 / 60 Hz
Alarm Dry Contact Maximum Continuous Load RatingContact open on alarm (NO)
Contact closed on alarm (NC)
150 mA rms AC
150 mA DC
Standard HardwareAll mounting fasteners, O-ring, warning label, and USB with unit documentation

Resources

CYCLOPS – Z Purge Indicator User Manual
CYCLOPS – Z Purge Indicator Brochure
ATEX Certificate
IECEX Certificate
NEC/NFPA Certificate
CEC Certificate
EU Declaration of Conformity
Korea Testing Laboratory Certificate

Approvals









ATEX, IECEx and UKEx
II 3G Ex ec ic [pzc] IIC T6 Gc for Zone 2 gas hazardous areas
II 3D Ex ic [pzc] tc IIIC T79°C Dc IP66 for Zone 22 dust hazardous areas
ANSI / ISA 12.4, CEC, NEC and NFPA 496
Class I, Division 2, Group A, B, C & D, T6 “for gas hazardous areas”
Class II, Division 2, Group F & G, T6 “for dust hazardous areas”
Certified to an Ambient Temperature Range of – 40ºF (- 40ºC) <Tamb< + 149ºF (+ 65ºC)
CE Marked
