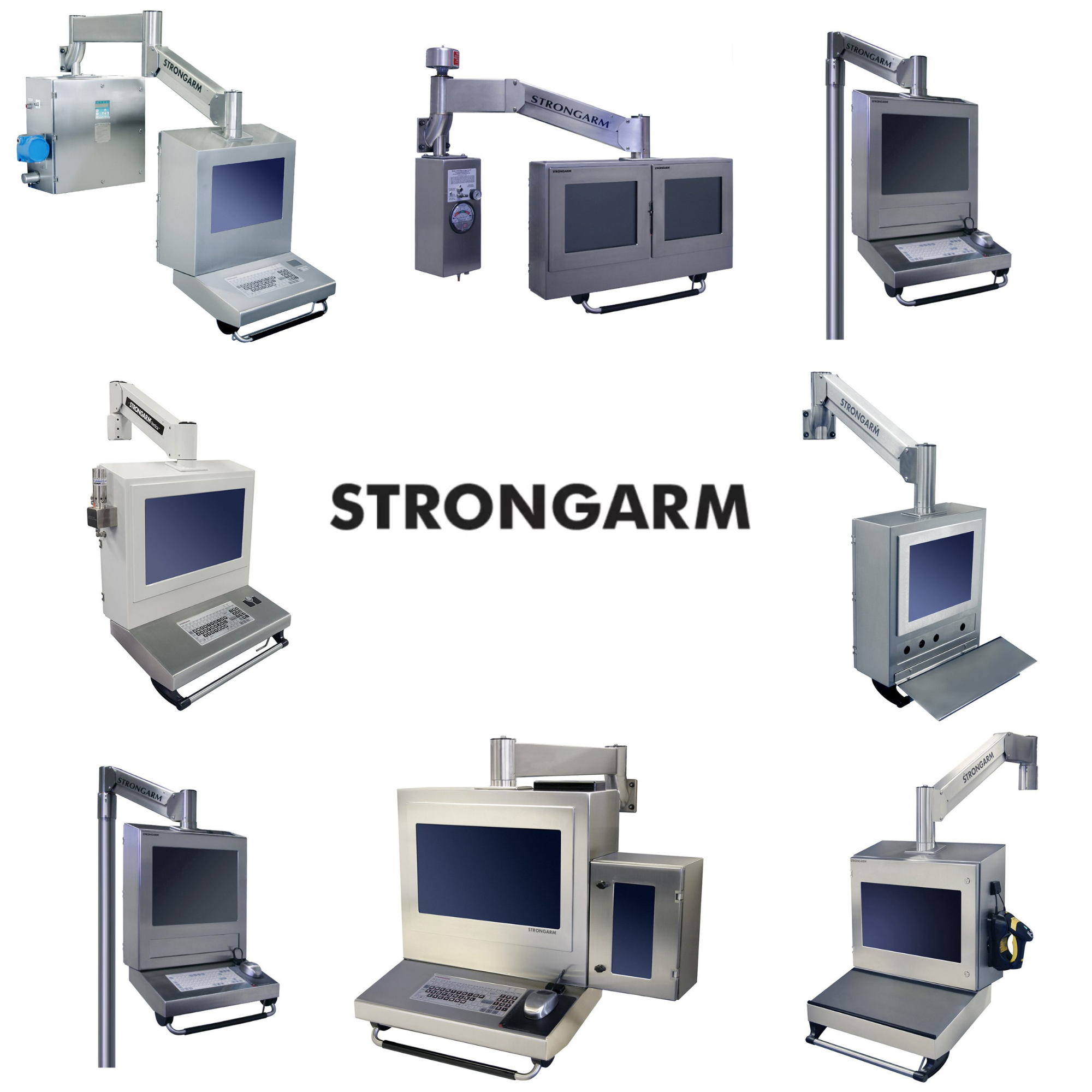

A grid of eight Strongarm MINISTATION™ industrial workstations with NEMA Type 4X stainless steel enclosures, arranged around "STRONGARM" in the center.

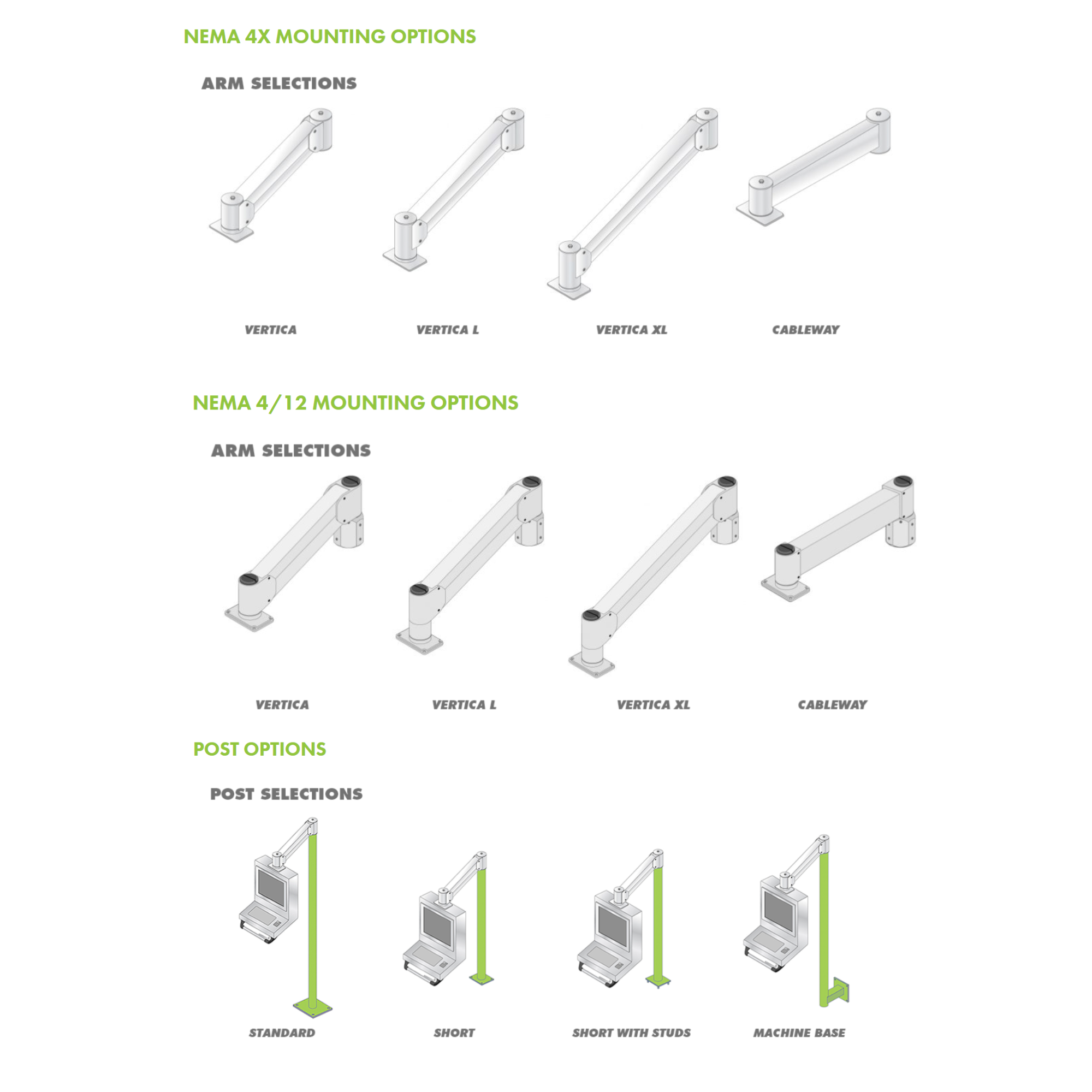

Diagram showing the Strongarm MINISTATION™ with various NEMA 4X and 4/12 mounting options, labeled arm selections (Vertica, Vertica L, Vertica XL, Cableway), post types (Standard, Short, Short with Studs, Machine Base), and NEMA 4X stainless steel enclosures.

Roll over image to zoom in Click on image to zoom

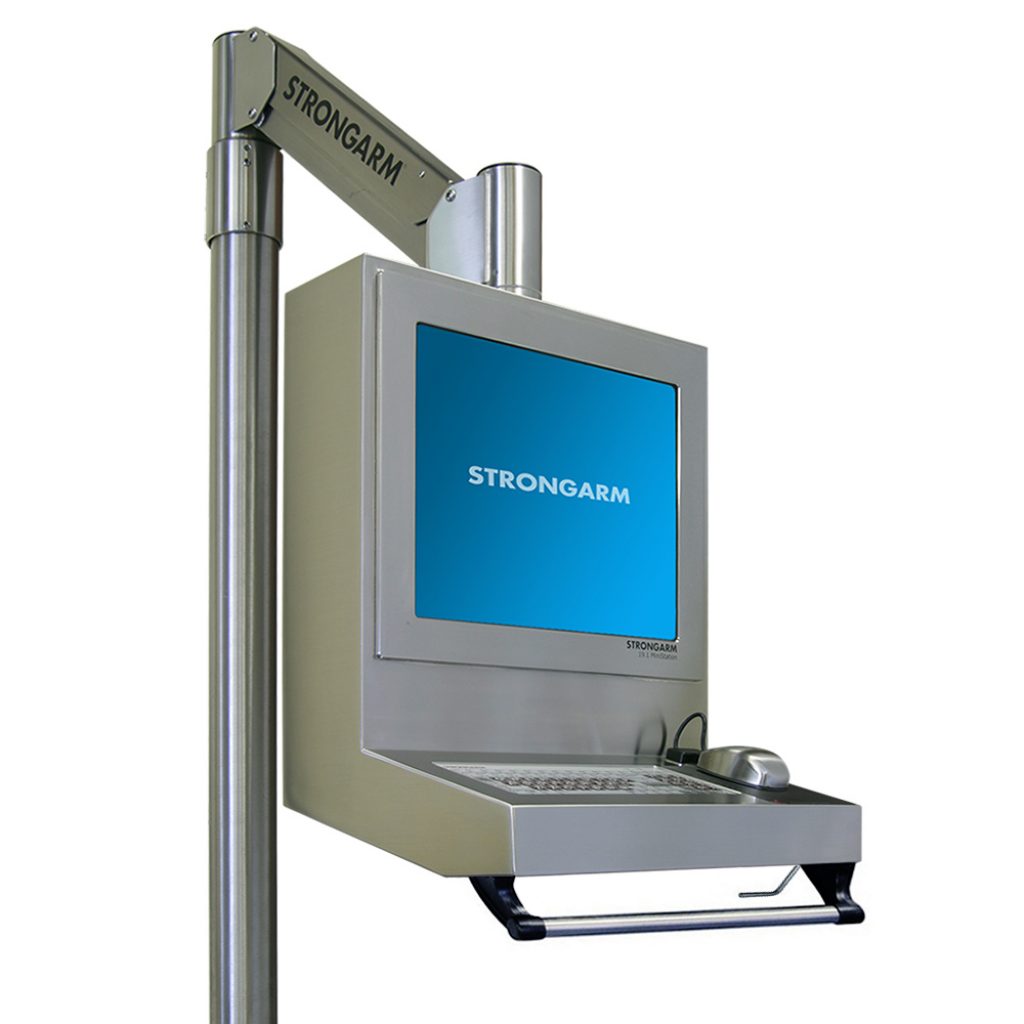

Strongarm MINISTATION™

Gas spring-assisted articulation up to 30″ (V – 13″; L – 23″; XL – 30″)
NEMA Type 4/12 (powder-coated steel, see color options) or NEMA Type 4X (304/316L stainless steel)
Custom colors available upon request
Internal 1.4″ (35mm) sealed cable passageway protects cables and wires
Release handle unlocks and automatically relocks after repositioning
Numerous mounting options, including wall mount, post mount, and machine top mount
Custom mounting solutions are also available
The enclosure can swivel up to 330°
Display sizes range from 15″ to 24″; available with or without a touch screen
Touch screen options are available for all industrial environments (See also: Touch Screen Technologies)
A variety of keyboard and input devices available, including Strongarm’s patented stainless steel mouse
Aluminum subpanel on the rear door for mounting terminal blocks, PCs, KVM’s, power supplies, and other components
Slotted, winged, or 1/4 turn door latches
Optional purge systems allow for installation in Division 1 or Division 2 hazardous areas
Intrinsically safe, non-incendive options available for Class I Division 2 areas
IP54, IP64, IP65 & IP66 configurations available
UL 508A Listed (File No E225791)

Get A Quote

Gas spring-assisted articulation up to 30″ (V – 13″; L – 23″; XL – 30″)
NEMA Type 4/12 (powder-coated steel, see color options) or NEMA Type 4X (304/316L stainless steel)
Custom colors available upon request
Internal 1.4″ (35mm) sealed cable passageway protects cables and wires
Release handle unlocks and automatically relocks after repositioning
Numerous mounting options, including wall mount, post mount, and machine top mount
Custom mounting solutions are also available
The enclosure can swivel up to 330°
Display sizes range from 15″ to 24″; available with or without a touch screen
Touch screen options are available for all industrial environments (See also: Touch Screen Technologies)
A variety of keyboard and input devices available, including Strongarm’s patented stainless steel mouse
Aluminum subpanel on the rear door for mounting terminal blocks, PCs, KVM’s, power supplies, and other components
Slotted, winged, or 1/4 turn door latches
Optional purge systems allow for installation in Division 1 or Division 2 hazardous areas
Intrinsically safe, non-incendive options available for Class I Division 2 areas
IP54, IP64, IP65 & IP66 configurations available
UL 508A Listed (File No E225791)

Description
Technical Data
Approvals

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-545-3968.

The first height-adjustable operator interface and HMI system, the MiniStation, has been refined over time and continues to be the market-leading ergonomic operator interface system. The counterbalanced vertical motion allows the operator to effortlessly lift, lower, and reposition the HMI using one hand by pulling on the release handle. When released, the arm automatically locks in the vertical position. NEMA Type 4 and 12 units are constructed from powder-coated steel and cast aluminum, and NEMA Type 4X units are fabricated from 304 or 316L stainless steel. Like all Strongarm products, the MiniStation is “engineered to order,” allowing us to design each system to meet your specific requirements.

Choose from a large selection of premium Strongarm-built industrial displays and industry-proven keyboards, pointers, and input devices. Strongarm can install and integrate all user-supplied components into your system, or we can procure, integrate, and wire any specified components before shipment, providing a 100% turnkey installation-ready system.

We are an authorized Strongarm distributor shipping to locations worldwide.

Technical Data

DISPLAY

Vertical Travel		Vertica: 13 inches Vertica L: 23 Inches Vertical XL: 30 inches
Counterbalance Capacity		Vertica: 100lbs Vertica L: 75 lbs Vertical XL: 50 lbs
Load Limitations		320 ft⋅lb maximum on swivel joint (Consult factory for larger loads)
Cable Passageway		1.4″ (35MM) diameter sealed continuous passageway maintains the NEMA rating and protects wires and cables
Finishing		NEMA 4X: RA35 brushed satin finish NEMA 12: Powder coated aluminum NEMA 4: Primed and powder coated aluminum
NEMA Rating		NEMA Type 4/12/4X
Standard Rotation Stops (Custom stops available upon request)		Enclosure Swivel: stop at ±165° Post Top Mount: stop at ±165° Wall Mount: stop at ±90° Machine Top Mount: stop at ±165° Middle Joint: stop at ±126° Rigid Wall Mount: stop at ±126°
Construction		Precision laser-cut and continuously TIG welded with all seams ground smooth
Enclosure Material		NEMA 4X: 14g 304/316L stainless steel sheet NEMA 4/12: 14g carbon steel low carbon sheet
Finishing		NEMA 4X; RA35, brushed satin finish NEMA 12: Powder coated steel NEMA 4: Primed and powder coated steel
Gaskets		NEMA 4/4X: Oil resistant silicone foam door gaskets NEMA 12: Poron door gaskets
Latches		NEMA 4/4X: 1/4 turn stainless steel slotted latches NEMA 12: 1/4 turn chrome slotted latch with zinc die black housing
Hinges		NEMA 4/4X/12: Rear door: 316 stainless steel lift-off hinges
Agency Approval		UL 508A (E225791), RoHS, CE, Reach
Ingress Protection		IP54, IP64, IP65 & IP66

Approvals

NEMA Rating		NEMA Type 4/12/4X
Enclosure Material		NEMA 4X: 14g 304/316L stainless steel sheet NEMA 4/12: 14g carbon steel low carbon sheet
Finishing		NEMA 4X; RA35, brushed satin finish NEMA 12: Powder coated steel NEMA 4: Primed and powder coated steel
Gaskets		NEMA 4/4X: Oil resistant silicone foam door gaskets NEMA 12: Poron door gaskets
Latches		NEMA 4/4X: 1/4 turn stainless steel slotted latches NEMA 12: 1/4 turn chrome slotted latch with zinc die black housing
Hinges		NEMA 4/4X/12: Rear door: 316 stainless steel lift-off hinges
