A Bluetooth Low Energy (BLE) Gateway with Wi-Fi connectivity as standard for use in Zone 2, 22 and Division 2 Hazardous areas.

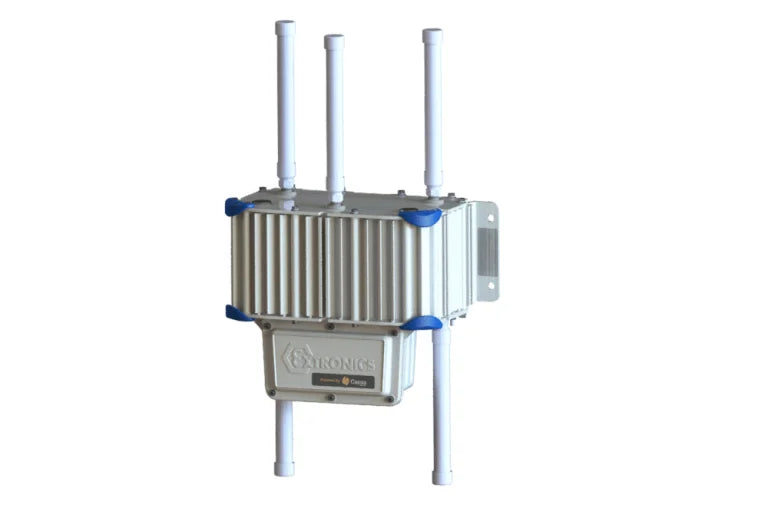

The Extronics iWAP XN3 X2000 is a long-range BLE gateway powered by Cassia Networks optimized for industrial IoT. It features a ruggedized enclosure, integrated TPM chip, 1GB of ram and both BLE and Wi-Fi outputs included on all options.
BLE5.0 technology allows the iWAP XN3 X2000 to extend range to as far as 1 kilometer and enables remote control of up to 40 Bluetooth Low Energy devices (and hundreds in broadcast mode) without requiring any changes to end devices.
- Highly rugged, IP66 and NEMA 4 rated
- ATEX and IECEx Zone 2 and 22 certified
- cMETus Class I, II Division 2 and Zone 2 certified
- Full Bluetooth capability through Bluetooth 4.0 and 5.0
- Use non-certified antennas with the intrinsically safe RF outputs
- Multiple connectivity options available
Bluetooth Low Energy Specification
- Bluetooth low power chip: 2x nRF52840
- Version: Bluetooth Low Energy 4.0/4.1/4.2/5.0
- Connections: Up to 40
- Tx Power: Configurable 2.5~18.5 dBm (limited by local regulations)
- Rx Sensitivity: -104.5 dBM
- Data Rates: up to 2×2 mbps
- Frequency: 2.400 to 2.483 GHz
- Antenna Gain: See iANT2xx datasheet for detail
Wi-Fi Connectivity Specification
- Wi-Fi (802.11 a/b/g/n/ac) Frequency: 2.4 GHz and 5 GHz – ISM Band
- Tx Power: 12 to 17 dBm for 2,4 GHz 8 to 15 dBm for 5 GHz
- Rx Sensitivity: – 95.5 to – 70.5 dBm for 2.4 GHz
- 90.5 to – 70.5 dBm for 5 GHz (depending on modulation)
