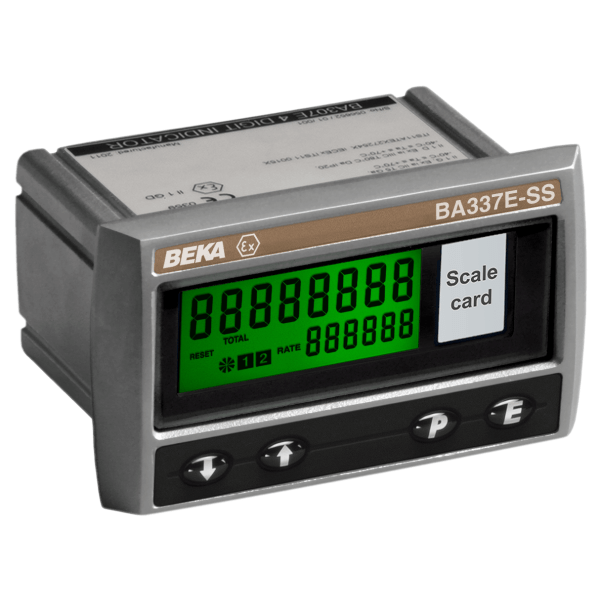

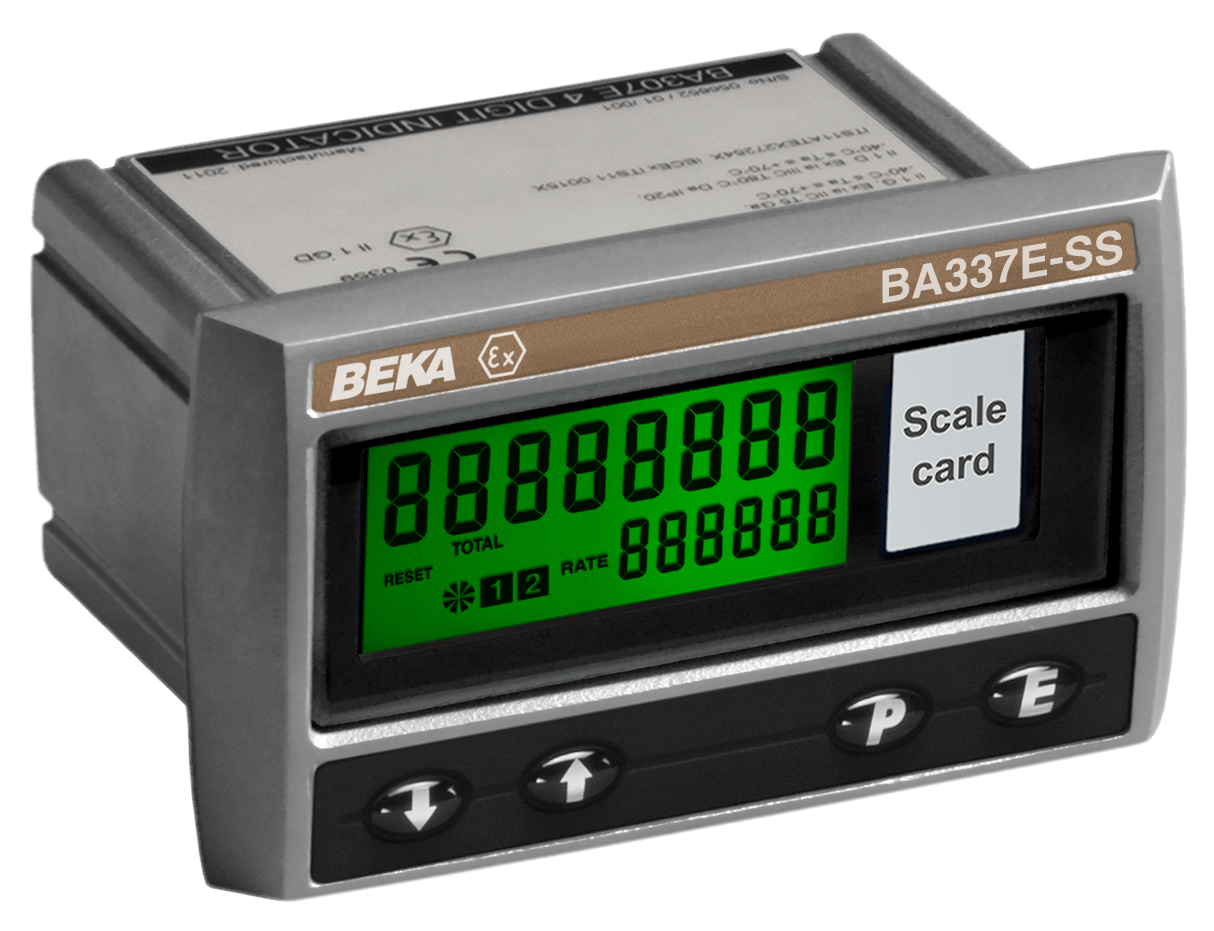

BEKA BA337E-SS Intrinsically Safe Pulse Input, Externally Powered, Rate Totalizer, Panel Mounting

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-978-2040.

The BA337E-SS is an intrinsically safe rate totalizer housed in a rugged stainless steel enclosure. The intrinsic safety certification and the rugged enclosure allow the BA337E-SS to be safely installed in an Ex e, Ex p, Ex n or Ex t panel enclosure without invalidating the panel enclosures certification. The intrinsically safe totalizer may also be installed in any uncertified panel enclosure located in Zone 0, 1 or 2 and is particularly suitable for marine environments or where the front of the instrument is likely to be impacted. The rate totalizer is easy to use and can be configured on-site to operate with flowmeters having a wide variety of pulse outputs. A slide-in scale card simplifies identification.

This easy to use, intrinsically safe rate totalizer can process and simultaneously display rate of flow and total flow from the pulse output of most flowmeters. International certification allows worldwide installation and a 16 segment linearizer ensures maximum accuracy.

Rate totalizer can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. Specified tag or application information can also be printed onto the rear of the instrument.

Supported by a three year guarantee.



We are an authorized BEKA distributor shipping to locations in the United States.

Connect with Hazardous Area Expert

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Intrinsically safe
  • Configurable input:
    • magnetic pick-off;
    • switch contact;
    • proximity detector;
    • open collector; or
    • voltage pulse
  • Separate rate and total displays with easy-to-read displays
    • Upper display: 8 digit 9 mm high
    • Lower display: 6 digit 6 mm high
  • 105 x 60mm rugged 316 stainless steel enclosure with IP66 front protection
  • Linearizer – 16 segment adjustable

Optional:

  • Backlight, internally powered
  • Alarm/Control Outputs or 4/20mA output or pulse output

Technical Data

Legacy Status Current
Mounting & Enclosures Rugged Panel 105x 60mm
Case Material 316 Stainless Steel
Display Primary: 8 digits, 9mm high
Secondary: 6 digits, 6mm high
Ingress Protection Front IP66, rear IP20
Alarm/Control Outputs Optional (or 4 to 20mA Output or Pulse Output)
4 to 20 mA Output Optional (or Alarm/Control Outputs or Pulse Output)
Backlight Optional, internally powered
External Pushbuttons Standard
Isolated Synchronous Pulse Output Optional (or Alarm/Control Outputs or 4 to mA Output)
Scale card & tag/application marking Optional, when information provided

Approvals







ATEX
IECEx
ETL USA & Canada
