Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote

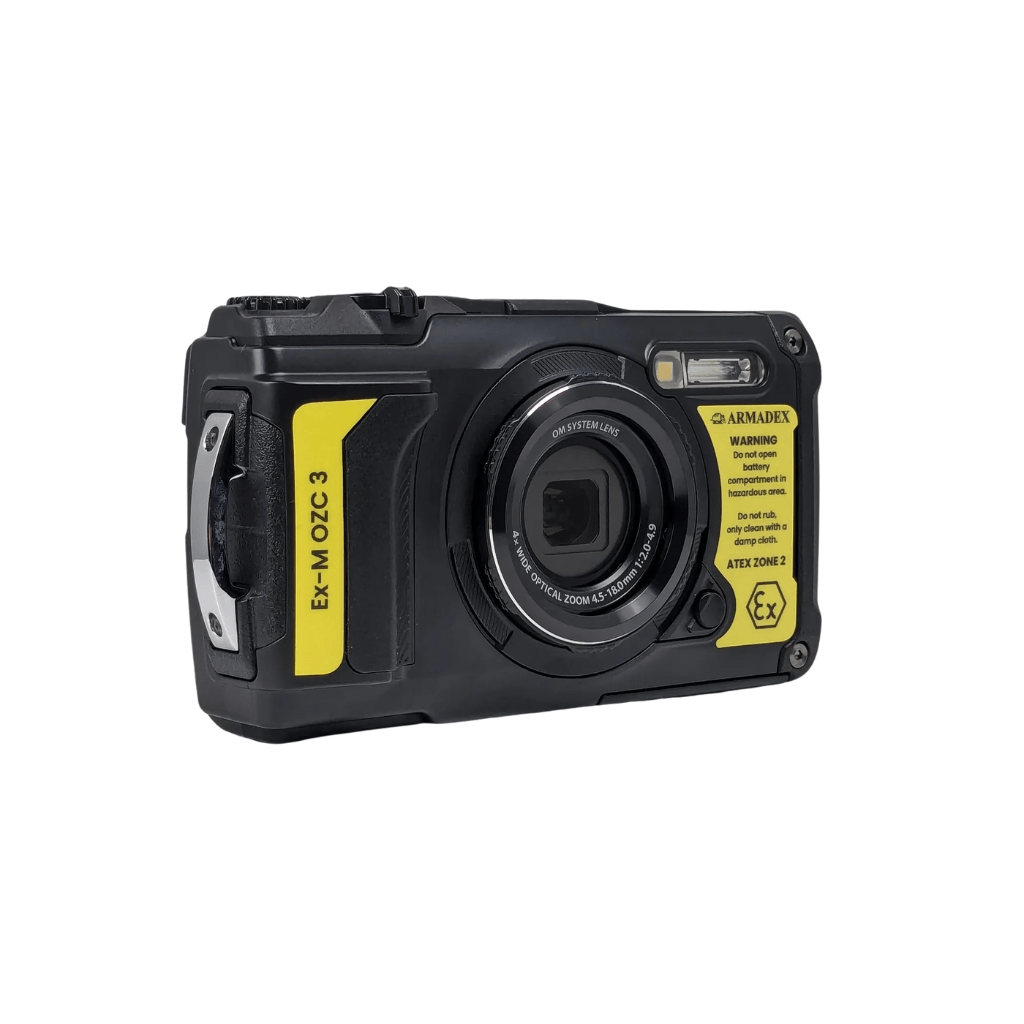

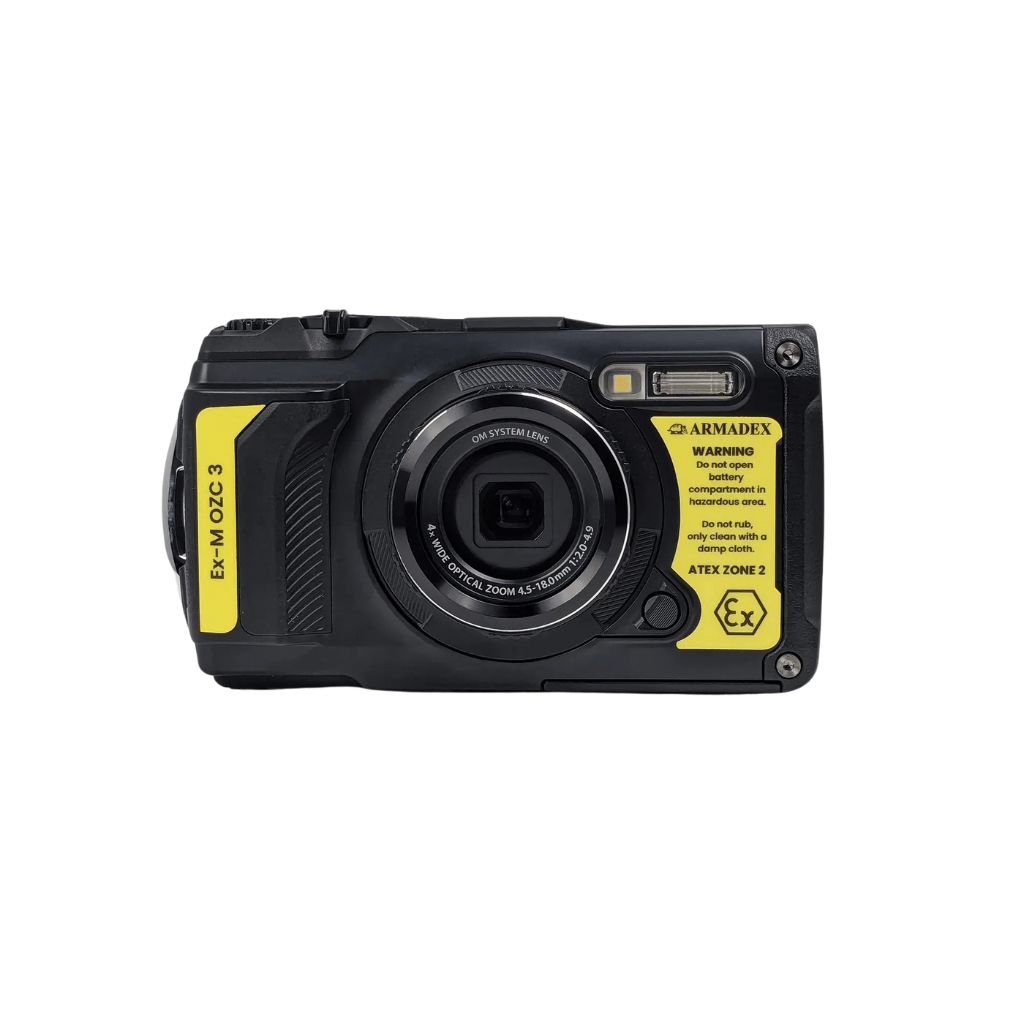

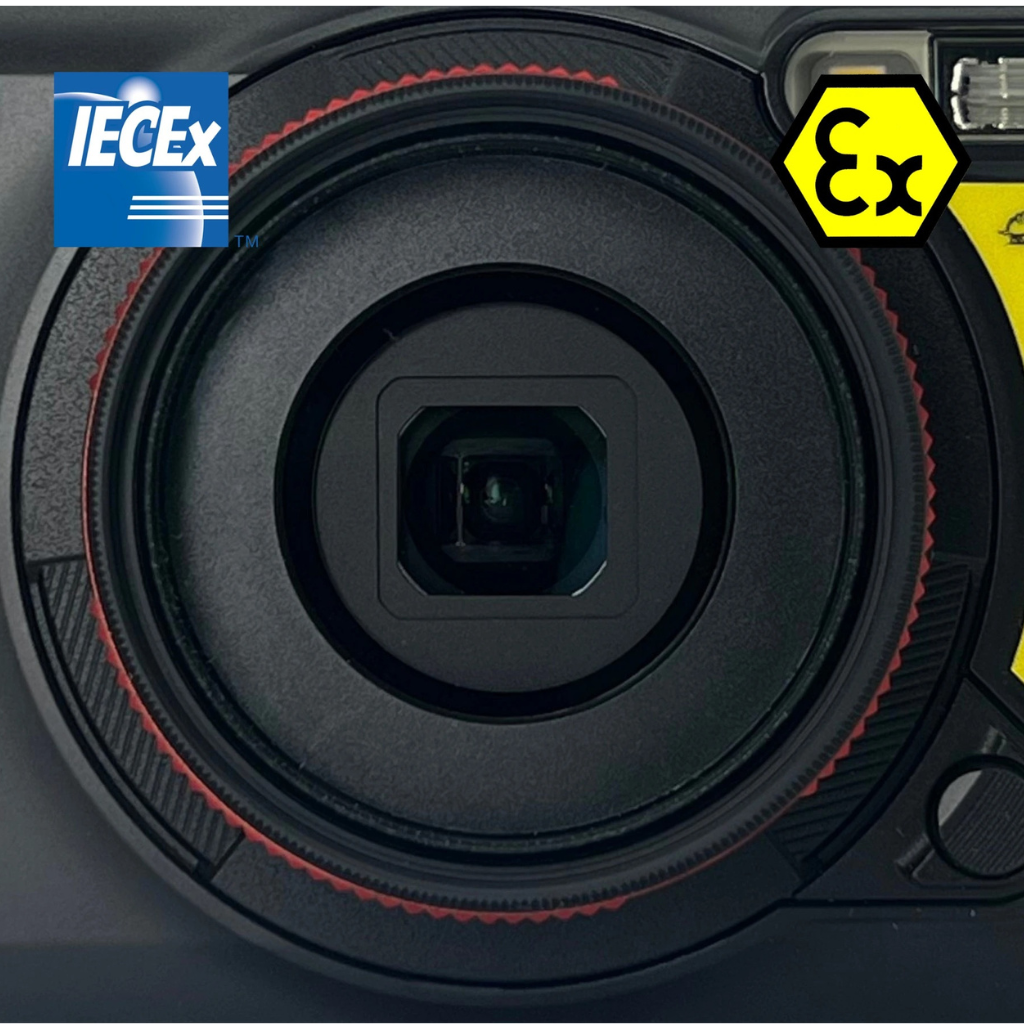

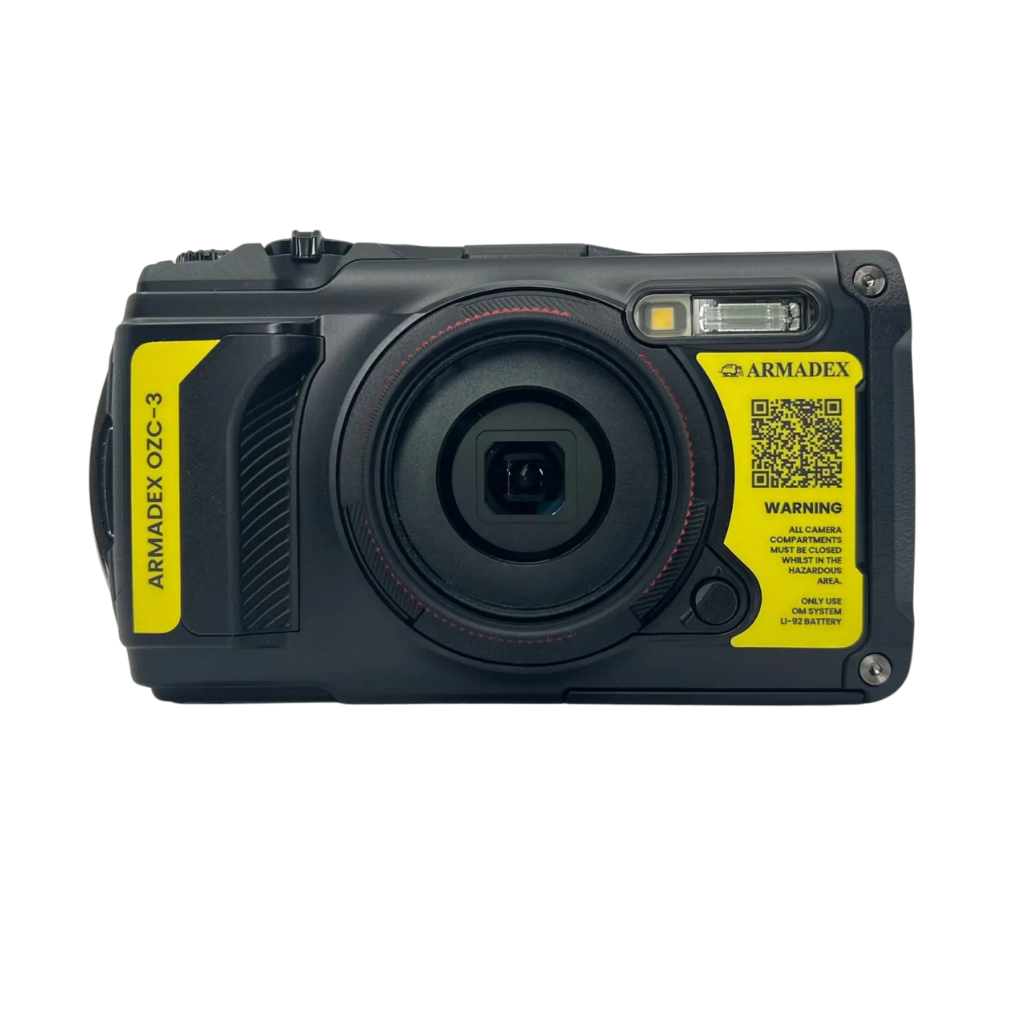

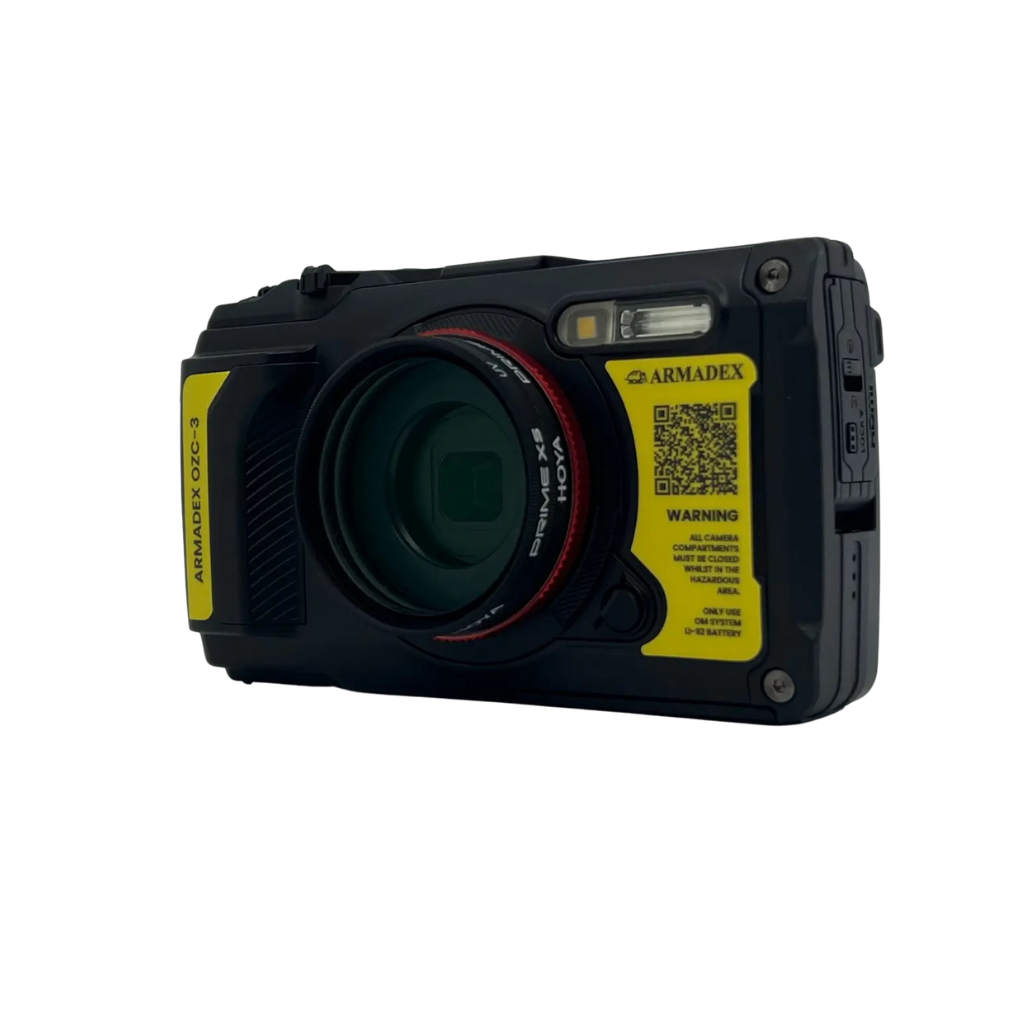

The ARMADEX Ex-M OZC 3 is the only explosion proof camera boasting a 4x optical zoom. Designed for ATEX Zone 2 (Gas) environments, this camera merges compact durability with high functionality. It withstands drops up to 2.1m, operates down to -10 degrees Celsius, and resists dust intrusion.
The OZC 3 is a modified version of the TG-7, in collaboration with OM System.
This camera excels in hazardous areas, offering specialized shooting modes for low light and dusty environments (construction mode), alongside a mode tailored for clear capturing labels. Ideal for maintenance and inspection tasks, it’s engineered for precision and safety.
Note: ATEX Regulations necessitate the xenon flash tube’s deactivation, but the LED flash remains operational, ensuring visibility and functionality.

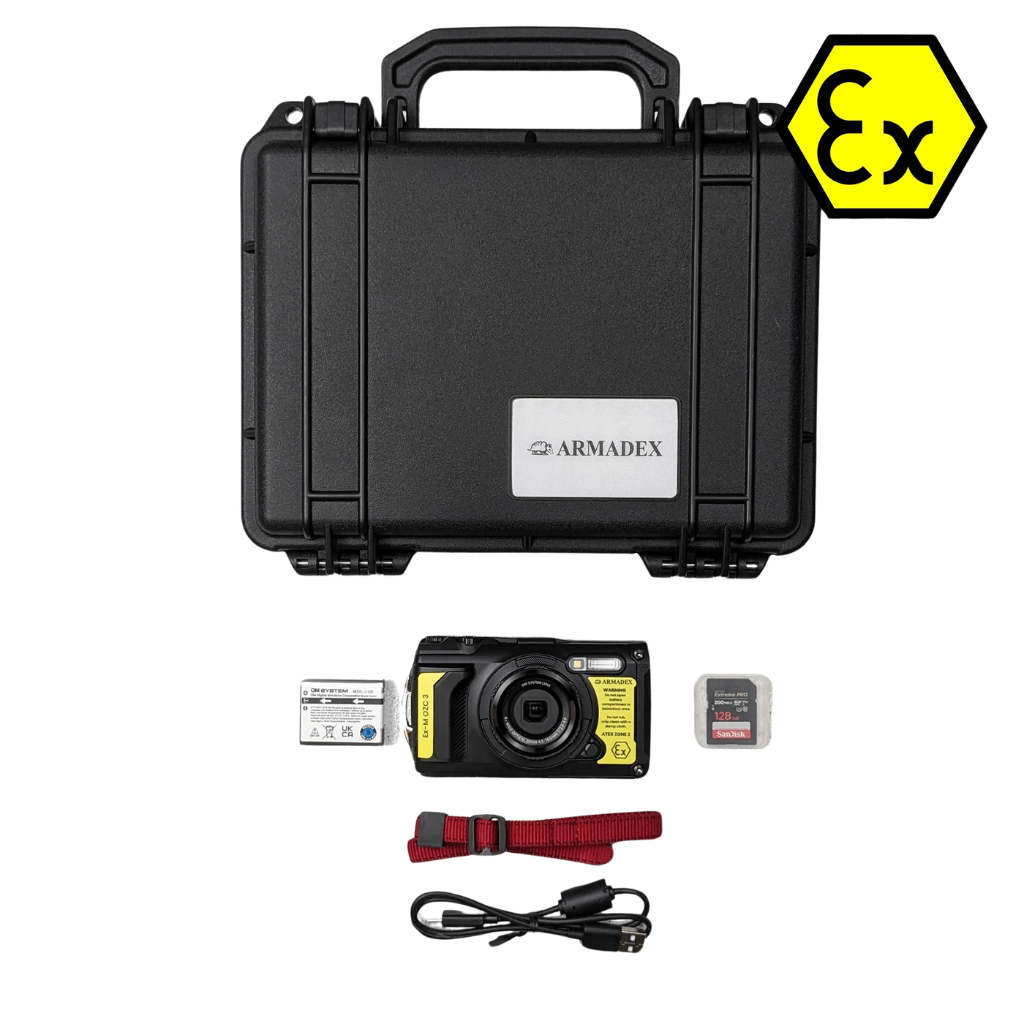

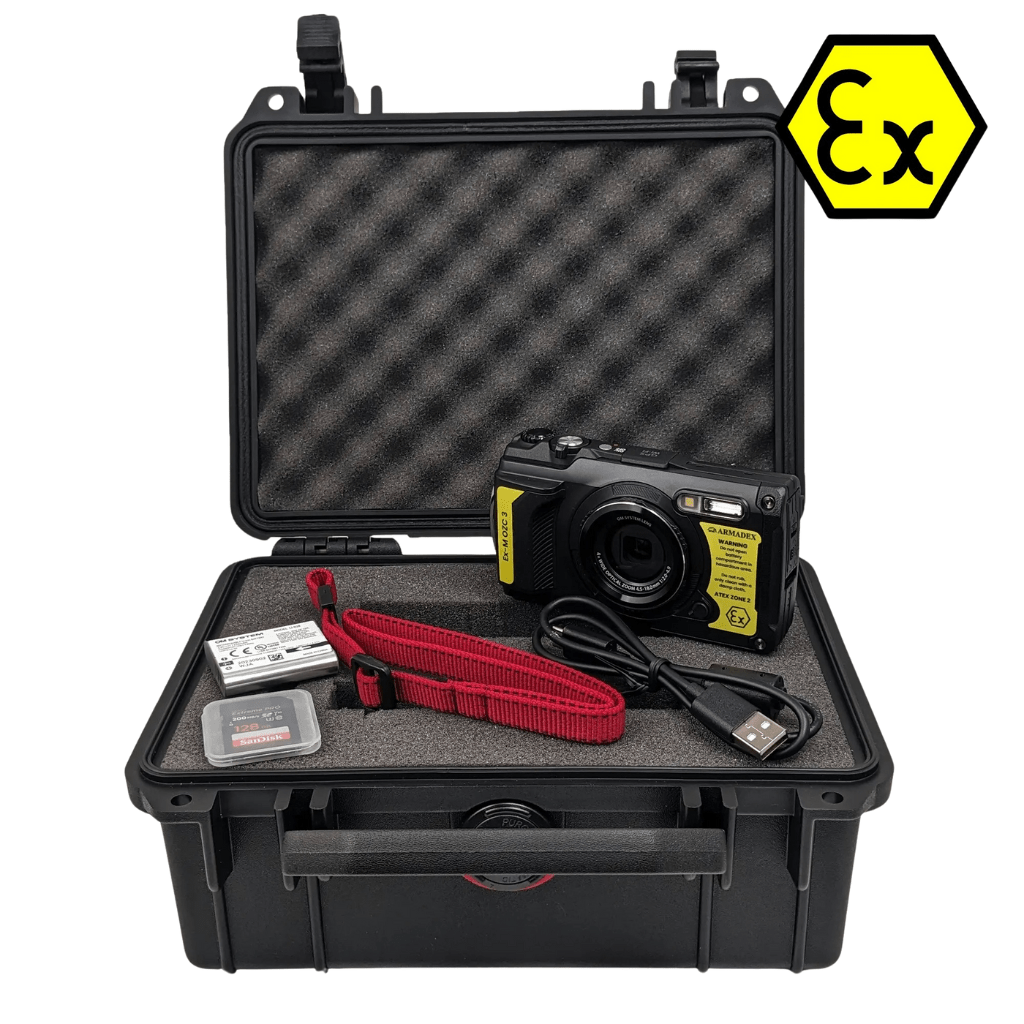

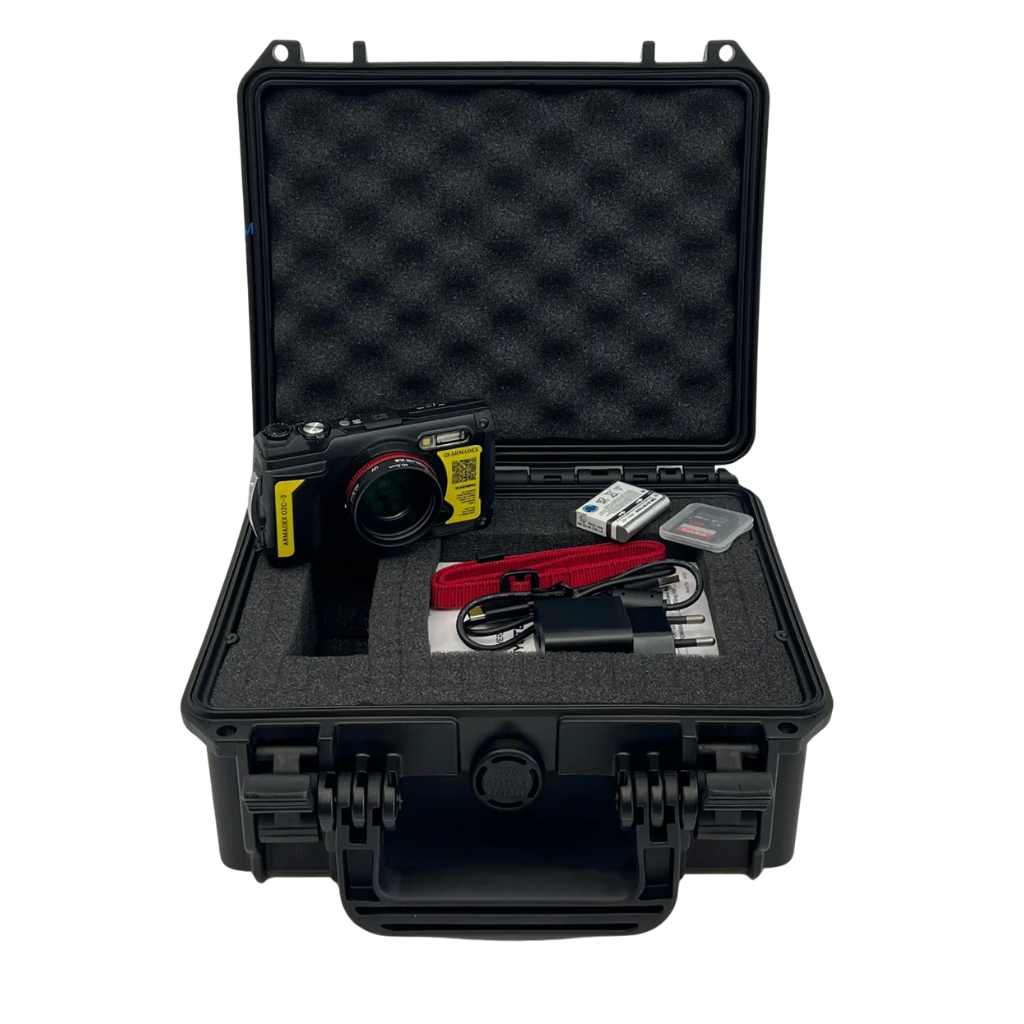

This product includes a tailor made PELI Rugged Case and SD Card.
Technical Data
| MAGE SENSOR | 12 MP – 1/2.3” BSI CMOS |
|---|---|
| PROCESSOR | TruePic VIII |

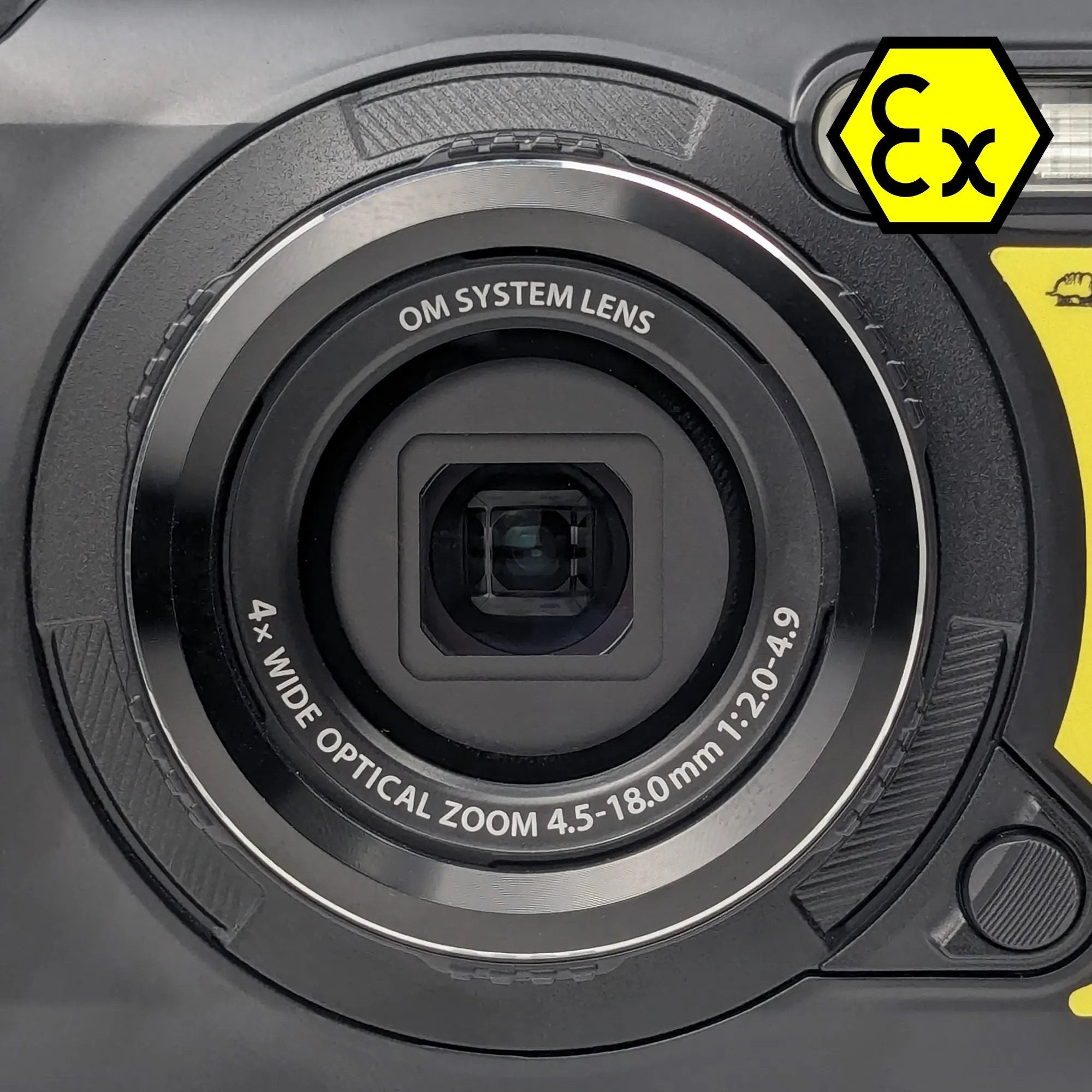

| LENSES | 25-100mm (35mm equiv.) – 4x Optical Zoom, F2.0 (W) – F4.9 (T) |
| MACRO CAPABILITY | Super macro: less than f=5.4mm, from 0.1m to 0.3m |
| ONE PUSH TELE-CONVERTER | x2 (P, A, Movie mode), x2/x4 (Microscope mode) |
| IMAGE STABILIZATION | Sensor Shift Image Stabilization |

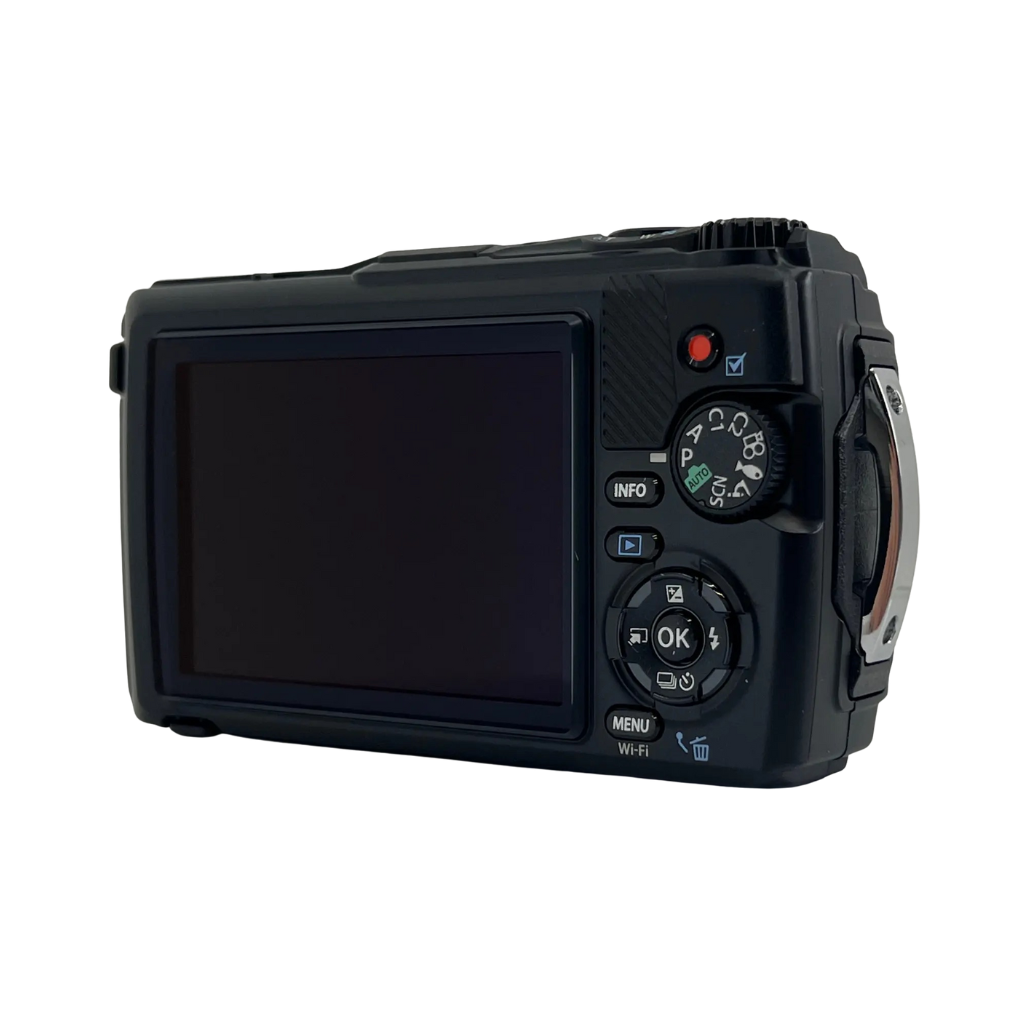

| MONITOR | 3.0”, approx. 1,037k dots (3:2) |
| ISO | 100 – 12,800 |
| SHUTTER SPEED | 1/2 – 1/2000 sec. (A mode: up to 4 sec.) |
| STILL PHOTO RECORDING | JPEG, RAW(12-bit lossless compression), JPEG+RAW, [RAW] 4000 x 3000, [JPEG] 4000 x 3000 ~ 1280 x 960 |
| SEQUENTIAL SHOOTING | [Sequential shooting H]*: approx. 20 fps with selectable 10/20 fps, [Sequential shooting L]: approx. 5 fps, [Pro Capture]*: approx. 10 fps *Electronic Shutter |
| INTERVAL SHOOTING | *Creating Time-lapse movie is possible with interval shooting up to 299 frames, *Time priority, Frame priority selectable, *Exposure smoothing is available |
| VIDEO | 3840×2160 (4K) 30p, 25p / IPB (approx. 102Mbps), 1920 x 1080 (FHD) / 60p, 50p, 30p, 25p / IPB (approx. 52Mbps, approx. 30Mbps, approx. 18Mbps), 1280 x 720 (HD) / 30p, 25p / IPB (approx. 26Mbps, approx. 14Mbps, approx. 10Mbps), *Frame rates may drop when particular Art Filters and Movie Effects are used. |
| TOUGH CAPABILITIES | Waterproof to depths of 50 ft / 15 m – IPX8, Dustproof – IP6X, Freezeproof to 14°F / -10°C, Crushproof to 220 lbf / 100 kgf, Shockproof from 7 ft / 2.1 m, Anti-fog dual pane lens cover glass |
| GPS / FIELD SENSOR SYSTEM | GPS (GLONASS, Galileo, QZSS), compass, manometer, temperature sensor, acceleration sensor |
| CREATIVE FEATURES | Live Composite, Art Filters, HDR, Underwater Modes, Macro Modes, Construction Mode |
| CONNECTIVITY | USB Type-C, Micro HDMI (type D), Built-in Wi-Fi (IEEE 802.11b/g/n), Built-in Bluetooth (Version 4.2 Bluetooth Low Energy) |
| POWER | LI-92B Li-ion battery |
| DIMENSIONS | 113.9 mm (W) x 65.8 mm (H) x 32.7 mm (D), 4.48 in (W) x 2.59 in (H) x 1.28 in (D) |
| WEIGHT | Approx. 249 g (with battery and memory card, based on CIPA standards) (0.55 lb / 8.78 oz) |
Resources
Approvals
II 3G Ex h ic IIC, IIB, IIA T4 Gc
SD Card Compatibility
SD Card Compability
The Armadex OZC 3 is compatible with the following SD cards:- SanDisk: Extreme Pro SDXC UHS-I Card (256GB, 512GB, 1TB)
- SanDisk: Extreme Pro SDHC/SDXC UHS-II Card (32GB, 64GB, 128GB, 256GB)
- SanDisk: Extreme PLUS SDHC/SDXC UHS-I Card (32GB, 64GB, 128GB, 256GB)
- KIOXIA: EXCERIA PRO SDXC UHS-II Memory Card (64GB, 128GB, 256GB)
- KIOXIA: EXCERIA PLUS SDHC/SDXC UHS-I Memory Card (32GB, 64GB, 128GB, 256GB, 512GB, 1TB)
