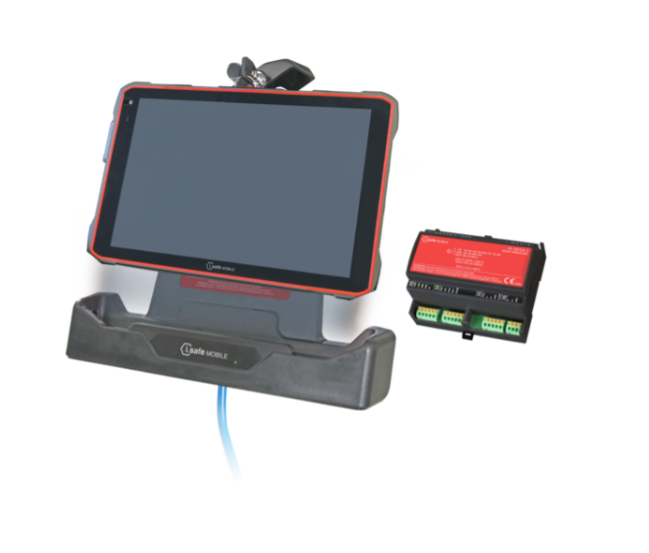

A rugged i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel paired with the intrinsically safe IS940.1 (C1/D1) Android tablet is shown in its charging dock, featuring a blue cable and positioned next to a compact black and red control device with connector ports—ideal for use alongside ex-rated peripherals in challenging explosive atmospheres.

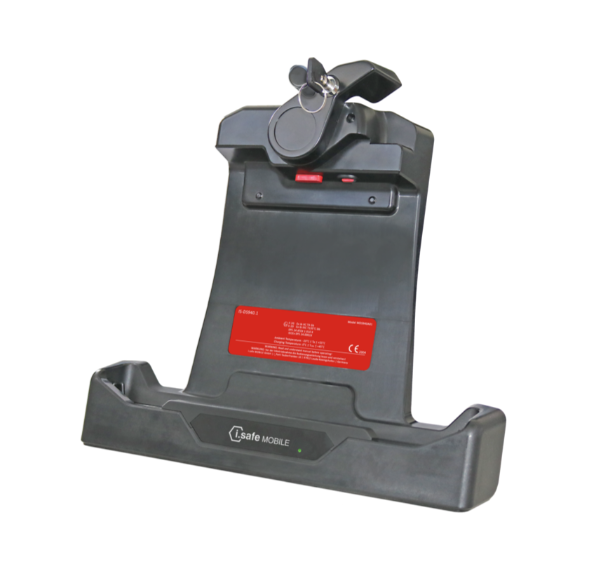

Black industrial mobile operator panel with a locking mechanism at the top, specifically designed for use with the i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel and IS940.1 intrinsically safe (C1/D1) Android tablet. It features a red label with product information in the center and a small LED indicator on the front, making it ideal for explosive atmospheres and compatible with Ex-rated peripherals.

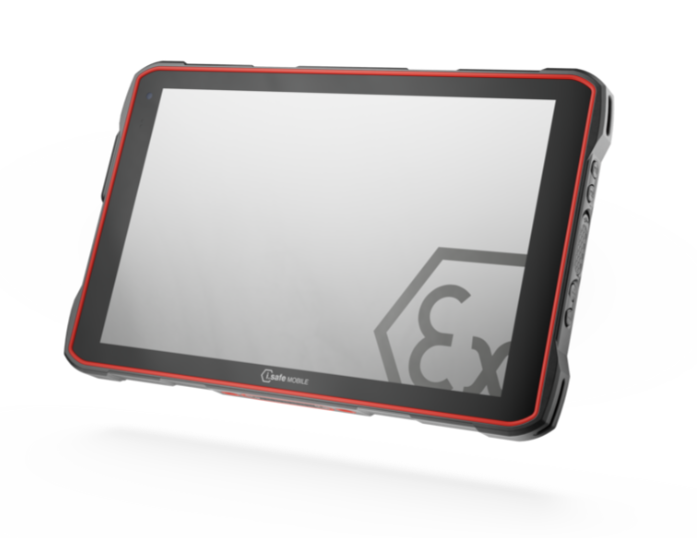

A rugged i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel featuring the IS940.1 Intrinsically Safe (C1/D1) Android Tablet in a black and red protective case, with a large display showing an industrial “Ex” safety symbol in the corner—signifying its approval for use in explosive atmospheres. Several buttons are positioned along the tablet’s right side, demonstrating compatibility with Ex-rated peripherals to offer enhanced safety and functionality.
The i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel features a black industrial-grade enclosure with a red label, several green and orange terminal blocks for wiring connections, and white technical markings on the label. Designed for use in explosive atmospheres, this panel is compatible with Ex-rated peripherals—including the IS940.1 Intrinsically Safe (C1/D1) Android Tablet—to ensure safe operation in hazardous environments.
Roll over image to zoom in Click on image to zoom
A rugged i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel paired with the intrinsically safe IS940.1 (C1/D1) Android tablet is shown in its charging dock, featuring a blue cable and positioned next to a compact black and red control device with connector ports—ideal for use alongside ex-rated peripherals in challenging explosive atmospheres.Black industrial mobile operator panel with a locking mechanism at the top, specifically designed for use with the i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel and IS940.1 intrinsically safe (C1/D1) Android tablet. It features a red label with product information in the center and a small LED indicator on the front, making it ideal for explosive atmospheres and compatible with Ex-rated peripherals.A rugged i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel featuring the IS940.1 Intrinsically Safe (C1/D1) Android Tablet in a black and red protective case, with a large display showing an industrial “Ex” safety symbol in the corner—signifying its approval for use in explosive atmospheres. Several buttons are positioned along the tablet’s right side, demonstrating compatibility with Ex-rated peripherals to offer enhanced safety and functionality.The i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel features a black industrial-grade enclosure with a red label, several green and orange terminal blocks for wiring connections, and white technical markings on the label. Designed for use in explosive atmospheres, this panel is compatible with Ex-rated peripherals—including the IS940.1 Intrinsically Safe (C1/D1) Android Tablet—to ensure safe operation in hazardous environments.

i.safe MOBILE IS-MOP1A.1 Mobile Operator Panel with IS940.1 Intrinsically Safe (C1/D1) Android Tablet

i.safe MOBILE

Highlights

Get A Quote

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals
  • Includes

Description

The Mobile Operator Panel IS-MOP1A.1 combines the IS940.1 intrinsically safe 5G Android tablet with the IS-CS1A.1 connectivity system, which includes a docking station, an interface module, and an interface cable. Docked, the tablet is continuously powered and charged for uninterrupted operation as a fixed operator panel. Undocked, it is a fully mobile tablet ready for work anywhere on site. The system offers wired connections for Ex-rated peripherals and a LAN interface for secure network integration. The interface module requires installation in a third-party Ex enclosure (not included).

Ex IECEx QPC

Authorized Dealer

We are an authorized i.safe MOBILE distributor shipping to locations in North America.

Technical Data

IS940.1 Tablet
Operating systemAndroid™ 14
ProcessorQualcomm® QCM6490 Octa Core
Memory8 GB RAM
128 GB internal memory
microSD card supported
Frequencies4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71
4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
DimensionsSize: 10.48 x 6.63 x .78 in (266,17 x 168,46 x 19,82 mm)
Weight: 2.33 lbs (1059 g)
Display10.1" (25,654 cm) Corning® Gorilla® Glass V3
usable with gloves
Battery8160 mAh, 3,7 V
replaceable
Camera50 MP AF rear
5 MP FF front
ConnectivityWi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot
Bluetooth® 5.2
GPS, A-GPS, Glonass, Beidou, Galileo
Near Field Communication
InterfacesUSB-C
ISM interface
12-pin docking interface
Types of protectionIP68 dust-/waterproof
MIL-STD 810H
Usable from -20 °C to +55 °C
IS-DS940.1 Docking Station
DimensionsSize: 11.81 x 10.09 x 3.76 in (300 x 256,2 x 95,4 mm)
Weight: 2.70 lbs (1226 g)
Type of installationVESA 100 mount
FeaturesLockable
LED charging status indicator
NFC docking tag
Amplified loudspeaker
IS-IM1A.1 Interface Module
Input power24 VDC ±10%, 1,2 A
DimensionsSize: 4.19 x 3.56 x 2.44 in (106,3 x 90,5 x 62 mm)
Weight: 1.01 lbs (457,4 g)
InterfacePush-in spring connection
Connection optionsX1: IS-DS940.x host interface
X2: USB 1.1 Ex i
X3: 24 V power input
X4: Ethernet Ex e
X5: USB 2.0 Ex e
X6: USB BUS Ex e
Type of installationTH 35 x 7,5 DIN rail (inside third-party Ex enclosure, not included)

Resources

IS940.1 Datasheet
IS-DS940.1 Docking Station Datasheet
IS-IM1A.1 Interface Module Datasheet
IS940.1 Operation Manual
IS-DS940.1 Operation Manual
IS-IM1A.1 Operation Manual
IS940.1 Safety Instructions
IS-DS940.1 Safety Instructions
IS-IM1A.1 Safety Instructions
IS-DS940.1 ATEX Certificate
IS-DS940.1 IECEx Certificate
IS-DS940.1 NEC Certificate
IS-DS940.1 CSA Certificate of Compliance
IS-DS940.1 Certificate of Compliance
IS-IM1A.1 ATEX Certificate
IS-IM1A.1 IECEx Certificate
IS-IM1A.1 INMETRO
IS940.1 Declaration of Conformity
IS-DS940.1 Declaration of Conformity
IS-IM1A.1 Declaration of Conformity

Approvals

Ex trans small logo IECEx Logo QPC Symbol

IS940.1 Tablet

ATEX (Europe)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

IECEx (International)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

NEC500 (North America)
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III

IS-DS940.1 Docking Station

ATEX (Europe)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

IECEx (International)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

NEC500 (North America)
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III

IS-IM1A.1 Interface Module

ATEX (Europe)
II 2G Ex eb mb [ib Gb] IIC T4 Gb
II (2)D [Ex ib Db] IIIC
I (M1) [Ex ia Ma] I

IECEx (International)
Ex eb mb [ib Gb] IIC T4 Gb
[Ex ib Db] IIIC
[Ex ia Ma] I

INMETRO (Brazil)
Ex eb mb [ib Gb] IIC T4 Gb
[Ex ib Db] IIIC
[Ex ia Ma] I
Tamb = -20 °C a +60 °C

Includes

  • IS940.1 Tablet
  • IS-DS940.1 Docking Station
  • IS-IM1A.1 Interface Module
  • Interface Cable
  • Safety Instructions

Third-party Ex enclosure for the interface module is not included, but available upon request. Additional charges apply.
