Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.
Flexible combination of a barcode scanner trigger handle and a latest-generation multifunctional smartphone for reliable data recording. The mobile multifunctional set replaces multiple devices in one. The IS-TH1xx.1 enables quick, easy 1D/2D barcode scanning at close range or at distances of 6 m (MR) to 15 m+ (ER). With C1/D1 and C1/D2 intrinsically safe certified versions available, users of legacy Windows Mobile scanners can migrate to a modern, Android Enterprise Recommended platform. Includes a 2-year warranty.
To be used in conjunction with the IS530.1 Intrinsically Safe (C1/D1) smartphone. Smartphone sold separately.

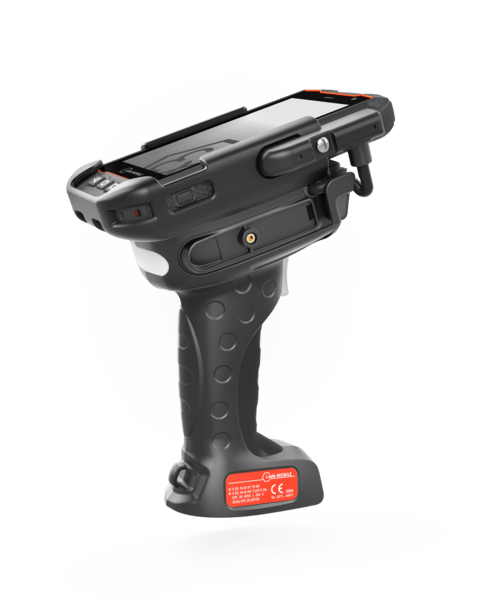

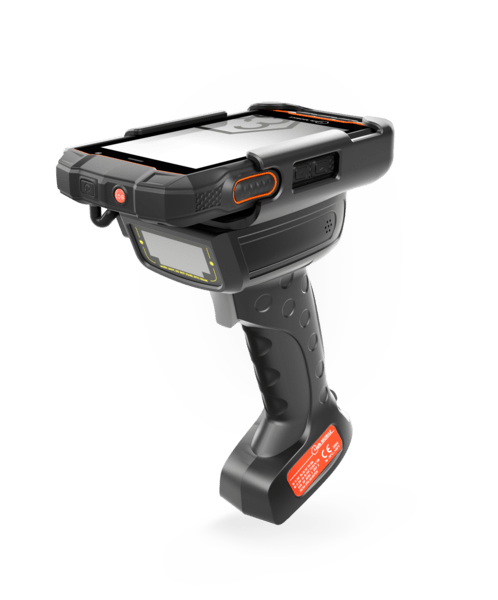

IS-TH1xx.1 Intrinsically Safe Barcode Scanner Trigger Handle
The IS-TH1xx.1 is an intrinsically safe barcode scanner trigger handle for use in Class I Division 1 / Division 2 and ATEX/IECEx Zone 1/21 hazardous areas. Paired with the IS530.1 industrial smartphone, it provides reliable 1D/2D scanning in environments with explosive gas or dust. It connects via the multifunctional ISM interface, so there is no Bluetooth pairing and no separate batteries, while maintaining full explosion-protection compliance.
Features and Technical Specs
- Built for HazLoc: Intrinsically safe design for C1/D1, C1/D2, and Zone 1/21.
- Rugged: IP68 and MIL-STD-810G for dust, water, and impact resistance.
- Direct interface: Data + power through ISM; no extra battery.
- User feedback: Audible beep, vibration alert, and LED status indicator.
Models / Scanning Engines
- Zebra SE4750 MR (mid-range): reads up to ~6 m
- Zebra SE4850 ER (extended-range): reads beyond 15 m
Compatibility
- Device: IS530.1 smartphone (C1/D1 and C1/D2 certified)
- Interface: Multifunctional ISM (direct data + power)
- Power: Draws from connected smartphone; no charging required on the handle
Certifications
- Approved for Class I Division 1 / Division 2 and ATEX Zone 1/21
- Tested to IECEx international standards for intrinsic safety
- Meets NEC 500 requirements (Groups A–G)
- Certificates: ATEX EPS 20 ATEX 1 203 X | IECEx EPS 20.0075X
Environmental
- Operating temperature: −20 °C to +60 °C (Ex use); −10 °C to +50 °C (EN/IEC 62368-1)
- Dimensions / weight: 200 × 125 × 82 mm | MR ≈ 380 g (0.84 lb) | ER ≈ 400 g (0.88 lb)
- Warranty: 2 years
Use Scenarios and Benefits
Designed for high-risk operations in oil and gas, chemicals, utilities, and warehousing. Attach to the IS530.1 to capture barcodes with a single-handed trigger, including in confined or elevated locations within Zone 1/21 or C1/D1 areas.
- Long-range scanning for assets at height or distance
- Fewer data-entry errors and faster asset tracking
- Maintains operator safety in hazardous environments
- Rugged enclosure minimizes downtime
- Android Enterprise integration for secure device management
Buying and Integration
- Pair with the IS530.1 smartphone certified for C1/D1 / Zone 1/21 use.
- Select MR or ER engine based on typical working distance and site conditions.
- Optional accessories: desktop charger, programming adapter, leather holster.
- Technical support and certification documents available from Exloc.
FAQs
What makes the IS-TH1xx.1 intrinsically safe?
Its electronics limit energy release and surface temperature to prevent ignition of flammable gases or dusts. Certified under ATEX, IECEx, and NEC 500 for Zone 1/21 and Class I Division 1.
How do the mid-range and extended-range versions differ?
Both scan 1D/2D. The SE4750 MR reads to ~6 m for indoor/warehouse tasks. The SE4850 ER extends beyond 15 m for outdoor assets like tanks or pipelines.
Does the handle need charging or a separate battery?
No. It draws power directly from the IS530.1 via the ISM interface. The smartphone can be charged while docked.
What environments is the IS-TH1xx.1 approved for?
C1/D1 and C1/D2 hazardous areas, ATEX/IECEx Zone 1/21. Tested to MIL-STD-810G and IP68.
How should the handle be connected safely?
Attach or remove the scanner outside the hazardous area. Check gaskets and ensure the ISM connection is fully secured before entering Zone 1 or C1/D1.
What accessories are available?
Charging cradles, programming adapter, and leather holster. Availability may vary; verify options when ordering.
Technical Data
| Type | IS-TH1xx.1 |
|---|---|
| Size | 7.87 x 4.92 x 3.23 in (200 x 125 x 82 mm) |
| Weight | 1.10 lb (500 g) - without IS530 |
| Indication Function | Loudspeaker, Vibration, LED-Display |
| Power Supply | Over IS530, this can be loaded in the handle |
| Communication | Over the multi-functional ISM interface of the IS530 |
| Scan Types | MR (mid range) with Zebra SE4750 MR, up to 6 metersER (extended range) with Zebra SE4850 ER, over 15 meters |
Resources
Approvals
- ATEX Zone 1/21
II 2G Ex ib op is IIC T4 Gb
II 2D Ex ib op is IIIC T135°C Db
- IECEx Zone 1/21
Ex ib op is IIC T4 Gb
Ex ib op is IIIC T135°C Db
- NEC500
(approved for North America)
Class I Division 1, Groups A, B, C, D, T4
Class II Division 1, Groups E, F, G, T135˚C
Class III Division 1
Includes
- Trigger Handle
- Screwdriver
- Safety Instructions
- Quick Start Manual
