Description
**COMING SOON**

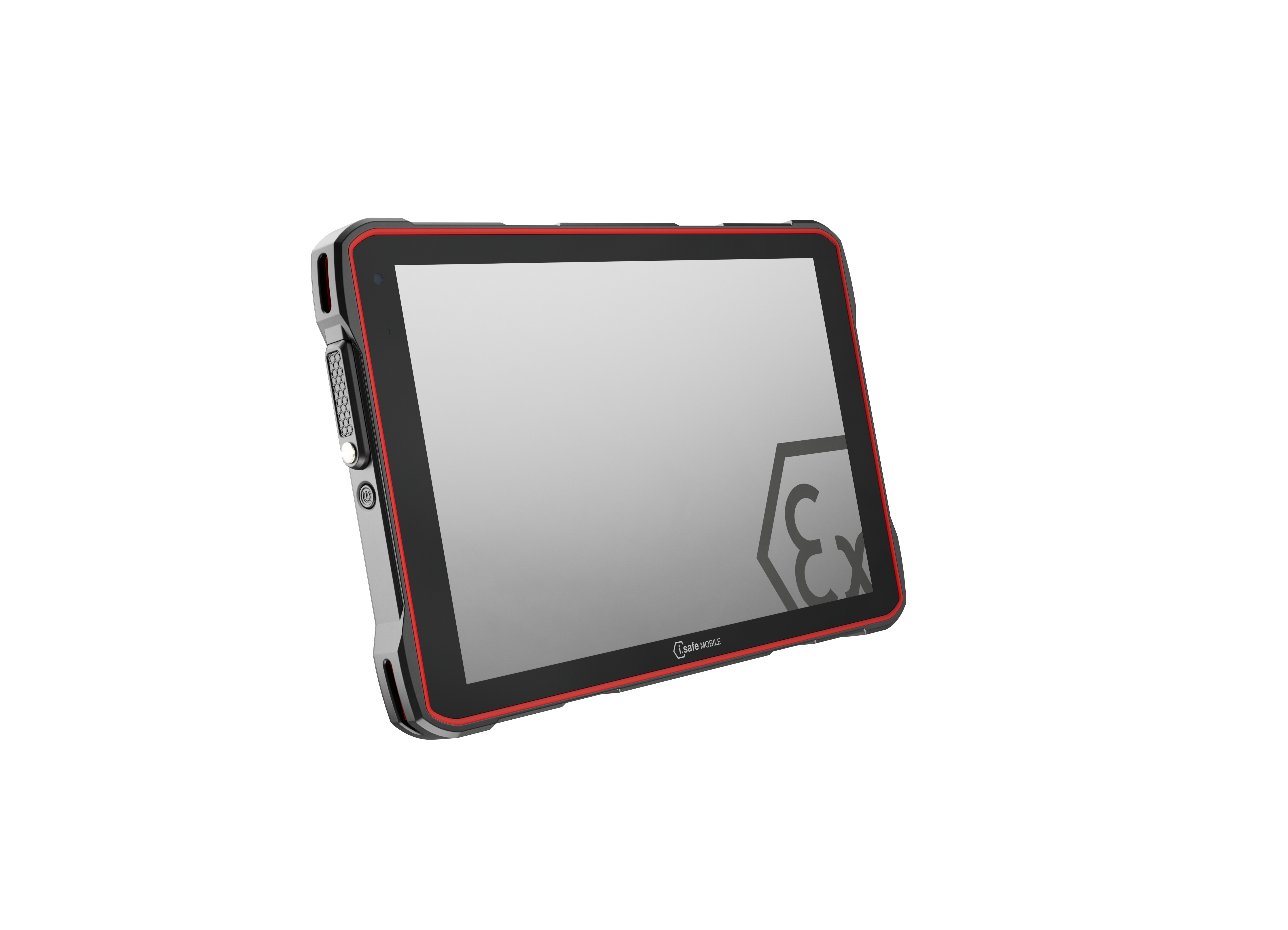

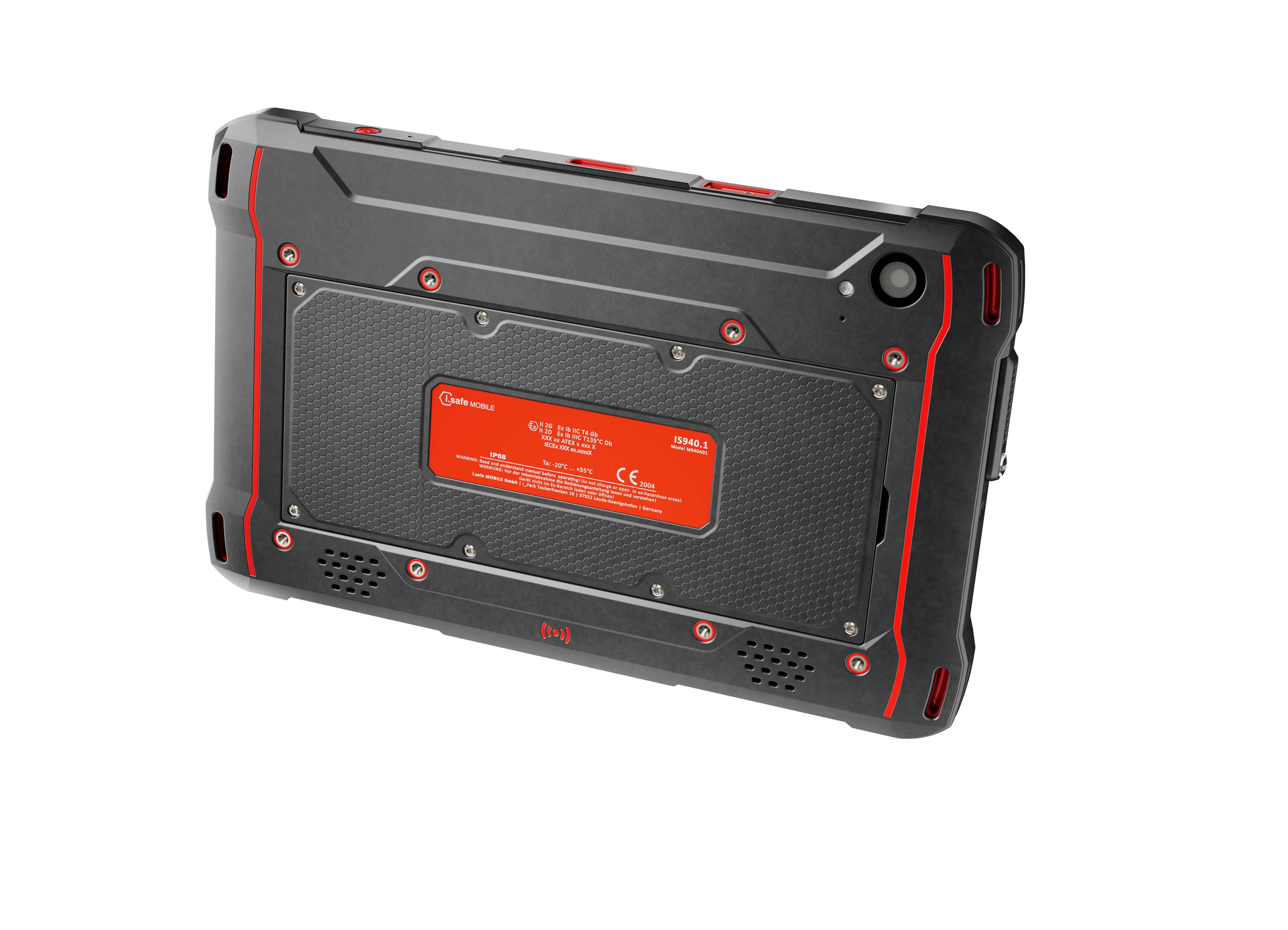

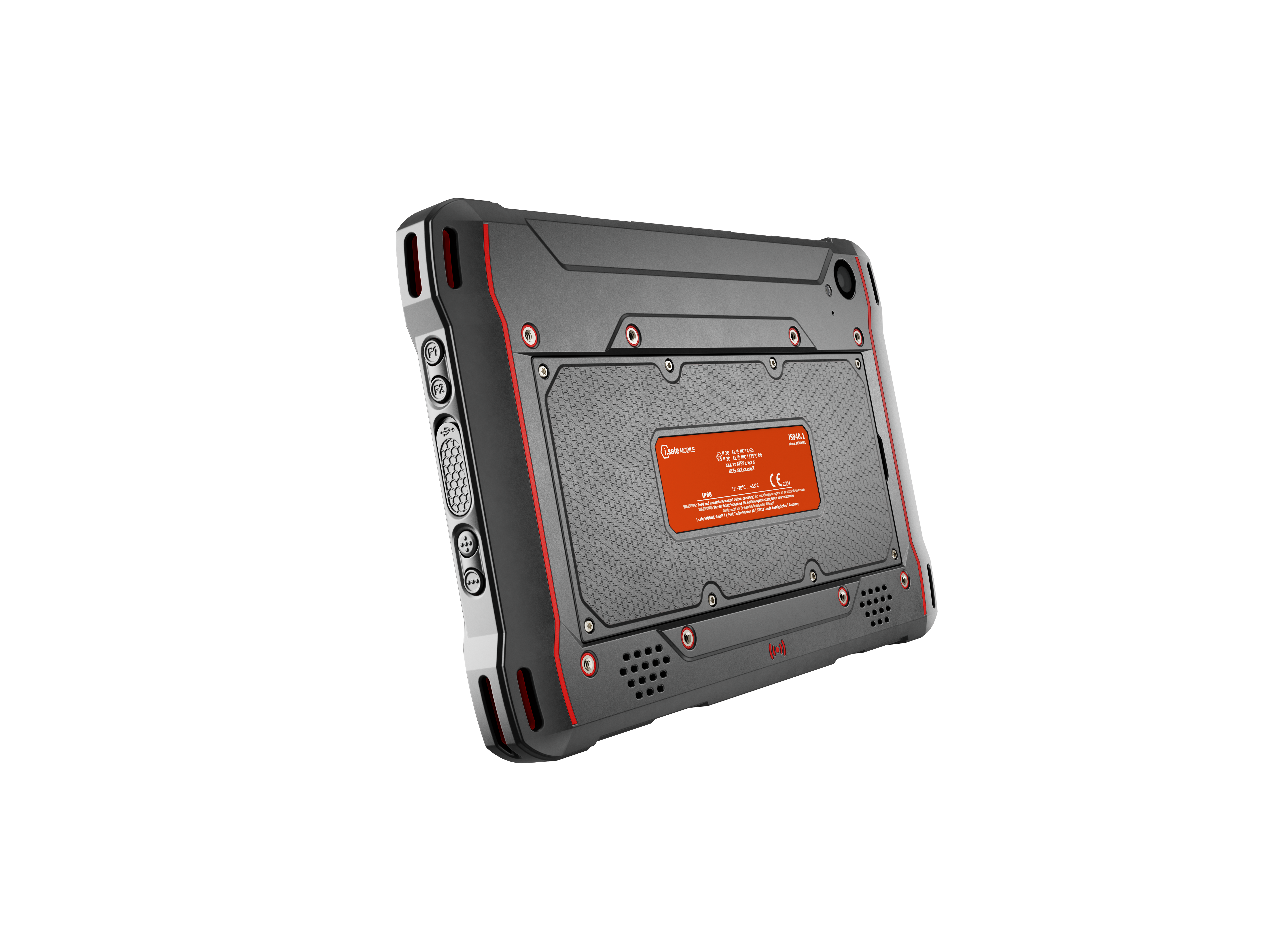

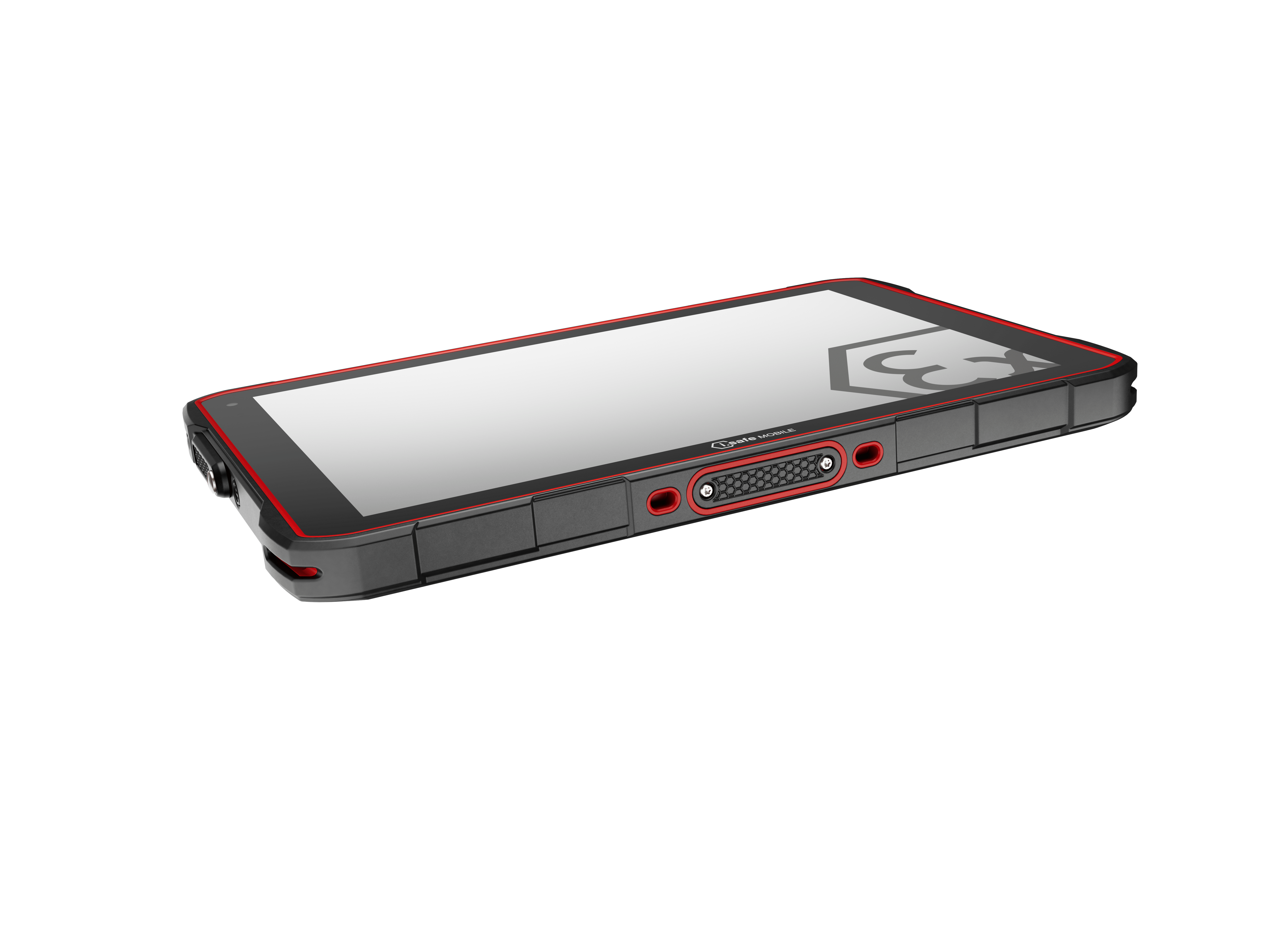

The 10.1-inch 5G Windows tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IIoT-optimized chipset from Qualcomm® Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, Wi-Fi 6, Bluetooth 5.1 and NFC support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras. Includes a 2-year warranty.
Available in two versions:
WiFi 6 only
4G/5G with WiFi 6
Technical Data
| Operating system | Windows 11 IoT Enterprise |
|---|---|
| Processor | Qualcomm® QCM6490 Octa Core |
| Memory | 8 GB RAM 128 GB internal memory microSD to 128 GB |
| Frequencies | 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B68/B71 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| Dimensions | Size: 10.48 x 6.63 x .78 in Weight: 2.34 lbs |
| Display | 10.1 in (25,654 cm) Corning® Gorilla® Glass V3 usable with gloves |
| Battery | 8160 mAh, 3,7 V replaceable |
| Camera | 12 MP AF rear 5 MP FF front |
| Connectivity | Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H |
Resources
Approvals
ATEX (Europe)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
IECEx (International)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
NEC500 (North America)
applied for
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F G, T135°C
Class III Div. 1
Includes
- Tablet
- Battery
- Handstrap
- i.safe PROTECTOR 2.0
- Power Adapter universal

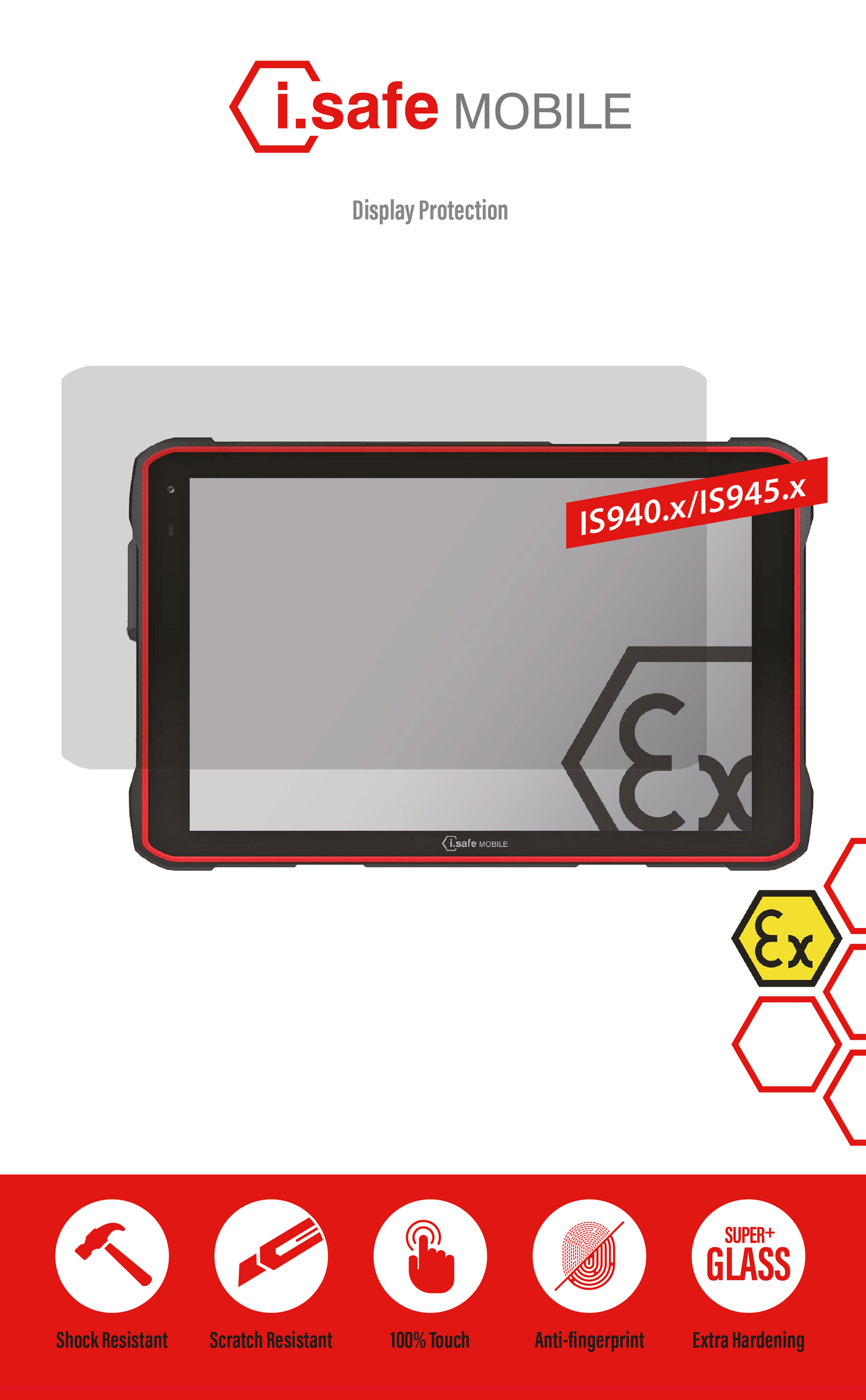

- Display Protection Foil
- Screwdriver
- Safety Instructions
