Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

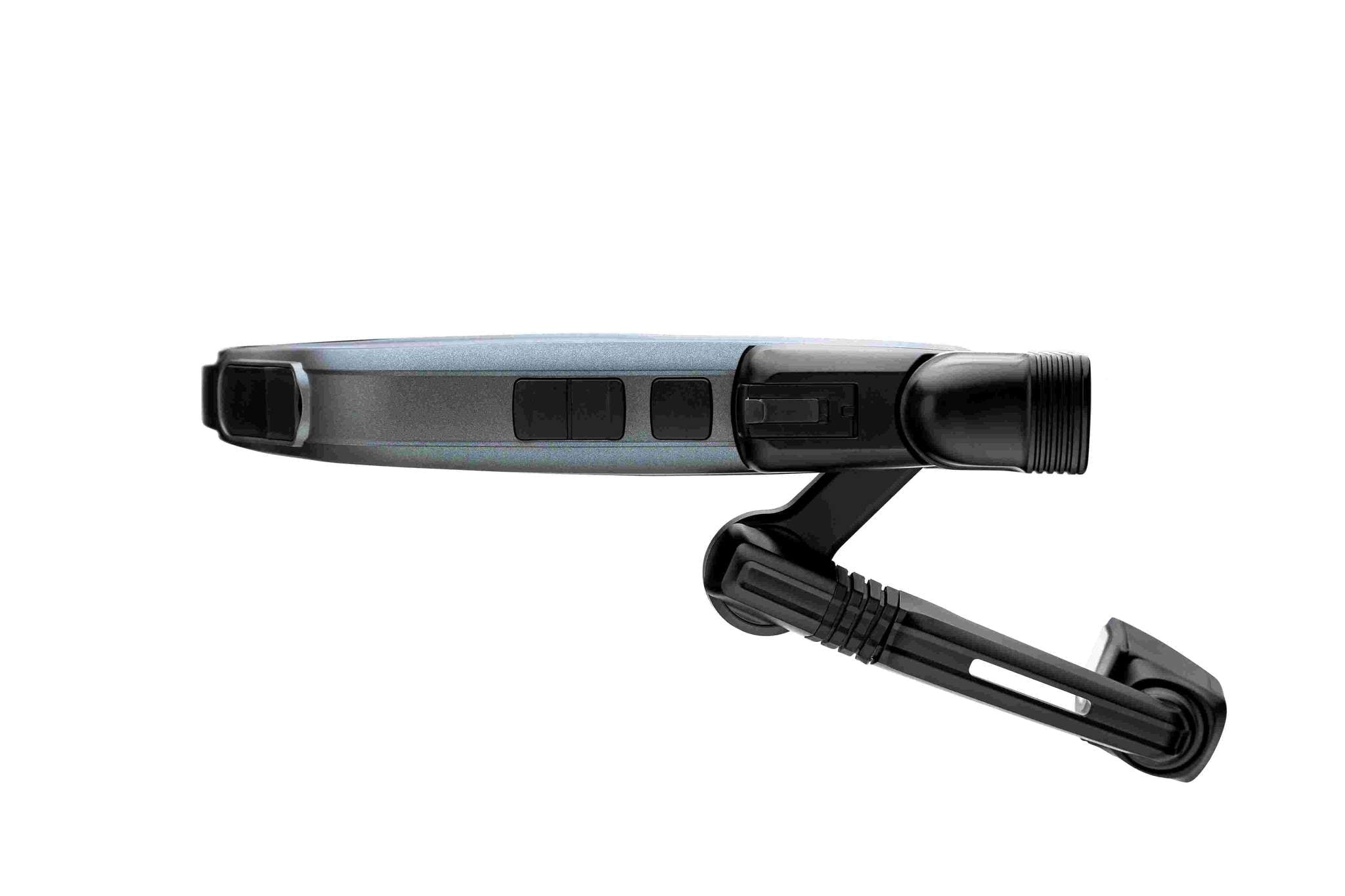

Industrial Strength Assisted Reality Solution
The RealWear Navigator™ 500 is the leading ruggedized assisted reality solution designed to engage, empower and elevate the modern frontline worker. Connect and collaborate with remote experts, follow digital workflows, visualize IoT data and much more. Safely reduce downtime, improve quality and employee productivity, while realizing significant ROI.
Includes a 1-year Essentials Warranty & Support Plan.
RealWear offers two new options for protecting and optimizing your new device – Essentials and Premier:
| Essentials | Premier | |
| Support | Business hours, 24-hour response | 24/7, 4-hour response |
| Training | None | Access to two intro courses – 101 & 201 |
| RealWear Cloud | Foresight centralized dashboard to manage and deploy devices | 1 on 1 help to set up Foresight access plus device metrics, and frontline worker remote IT help support |
| Device Replacement | Standard Replacement | Advanced Replacement |
Technical Data
| Operating System | Android 11 (AOSP) + WearHF™ hands-free interface + Enterprise features |
|---|---|
| Chipset | 2.0GHz 8-core Qualcomm® Snapdragon™ 662 with Adreno 610 GPU – OpenGL® ES 3.2 & OpenCL™ 2.0 |
| Memory | 64GB internal storage / 4GB RAM / MicroSD slot (max card supported 512GB) |
| Included Applications | Document Navigator, Camera with Barcode Reader, Audio Recorder, Video Recorder, Webpage Viewer, Cloud Sync, Media Player, Calculator, Pedometer, Timer |
| Language Supported | Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Dutch, English (American, Australian, British), French, German, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Thai |
| Bluetooth | Bluetooth® 5.1 |
| Wi-Fi | 802.11 a/b/g/n/ac - 2.4 GHz and 5GHz |
| GPS and Location | • GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS • NavIC support • Dual-Frequency GNSS (L1 + L5) • Qualcomm® Sensor-Assisted Positioning |
| IMU | 3 IMUs (including 3-axis accelerometers, gyroscopes, eCompass) |
| Battery Capacity | 2,600 mAh / 10.0 Wh Li-polymer, rechargeable, hot-swappable |
| Security | Qualcomm® Trusted Execution Environment, Crypto Engine, Secure Boot |
| Weight | 9.42oz / 270g |
| Ruggedization | IP66, MIL-STD-810H, 6.5 feet / 2-meter drop |
| Dedicated Buttons | Power button (with integrated fingerprint sensor) Programmable: action button, left button, right button |
| Ports | 1/8” / 3.5mm audio, 1 USB Type-C |
| Boom Arm | Adjusts six ways for most head sizes, left or right eye compatible, display can be moved out of way when not in use |
| Display Type | 20° field-of-view, 24-bit color LCD, 0.32-inch diagonal, outdoor visible |
| Resolution | WVGA (854x480) |
| Microphones | 4 digital microphones with active noise cancellation Accurate voice recognition in noise up to 100 dBA |
| Speaker | Internal 94 dBA loudspeaker |
| Camera | Image: 48 MP Sensor, PDAF with LED flashlight Video: Up to 1080p @ 60fps, >6X zoom in HD, video stabilization. codecs: VP8, VP9, H.264, H.265 HEVC |
| Operating Temperature | -4°F to +122°F / -20°C to +50°C, 5% to 95% relative humidity (non-condensing) |
Resources
Includes
- Navigator 500
- Preinstalled Hot-Swappable Rechargeable Battery (2,600 mAh Li-Polymer)
- USB Type-C Charging Cable
- Workband
- Quickstart Guide
