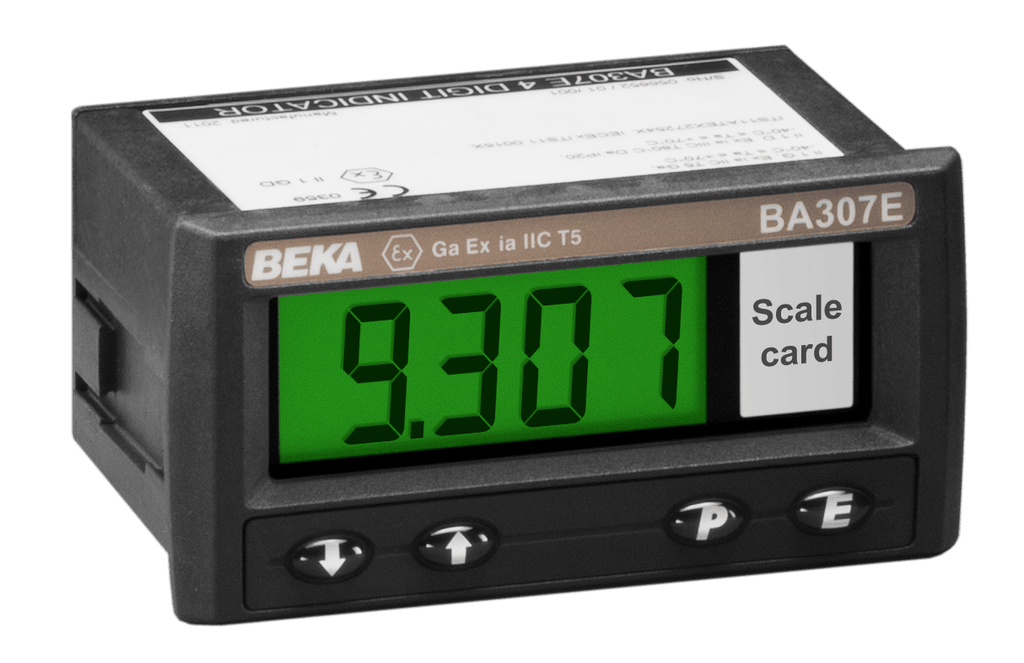

BEKA BA307E Intrinsically Safe Loop Powered Digital Indicator, Panel Mounting

Roll over image to zoom in Click on image to zoom

BEKA BA307E Intrinsically Safe Loop Powered Digital Indicator, Panel Mounting

BEKA

Variations: BA307E: Standard

Variant

Price:

$459.00

Quantity:

Intrinsically Safe
Loop Powered Input
Large non multiplexed 4 digits .59 in (15 mm) high
High contrast and wide angle viewing
Ingress Protection P66 Front panel
-40°F to +158°F / -40°C to +70°C operating temperature
Internal calibration source
Root extractor and linearizer
Tare function

Optional:

Backlight, may be loop powered or separately powered
Alarm/Control Outputs
Scale card – Legend Required
Tag – Legend Required
Rear cover and sealing kit (BA495)

Display Readability (Backlight Optional)
	No backlight Display readable in daylight.
	Backlight, loop powered Display readable in poor lighting conditions.
	Backlight, separately powered Display contrast enhanced in all lighting conditions. Backlight color is orange on Model BA326C only.

Description
Technical Data
Approvals
Resources

Description

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

These fourth generation intrinsically safe 4/20mA loop powered indicators have large high contrast displays with a very wide viewing angle. Operating over an extended temperature range they contain many standard features previously only available as options. Extensive thermal and vibration testing provides maximum reliability.

This model can be supplied calibrated to customer’s requirements free of charge and can be labelled to show units of measurement, tag number and application.

Supported by a three year guarantee.

Available in Stainless Steel: BA307E-SS

We are an authorized BEKA distributor shipping to locations in the United States.

Technical Data

Legacy Status	Replaces BA307B and BA307C
Mounting & Enclosure	Panel 96 x 48 mm
Display Format	4 digits, 15mm high
Ingress Protection	Front IP66, Rear IP20
Alarms/Control Outputs	Optional
Backlight	Optional, may be loop powered or separately powered
Tag/Application Marking	Printed at no cost when information is included with order
Scale Card	Printed at no cost when information is included with order
Linearizer	Root extractor and 16 segment configurable

Approvals

Europe ATEX	Gas – Group II Category 1G Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C Dust – Group II Category 1D Ex ia IIIC T80°C Da IP20 -40°C ≤ Ta ≤ +70°C
International IECEx	Gas – Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C Dust – Ex ia IIIC T80°C Da IP20 -40°C ≤ Ta ≤ +70°C
North America Factory Mutual	Entity IS / I / A, B, C, D / T5 Ta = 70°C I / 0 / AEx ia IIC / T5 Ta = 70°C Non incendive NI / I / 2 / ABCD / T5 Ta=70°C – NIFW NI / II / 2 / EFG / T5 Ta=70°C – NIFW NI / III / 2 / T5 Ta=70°C – NIFW NI/ I / 2 / IIC / T5 Ta=70°C – NIFW
