Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-688-9468.
The iUPS101 Uninterruptible Power Supply system is certified for use in ATEX and IECEx Zone 1 and 2 hazardous areas. It provides back up power to protect critical equipment, such as instrumentation and control systems, navigation or landing lighting, or blow out prevention systems, in the event of a blackout or brownout.
Protect critical equipment
The iUPS101 provides reliable back up power to ensure that vital equipment – such as instrumentation and control systems, navigation or landing lighting, and blow out prevention systems – remain operational in the event of a blackout or brownout.
Modular design

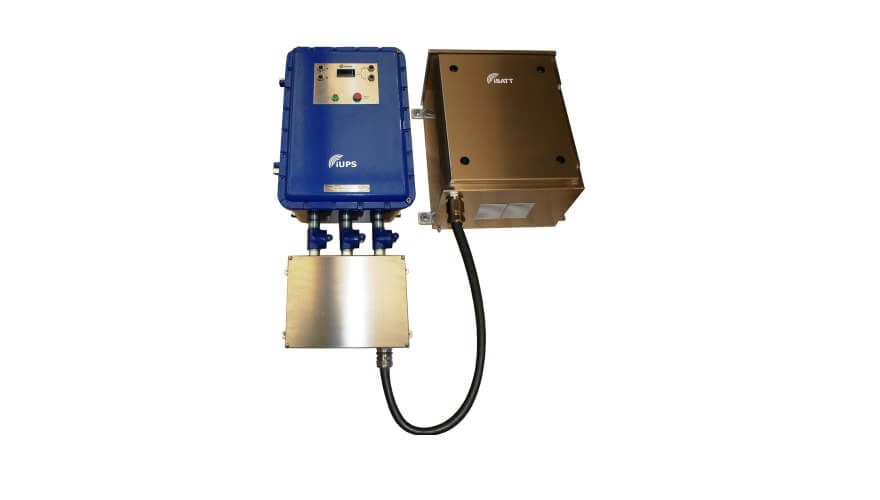

Designed to be wall mounted, the iUPS101 UPS system includes an aluminum alloy or stainless-steel Ex d charger/inverter enclosure, a stainless-steel Ex e close coupled enclosure, and a battery enclosure of your choice. This could be the stainless steel iBATT100 Ex e battery enclosure containing maintenance-free valve regulated lead acid batteries or a tailored option from our iBATT5xx range, which can include lead acid, nickel cadmium, and nickel iron batteries and is scalable to suit your application requirements.
Extended back up power and multiple configuration options
The modular design means that the load and back up time can be tailored for your application – it depends on the battery unit you choose to work alongside the iUPS101.
For example, using the iBATT100 gives you up to 87 minutes with a 3kVA load at 20°C. If you choose the iBATT5xx range, this back up time can be increased to support your requirements.

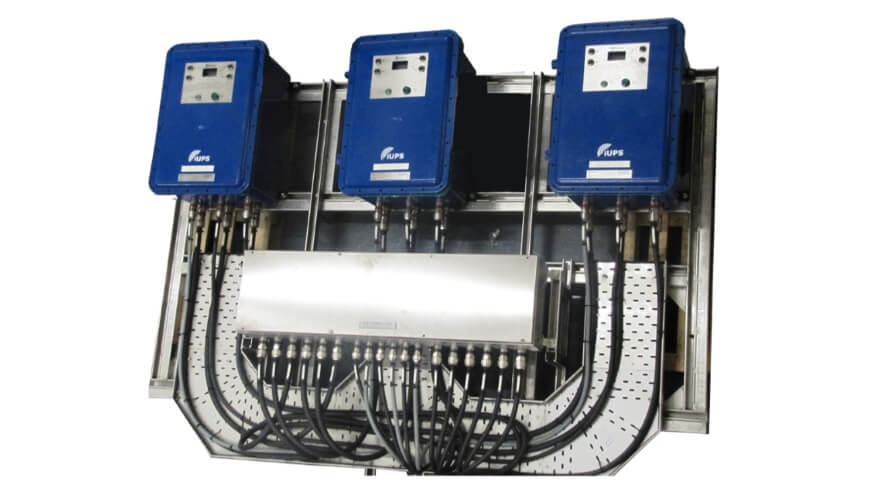

The iUPS101’s modular design also allows 2 complete additional iUPS101 units to be attached, creating systems to support higher loads or provide redundancy.
Easy installation and set up
Access to incoming and outgoing cables is easy – the Ex e enclosure is close coupled to the Ex d enclosure via cable bushings, so there is no need to open the Ex d enclosure. The Ex d enclosure has a glass window to show alarm and status information, and comes complete with door mounted Ex d buttons to configure the UPS display and program the two volt free auxiliary contact to use system or alarm information. The iUPS101 also includes advanced battery charge control for increased battery life.
Technical Data
| Certification | Ex II 2 G Ex db [eb] IIB T6 Gb -20°C ≤+40/55°C |
|---|---|
| EMC | EN62040-2:2006, EN61000-3-2:2014 |
| Housing | Ex d enclosure: aluminum alloy Ex e close coupled enclosure: stainless steel |
| Ingress Protection | Ex d enclosure: IP66 Ex e close coupled enclosure: IP66 |
| Weight | Ex d enclosure + Ex e close coupled enclosure: 90 kg |
| Operating Temperature | -20°C to +55°C @ 500VA See ambient de-rating table for further details |
| Storage Temperature | -20°C to +55°C |
| Relative Humidity | 0 to 95%, non-condensing |
| Input Mains Power Supply | 230V iUPS101: 180-265VAC (45-65Hz) 120V iUPS101: 90-150VAC (55-75Hz) |
| Output Power Supply | 230VAC or 120VAC +/- 2%, 50/60 Hz |
| Maximum Power Output | 3KVA See de-rating table |
| Backup Time | For full load, approximately 39 minutes @ 20°C or 87 minutes with additional battery enclosure based on using iBATT100 See system run timetable for further details |
| Input Battery Voltage | 24V / 48V |
| Alarm Output | 2 x Programmable volt free alarm contacts, energized on a general alarm condition AC rating: 230V/12A DC rating: 24V/4A, max 50V/3A |
| Mean Time Between Failure (MTBF) | 340,000 hrs/failure |
| UPS Type | Offline |
Approvals
See Section 15 of Operating Manual
