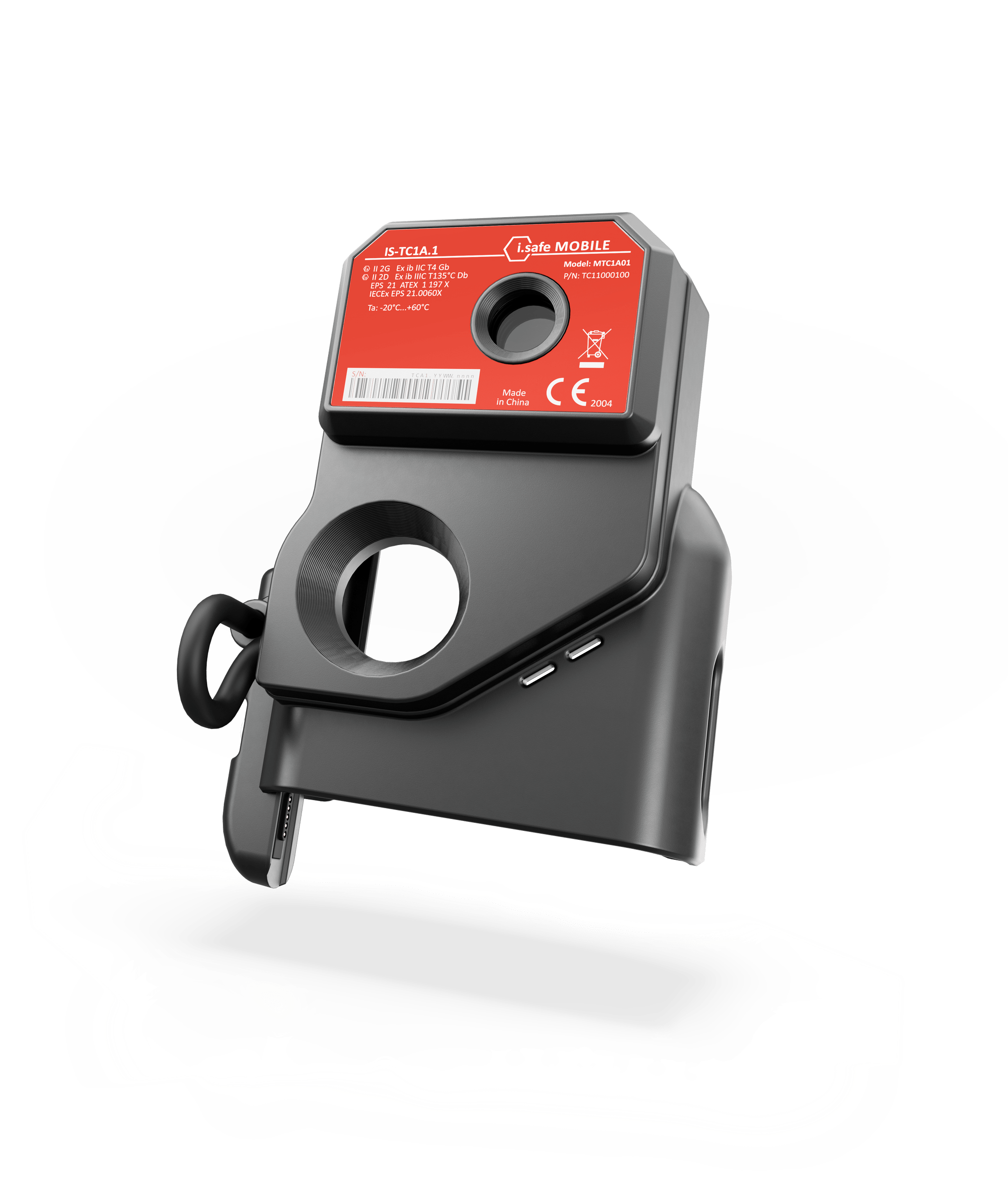

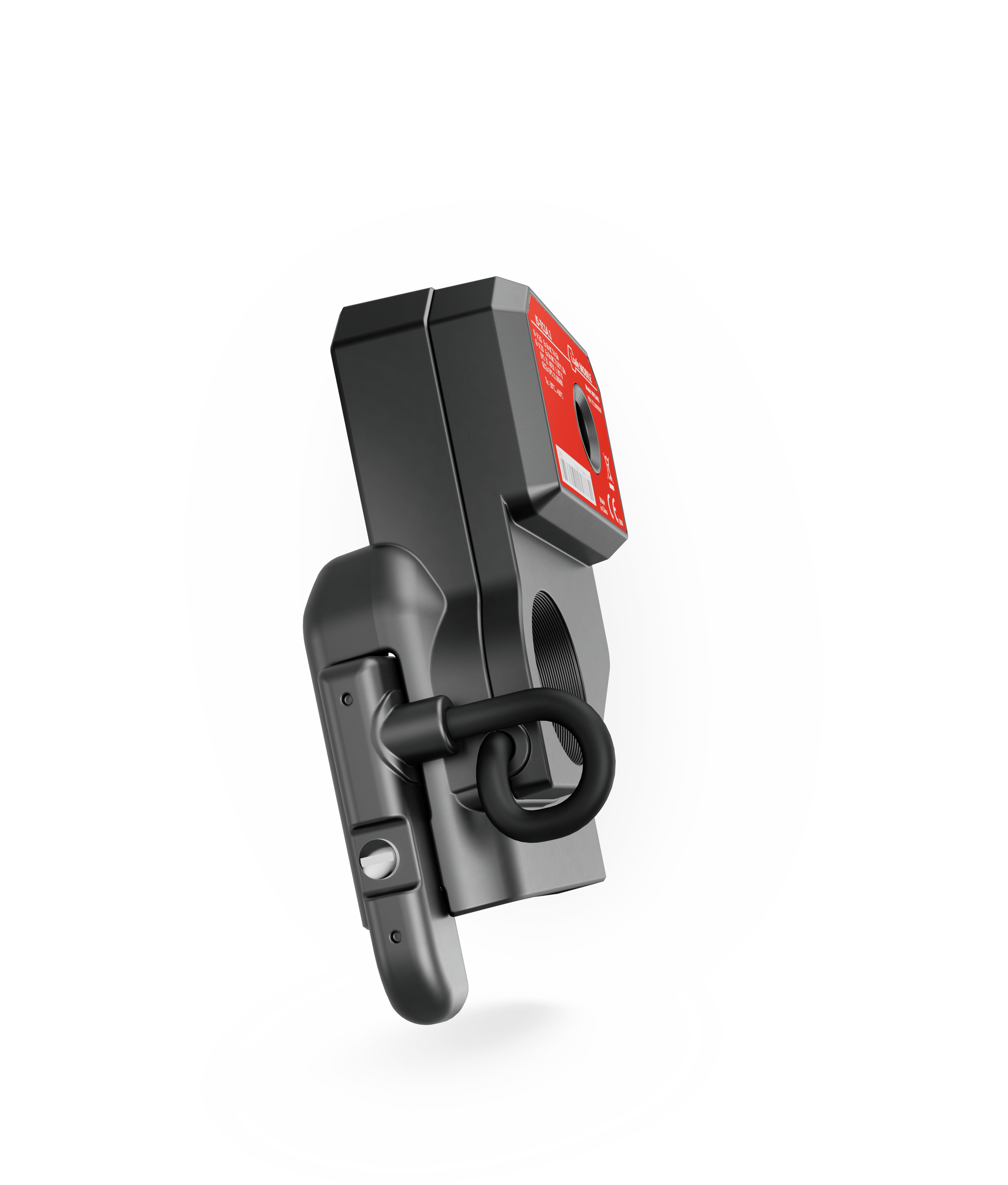

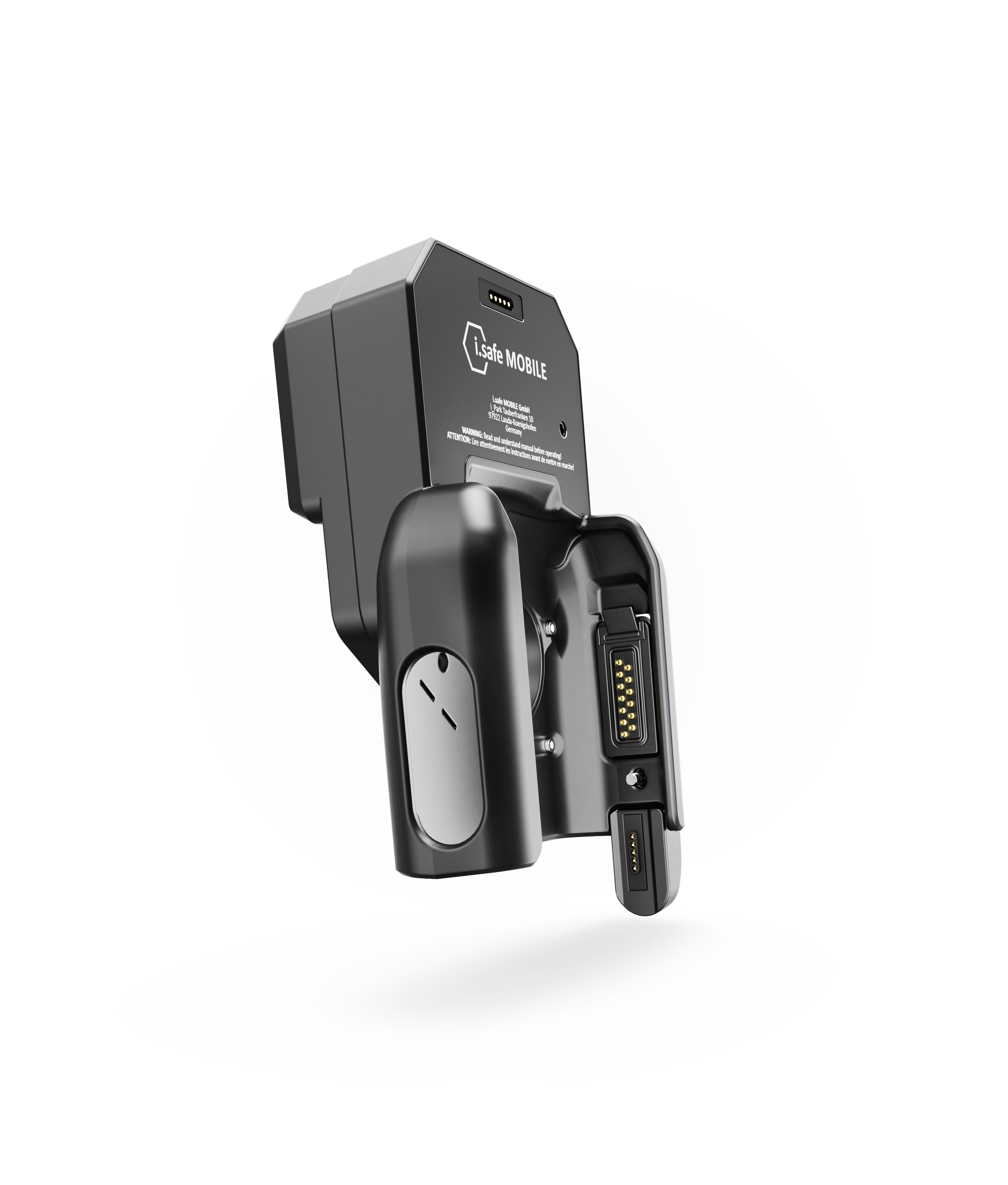

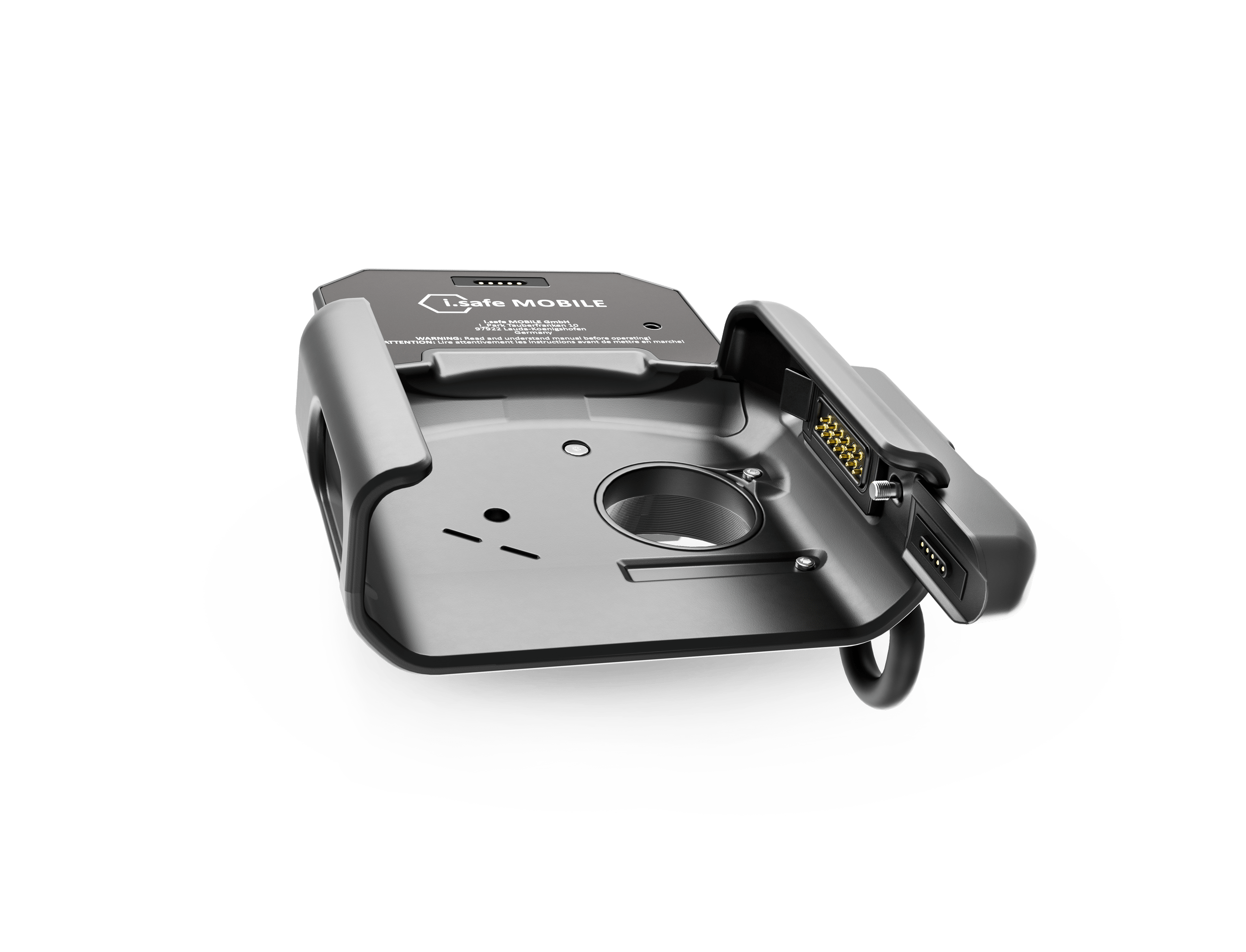

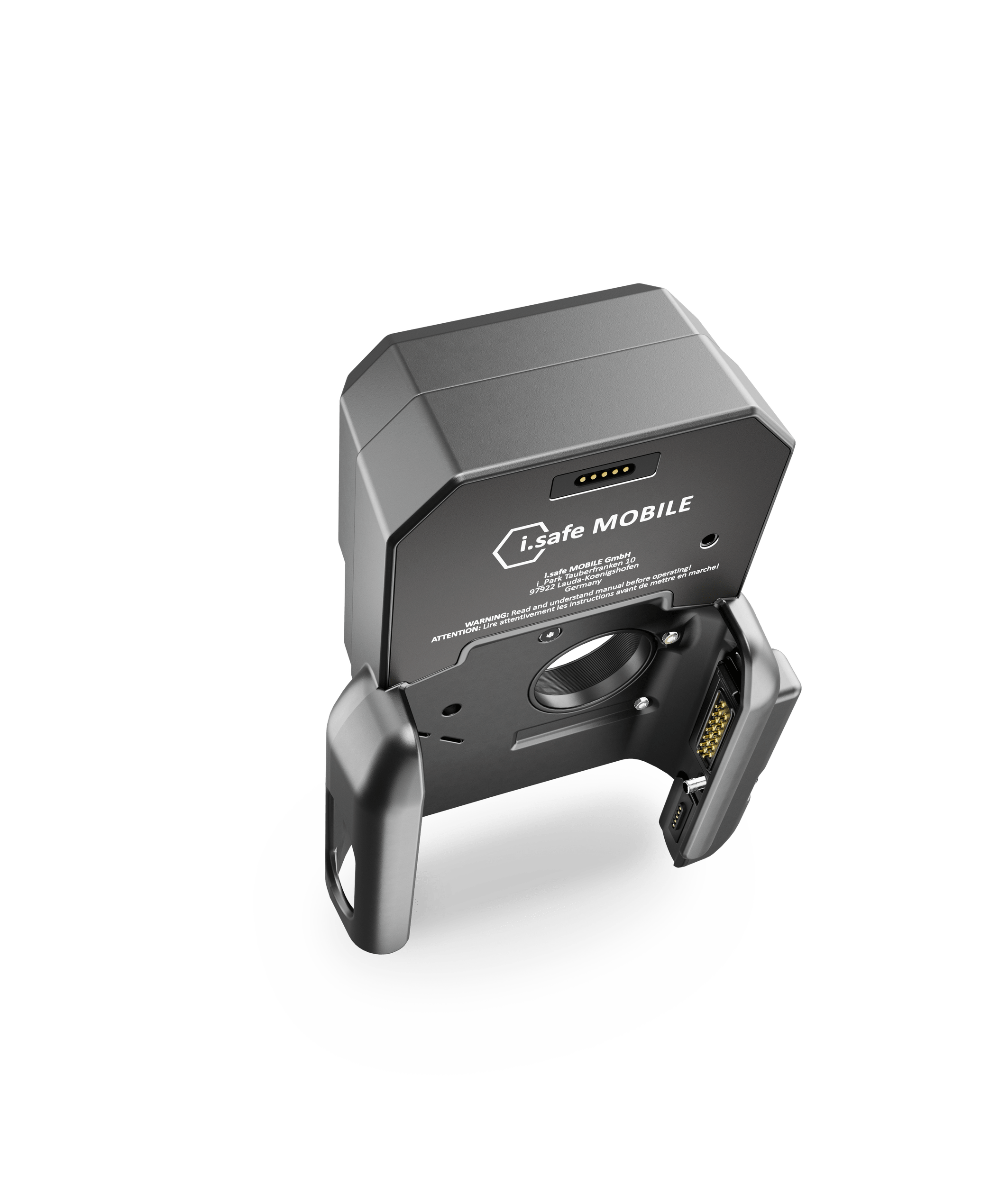

i.safe MOBILE IS-TC1A.1 Intrinsically Safe (C1/D1) Thermal Camera


Highlights

Highlights

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-688-9468.

Following from the innovative IS-TH1xx.x barcode scanner trigger handle, the IS-TC1A.1 is the next utility accessory device released to work in conjunction with the IS530.1 intrinsically safe smart phone to further cement it as the ultimate modern mobile worker tool.

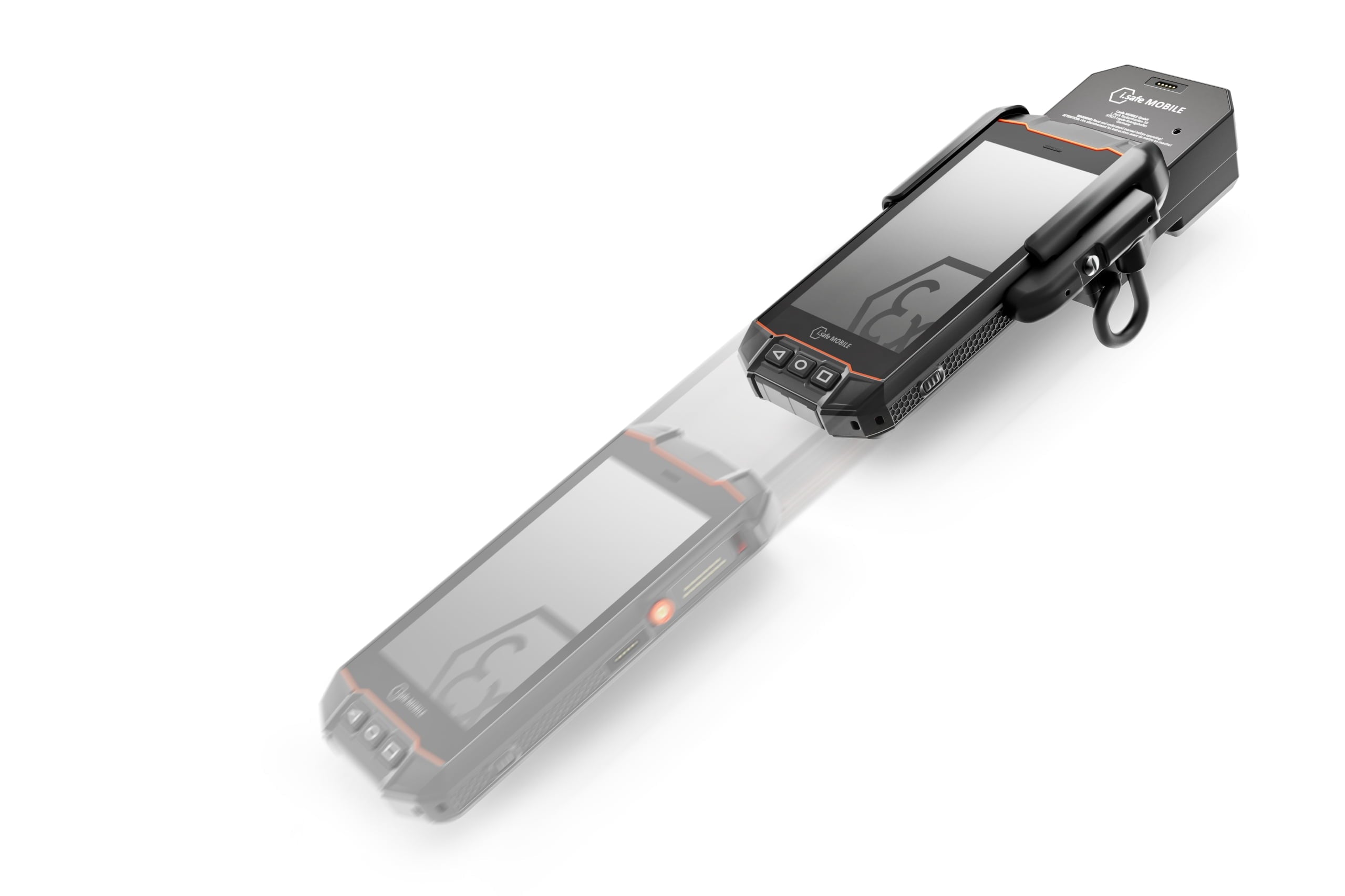

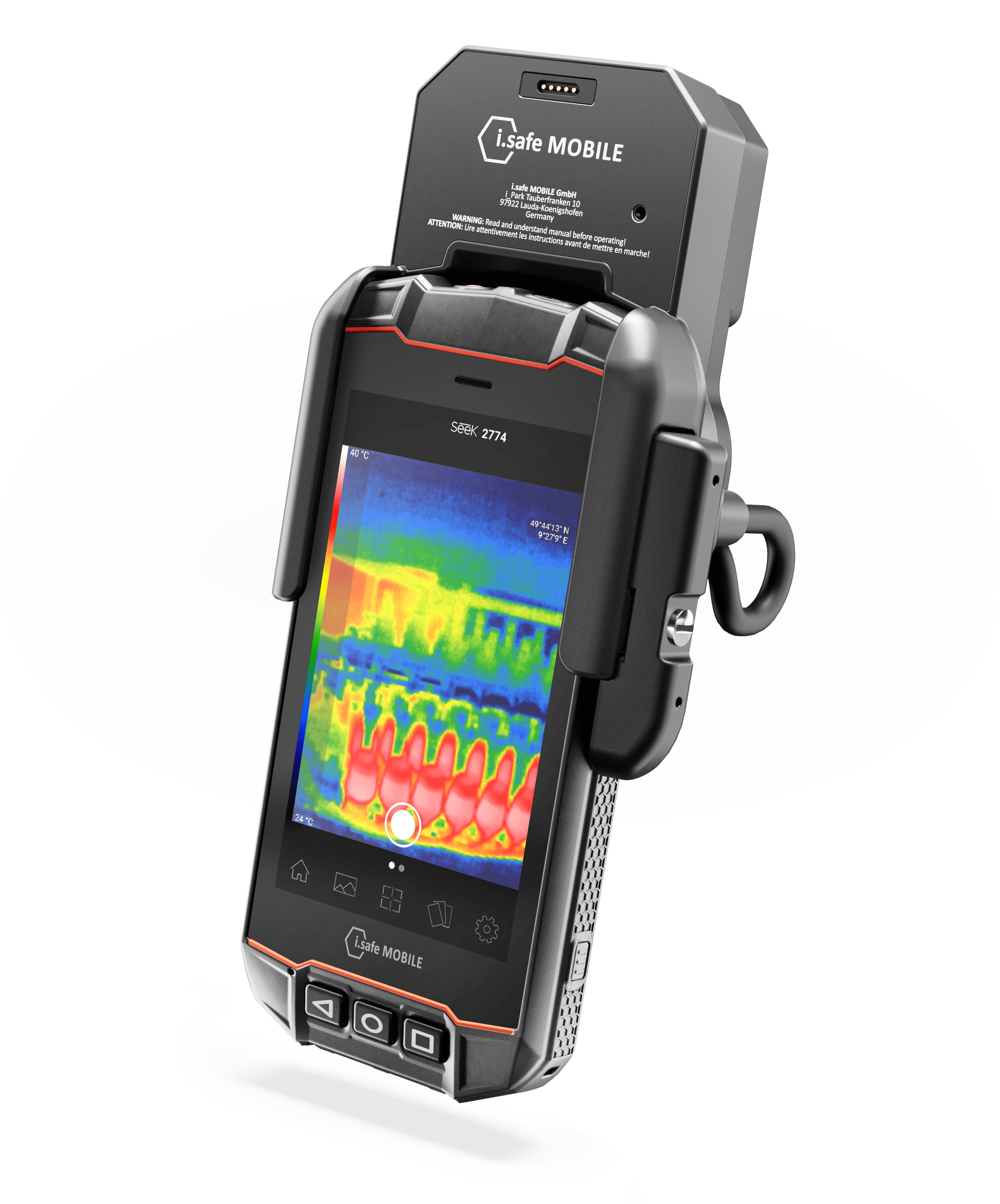

The IS-TC1A.1 when connected to the IS530.1 creates an intrinsically safe thermal imaging camera. It detects temperatures in the hazardous area from -40 °C to 330 °C in a matter of seconds. The thermal images and videos are processed and transmitted to the IS530.1 directly via the hard-wired ISM interface on the smartphone. Includes a 2-year warranty.

Ex Trans IECEx CSA US Trans
Authorized Dealer

We are an authorized i.safe Mobile distributor shipping to locations in North America.

Technical Data

Type IS-TC1A.1
SENSOR SENSITIVITY 65 mK (typical)
FRAME RATE <9 Hz bis 32 Hz
SCENE DYNAMIC RANGE -40 °C bis 330 °C
TEMPERATURE ACCURACY ±7 °C and 7 % (at 5 °C to 140 °C)
±10 °C and 10 % (at 140 °C to 330 °C)
FIELD OF VIEW 35° (HFOV) 26° (VFOV)
DETECTION RANGE up to 300 m
RECOGNITION RANGE up to 75 m
IDENTIFICATION RANGE up to 25 m
TYPES OF PROTECTION IP67
MIL-STD 810H
Usable from -10 °C to 60 °C

Includes

  • Thermal camera
  • Quick Start Manual
  • Safety Instructions

Approvals

Ex trans small logo- IECEx Logo Industrial safety product image from Exloc Instruments

  • ATEX zone 1/21
    (Approved for Europe)
    II 2G Ex ib IIC T4 Gb
    II 2D Ex ib IIIC T135°C Db
  • IECEx zone 1/21
    (approved for International)
    Ex ib IIC T4 Gb
    Ex ib IIIC T135°C Db
  • NEC500
    (approved for North America)
    Class I Div. 1 Groups A, B, C, D, T4
    Class II Div. 1 Groups E, F, G, T135°C
    Class III Div. 1
