Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.
Following from the innovative IS-TH1xx.x barcode scanner trigger handle, the IS-TC1A.1 is the next utility accessory device released to work in conjunction with the IS530.2 intrinsically safe smart phone to further cement it as the ultimate modern mobile worker tool.

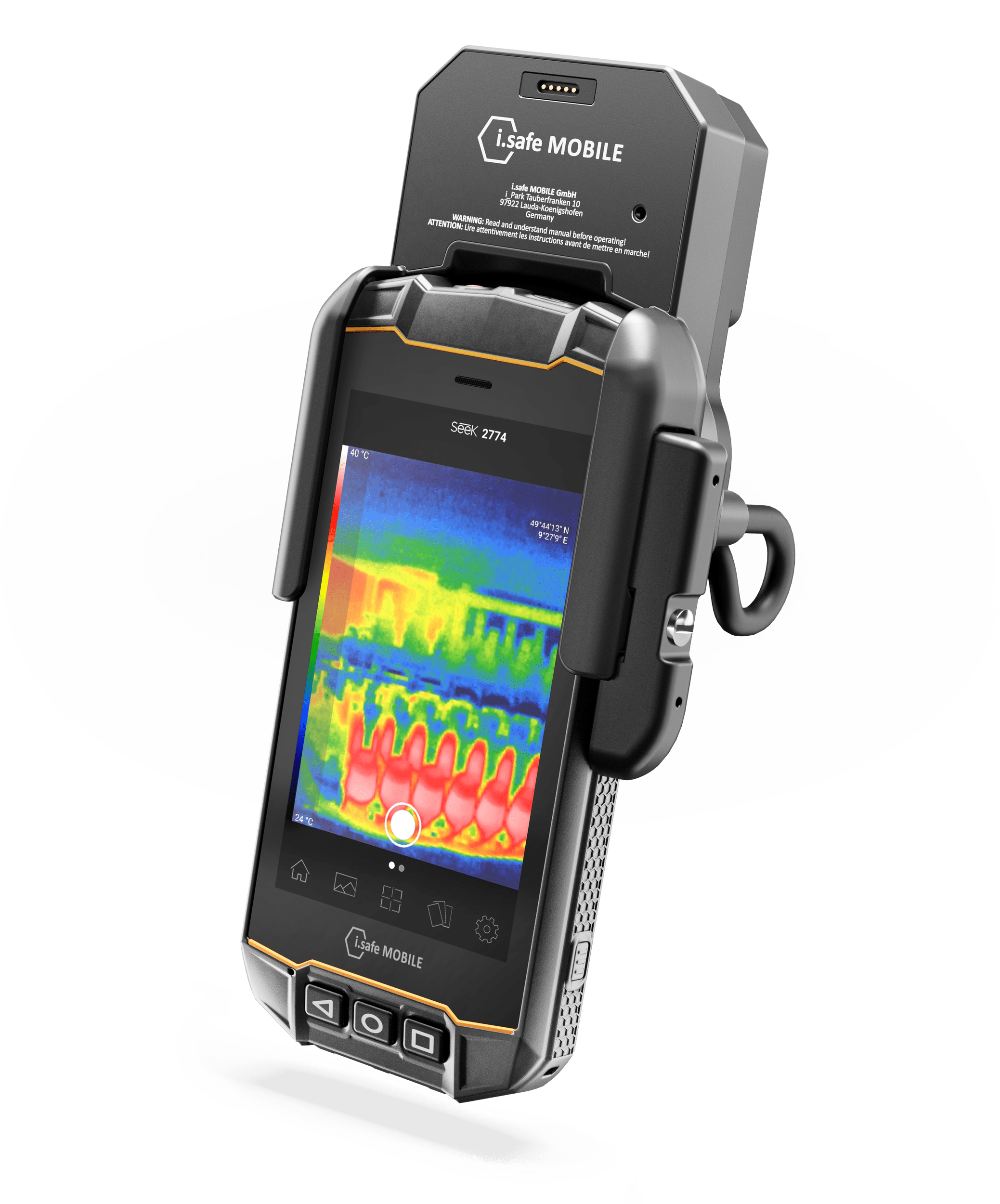

The thermal camera IS-TC1A.2, in combination with the industrial smartphone IS530.2 detects temperatures in the Ex-hazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.2 smartphone. Includes a 2-year warranty.
Technical Data
| Type | IS-TC1A.2 |
|---|---|
| SENSOR RESOLUTION | 200 (h) x 150 (v) 30000 pixel FixFocus Digital zoom via App |
| SENSOR SENSITIVITY | 65 mK (typical) |
| FRAME RATE | <9 Hz bis 32 Hz |
| SCENE DYNAMIC RANGE | -40 °C bis 330 °C |
| TEMPERATURE ACCURACY | ±7 °C and 7 % (at 5 °C to 140 °C) ±10 °C and 10 % (at 140 °C to 330 °C) |
| FIELD OF VIEW | 35° (HFOV) 26° (VFOV) |
| DETECTION RANGE | up to 300 m |
| RECOGNITION RANGE | up to 75 m |
| IDENTIFICATION RANGE | up to 25 m |
| TYPES OF PROTECTION | IP67 MIL-STD 810H Usable from -10 °C to 60 °C |
Resources
Includes
- Thermal Camera
- Quick Start Manual
- Safety Instructions
Approvals
- ATEX zone 1/21
(Approved for Europe)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
- IECEx zone 1/21
(approved for International)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
- NEC500
(approved for North America)
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1
- UKEX
(approved for United Kingdom)
II 3G Ex ic IIC T4 Gb
II 3D Ex ic IIIC T135°C Db
