Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

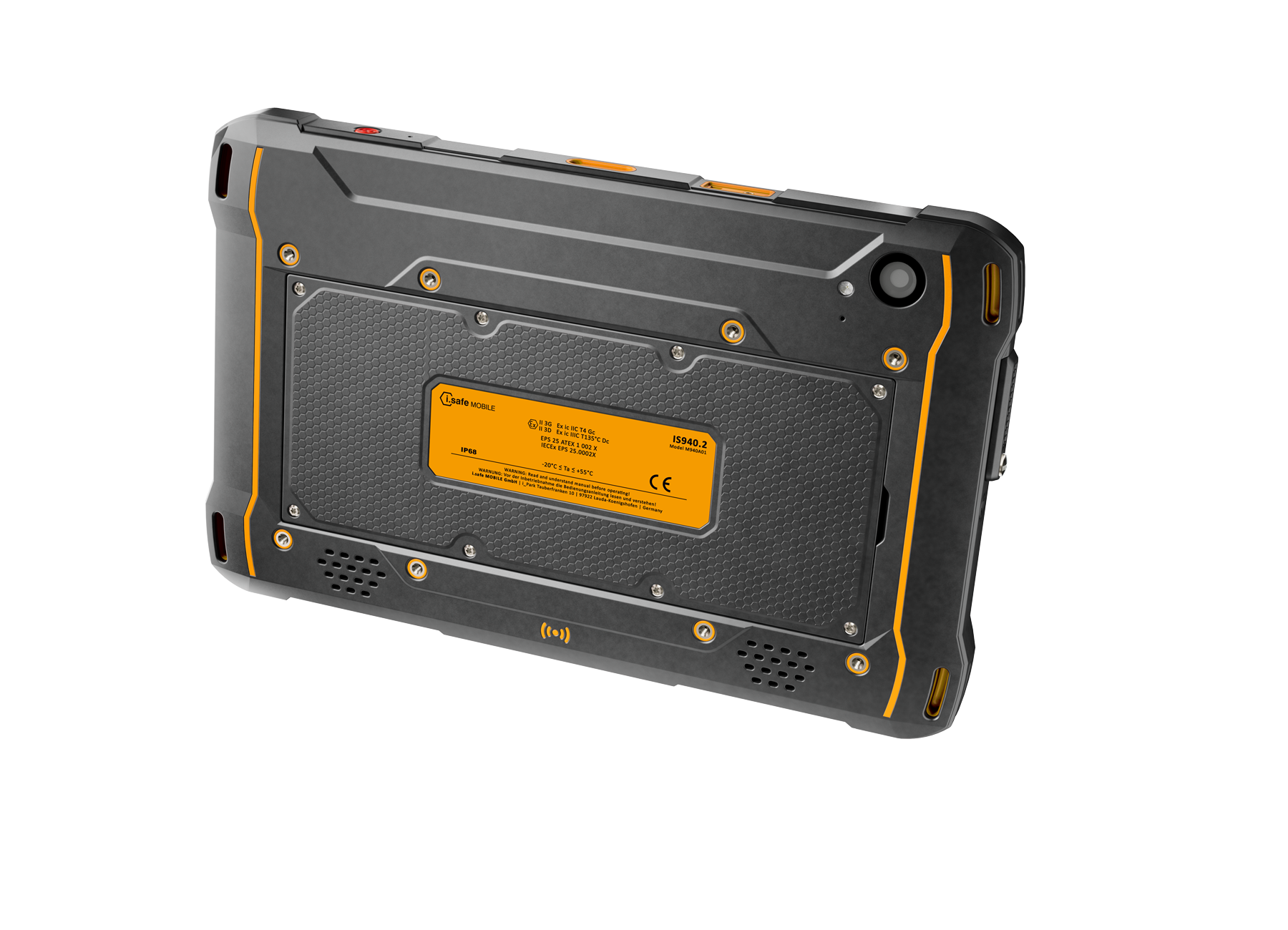

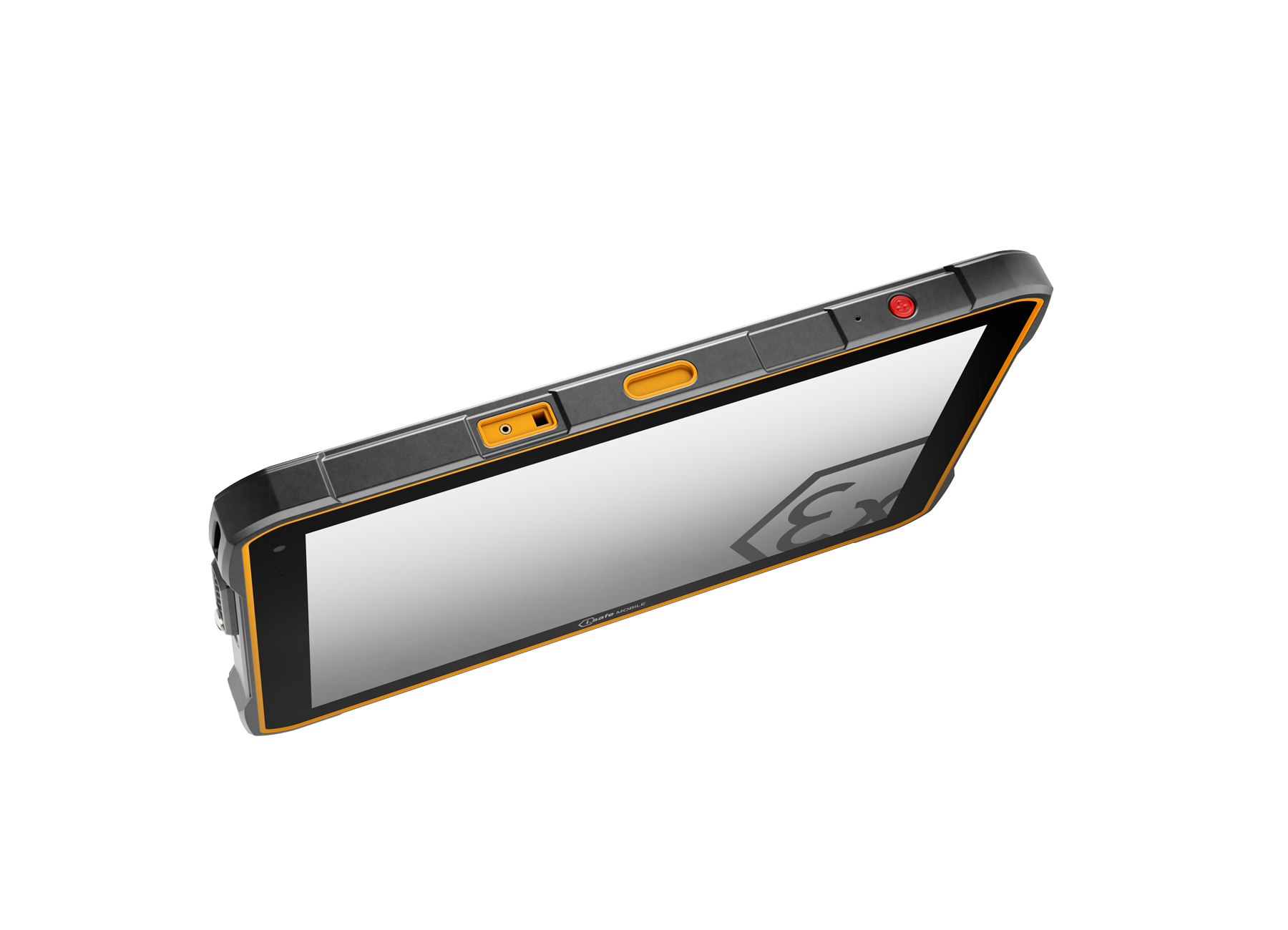

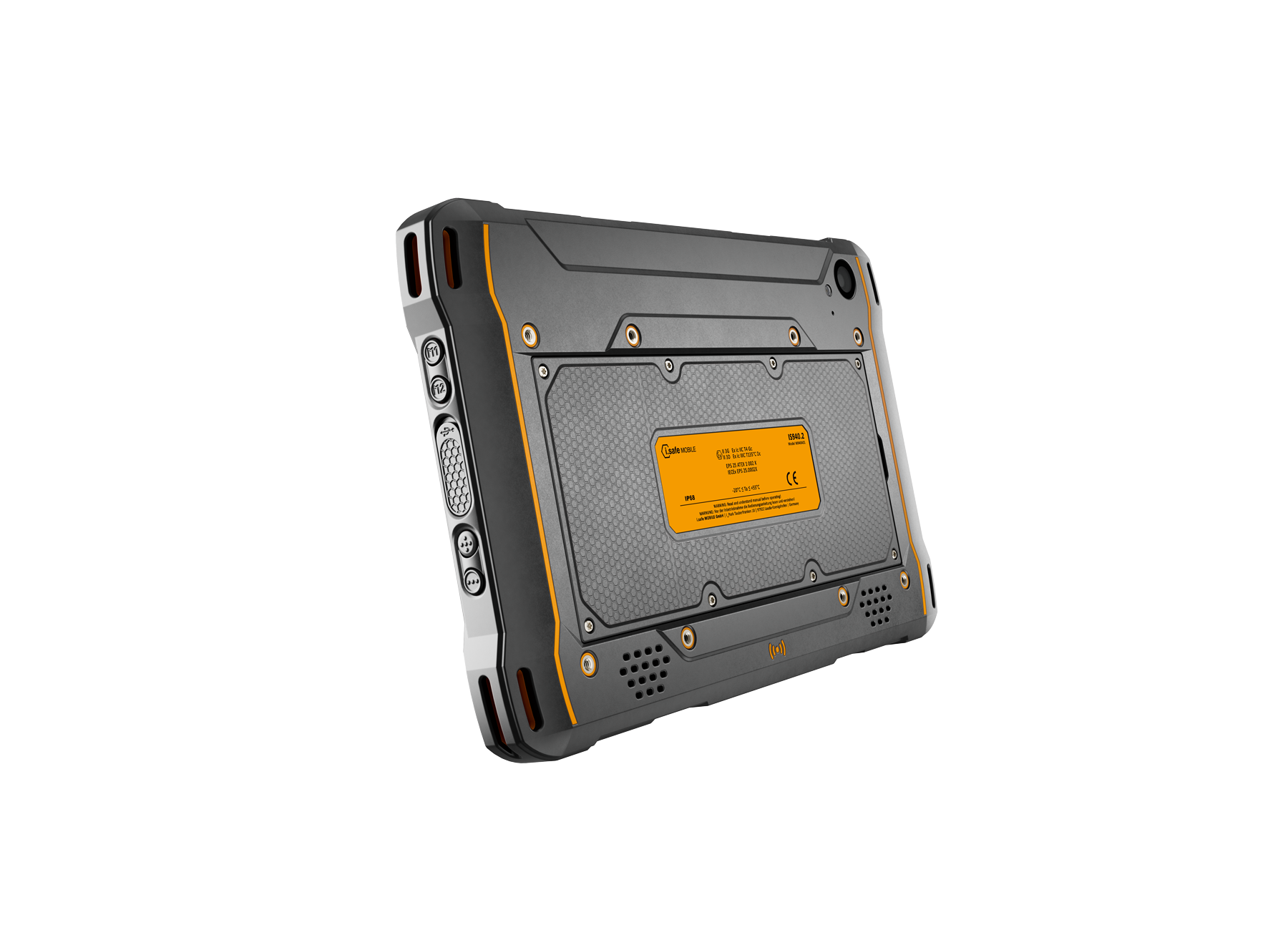

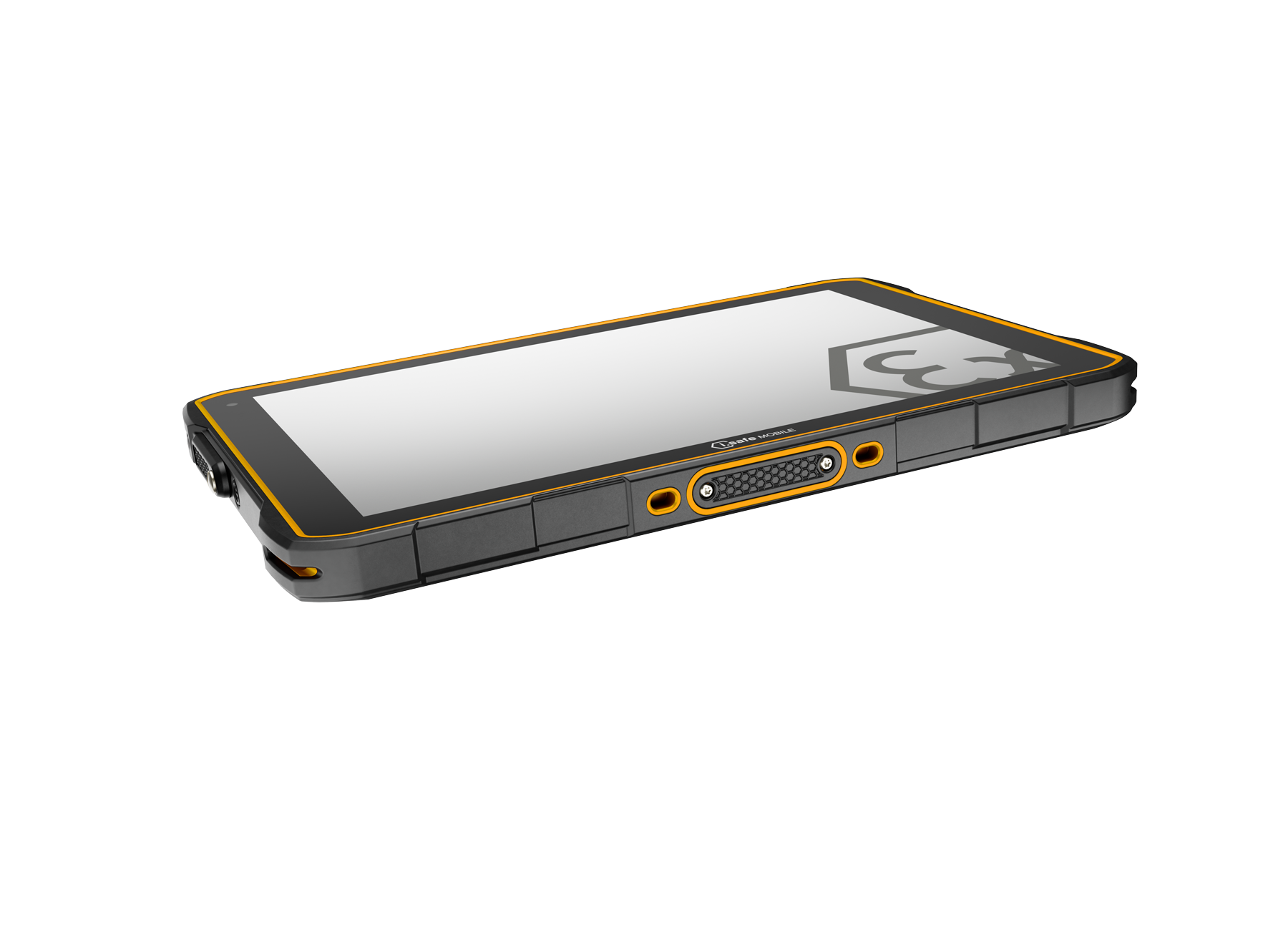

The 10.1-inch 5G Android tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IIoT-optimized chipset from Qualcomm® Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, 12-pin ISM interface for Docking Station, Wi-Fi 6, Bluetooth 5.2 and NFC support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras. Includes a 2-year warranty.


Technical Data
Operating system | Android™ 14 |
---|---|
Processor | Qualcomm® QCM6490 Octa Core |
Memory | 8 GB RAM 128 GB internal memory microSD to 510 GB |
Frequencies | 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
Dimensions | Size: 10.47 x 6.64 x .77 in (266,0 x 168,6 x 19,5 mm) Weight: 2.33 lbs (1059 g) |
Display | 10.1" (25,654 cm) Corning® Gorilla® Glass V3 usable with gloves |
Battery | 8160 mAh, 3,7 V replaceable |
Camera | 50 MP AF rear 5 MP FF front |
Connectivity | Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication |
Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C |
Resources
Approvals


ATEX (Europe)
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc
IECEx (International)
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc
NEC500 (North America)
applied for
Class I Div. 2 Groups A, B, C, D, T4
Class II Div. 2 Groups F, G, T4
Class III Div. 2, T
Includes
- Tablet
- Battery
- Power Adapter universal
- USB-C Cable
- Hand Strap
- Display Protection Foil
- Screwdriver
- Safety Instructions
