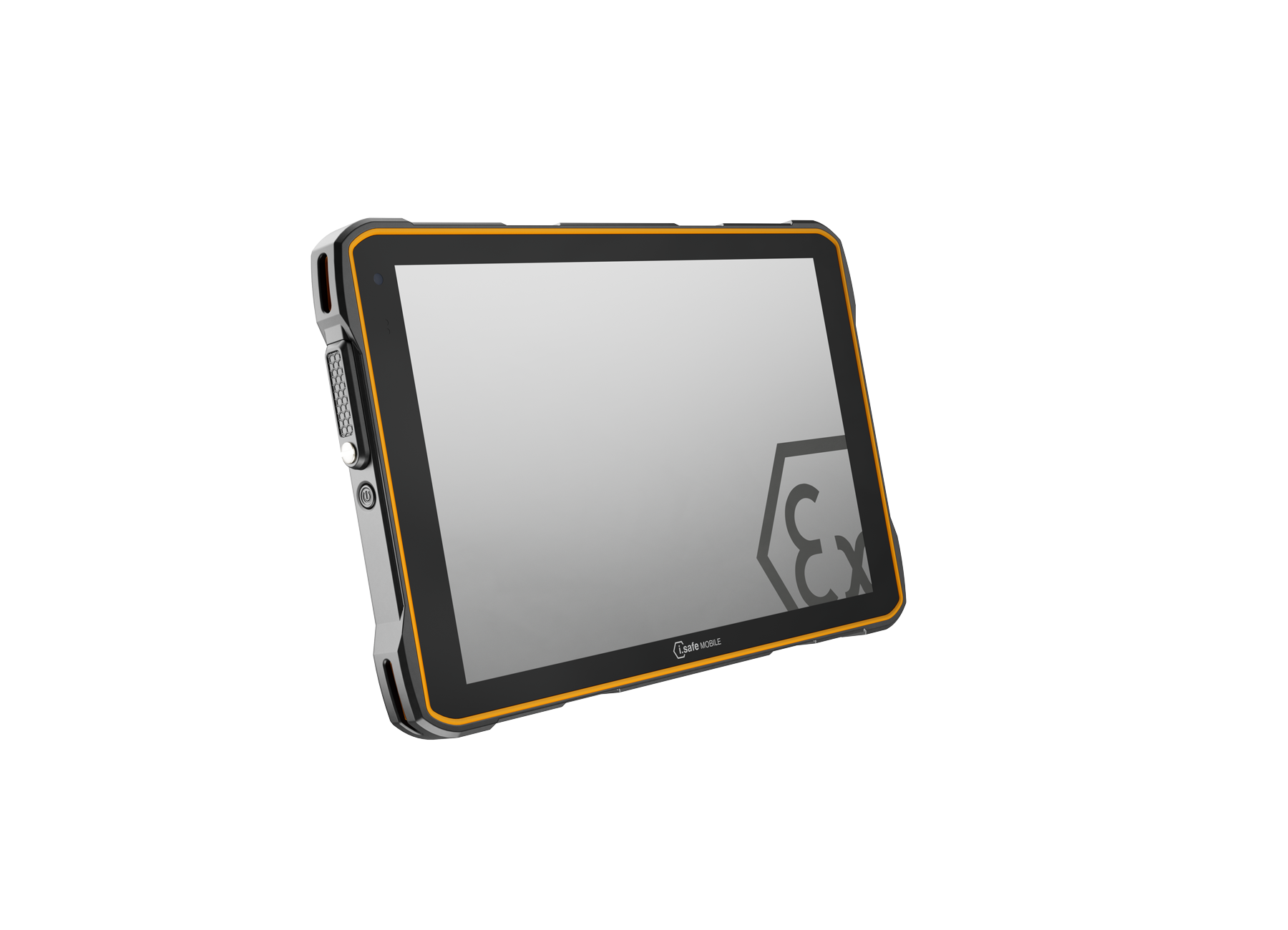

The i.safe MOBILE IS945.2 Intrinsically Safe Zone 2/22 Windows Tablet, featuring a black and yellow rugged casing and powered by the Qualcomm QCM6490, is shown at an angle against a plain white background.

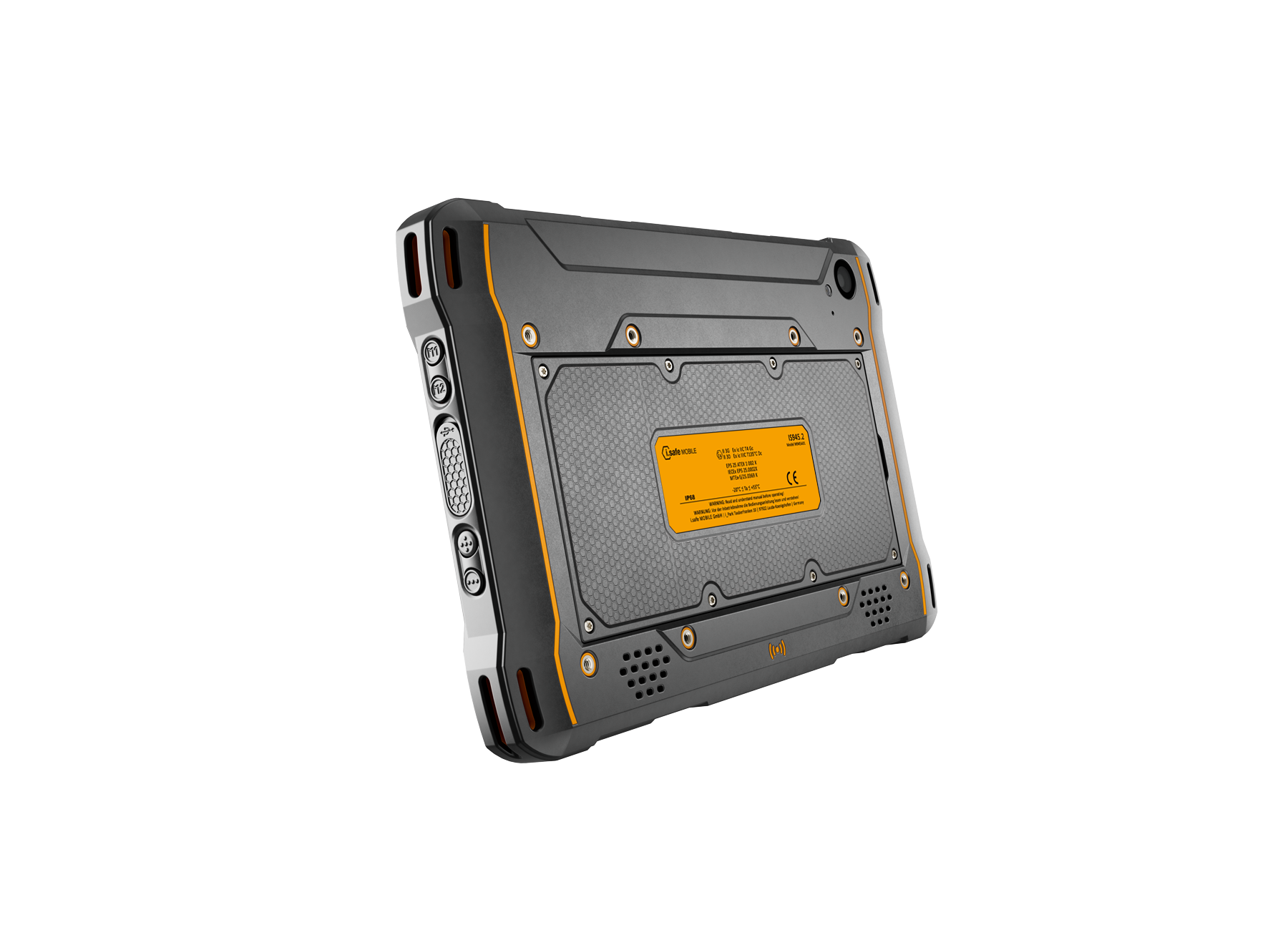

The i.safe MOBILE IS945.2 Intrinsically Safe Zone 2/22 Windows Tablet, with reinforced corners, a yellow back label, and Qualcomm QCM6490 chipset, is shown against a plain white background.

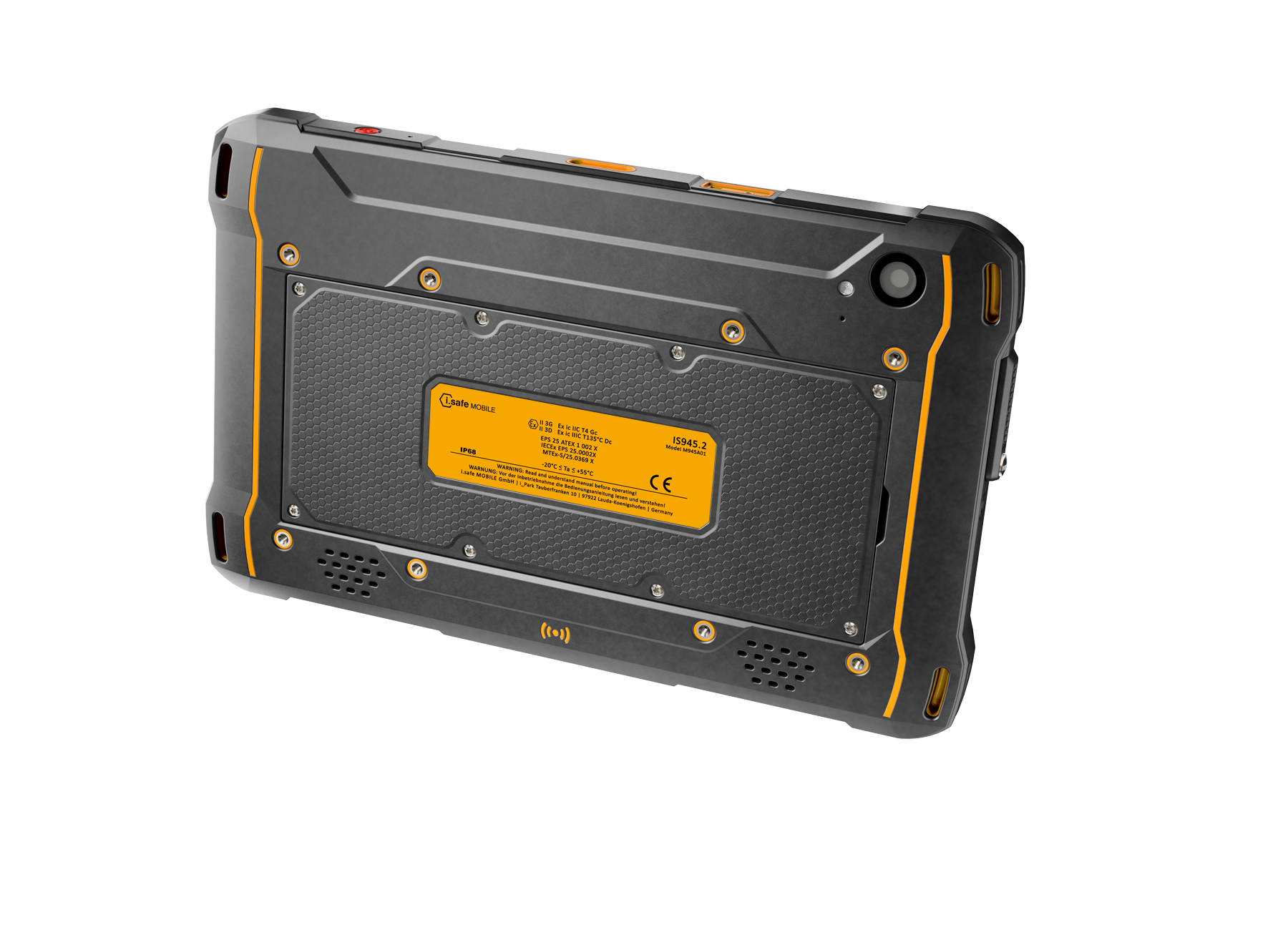

The i.safe MOBILE IS945.2 Intrinsically Safe Zone 2/22 Windows Tablet, shown from the back, features a rugged black and gray design with yellow accents, a large yellow label, a visible camera, reinforced casing, and a Qualcomm QCM6490 processor.

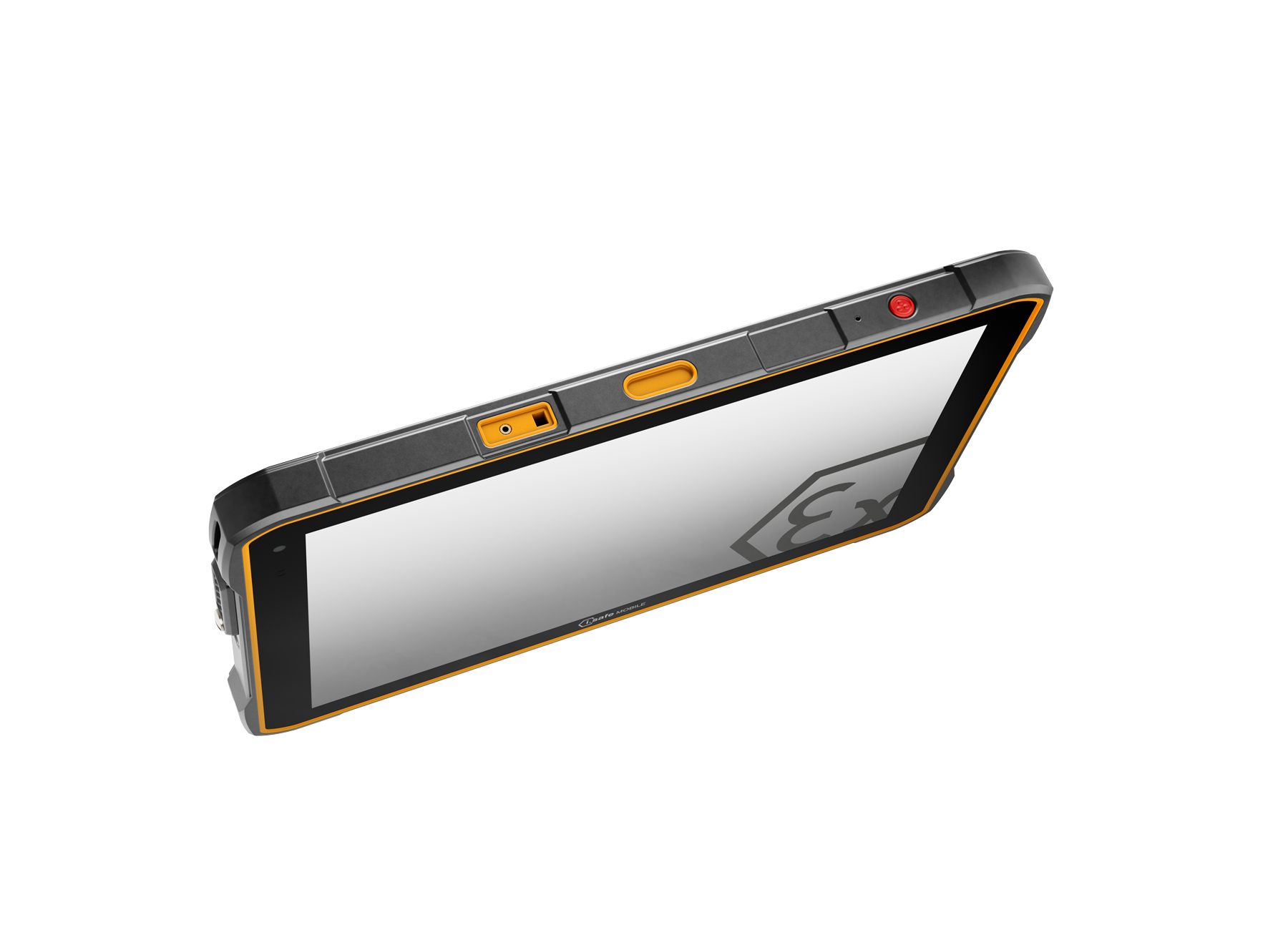

The i.safe MOBILE IS945.2 Intrinsically Safe Zone 2/22 Windows Tablet features a black and yellow rugged frame, touchscreen, visible ports and buttons on the top, and is powered by the Qualcomm QCM6490 for reliable industrial use.

Roll over image to zoom in Click on image to zoom

i.safe MOBILE IS945.2 Intrinsically Safe Zone 2/22 Windows Tablet

Windows operating system
Processor with long-term support: Qualcomm® QCM6490 Octa Core
Large memory with 8 GB RAM, 128 GB internal memory expandable with microSD memory up to 512 GB
Clear 10.1" display with Corning® Gorilla® Glass 3rd generation
Replaceable, powerful battery
Camera on the front and back
Wireless communications such as Wi-Fi®, Bluetooth®, GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
Programmable red key (e.g. for lone worker protection/SOS)
Additional programmable side buttons (assignable via "Button App")
Mounting VESA 100
Amplified loudspeaker for noisy work environments
Type of protection: IP68 waterproof/dustproof
MIL-STD-810H
Can be used from -20 °C to +55 °C

Get A Quote

Windows operating system
Processor with long-term support: Qualcomm® QCM6490 Octa Core
Large memory with 8 GB RAM, 128 GB internal memory expandable with microSD memory up to 512 GB
Clear 10.1" display with Corning® Gorilla® Glass 3rd generation
Replaceable, powerful battery
Camera on the front and back
Wireless communications such as Wi-Fi®, Bluetooth®, GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
Programmable red key (e.g. for lone worker protection/SOS)
Additional programmable side buttons (assignable via "Button App")
Mounting VESA 100
Amplified loudspeaker for noisy work environments
Type of protection: IP68 waterproof/dustproof
MIL-STD-810H
Can be used from -20 °C to +55 °C

Description
Technical Data
Resources
Approvals
Includes

Description

The 10.1-inch 5G Windows® tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IIoT-optimized chipset from Qualcomm® Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, 12-pin ISM interface for Docking Station, Wi-Fi 6, Bluetooth 5.2 support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras. Includes a 2-year warranty.

Available in two versions:
WiFi 6 only
4G/5G with WiFi 6

We are an authorized i.safe MOBILE distributor shipping to locations in North America.

Technical Data

Operating system	Windows 11 IoT Enterprise
Processor	Qualcomm® QCM6490 Octa Core
Memory	8 GB RAM 128 GB internal memory microSD to 128 GB
Frequencies	4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B68/B71 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions	Size: 10.48 x 6.63 x .78 in Weight: 2.34 lbs
Display	10.1 in (25,654 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	8160 mAh, 3,7 V replaceable
Camera	12 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C
Interfaces	USB-C ISM interface 12-pin docking interface

Resources

Datasheet
Quick Start Manual
ATEX Certificate
IECEx Certificate

Approvals

ATEX (Europe)
I 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc

IECEx (International)
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc

NEC500 (North America) **Applied For**
Class I Div. 2 Groups A, B, C, D, T4
Class II Div. 2 Groups F, G, T4
Class III Div. 2, T
