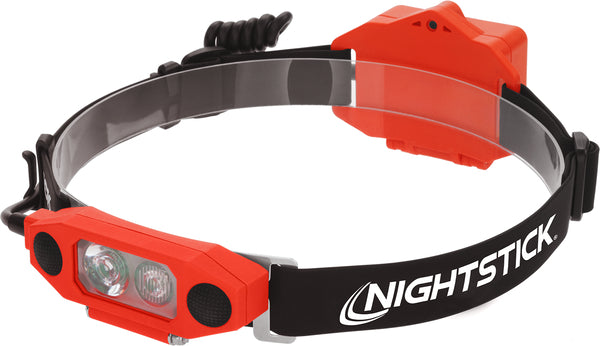

![The Nightstick XPP-5462RX DICATA® IS Low-Profile Dual-Light Headlamp features a black and red adjustable "NIGHTSTICK" strap, red front light module, rear battery pack, and provides hands-free illumination. [Zone 0].](http://www.exloc.com/cdn/shop/files/XPP-5462RX.jpg?v=1744145829&width=600)

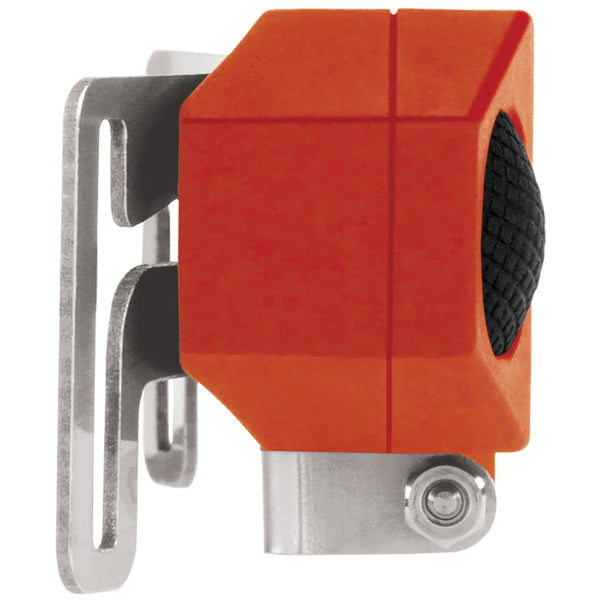

![A close-up of a Nightstick XPP-5462RX [Zone 0] DICATA® IS Low-Profile Dual-Light Headlamp, featuring an orange rectangular casing, black textured front, and metal bracket—comparable in durability to intrinsically safe LED devices.](http://www.exloc.com/cdn/shop/files/XPP-5462RX_Side.jpg?v=1744145856&width=600)
![The Nightstick XPP-5462RX DICATA® IS Low-Profile Dual-Light Headlamp features a black and red adjustable "NIGHTSTICK" strap, red front light module, rear battery pack, and provides hands-free illumination. [Zone 0].](http://www.exloc.com/cdn/shop/files/XPP-5462RX_1024x.jpg?v=1744145829)
![A close-up of a Nightstick XPP-5462RX [Zone 0] DICATA® IS Low-Profile Dual-Light Headlamp, featuring an orange rectangular casing, black textured front, and metal bracket—comparable in durability to intrinsically safe LED devices.](http://www.exloc.com/cdn/shop/files/XPP-5462RX_Side_1024x.jpg?v=1744145856)
Highlights
- Description
- Technical Data
- Approvals
- Resources
- Includes
Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.
The DICATA® Intrinsically Safe low-profile Dual-Light headlamp is cULus, KOSHA, ATEX Zone 0, and IECEx listed Intrinsically Safe and is designed specifically to work on fire helmets and hard-hats that have a flip-up face shield. The unique low-profile shape allows the user to work without having to remove the headlamp when raising or lowering their face shield. Made from glass-filled nylon polymer and features a multi-position tilt head design.
Both the spotlight and the floodlight use LEDs and an advanced TIR lens designed to optimize lumen output and beam pattern. Front-mounted switches provide easy access to the spotlight for distance illumination, the floodlight for close-up illumination, and Dual-Light for maximum lighting, versatility, and user safety.
Meets the requirements of NFPA-1971-8.6 (2013). Includes a heavy-duty rubber head strap for use on a fire helmet or hard hat. Powered by 3 AA batteries (included).
Technical Data
| Multi-Function | Yes |
|---|---|
| High Lumens | 275 |
| Low Lumens | 100 |
| Floodlight Lumens | 250 |
| Flood Low Lumens | 100 |
| High DL Lumens/th> | 310 |
| High Beam Distance (m) | 120 |
| High Candela | 3,660 |
| Drop Rating | 2 m |
| Water Rating | IP-67 Dustproof/Waterproof |
| High Runtime (h) | 6.0 |
| Low Runtime (h) | 25 |
| High Flood Runtime (h) | 7 |
| Medium Flood Runtime (h) | 25 |
| High Dual-Light Runtime (h): | 6 |
| Floodlight Color | White |
| Switch Function | Two Switches - right: spotlight, left: floodlight |
| Light Source | LED |
| Case Material | Engineered Polymer |
| Body Color | Red |
| Strap/Mount | Rubber Strap |
| Quantity of Batteries | 3 |
| Power Source | AA |
| Package Contents | Headlamp, 3 AA batteries, and heavy-duty rubber head strap |
| US Patent(s) | 9713217 |
| Warranty | Limited Lifetime Warranty |
| Length | 1.25 in (32 mm) |
| Width | 3.75 in (95 mm) |
| Depth | 1 in (25 mm) |
| Weight | 9.3 oz (265 g) |
Approvals
-
CLASS I DIV 1: GRPS A-D T4
CLASS II & III DIV 1: GRPS E-G
CLASS I ZONE 0: GRP llC T4
CLASS II ZONE 20: lllC T135°C
ATEX Certification: II 1 G Ex ia IIC T4 Ga
IECEx Certification:
Ex ia llC T4 Ga
Resources
Includes
- Headlamp
- 3 AA Batteries
- Heavy-duty rubber head stamp
