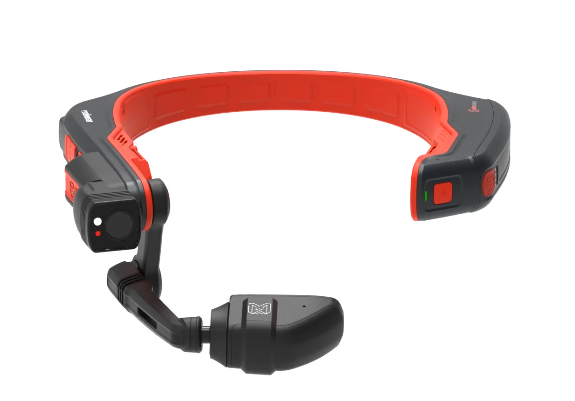

The RealWear Navigator Z1 with Thermal Camera is a wearable headset featuring a red and black frame, small camera, microphone arm attachment, and advanced smart glasses functionality in a sleek design.

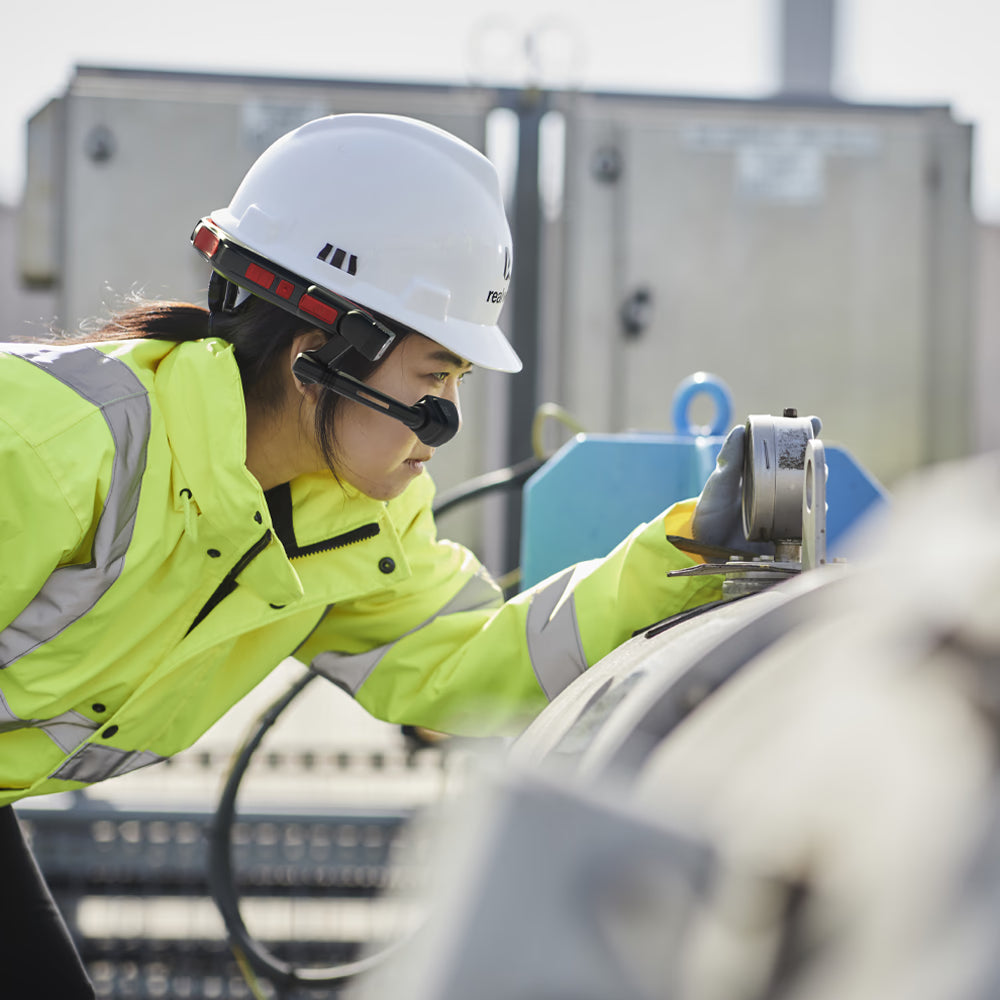

A worker in a high-visibility jacket and hard hat uses the RealWear Navigator Z1 with Thermal Camera to inspect industrial equipment outdoors in an ATEX Zone 1 area for enhanced safety.

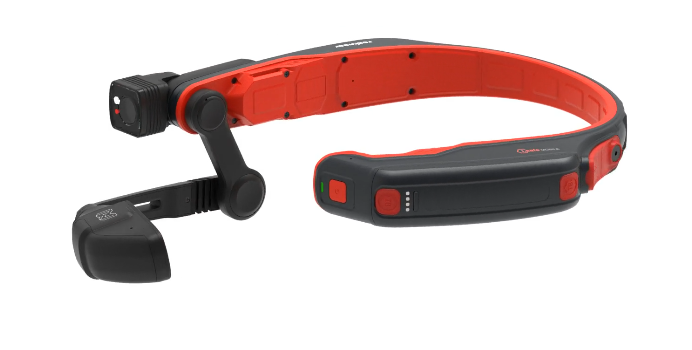

The RealWear Navigator Z1 with Thermal Camera is a hands-free wearable headset with a red and black adjustable band, featuring a small screen, camera, and thermal imaging on an adjustable arm for advanced technology in a compact design.
Roll over image to zoom in Click on image to zoom
The RealWear Navigator Z1 with Thermal Camera is a red and black wearable headset with a flexible microphone arm, designed for hands-free communication in ATEX Zone 1 environments.A worker in safety gear and a hard hat operates industrial equipment while wearing the RealWear Navigator Z1 with Thermal Camera, intrinsically safe smart glasses.The RealWear Navigator Z1 with Thermal Camera is a wearable headset featuring a red and black frame, small camera, microphone arm attachment, and advanced smart glasses functionality in a sleek design.A worker in a high-visibility jacket and hard hat uses the RealWear Navigator Z1 with Thermal Camera to inspect industrial equipment outdoors in an ATEX Zone 1 area for enhanced safety.The RealWear Navigator Z1 with Thermal Camera is a hands-free wearable headset with a red and black adjustable band, featuring a small screen, camera, and thermal imaging on an adjustable arm for advanced technology in a compact design.

RealWear Navigator Z1 with Thermal Camera

RealWear
Price:
$6,250.00

Highlights

  • Description
  • Technical Data
  • Resources
  • Includes
  • Approvals

Description

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

Industrial Strength Assisted Reality Solution

The RealWear Navigator Z1 with Thermal Camera is an intrinsically safe, rugged, hands-free wearable device that features the FLIR Thermal Camera Module, providing users with real-time thermal imaging capabilities. This powerful combination equips industry professionals with unparalleled situational awareness, enabling early detection of anomalies, and proactive risk mitigation.

Includes a 1-year Essentials Warranty & Support Plan.

RealWear offers two new options for protecting and optimizing your new device – Essentials and Premier:

Essentials Premier
Support Business hours, 24-hour response 24/7, 4-hour response
Training None Access to two intro courses – 101 & 201
RealWear Cloud Foresight centralized dashboard to manage and deploy devices 1 on 1 help to set up Foresight access plus device metrics, and frontline worker remote IT help support
Device Replacement Standard Replacement Advanced Replacement
Authorized Dealer

We are an authorized RealWear distributor shipping to locations in North America.

Technical Data

Core Platform and Functions
Operating System Android 12 (AOSP) + WearHF® hands-free interface
Chipset Qualcomm® QCS6490
Memory 128GB Internal Storage / 8GB RAM
Included Applications Document Navigator, Camera with Barcode Reader, Audio Recorder, Video Recorder, Webpage Viewer, Cloud Sync, Media Player, Calculator, Pedometer, Timer
Languages Supported Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Danish, Dutch, English (American, Australian, British, Indian), French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Thai, Turkish
Connectivity and Sensors
Bluetooth Bluetooth Low Energy 5.2
Wi-Fi Wi-Fi 6 (802.11ax) and Wi-Fi 6E (6 GHz)
GPS and Location GPS, GLONASS, NavIC, BeiDou, Galileo, QZSS, and SBAS
IMU 9-DOF (3-axis accelerometer, magnetometer, gyroscope), software enhanced stabilization
Battery 2550 mAh Li-Ion; removable and rechargeable (outside of Zone 1)
Battery Life Full shift with typical use
Physical Characteristics
Weight 400.3g
Ruggedization Intrinsically Safe (ATEX Zone 1 and CSA C1/D1), 2m drop tested, IP66, MIL-STD-810H
Dedicated Keys Power key, application-specific action key
Ports 3.5mm audio, 1 USB-C (data and charging)
Boom Arm Adjusts six ways for all head sizes, left or right eye compatible, flips out of view when not in use
Operating Temperature -4°F to +131°F / -20°C to +55°C
Display
Display Type 24° field-of-view, 24-bit color LCoS, 0.35-inch diagonal, outdoor visible
Resolution HD (1280x720)
Audio
Microphones 4 digital microphones with active noise cancellation (up to 100 dBA)
Speaker 94 dB open-air loudspeaker with safety warning above 80 dB; standard output below 76 dB
Camera
Camera System FLIR Lepton® 3.5 Thermal Sensor + 48MP visual camera with flashlight (removable outside Zone 1)
Video Up to 1080p @ 60fps, >6X zoom, stabilization, codecs: VP8, VP9, H.264, H.265 HEVC
Thermal Camera Module
Certifications Intrinsically Safe (ATEX Zone 1 and CSA C1/D1)
Thermal Sensor FLIR Lepton® 3.5
Thermal Resolution 160 x 120
Frame Rate 8.7 Hz
Field of View 57° (H), 71° (D)
Temperature Range -20°C to 400°C
Thermal Sensitivity <50 mK
Spectral Range 8 to 14 µm
Accuracy High Gain: ±5°C or 5% | Low Gain: ±10°C or 10%
Visual Camera Sensor 8 MP
Still Image Up to 12 MP
Thermal Video Up to 1080p @ 60fps

Resources

Includes

Included Intrinsically Safe inline safety box charging cable, works with most RealWear Navigator accessories including mounting solutions, Intrinsically Safe hearing protection, replacement clips, and more. Single Battery Charger and Thermal Camera Module are planned future accessories. Not all accessories are rated for IS zones.
  • Navigator 500
  • Preinstalled Hot-Swappable Rechargeable Battery (2,600 mAh Li-Polymer)
  • USB Type-C Charging Cable
  • Workband
  • Quickstart Guide

Approvals

ATEX: Ex II 2G Ex ib IIC T4 Gb Ex II 2D Ex ib IIIC T200°C Db IECEx: Ex ib IIC T4 Gb Ex ib IIIC T200°C Db North American (NEC/CEC): Class I, Division 1, Groups A, B, C, D, T4 Class II, Division 1, Groups E, F, G, T200°C Class III, Division 1 Class I, Zone 1, AEx ib IIC T4 Gb Zone 21, AEx ib IIIC T200°C Db Ex trans logo IECEx Logo trans
