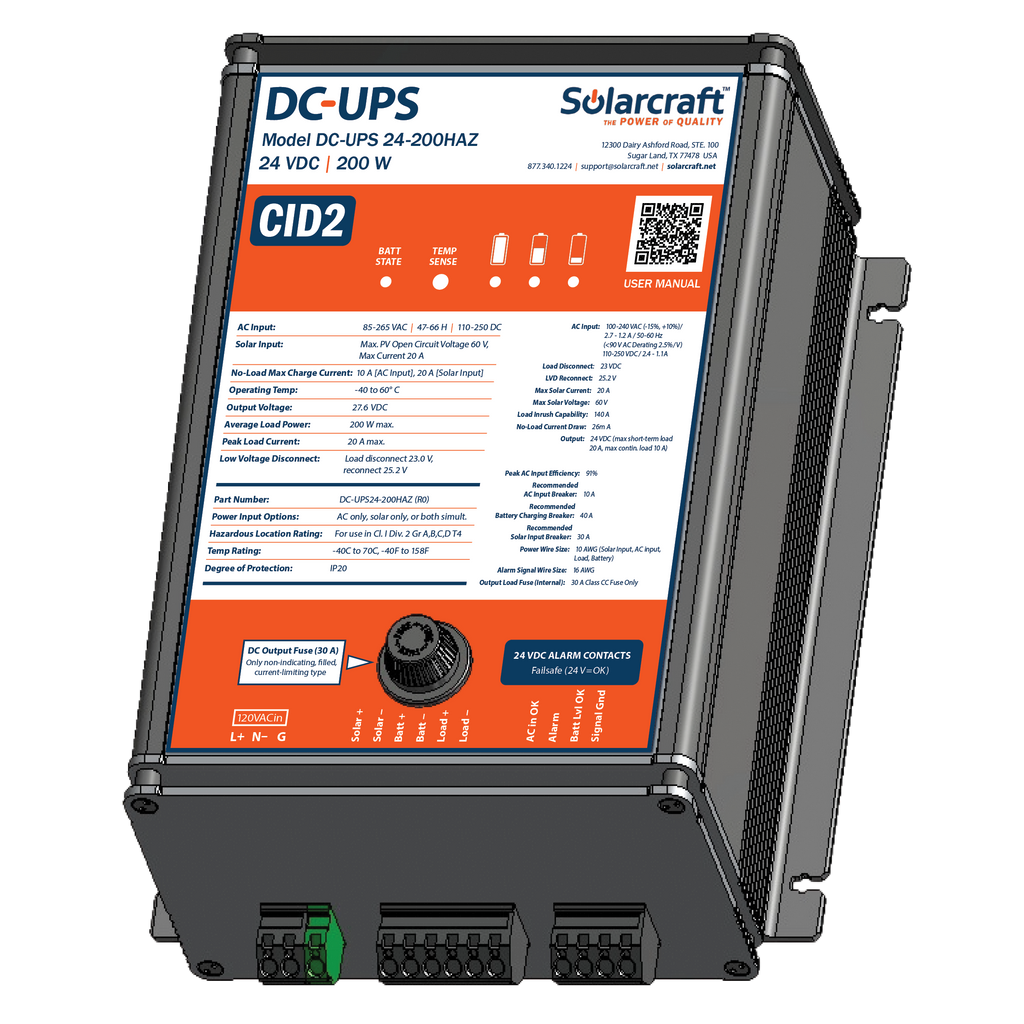

The Solarcraft C1D2 DC-UPS is a rectangular hybrid device with an orange and white front panel, indicator lights, and multiple bottom ports, providing reliable power conditioning for your systems.

Roll over image to zoom in Click on image to zoom

Solarcraft C1D2 DC-UPS

Advantages over conventional DC-UPSs:

Full Power Conditioning: Unlike a line-interactive or standard hybrid inverter, a true hybrid UPS provides clean, stable power during all operating modes, with zero transfer time to battery power during outages
Dead Battery Revitalization: Can successfully recharge a dead battery starting as low as zero volts
Maximized Uptime: The hybrid functionality guarantees that the load always stays up, solar power takes over if/when line power fails
Enhanced Reliability: The combination of solar, battery, and grid power sources with intelligent controls means a higher level of power availability and security
Temperature Compensation: Adjusts the charging profile based on ambient temperature
Low Voltage Disconnect (LVD): Automatically shuts off power to electrical loads when a battery’s voltage drops below a preset, safe level, protecting the battery from damage

Get A Quote

Advantages over conventional DC-UPSs:

Full Power Conditioning: Unlike a line-interactive or standard hybrid inverter, a true hybrid UPS provides clean, stable power during all operating modes, with zero transfer time to battery power during outages
Dead Battery Revitalization: Can successfully recharge a dead battery starting as low as zero volts
Maximized Uptime: The hybrid functionality guarantees that the load always stays up, solar power takes over if/when line power fails
Enhanced Reliability: The combination of solar, battery, and grid power sources with intelligent controls means a higher level of power availability and security
Temperature Compensation: Adjusts the charging profile based on ambient temperature
Low Voltage Disconnect (LVD): Automatically shuts off power to electrical loads when a battery’s voltage drops below a preset, safe level, protecting the battery from damage

Description
Technical Data
Resources

Description

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

Introducing the world’s first CID2 true hybrid UPS.

Seamless power. Certified protection.

When operations are mission-critical and environments are hazardous, power protection is not optional — it’s essential. The world’s first CID2 DC-UPS that utilizes line power, battery and solar to operate the load in a hazardous zone. Certified to meet stringent safety standards, it combines cutting-edge hybrid architecture with rugged industrial design, ensuring reliability where conventional systems can’t.

By integrating advanced hybrid technology, this DC-UPS reduces failure points, increases efficiency, and extends battery service life — all while maintaining continuous uptime in the most demanding conditions. Engineered for oil and gas, petrochemical, and industrial applications, it sets a new benchmark for safety, durability, and innovation in DC power protection. When downtime isn’t an option, this is the system you can count on.

We are an authorized Solarcraft distributor shipping to locations in North America.

Technical Data

Material and Construction Specifications:
Part Number	DC-UPS24-200HAZ (R0)
Power Input Options	AC only, solar only, or both simultaneously
Average Load Power	200 W max.
Hazardous Location Rating	For use in Cl. I Div. 2 Gr A,B,C,D T4
Temp Rating	-40° C to 70° C [-40° F to 158° F]
Degree of Protection	IP20
AC Input	100-240 VAC (-15%, +10%) / 2.7 - 1.2A / 50- 60 Hz (<90 V AC Derating 2.5%/V); 110-250 VDC / 2.4 - 1.1A
Load Disconnect	23 VDC
Low Voltage Disconnect	Load disconnect 23.0 V
LVD Reconnect	25.2 V
Max Solar Current	20 A
Max Solar Voltage	60 V (24V battery)
Load Inrush Capability	140 A
No-Load Current Draw	26 mA
Output	24 VDC (max short-term load 20 A, max contin. load 10 A)
Solar Output	Max. PV open circuit voltage 60 V, max. current 20 A
Peak AC Input Efficiency	91%
Recommended AC Input Breaker	10 A
Recommended Battery Charging Breaker	40 A
Recommended Solar Input Breaker	30 A
Power Wire Size	10 AWG (Solar Input, AC input, Load, Battery)
Alarm Signal Wire Size	16 AWG
Output Load Fuse (Internal)	30 A Class CC fuse only
Features & Benefits:
Low Voltage Disconnect (LVD)	Protects batteries from excessive discharge resulting in permanent battery damage
True Universal Input	47- 66 Hz, 85-265 VAC (automatic, no jumpers); 110-370 VDC input
Power-Factor-Corrected Input	Prevents harmonic degradation of the AC power line feeding the system
Constant-current Limited Output	Avoids shutdown problem
Temperature Compensated Output	Provides proper voltage for battery charging over wide temperature range
Low Noise Output	Allows use with sensitive electronics used in control, monitoring, and communications
Glitch-less Switch-over	Provides continuous load power
Wide Operating Temperature	Makes it suitable for indoor or outdoor use (-20° C to 60° C, -4° F to 140° F)
Isolated Form C Alarm Contacts	Provides remote signaling, or may be used to shed loads when AC power fails
Status Indicators	Provides system status at a glance
Reverse Battery Protection	With a replaceable fuse protects the DC-UPS and your loads
Rugged Enclosure	For trouble-free service in harsh industrial or remote app
