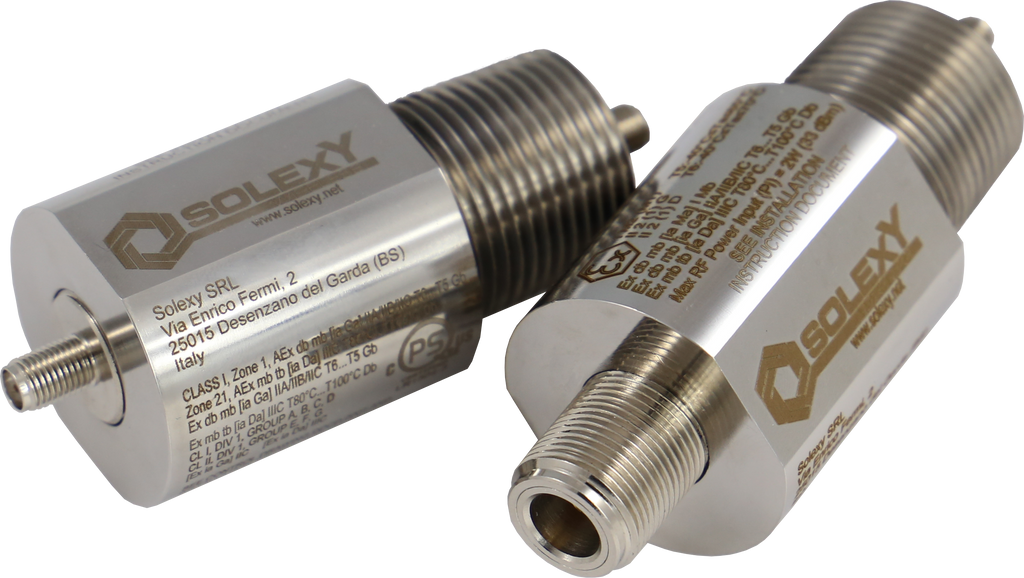

Solexy Antenna Coupler UX Series

Short Circuit Protection
- Includes integrated blocking circuitry
Environmental Protection
- All required circuitry is recessed into fitting and encapsulated
  against harsh environments
No Sealing Fitting Required
- High pressure tested sealing
XP Connector transit and intrinsically safe RF barrier all in one
- Fits conveniently into cable entry without the need for additional hardware to be installed inside XP enclosure
Wide Frequency Range
- Extended frequency range going from 300MHz up to 9GHz

Get A Quote

Short Circuit Protection
- Includes integrated blocking circuitry
Environmental Protection
- All required circuitry is recessed into fitting and encapsulated
  against harsh environments
No Sealing Fitting Required
- High pressure tested sealing
XP Connector transit and intrinsically safe RF barrier all in one
- Fits conveniently into cable entry without the need for additional hardware to be installed inside XP enclosure
Wide Frequency Range
- Extended frequency range going from 300MHz up to 9GHz

Description
Resources

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-524-3907

Solexy’s patented (7,057,577) Explosion-Proof Antenna Coupler permits the installation of non-Ex certified antennas in hazardous areas. This coupler is designed to be used directly with listed explosion proof housings or conduit fittings.

An integrated blocking circuit prevents hazardous energy reaching the antenna if a radio, modem or access point failure occurs. It also allows for antenna removal in hazardous areas.

The coupler’s robust design allows for connection to practically any radio and antenna. It is a highly flexible and cost effective solution to hazardous area radio system deployment. The coupler can also be used as a cable bulkhead.

Fitting is approved for hazardous locations and can be installed with a simple wrench.
