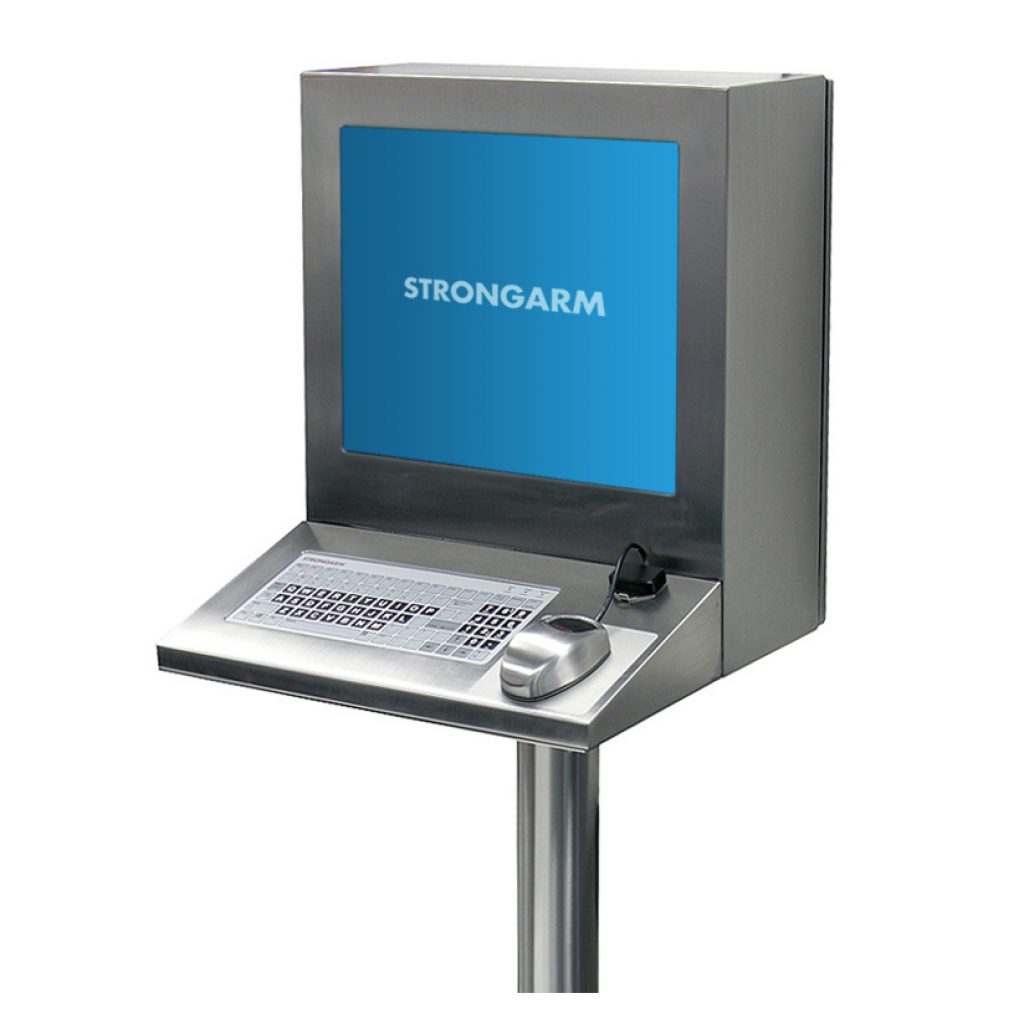

Strongarm PEDESTAL STATION is an industrial workstation with a built-in keyboard, mouse, and display, designed for reliable process control and user-friendly industrial interface solutions.
Roll over image to zoom in Click on image to zoom
Strongarm PEDESTAL STATION is an industrial workstation with a built-in keyboard, mouse, and display, designed for reliable process control and user-friendly industrial interface solutions.

Strongarm PEDESTAL STATION

Strongarm

Highlights

Get A Quote

Highlights

  • Description
  • Technical Data
  • Approvals

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-545-3968.

Floor-mounted or fitted with a mobile base, Strongarm pedestal stations are engineered for use virtually anywhere on the factory floor throughout the manufacturing process. Choose from a variety of swivel, fixed, tilted,and yoke mounting options. NEMA Type 4X units are fabricated from 304 or 316L stainless steel, and NEMA Type 4 and 12 units are fabricated from powder-coated steel.

As an optional value-added service, Strongarm can install and integrate user-supplied components into your system, or we can procure, integrate, and wire any specified components before shipment, providing an installation-ready assembly.

CSFM Logo CSFM Logo
Authorized Dealer

We are an authorized Strongarm distributor shipping to locations worldwide.

Technical Data

Enclosure Specs

NEMA Type NEMA 4X, NEMA 4, NEMA 12
Construction Precision laser-cut, formed, with welded seams
Material NEMA 4X: Formed 14 gauge 304 or 316L stainless steel
NEMA 4/12: Formed 14 gauge steel
Finishing NEMA 4X: RA35, brushed satin finish
NEMA 4: Primed and powder coated steel
NEMA 12: Powder coated steel
Gaskets NEMA 4X/4: Oil-resistant silicone foam door gaskets
NEMA 12: Poron foam door gaskets
Latches NEMA 4X/4: ¼ turn stainless steel slotted latches
NEMA 12: ¼ turn chrome slotted latches with zinc diecast housing
Hinges NEMA 4X/4/12: 316L stainless steel hinges
Agency Approval UL 508A (File no E225791), RoHS, CE, Reach
Ingress Protection IP54, IP64, IP65 & IP66

Post Specs

Construction NEMA 4X/4/12: Precision-welded for rigidity and stability
Material NEMA 4X: 3″ Schedule 40 structural stainless steel
NEMA 4/12: 3″ Schedule 40 structural steel pipe
Finishing NEMA 4X: Brushed satin finish
NEMA 4: Primed and powder coated steel
NEMA 12: Powder coated steel

Approvals

NEMA Rating NEMA Type 4/12/4X
Enclosure Material NEMA 4X: 14g 304/316L stainless steel sheet NEMA 4/12: 14g carbon steel low carbon sheet
Finishing NEMA 4X; RA35, brushed satin finish NEMA 12: Powder coated steel NEMA 4: Primed and powder coated steel
Gaskets NEMA 4X/4: Oil-resistant silicone foam door gaskets NEMA 12: Poron foam door gaskets
Latches NEMA 4X/4: ¼ turn stainless steel slotted latches NEMA 12: ¼ turn chrome slotted latches with zinc diecast housing
Hinges NEMA 4X/4/12: 316L stainless steel hinges
