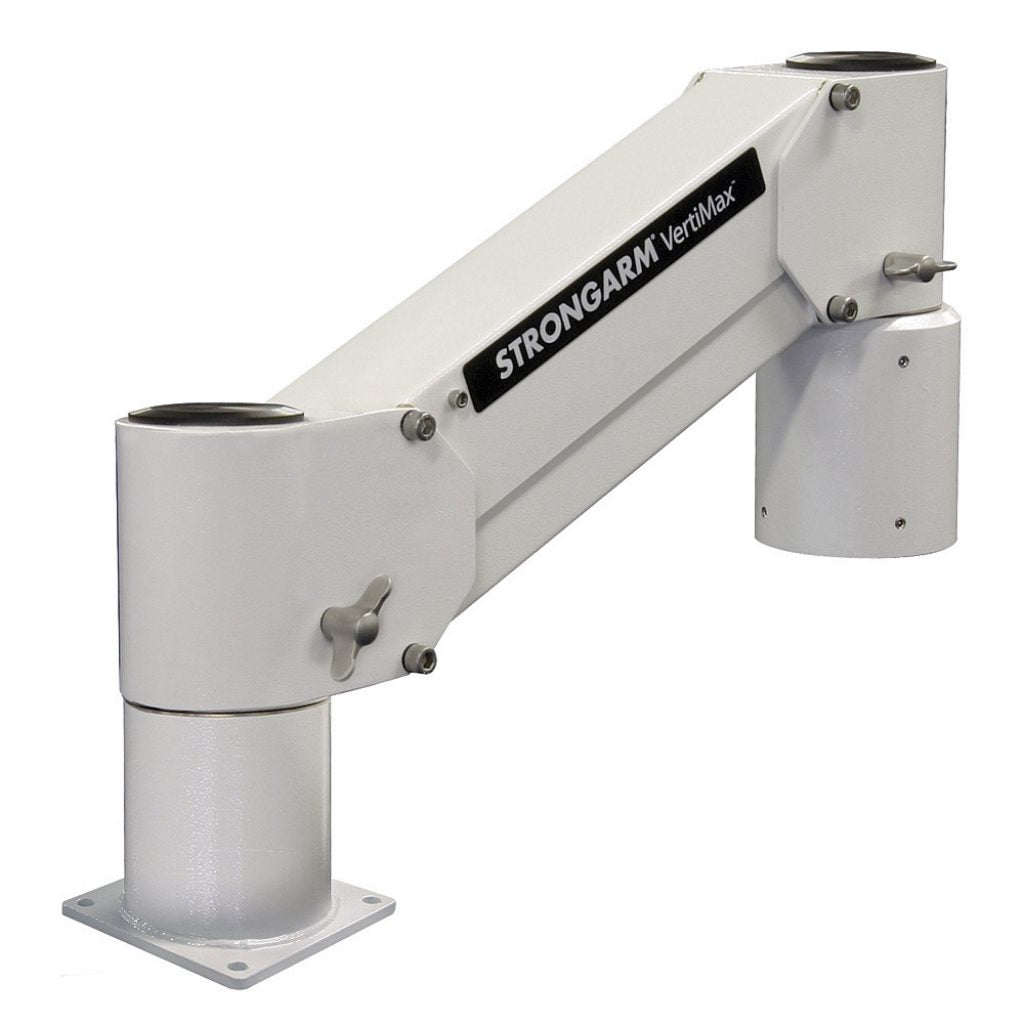

The Strongarm VERTIMAX™ is a white industrial mounting arm with two joints, installation base plates, and gas spring-assisted articulation for smooth positioning.

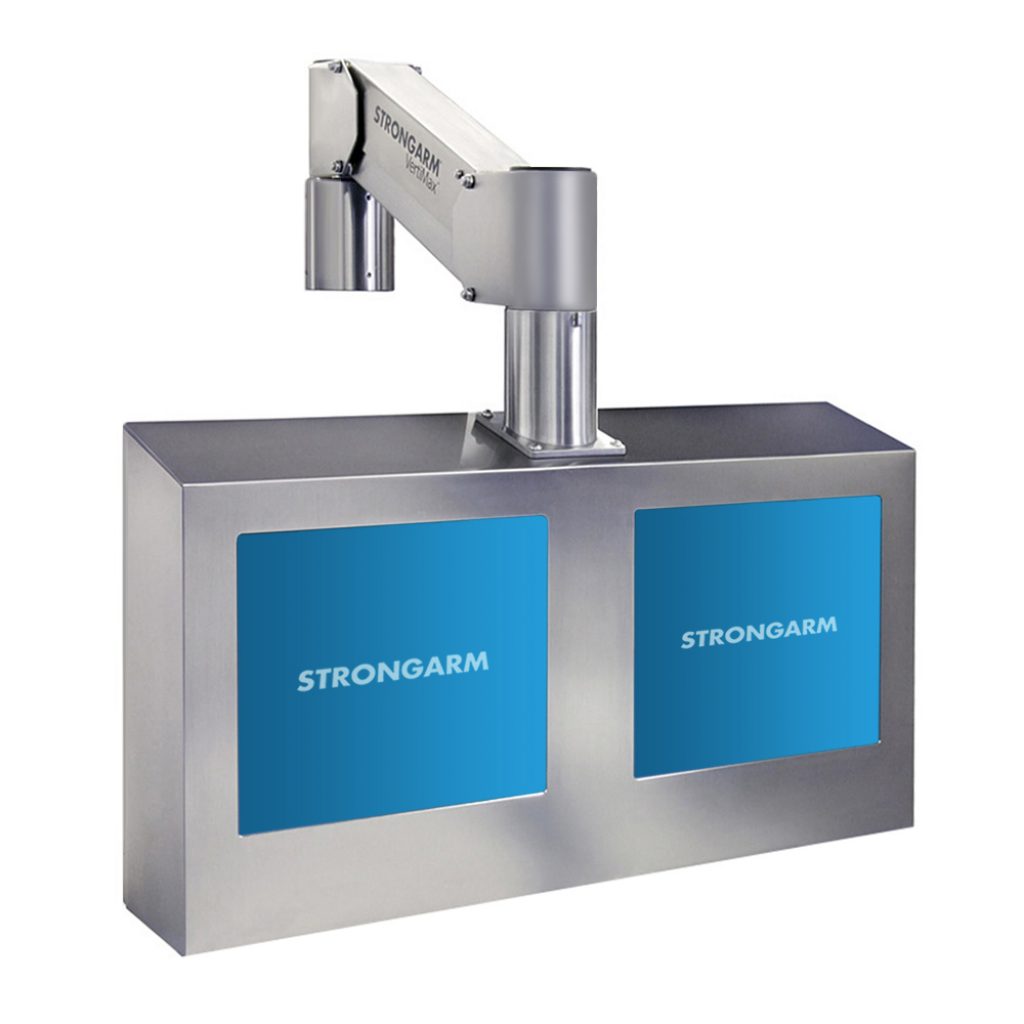

The Strongarm VERTIMAX™ is a stainless steel workstation featuring a gas spring-assisted adjustable arm, "STRONGARM" branding, and dual blue display screens.

Roll over image to zoom in Click on image to zoom

Strongarm VERTIMAX™

Three choices of vertical gas spring assisted articulation (V – 13″, L – 23″, XL – 30″)
Up to 250 lbs of counterbalanced lifting force
NEMA Type 4/12 (powder-coated steel, see color options) or NEMA Type 4X (304/316L stainless steel)
An internal 2.5” (63mm) sealed cable passageway protects cables and wires
Numerous mounting options include wall mount, post mount, and machine top mount
Custom mounting solutions also available
Optional enclosures are fabricated from 14 gauge steel or stainless steel
Enclosures are fabricated to order to meet your specific requirements
Type 4/12 units available in a variety of stock colors, and custom colors are available upon request
IP54, IP64, IP65 & IP66 configurations available
UL 508A Listed (File No E225791).

Get A Quote

Three choices of vertical gas spring assisted articulation (V – 13″, L – 23″, XL – 30″)
Up to 250 lbs of counterbalanced lifting force
NEMA Type 4/12 (powder-coated steel, see color options) or NEMA Type 4X (304/316L stainless steel)
An internal 2.5” (63mm) sealed cable passageway protects cables and wires
Numerous mounting options include wall mount, post mount, and machine top mount
Custom mounting solutions also available
Optional enclosures are fabricated from 14 gauge steel or stainless steel
Enclosures are fabricated to order to meet your specific requirements
Type 4/12 units available in a variety of stock colors, and custom colors are available upon request
IP54, IP64, IP65 & IP66 configurations available
UL 508A Listed (File No E225791).

Description
Technical Data
Approvals

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-545-3968.

The VertiMax arm is the only vertically adjustable mounting for larger interfaces and enclosures. The counterbalanced vertical motion allows the operator to lift effortlessly, lower, and reposition the HMI using one hand by pulling on the release handle. When released, the arm automatically locks in the vertical position. The VertiMax can counterbalance enclosures up to 250 lbs. NEMA Type 4 and 12 are constructed from powder-coated steel, and NEMA Type 4X units are fabricated from 304 or 316L stainless steel.

Strongarm can install and integrate all user-supplied components into your system, or we can procure, integrate, and wire any specified components before shipment, providing a 100% turnkey installation-ready system.

We are an authorized Strongarm distributor shipping to locations worldwide.

Technical Data

DISPLAY

Vertical Travel		VertiMax: 13 inches VertiMax L: 23 Inches VertiMax XL: 30 inches
Counterbalance Capacity		VertiMax: 250lbs VertiMax L: 160 lbs Vertimax XL: 145 lbs
Load Limitations		600 ft⋅lb maximum on swivel joint (Consult factory for larger loads)
Cable Passageway		2.5″ (63mm) diameter sealed continuous passageway maintains the NEMA rating and protects wires and cables
Finishing		NEMA 4X: RA35 brushed satin finish NEMA 12: Powder coated steel NEMA 4: Primed and powder coated steel
NEMA Rating		NEMA Type 4/12/4X
Standard Rotation Stops (Custom stops available upon request)		Enclosure Swivel: stop at ±165° Post Top Mount: stop at ±165° Wall Mount: stop at ±90° Machine Top Mount: stop at ±165° Middle Joint: stop at ±126° Rigid Wall Mount: stop at ±126°

Approvals

NEMA Rating

NEMA Type 4/12/4X
