Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-937-3721..

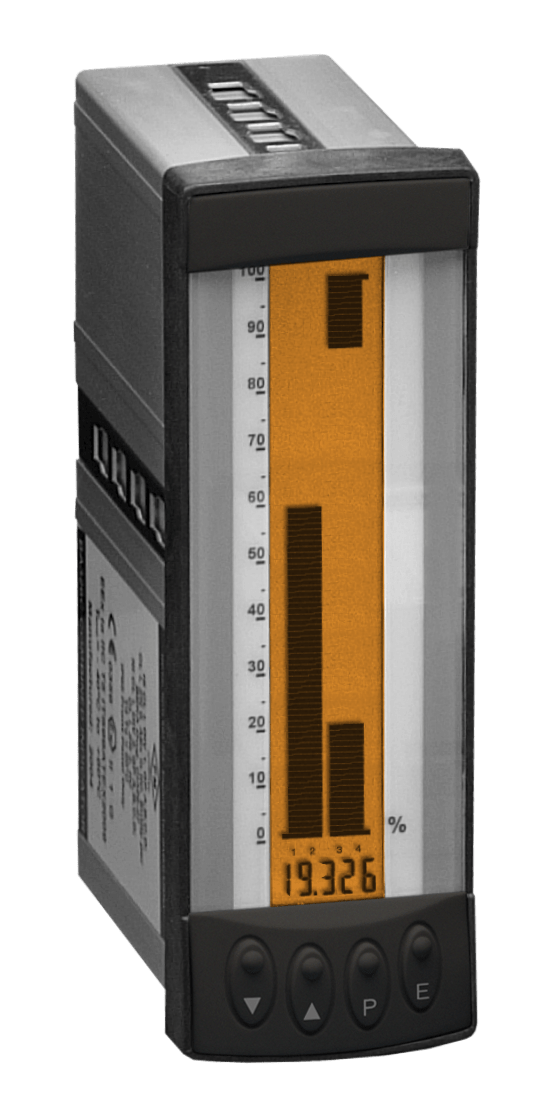

A BA326C basic loop powered indicator that is easy and inexpensive to apply as it does not require an additional power supply or extensive wiring.
Accessories including alarms, linearisers, and a separately powered backlight further extend the application of this instrument.
This loop powered indicator has ATEX and IECEx intrinsic safety certification.
This model is supplied calibrated to customer’s requirements free of charge and can be labelled to show units of measurement, tag number and application.
Technical Data
| Legacy Status | Replaces BA326B | |||
| Mounting & Enclosure | Panel 48 x 144 mm | |||
| Display Format | 4 1/2 digit 5.5mm high, two 100 segment bar graphs, 95mm high | |||
| Ingress Protection | Front IP64, Rear IP20 | |||
| Europe ATEX | ATEX Group 11 Category 1G Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +60°C |
|||
| International, IECEx | Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +60°C | |||
| Scale card & tag/application marking | Printed at no cost when information included with order. | |||
| Alarms | Optional | |||
| Backlight | Optional and Separately Powered | |||
| Linearizer | Optional | |||
