GMI D5020D Intrinsically Safe Isolator SIL2 2 Channel, Analog Outputs: 4-20mA/HART

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

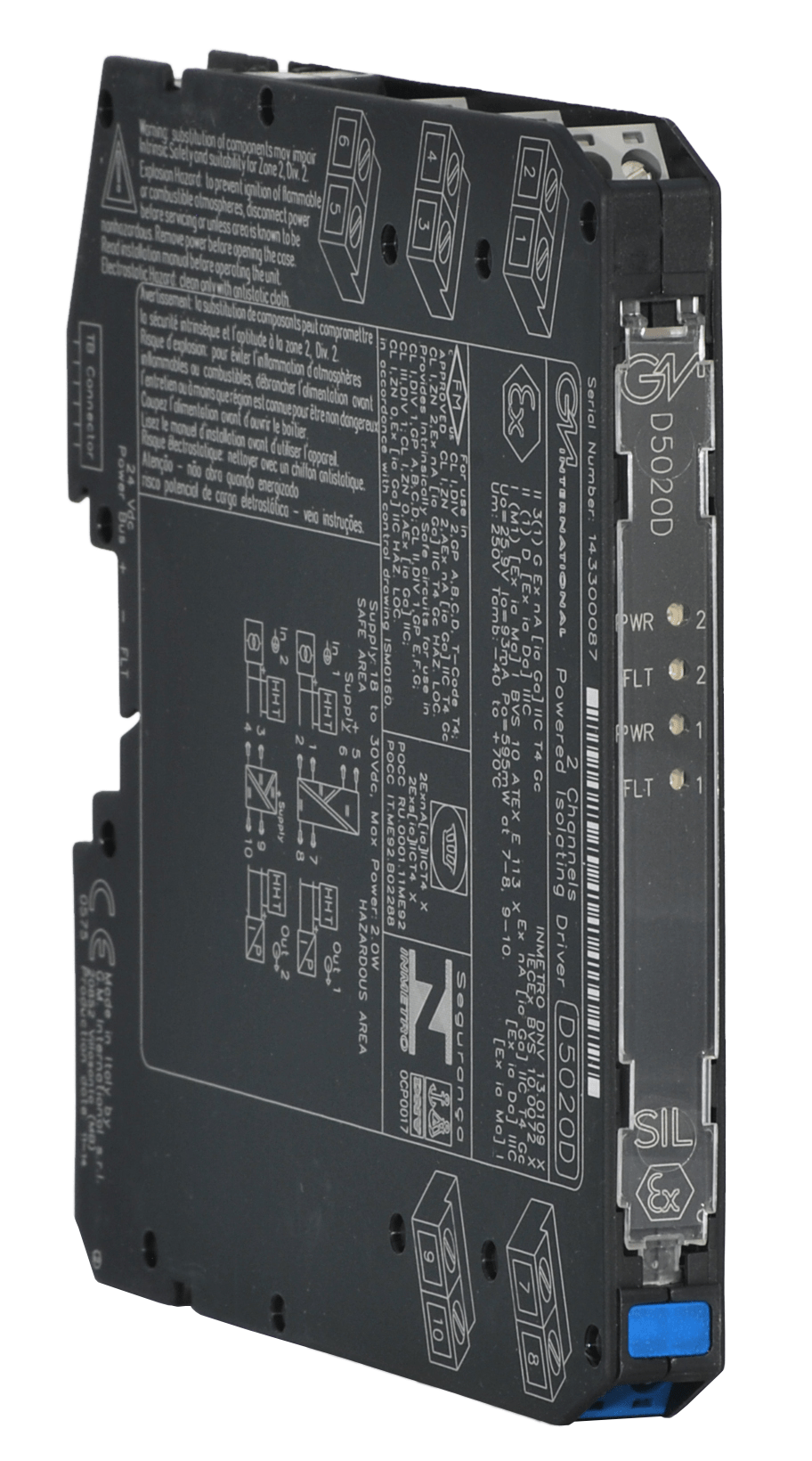

This dual channel Isolating Driver, D5020D module, is a high integrity analog output interface suitable for applications requiring SIL 2 level (according to IEC 61508:2010 Ed. 2) in safety related systems for high risk industries. It isolates and transfers a 4-20 mA signal from a controller located in Safe Area to a load up to 700 Ω in Hazardous Area. It has a high output capacity of 15 V at 20 mA combined with a low drop across its input terminals.

The circuit allows bi-directional communication signals, for Hart positioner. In the 4-20 mA input range, a field open or short circuit, reflects a high impedance to the control device circuit and actuates (de-energizes) the channel fault output transistor and actuates (energizes) the cumulative fault output available on Power Bus connector. A fault output signal for each channel is available when mounted on customized Termination Board. Short circuit fault detection can be enabled (two different levels can be selected) or disabled via DIP-Switch programming. Mounting on standard DIN-Rail, with or without Power Bus, or on customized Termination Boards, in Safe Area / Non Hazardous Location or in Zone 2 / Class I, Division 2 or Class I, Zone 2.
