BEx1 IP67 Remote IO Module Zone 1/21


Highlights

Highlights

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-545-3968.

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-978-2040.

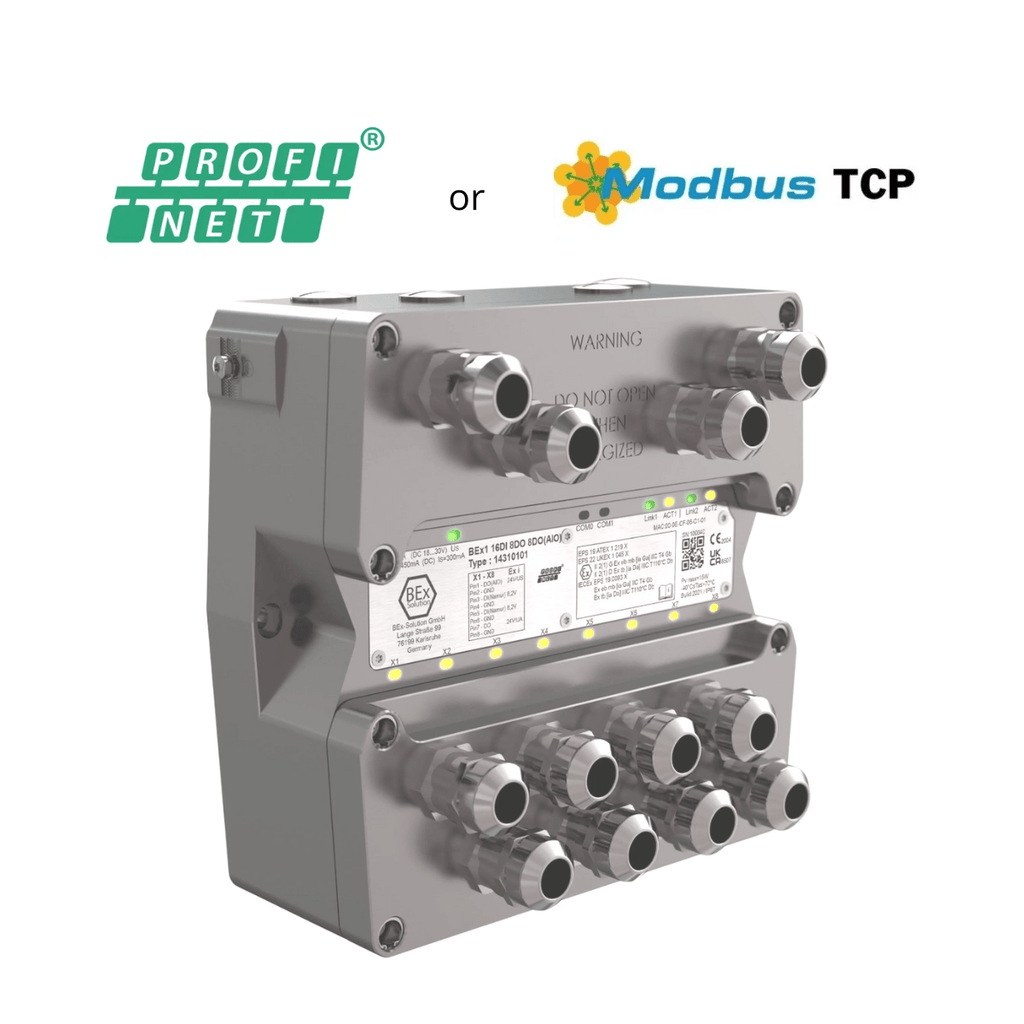

Compact, Ultra-Rugged Remote IO modules for Ex Zone 1/21 with Profinet or Modbus TCP/IP communications. The modules include an ethernet based bus node with up to 32 IO channels on the intrinsically safe version and up to 24 on the increased safety version. With a wide range of IO types available and an ultra-rugged housing, the Bex1 IP67 remote IO modules offer a unique, compact solution for interfacing to hazardous area instrumentation.

BEx1 IP67 modules can be installed directly in Zone 1/21 hazardous areas and connect to instrumentation from Zone 0/20 (Ex i version). With no additional enclosure required, the modules lend themselves ideally to mounting on even the most compact hazardous area rated machines and skids, cutting wiring down to a minimum. With the flexibility of daisy chaining multiple modules together, the system can be scaled up easily as IO quantities increase.

The modules have been designed to be used in harsh environments, including off-shore Oil and Gas rigs, chemical manufacturing facilities and paints and coatings factories.

Ex Trans IECEx UKCA Trans cETLus small logos
Authorized Dealer

We are an authorized ExRUGGED distributor shipping to locations in North America.

Technical Data for Ex e Version

Power Supply
Operation voltage UA/US                               DC 18…30V
Current module and sensor supply IS          DC 450 mA
Current actuator supply IA                             DC 12A
Power dissipation                                              max. 15 W
Reverse polarity protection                             Yes
Fieldbus Data
Addressing Profinet                                           via DCP
Addressing Modbus TCP/IP                            DHCP or fix
Transfer Rate                                                      10/100 MBit/s
Delay in signal change                                      < 10ms
Ambient Conditions
Operating temperature                                     -40°C … 70°C
Storage temperature                                          -40°C … 80°C
Enclosure type (EN 60529)                              IP66 / IP67
IO variations
8AI 8DIO(AO) 8DIO

Mechanical Data
Dimensions (LxWxH)                                       214 x 206 x 115 mm
Mounting position                                            any position
Weight                                                                 approx. 5400 g
Housing material                                              Aluminum (galvanized)

Technical Data for Ex i Version

Power Supply
Operation voltage UA/US                               DC 18…30V
Current module and sensor supply IS          DC 450 mA
Current actuator supply IA                             DC 300 mA
Power dissipation                                              max. 15 W
Reverse polarity protection                             Yes
Fieldbus Data
Addressing Profinet                                           via DCP
Addressing Modbus TCP/IP                            DHCP or fix
Transfer Rate                                                      10/100 MBit/s
Delay in signal change                                      < 10ms
Ambient Conditions
Operating temperature                                     -40°C … +70°C
Storage temperature                                          -40°C … +80°C
Enclosure type (EN 60529)                               IP67
IO variations
• 16xDI Namur / 16xDO
• 16xDI Namur / 8xDO / 8xAIO
• 16xDI Namur / 8xDO / 8xSwitching
Mechanical Data
Dimensions (LxWxH)                                      214 x 206 x 115 mm
Mounting position                                            any position
Weight                                                                 approx. 5400 g
Housing material                                              Aluminum (galvanized)

Approvals

Ex trans small logo IECEx Logo Industrial safety product image from Exloc Instruments cETLus small – industrial safety device from Exloc Instruments

BEx1 IP67 Explosion Protection

EPS 19 ATEX 1 219 X
EPS 22 UKEX 1 045 X
II 2(1) G Ex eb mb [ia Ga] IIC T4 Gb
II 2(1) D Ex tb [ia Da] IIIC T110°C Db


IECEx EPS 19.0093X
Ex eb mb [ia Ga] IIC T4 Gb
Ex tb [ia Da] IIIC T110°C Db

Ex i Version
Class I, Division 2, Groups A, B, C, D
Class I, Zone 1, Aex eb mb [ia Ga] IIC T4 Gb
Class II, Division 2, Groups F, G
Zone 21, Aex tb [ia Da] IIIC T110°C Db

Ex e Version
Class I, Division 2, Groups A, B, C, D
Class I, Zone 1, AEx eb mb IIC T4 Gb
Class II, Division 2, Groups F, G
Zone 21, AEX tb IIIC T110°C Db
