Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

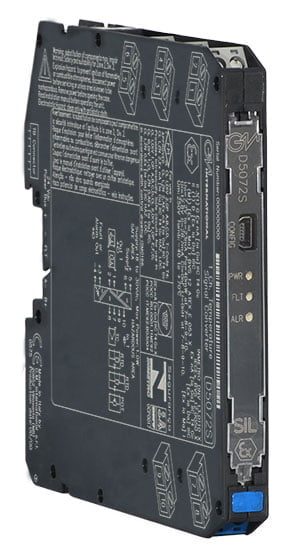

The Multifunction Temperature Converter D5072S accepts a low level dc signal from millivolt, thermocouple or 2-3-4 wire/RTD or transmitting potentiometer sensor, located in Hazardous Area, and converts, with isolation, the signal to drive a Safe Area load, suitable for applications requiring SIL 2 level in safety related systems for high risk industries. Output signal can be direct or reverse. Modbus RTU RS-485 output is available on Bus connector.
Cold junction compensation can be programmed as Internal: provided by an internal temperature sensor; Fixed: to a user-customizable temperature value. Modules are provided with alarm function, which is available via photoMOS output.
Click here to get the PPC5092 which is required to easily program D5072 model via PC standard USB Port.
Technical Data
| Specification | Details |
|---|---|
| Weight | 0.29 lbs (130 g) |
| Dimensions | Width 0.50 in x Depth 4.84 in x Height 4.72 in (Width 12.5 mm x Depth 123 mm x Height 120 mm) |
| Variations | Two Channel Available: D5072D |
| Accessories | Bus Connector JDFT049, Bus Mounting Kit OPT5096 |
| Programmable USB serial line Kit PPC5092 + SWC5090 |
Approvals
| UL and cUL-Underwriters Laboratory |
| ATEX |
| IECEx |
| SIL-TUV |
