Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

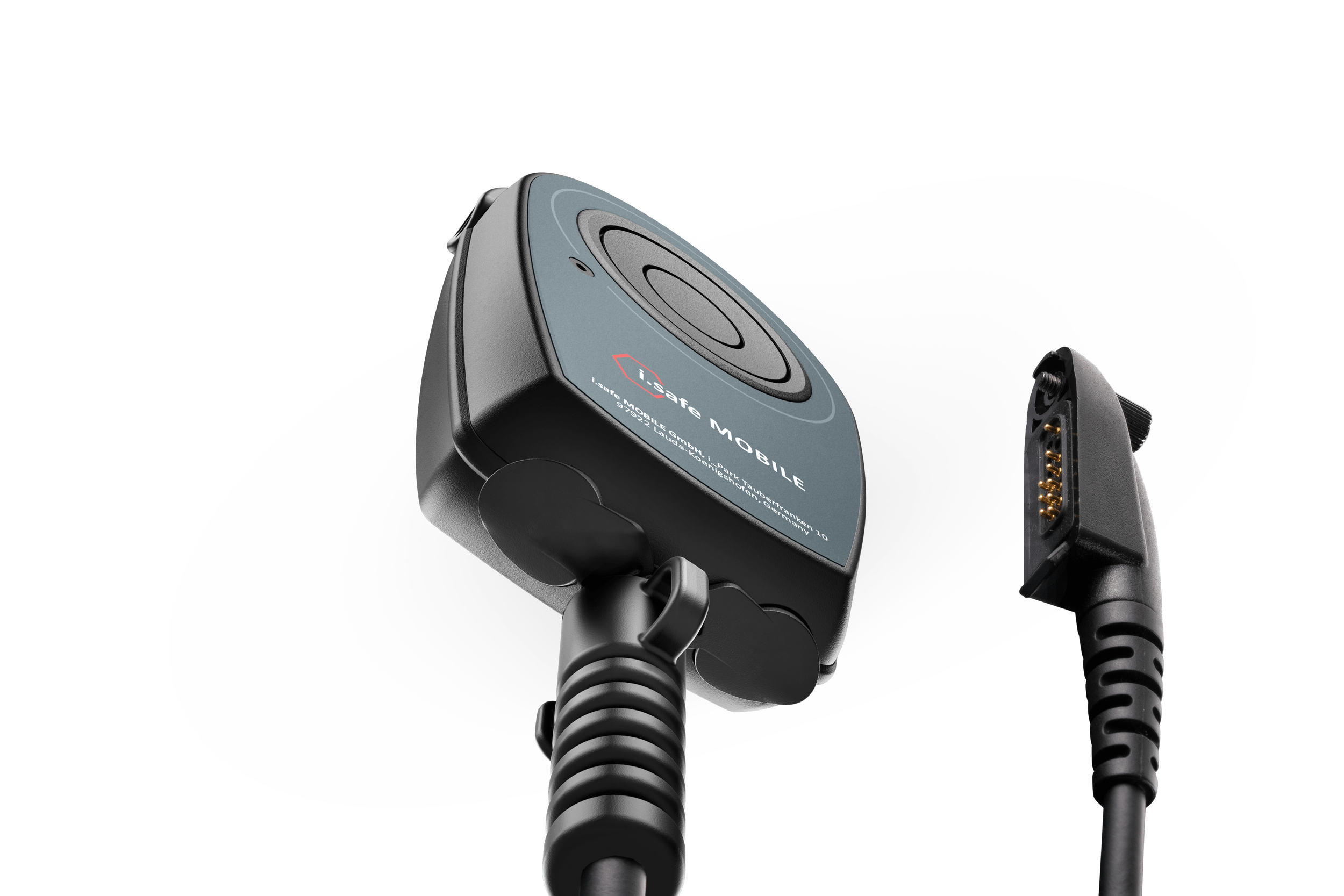

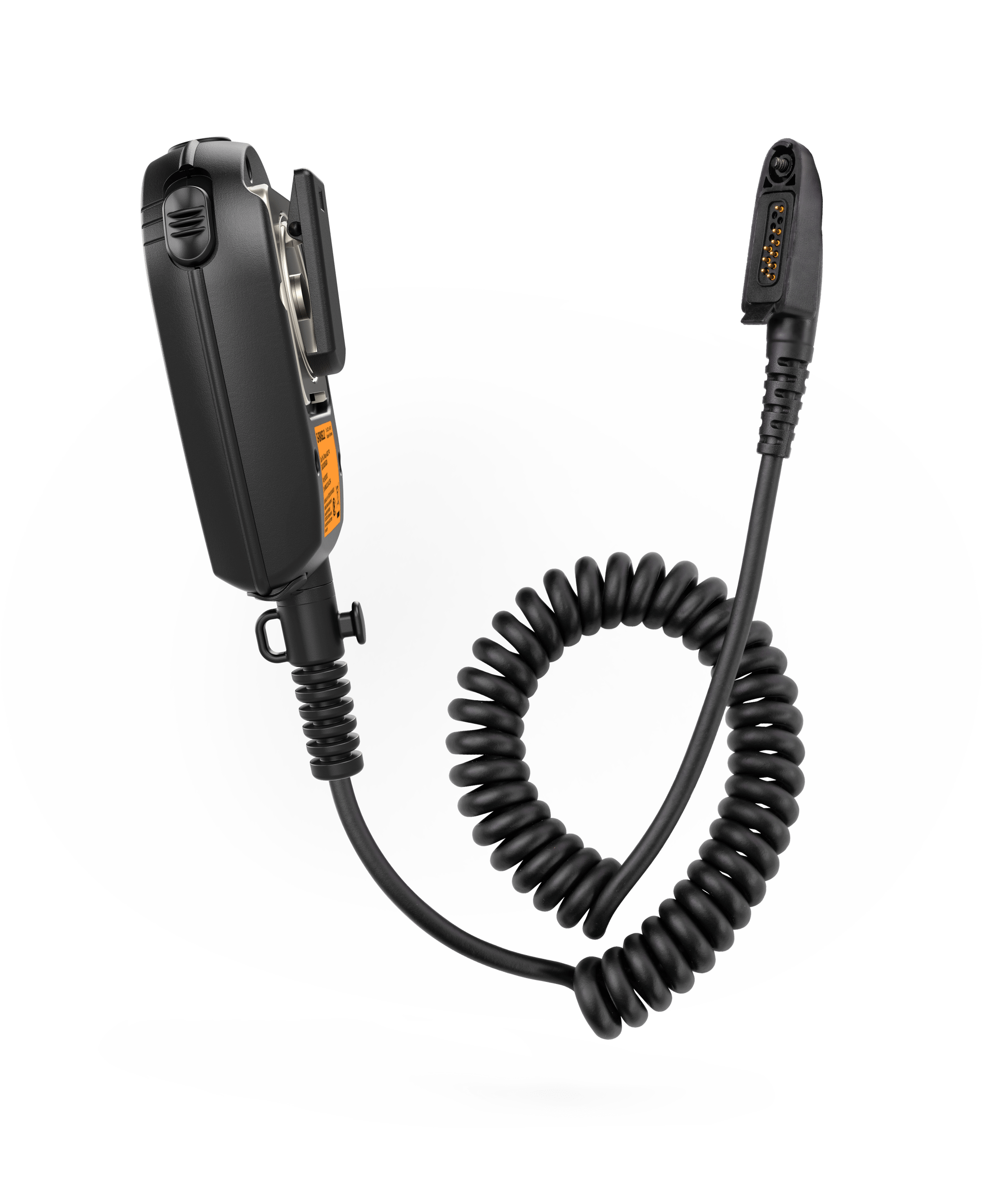

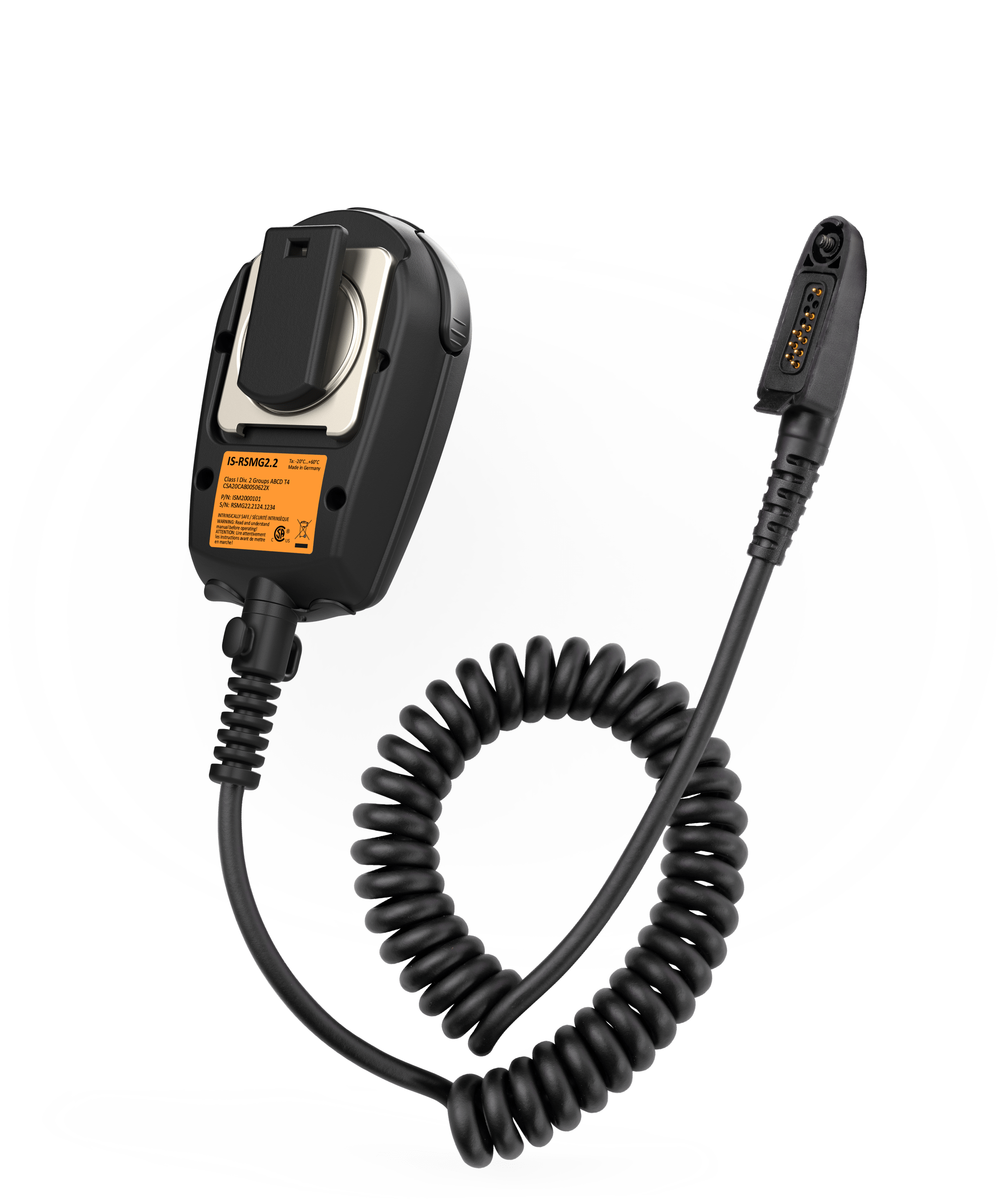

The wired remote loudspeaker microphone is specially designed for PTT applications and has NEC500 Class I Div 2 (North America) approval. With its robust but lightweight housing and the secure ISM interface, this device is an ideal addition to our mobile devices IS330.2 and IS530.2. The dynamic loudspeaker is specially designed for noisy environmental conditions.
Technical Data
| Type | IS-RSMG2.2 |
|---|---|
| Size | 3.86 x 2.60 x 1.06 in (98.11 x 65.93 x 26.96 mm) |
| Weight | .47 lbs (215 g) |
| Power Supply | Over the connected device |
| Protection Class | IP54 | Operation range from -20 °C up to 60 °C |
| Connection | ISM interface |
| Cable length | Flexible spiral cable from 48 to 130 cm |
| Microphone | Electret | Omni-Directional Sensitivity: -38dB ± 3dB (1kHz) Bandwidth: 50Hz … 16kHz |
| Loudspeaker | Dynamic | 3-stage volume control Sensitivity: 93dB (1mW) Bandwidth: 50Hz … 8kHz |
Approvals
NEC500
(approved for North America)
Class I Div. 1 Groups A, B, C, D, T4
Resources
Includes
- Remote Speaker Microphone
- Safety Instructions
- Quick Start Manual
