Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.
This 220 lumen Multi-Function Dual-Light Headlamp is cULus listed Intrinsically Safe. The 5453 headlamp features a multi-position tilt head design and includes a backplate for an elastic head strap with a non-slip lining or the included heavy-duty rubber head strap. For zero band usage, 3M™ Dual Lock™ reclosable fasteners are also included (see instructions for proper installation). The top-mounted switch provides a user-selectable spotlight, floodlight, and our exclusive Dual-Light technology providing both the spotlight and the floodlight at the same time. Power comes from 3 AAA batteries (included).
Technical Data
| Multi-Function | Yes |
|---|---|
| High Lumens | 190 |
| Floodlight Lumens | 170 |
| High DL Lumens/th> | 220 |
| High Beam Distance (m) | 104 |
| High Candela | 2,705 |
| Drop Rating | 2 m |
| Water Rating | IP-67 Dustproof/Waterproof |
| High Runtime (h) | 5.0 |
| High Flood Runtime (h) | 5 |
| High Dual-Light Runtime (h): | 5 |
| Switch Function | Single switch. Spotlight, floodlight, dual-light, off |
| Light Source | LED |
| Case Material | Engineered Polymer |
| Body Color | IS Green |
| Strap/Mount | Elastic & Rubber Straps |
| Quantity of Batteries | 3 |
| Power Source | AAA |
| Package Contents | Light, elastic non-slip headband, rubber hardhat strap, 3M dual lock reclosable fasteners, alcohol cleaning pad, instruction manual, and 3AA batteries. |
| Warranty | Limited Lifetime Warranty |
| Length | 2.2 in (56 mm) |
| Width | 2.5 in (64 mm) |
| Depth | 2 in (51 mm) |
| Weight | 3.5 oz (99 g) |
Approvals
-
CLASS I DIV 1: GRPS A-D T3C
CLASS II & III DIV 1: GRPS E-G T160°C
CLASS I ZONE 0: lllC T3
Resources
Includes
- Light
- 3 AAA Batteries
- Elastic non-slip headband
- Rubber hardhat strap
- 3M dual lock reclosable fastners
- alcohol cleaning pad

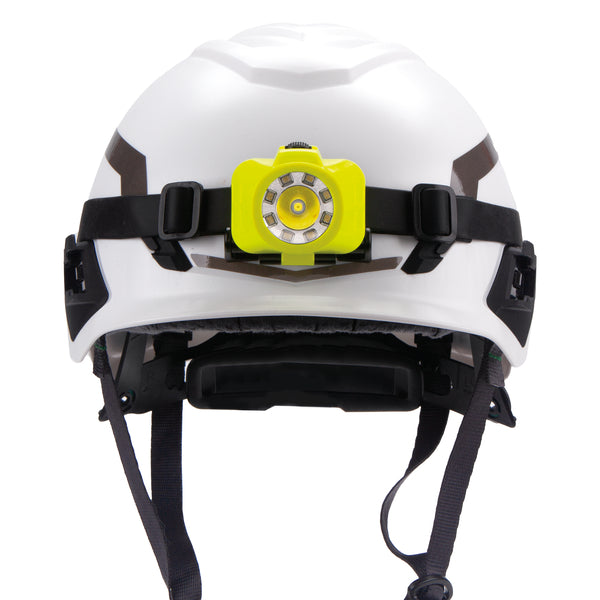

![A white safety helmet with a black strap features a Nightstick XPP-5453G [UL-913] IS Multi-Function Dual-Light Headlamp attached to the front, as seen from the front.](http://www.exloc.com/cdn/shop/files/XPP-5453G-StraightOn-WhtHelmet-Euro-F.jpg?v=1744126481&width=600)

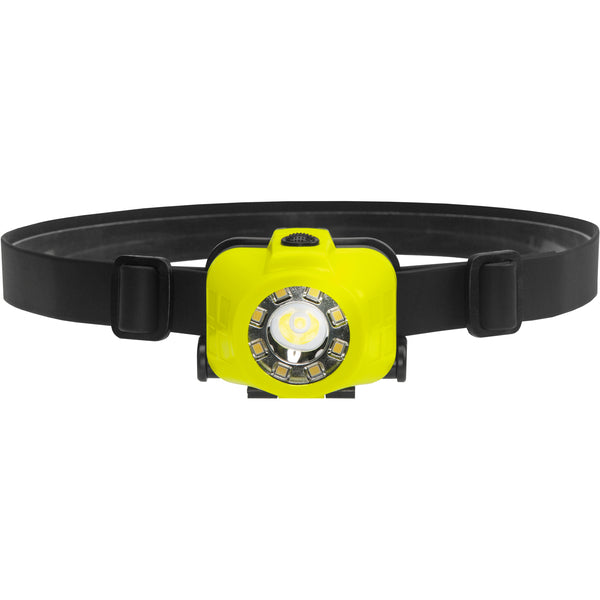

![The Nightstick XPP-5453G [UL-913] IS Multi-Function Dual-Light Headlamp features a yellow body, adjustable black strap, and a central Intrinsically Safe LED for hands-free lighting.](http://www.exloc.com/cdn/shop/files/XPP-5453G-HighAngle-F.jpg?v=1744126525&width=600)

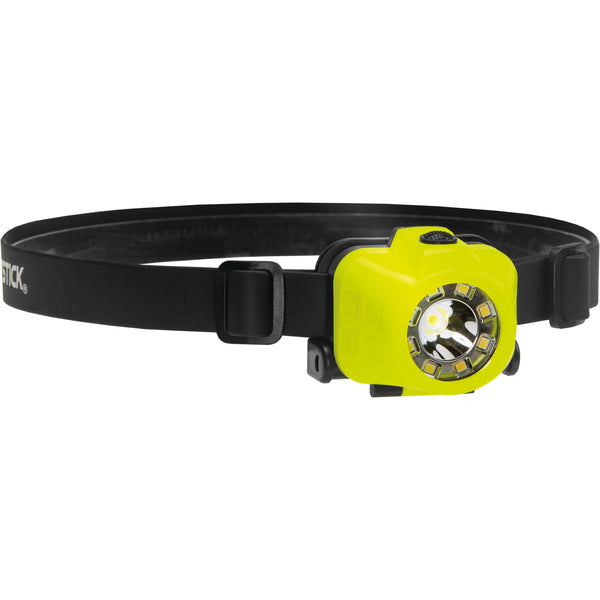

![The Nightstick XPP-5453G [UL-913] is a yellow and black intrinsically safe multi-function dual-light headlamp with an adjustable strap and a round LED light on the front.](http://www.exloc.com/cdn/shop/files/XPP-5453G-DTB-R.jpg?v=1744126555&width=600)

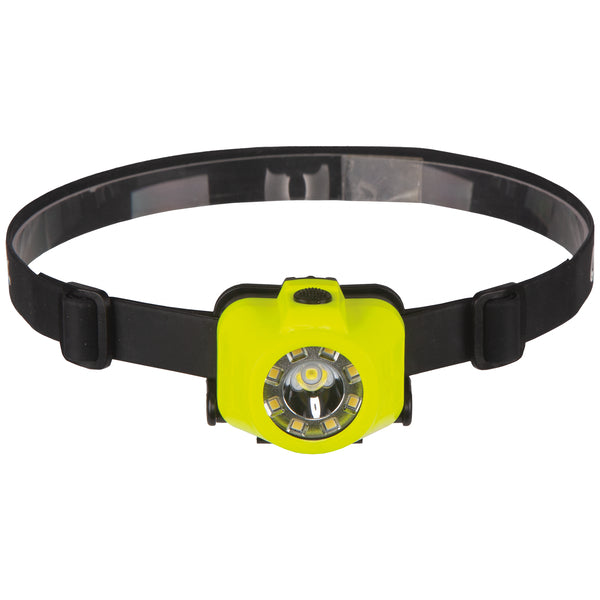

![The Nightstick XPP-5453G [UL-913] IS Multi-Function Dual-Light Headlamp features an adjustable black strap and a round, intrinsically safe LED light for hands-free use on the head. Yellow and black design.](http://www.exloc.com/cdn/shop/files/XPP-5453G-HighAngle.jpg?v=1744126582&width=600)

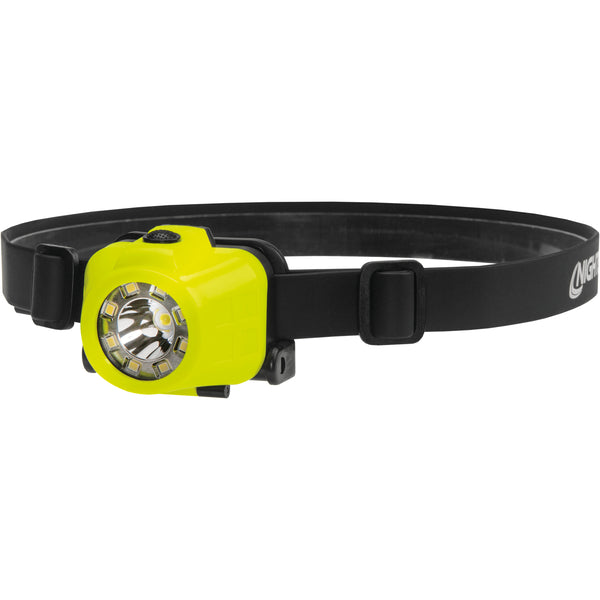

![The Nightstick XPP-5453G [UL-913] IS Multi-Function Dual-Light Headlamp features a bright yellow design, black adjustable strap, and central Intrinsically Safe LED for hands-free lighting during hiking or working in low-light conditions.](http://www.exloc.com/cdn/shop/files/XPP-5453G-DTB-L.jpg?v=1744126615&width=600)

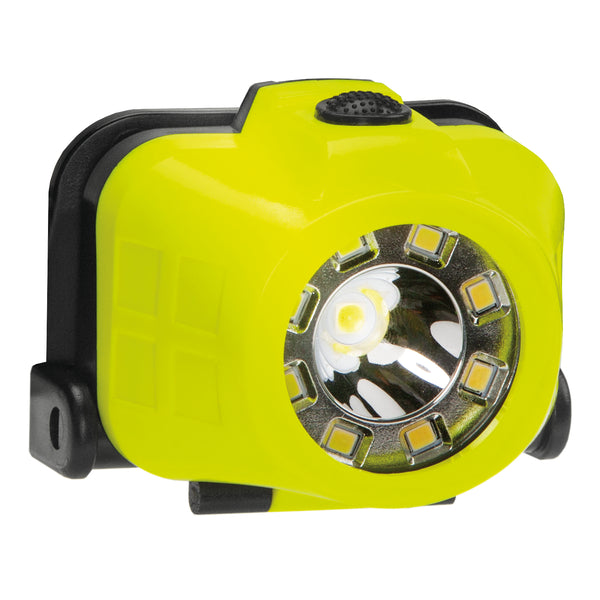

![The Nightstick XPP-5453G [UL-913] IS Multi-Function Dual-Light Headlamp is a bright yellow, intrinsically safe LED headlamp with a black base, adjustable bracket, and central light surrounded by smaller LEDs—ideal for reliable performance.](http://www.exloc.com/cdn/shop/files/XPP-5453G-DTB-LiteOnly-R.jpg?v=1744126636&width=600)

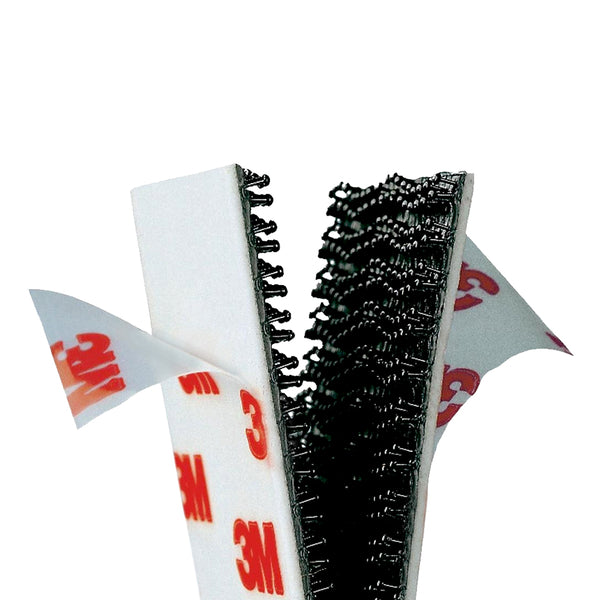

![Close-up of black hook-and-loop fastener with adhesive backing, partially peeled to show white surface with red "3M" logos—perfect for mounting your Nightstick XPP-5453G [UL-913] IS Multi-Function Dual-Light Headlamp securely.](http://www.exloc.com/cdn/shop/files/3M_DualLock.jpg?v=1744126655&width=600)
