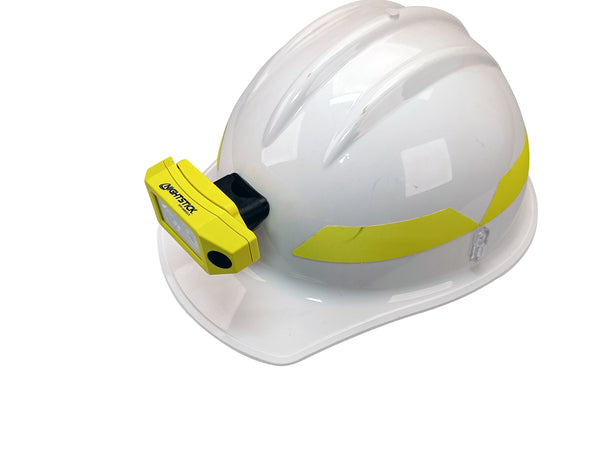

The Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp kit provides Intrinsically Safe LED illumination, mounting securely to a white safety helmet with yellow reflective stripes for demanding work environments.

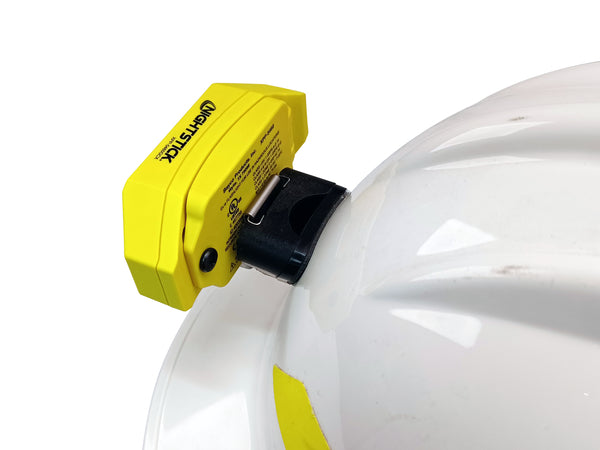

A Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp is attached to the side of a white safety helmet, providing hands-free illumination with intrinsic safety for hazardous areas.

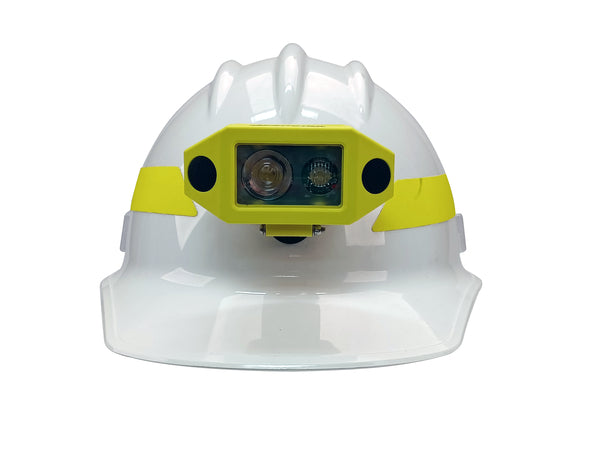

The Nightstick XPP-5460GCX [Zone 0] is a white hard hat with a yellow band and yellow housing for an IS Low-Profile Dual-Light Headlamp, featuring a camera and convenient hard hat mount.

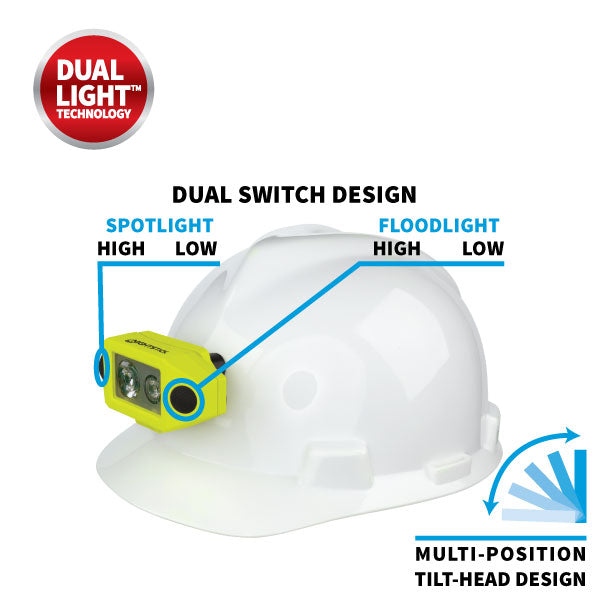

The Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp kit includes a white hard hat mount, an intrinsically safe LED yellow dual-light spotlight, high/low spotlight & floodlight settings, and a multi-position tilt-head design.

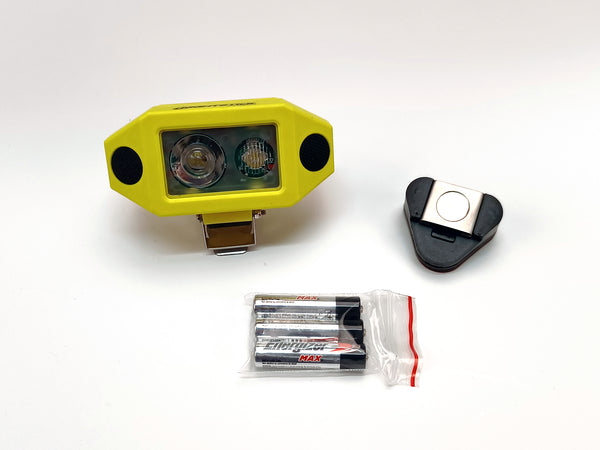

The Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp kit includes a yellow headlamp with a clear front cover, black hard hat mount clip, and three AAA batteries in a plastic bag, all shown on a white background.

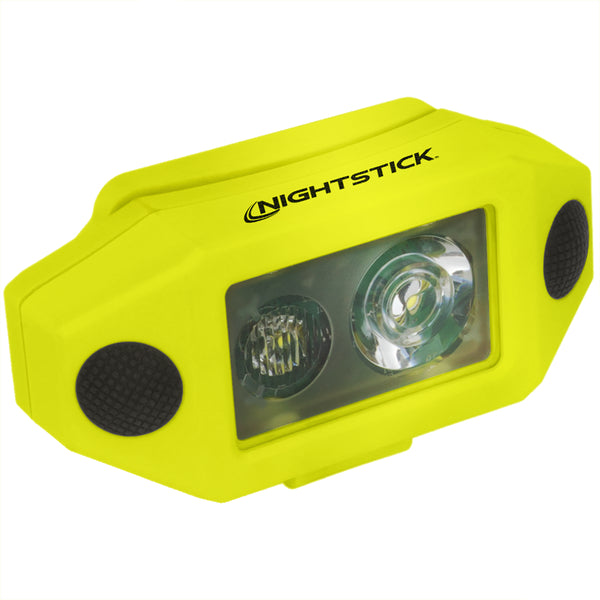

A bright yellow Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp with dual circular LEDs and black side grips, shown angled to display its front and partial top.
Roll over image to zoom in Click on image to zoom
The Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp kit provides Intrinsically Safe LED illumination, mounting securely to a white safety helmet with yellow reflective stripes for demanding work environments.A Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp is attached to the side of a white safety helmet, providing hands-free illumination with intrinsic safety for hazardous areas.The Nightstick XPP-5460GCX [Zone 0] is a white hard hat with a yellow band and yellow housing for an IS Low-Profile Dual-Light Headlamp, featuring a camera and convenient hard hat mount.The Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp kit includes a white hard hat mount, an intrinsically safe LED yellow dual-light spotlight, high/low spotlight & floodlight settings, and a multi-position tilt-head design.The Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp kit includes a yellow headlamp with a clear front cover, black hard hat mount clip, and three AAA batteries in a plastic bag, all shown on a white background.A bright yellow Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp with dual circular LEDs and black side grips, shown angled to display its front and partial top.

Nightstick XPP-5460GCX [Zone 0] IS Low-Profile Dual-Light Headlamp w/kit

Nightstick
Price:
$73.00

Highlights

  • Description
  • Technical Data
  • Approvals
  • Resources
  • Includes

Description

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

This Zone 0, Intrinsically Safe low-profile Dual-Light headlamp with hard hat clip is cULus, ATEX and IECEx listed Intrinsically Safe. This headlamp features a multi-position tilt head design and includes an integrated Stainless Clip for attachment to most hard hat mounting brackets. Both the spotlight and the floodlight use LEDs and an advanced TIR lens designed to optimize lumen output and beam pattern.

Front-mounted switches provide easy access to the spotlight for distance illumination, the floodlight for close-up illumination, and Dual-Light for maximum lighting, versatility, and user safety. Meets the requirements of NFPA-1971-8.6 (2013). Includes a hard hat mount for use on a fire helmet or hard hat. Powered by 3 AAA batteries (included).

C UL US Listed Trans Logo – industrial safety device from Exloc Instruments Ex trans logo IECEx Logo trans Ce Trans logo NFPA logo UKCA Trans logo
Authorized Dealer

We are an authorized Nightstick® distributor shipping worldwide.

Technical Data

Multi-Function Yes
High Lumens 180
Low Lumens 100
Floodlight Lumens 180
Flood Low Lumens 100
High DL Lumens/th> 200
High Beam Distance (m) 106
High Candela 2,800
Drop Rating 2 m
Water Rating IP-67 Dustproof/Waterproof
High Runtime (h) 3.0
Low Runtime (h) 10
High Flood Runtime (h) 3.5
Medium Flood Runtime (h) 10
High Dual-Light Runtime (h): 3
Floodlight Color White
Switch Function Two Switches - right: spotlight, left: floodlight
Light Source LED
Case Material Engineered Polymer
Body Color IS Green
Strap/Mount Helmet Mount
Quantity of Batteries 3
Power Source AAA
Package Contents Headlamp, alcohol cleaning pad, hard hat mount and 3AAA batteries.
US Patent(s) 9713217
Warranty Limited Lifetime Warranty
Length 3.54 in (90 mm)
Width 1.58 in (40 mm)
Depth 1.875 in (48 mm)
Weight 5.8 oz (166 g)

Approvals

    CLASS I DIV 1: GRPS A-D T4
    CLASS II & III DIV 1: GRPS E-G
    CLASS I ZONE 0: GRP llC T4
    CLASS II ZONE 20: lllC T135°C
    ATEX Certification: II 1 G Ex ia IIC T4 Ga
    IECEx Certification: Ex ia llC T4 Ga
    C UL US Listed Trans Logo – industrial safety device from Exloc Instruments Ex trans logo IECEx Logo trans Ce Trans logo NFPA logo UKCA Trans logo

Resources

Includes

  • Headlamp
  • 3 AAA Batteries
  • alcohol cleaning pad
  • hard hat mount
