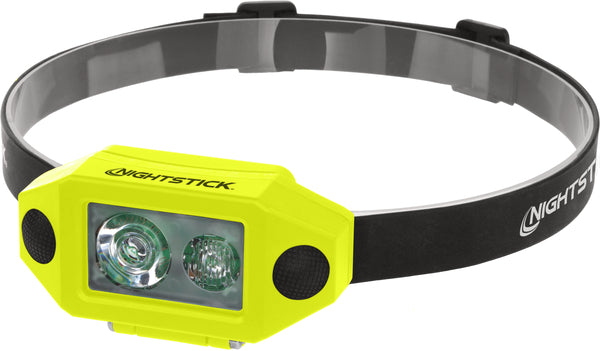

A yellow Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp with an adjustable black strap, featuring two Intrinsically Safe LEDs on the front and the Nightstick logo on both the strap and lamp casing.

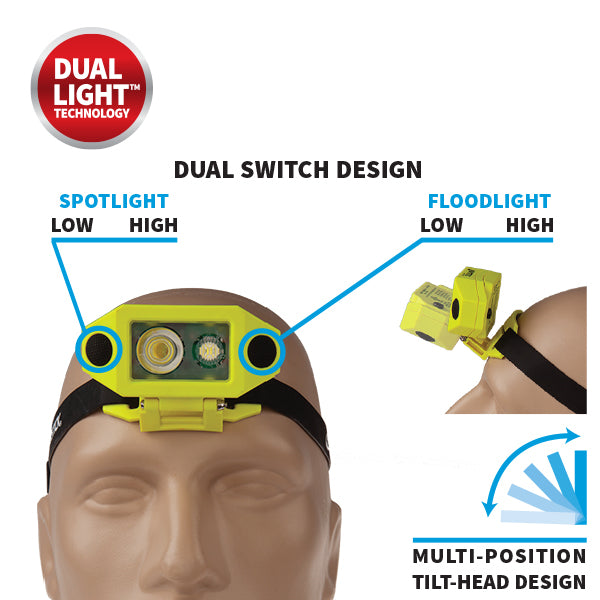

A diagram shows the yellow Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp on a mannequin, featuring Dual-Light spotlight/side floodlight (high/low modes), intrinsically safe LED, multi-position tilt-head, "Dual Light Technology," and "Dual Switch Design.

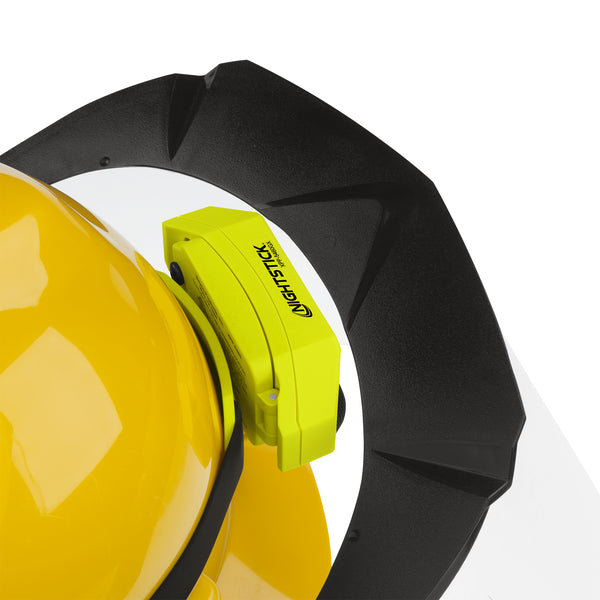

The Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp, in bright green, attaches securely to a hard hat or fire helmet for safe, reliable LED lighting.

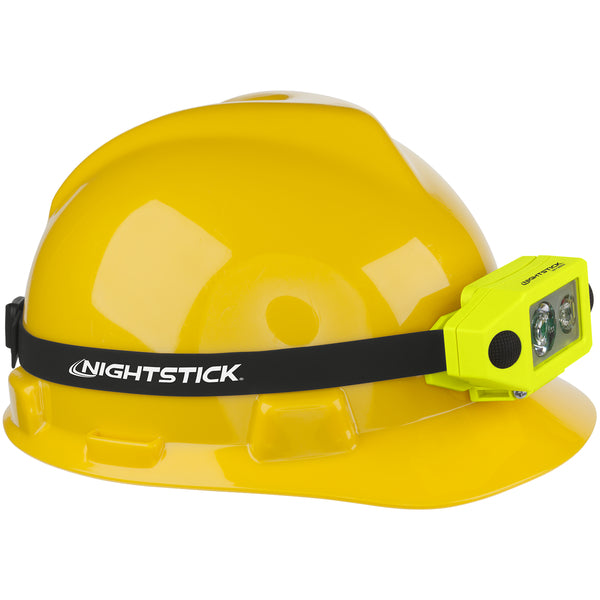

A yellow hard hat featuring a black "NIGHTSTICK" headlamp strap and a Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp in bright yellow attached to the front left side.

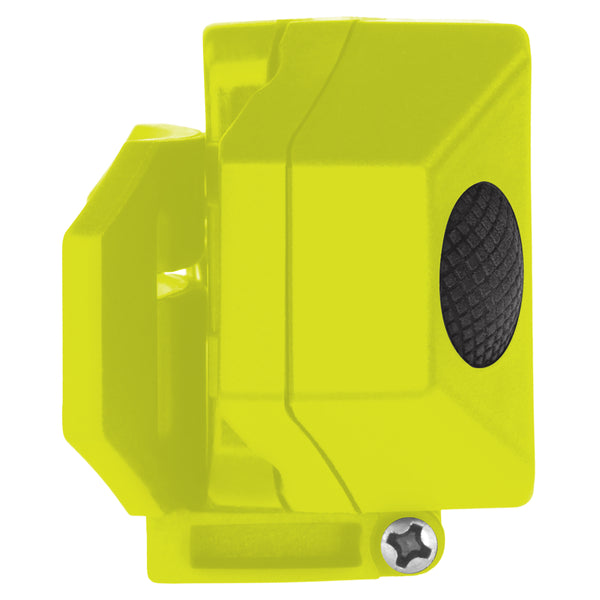

The Nightstick XPP-5460GX [Zone 0] is a bright yellow, rectangular, intrinsically safe LED low-profile headlamp with a textured black side button and visible silver screw, built for durability in hazardous environments.
Roll over image to zoom in Click on image to zoom
A yellow Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp with an adjustable black strap, featuring two Intrinsically Safe LEDs on the front and the Nightstick logo on both the strap and lamp casing.A diagram shows the yellow Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp on a mannequin, featuring Dual-Light spotlight/side floodlight (high/low modes), intrinsically safe LED, multi-position tilt-head, "Dual Light Technology," and "Dual Switch Design.The Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp, in bright green, attaches securely to a hard hat or fire helmet for safe, reliable LED lighting.A yellow hard hat featuring a black "NIGHTSTICK" headlamp strap and a Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp in bright yellow attached to the front left side.The Nightstick XPP-5460GX [Zone 0] is a bright yellow, rectangular, intrinsically safe LED low-profile headlamp with a textured black side button and visible silver screw, built for durability in hazardous environments.

Nightstick XPP-5460GX [Zone 0] IS Low-Profile Dual-Light Headlamp

Nightstick
Price:
$73.00

Highlights

  • Description
  • Technical Data
  • Approvals
  • Resources
  • Includes

Description

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

This Zone 0, Intrinsically Safe low-profile Dual-Light headlamp is cULus, ATEX and IECEx listed Intrinsically Safe. Designed specifically for fire helmets and hard hats with a flip-up face shield. The unique low-profile shape allows the user to work without having to remove the headlamp when raising or lowering their face shield.

Features a multi-position tilt-head, an advanced TIR lens. Front dual switches provide easy access to the spotlight for distance illumination, the floodlight for close-up illumination, and Dual-Light for maximum lighting versatility and user safety.

Meets the requirements of NFPA-1971-8.6 (2018). Includes a heavy-duty rubber hardhat strap, non-slip elastic headband and instruction manual. Powered by 3 AAA batteries (included).

C UL US Listed Trans Logo – industrial safety device from Exloc Instruments Ex trans logo IECEx Logo trans Ce Trans logo NFPA logo UKCA Trans logo
Authorized Dealer

We are an authorized Nightstick® distributor shipping worldwide.

Technical Data

Multi-Function Yes
High Lumens 180
Low Lumens 100
Floodlight Lumens 180
Flood Low Lumens 100
High DL Lumens/th> 200
High Beam Distance (m) 106
High Candela 2,800
Drop Rating 2 m
Water Rating IP-67 Dustproof/Waterproof
High Runtime (h) 3.0
Low Runtime (h) 10
High Flood Runtime (h) 3.5
Medium Flood Runtime (h) 10
High Dual-Light Runtime (h): 3
Floodlight Color White
Switch Function Two Switches - right: spotlight, left: floodlight
Light Source LED
Case Material Engineered Polymer
Body Color IS Green
Strap/Mount Rubber Strap
Quantity of Batteries 3
Power Source AAA
Package Contents Headlamp, heavy-duty rubber hardhat strap, elastic non-slip headband, instruction manual and 3AAA batteries.
US Patent(s) 9713217
Warranty Limited Lifetime Warranty
Length 3.54 in (90 mm)
Width 1.58 in (40 mm)
Depth 1.875 in (48 mm)
Weight 5.8 oz (166 g)

Approvals

    CLASS I DIV 1: GRPS A-D T4
    CLASS II & III DIV 1: GRPS E-G
    CLASS I ZONE 0: GRP llC T4
    CLASS II ZONE 20: lllC T135°C
    ATEX Certification: II 1 G Ex ia IIC T4 Ga
    IECEx Certification: Ex ia llC T4 Ga
    C UL US Listed Trans Logo – industrial safety device from Exloc Instruments Ex trans logo IECEx Logo trans Ce Trans logo NFPA logo UKCA Trans logo

Resources

Includes

  • Headlamp
  • 3 AAA Batteries
  • Heavy-duty rubber hardhat strap
  • elastic non-slip headband
