Name: Nightstick XPP-5465R FORGE® IS Helmet-Mounted Multi-Function Flashlight
Brand: Nightstick
SKU: XPP-5465R
Price: 123.00 USD
Availability: InStock

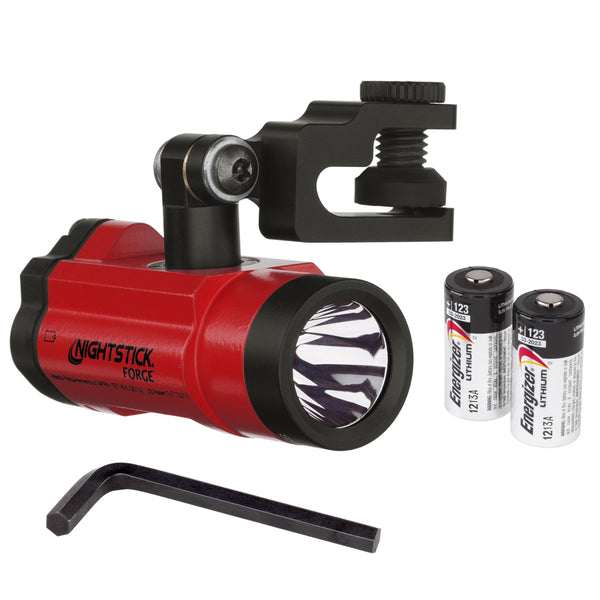

The Nightstick XPP-5465R FORGE® IS Helmet-Mounted Multi-Function Flashlight in red includes a mounting bracket, two CR123 batteries, and an Allen wrench—perfect as a fire helmet light for tough environments.

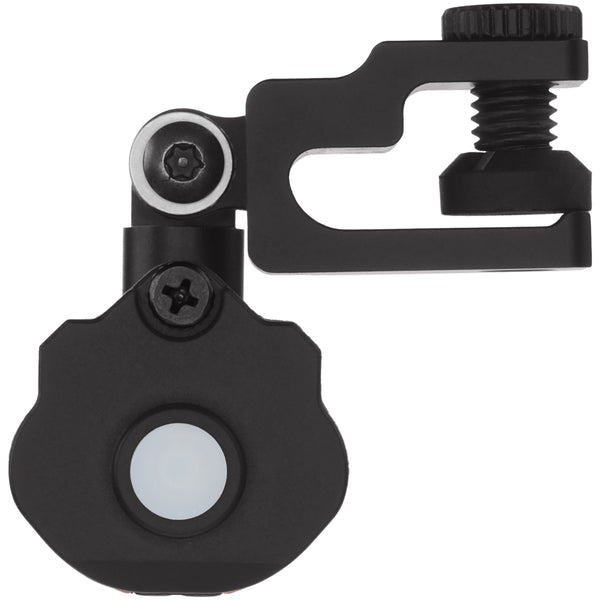

Close-up of the Nightstick XPP-5465R FORGE® IS Helmet-Mounted Multi-Function Flashlight, a compact black device with a clamp, adjustment screw, and central white circular button or sensor.

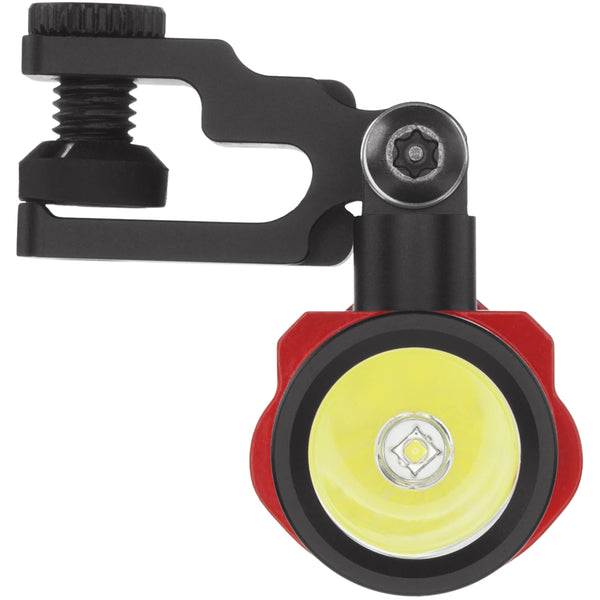

Close-up view of the Nightstick XPP-5465R FORGE® IS Helmet-Mounted Multi-Function Flashlight, a small red and black LED light with a mounting bracket on top.

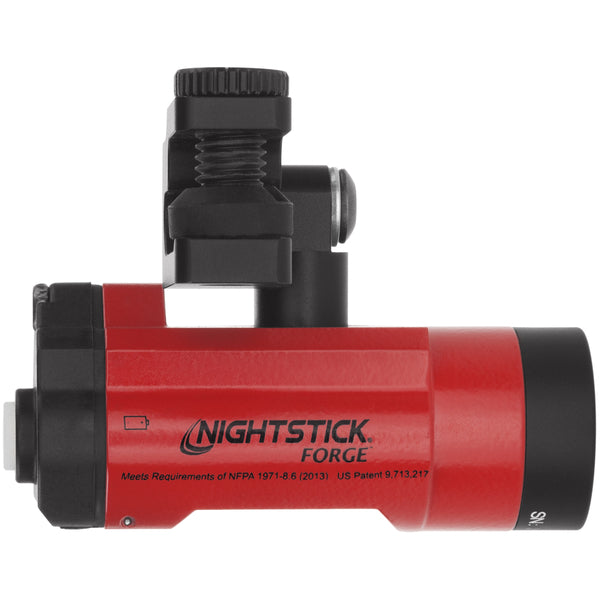

Nightstick XPP-5465R FORGE® IS Helmet-Mounted Multi-Function Flashlight in red, displayed side view with visible branding and patent details, designed as an intrinsically safe fire helmet light with mounting bracket.

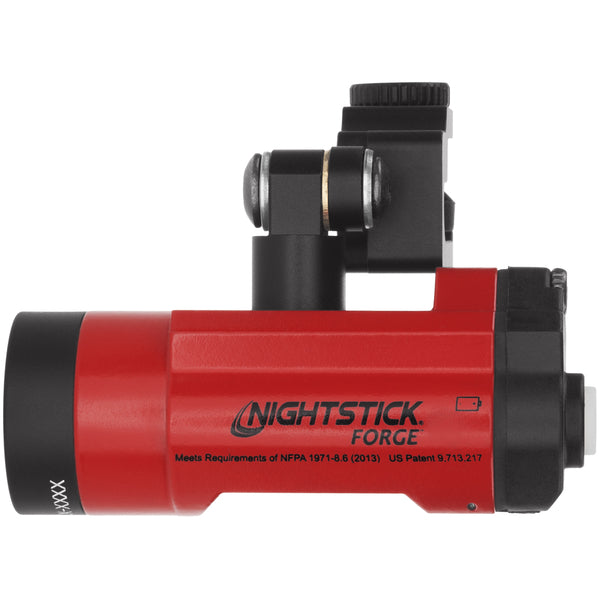

The Nightstick XPP-5465R FORGE® IS Helmet-Mounted Multi-Function Flashlight in red with black mounting hardware, shown from the side with visible labeling—an intrinsically safe option for challenging environments.

Roll over image to zoom in Click on image to zoom

User-selectable 360-lumen High, 180-lumen Low and 25-lumen Survival modes
A single push-button switch operates easily with heavy gloves
Switch features built-in rear-facing green safety LED
A 360-degree multi-angle mount allows the user to select exact angle and position for optimum light alignment and clearance of face shields, goggles or other equipment
Helmet clamp with rubber foot provides secure, mar-free attachment
Works with virtually all fire helmets and hard hats
Impact & chemical resistant
IP-X7 Waterproof
cETLus certified Class I Div 2 Intrinsically Safe
Meets the requirements for NFPA-1971-8.6 (2013)
Serialized for personal identification
2 CR123 batteries (included)
Limited Lifetime Warranty

Description
Technical Data
Approvals
Resources
Includes

Description

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

The Intrinsically Safe helmet-mounted multi-function FORGE® is the most versatile choice for helmet-mounted hands-free lighting. This light outshines the competition with its powerful 360 lumen tightly focused flashlight and a beam distance rating of 218 meters (715 feet). Choose a lower 180 lumen setting for increased runtime or the 30 lumen Survival Mode for 30 hours.

Fits on any fire helmet (or side-brim hard hat) regardless of whether it has an up-turned or down-turned brim thanks to the multi-angle mount that allows exact positioning. This feature makes it possible to not only avoid goggles, face shields, and other helmet-worn gear but also place the light exactly where it’s needed. FORGE® is IP-X7 rated waterproof and meets the requirement for NFPA-1971-8.6 (2013). Powered by 2 CR123 batteries (included). Not compatible with rechargeable batteries.

WARNING – Do not use rechargeable batteries in this product, or expose rechargeable batteries to temperatures >140° F (60° C) due to potential EXPLOSION, BURN, and FIRE HAZARD.

We are an authorized Nightstick® distributor shipping worldwide.

Technical Data

Technical Data
Multi-Function	Yes
High Lumens	360
Medium Lumens	180
Low Lumens	25
High Beam Distance (m)	218
Medium Beam Distance (m)	161
Low Beam Distance (m)	43
High Candela	11,928
Medium Candela	6,544
Low Candela	472
Drop Rating	2 m
Water Rating	IP-67 Dustproof/Waterproof
High Runtime (h)	4.0
Medium Runtime (h)	6.5
Low Runtime (h)	30
Switch Function	Single Switch - High, Low, and Survival Brightness
Light Source	LED
Case Material	6061-T6 Aluminium
Body Color	Red
Strap/Mount	Helmet Mount
Quantity of Batteries	2
Power Source	CR123
Package Contents	Light, 2 CR123 Lithium batteries, Allen key
US Patent(s)	9713217 and 11019868
Warranty	Limited Lifetime Warranty
Length	3.2 in (81 mm)
Depth	3.2 in (81 mm)
Weight	7.2 oz (204 g)
Diameter	1.1 in (28 mm)
