Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

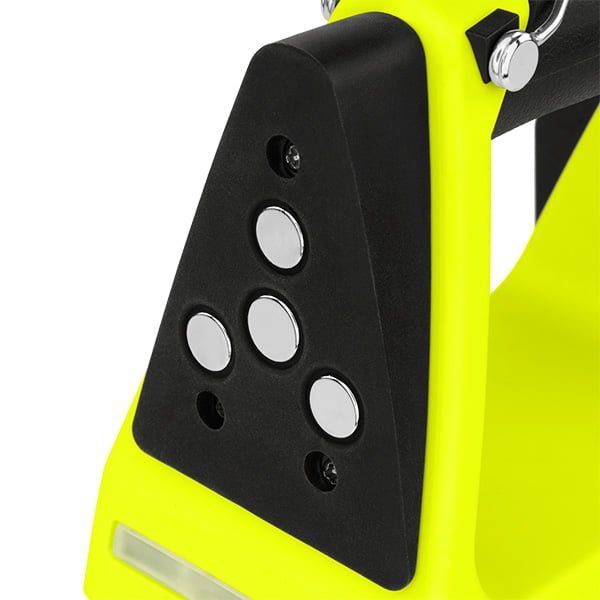

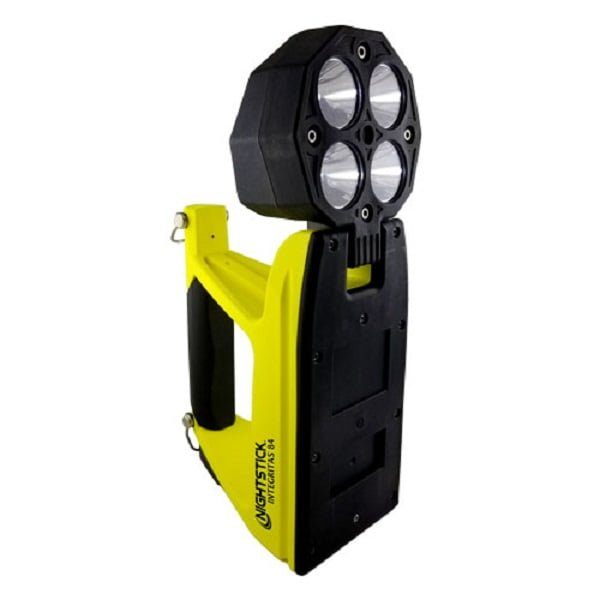

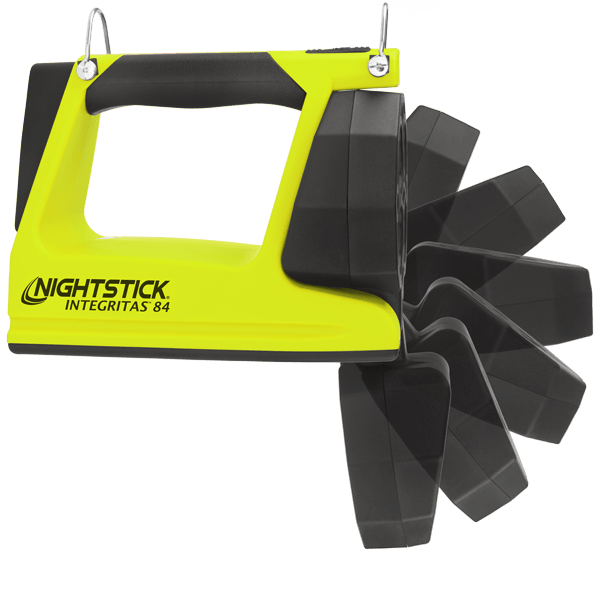

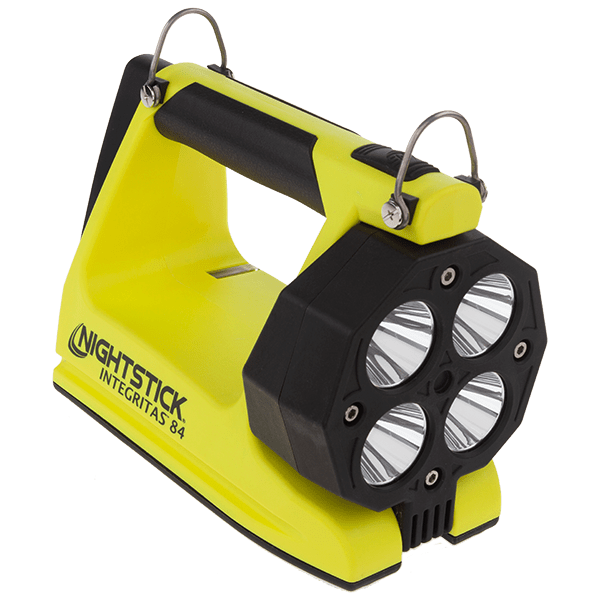

The INTEGRITAS™ XPR-5584GMX Intrinsically Safe Rechargeable Lantern generates a scene-filling 600 lumens for an ultra-long 13 hours from four separate LEDs housed in a 180-degree articulating head for maximum versatility. Holding down the switch enables a battery-saving 250-lumen low mode, extending runtime to 25 hours when work demands extreme use. Designed and engineered as both a hand-held lantern and portable area light, the 5584 features a rear-mounted rubber base pad featuring a 25 lb. pull-force rare earth magnet for convenient hands-free, adjustable scene lighting on demand.

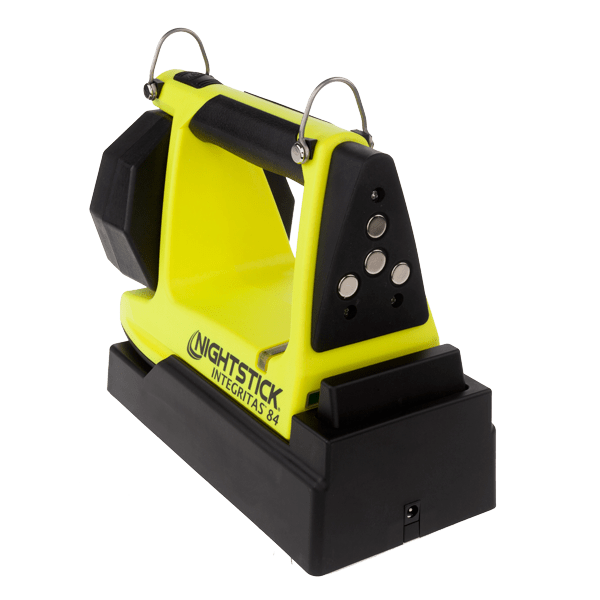

Constructed of thick-walled glass-filled nylon and weighing only 2 lbs. 11oz., 5584 is built to survive the harshest industrial environments. The over-molded rubber handle and carry strap provide the user superior grip and retention, while the two bright green rear-facing LEDs let others easily see your location for increased safety and awareness. The 5584 is a cULus-certified Class I DIV 1, ATEX and IECEX certified with a charger that meets the requirements of NFPA-1901-14.1.10.2 (2016) mounted in any position. It’s powered by an integrated rechargeable lithium-ion battery and comes with a charger base, AC and DC chargers and carry strap.
Technical Data

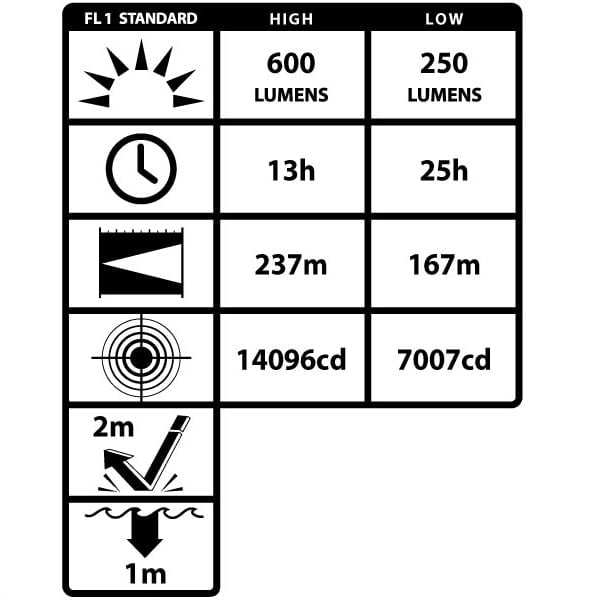

| Multi-Function | Yes |
|---|---|
| Flashlight Lumens | 600 / 250 |
| Beam Distance | 237 m / 167 m |
| Candela | 14,096 / 7,007 |
| Drop Rating | 2 m |
| Dust/Water Rating | ANSI IP-67 Dustproof/Waterproof |
| Flashlight Runtime | 13 / 25 hrs |
| Charge Time | 8 hrs |
| Switch Function | High / Low |
| Length | 7.54 in (19.2 cm) |
| Width | 4.75 in (12.06 cm) |
| Depth | 5.83 in (14.8 cm) |
| Weight | 2 lbs 11 oz. (1,219 g) |
| Light Source | LED |
| Case Material | Long Fiber Polypropylene |
| Body Color | Green/Black |
| Quantity of Batteries | 1 |
| Power Source | Integrated rechargeable lithium-ion battery |
| Max Input | 12VDC 0.5A |
| Package Contents | Flashlight, Charging Base, AC/DC Power Supplies, and Shoulder Strap |
| US Patent | 9,713,217 |
| US Patent | 10,879,519 |
| Warranty | Limited Lifetime |
Approvals
- CLASS I DIV 1: GRPS A-D T4
- CLASS II & III DIV 1: GRPS E-G T135°C
- CLASS I ZONE 0: AEx ia op is IIC T4 Ga
- ATEX Certification: II 1 G Ex ia op is IIC T4 Ga
- IECEx Certification: Ex ia op is IIC T4 Ga
Resources

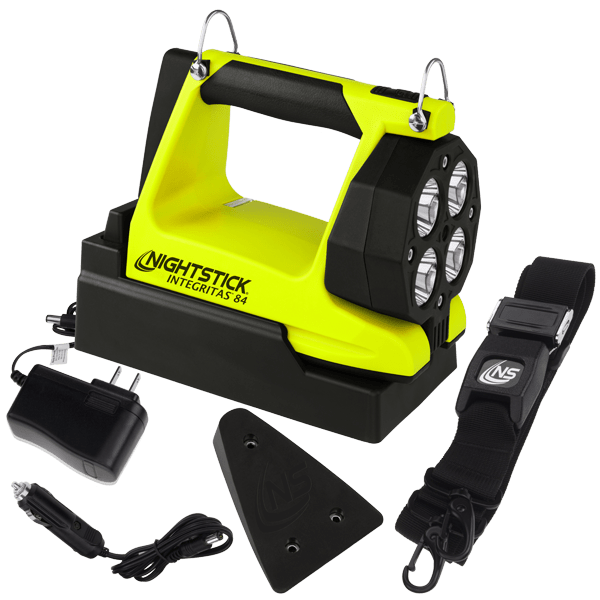

Includes
- Flashlight
- Charging Base
- AC/DC Power Supplies
- Shoulder Strap
