Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-545-3968.

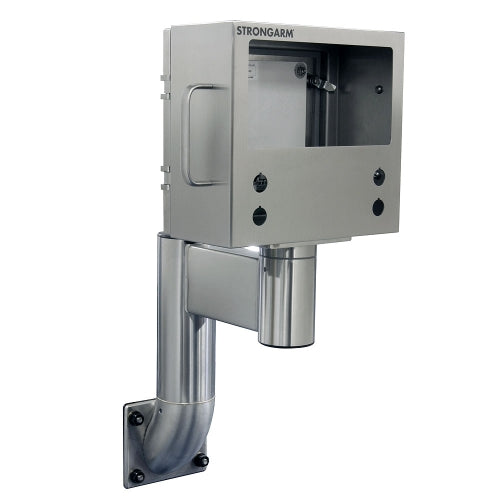

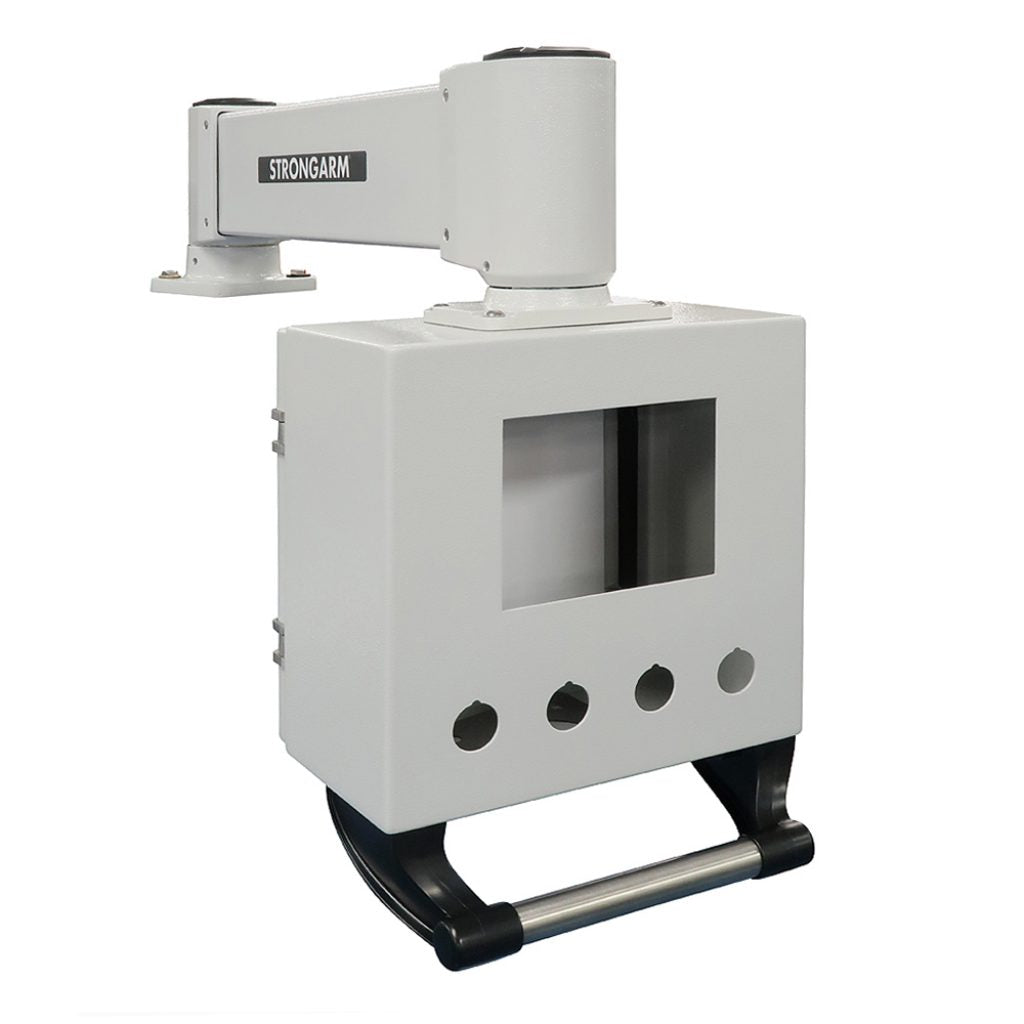

Strongarm’s articulating enclosure systems are designed and built to your exact specifications. The counterbalanced vertical motion of the Vertica Arm allows the operator to lift effortlessly, lower, and reposition the enclosure using the release handle. When the handle is released, the arm automatically locks in the vertical position. NEMA Type 4 and 12 units are fabricated from powder-coated carbon steel and cast aluminum. NEMA Type 4X units are fabricated from either 304 or 316L stainless steel. We offer extensive integration services for our terminal mounting systems. Strongarm will install and integrate all user-supplied components into your system, or we can procure, integrate, and wire any specified components.
Strongarm can install and integrate all user-supplied components into your system, or we can procure, integrate, and wire any specified components before shipment, providing a 100% turnkey installation-ready system.
Technical Data
DISPLAY
| Vertical Travel | Vertica: 13 inches Vertica L: 23 Inches Vertical XL: 30 inches | |
| Counterbalance Capacity | Vertica: 100lbs Vertica L: 75 lbs Vertical XL: 50 lbs | |
| Load Limitations | 320 ft⋅lb maximum on swivel joint (Consult factory for larger loads) | |
| Cable Passageway | 1.4″ (35MM) diameter sealed continuous passageway maintains the NEMA rating and protects wires and cables | |
| Finishing | NEMA 4X: RA35 brushed satin finish NEMA 12: Powder coated aluminum NEMA 4: Primed and powder coated aluminum | |
| NEMA Rating | NEMA Type 4/12/4X | |
| Standard Rotation Stops (Custom stops available upon request) | Enclosure Swivel: stop at ±165° Post Top Mount: stop at ±165° Wall Mount: stop at ±90° Machine Top Mount: stop at ±165° Middle Joint: stop at ±126° Rigid Wall Mount: stop at ±126° | |
| Construction | Precision laser-cut and continuously TIG welded with all seams ground smooth | |
| Enclosure Material | NEMA 4X: 14g 304/316L stainless steel sheet NEMA 4/12: 14g carbon steel low carbon sheet | |
| Finishing | NEMA 4X; RA35, brushed satin finish NEMA 12: Powder coated steel NEMA 4: Primed and powder coated steel | |
| Gaskets | NEMA 4/4X: Oil resistant silicone foam door gaskets NEMA 12: Poron door gaskets | |
| Latches | NEMA 4/4X: 1/4 turn stainless steel slotted latches NEMA 12: 1/4 turn chrome slotted latch with zinc die black housing | |
| Hinges | NEMA 4/4X/12: Rear door: 316 stainless steel lift-off hinges | |
| Agency Approval | UL 508A (E225791), Reach, and Rohs | |
| Ingress Protection | IP54, IP64, IP65 & IP66 |
Approvals
| NEMA Rating | NEMA Type 4/12/4X | |
| Enclosure Material | NEMA 4X: 14g 304/316L stainless steel sheet NEMA 4/12: 14g carbon steel low carbon sheet | |
| Finishing | NEMA 4X; RA35, brushed satin finish NEMA 12: Powder coated steel NEMA 4: Primed and powder coated steel | |
| Gaskets | NEMA 4/4X: Oil resistant silicone foam door gaskets NEMA 12: Poron door gaskets | |
| Latches | NEMA 4/4X: 1/4 turn stainless steel slotted latches NEMA 12: 1/4 turn chrome slotted latch with zinc die black housing | |
| Hinges | NEMA 4/4X/12: Rear door: 316 stainless steel lift-off hinges |
