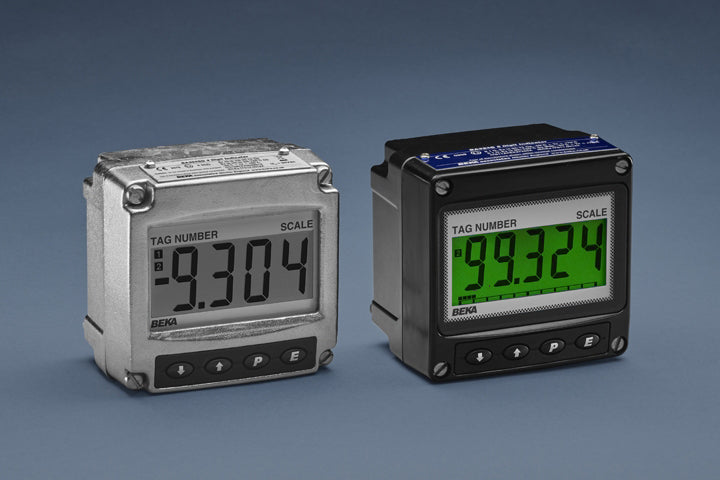

Two BEKA BA324SG digital panel meters display numerical values: the silver one shows -9.304, while the black one shows 99.324. Both feature screens, buttons, and labels for tag number and scale.

Roll over image to zoom in Click on image to zoom

BEKA BA324SG

Ex eb and Ex tb certification
Lower cost alternative for flameproof Ex d indicators
May be connected into any Zone 1, 2, 21 or 22 non IS loop
Large non multiplexed displays, models with:
4 digits: 34mm high
5 digits: 29mm high + bargraph
IP66 GRP or Stainless Steel enclosures
-40°C to +60°C operation
Root extractor, lineariser and tare function
Internal calibrator
Optional:
Backlight
Scale and tag labelling for no additional charge
Engraved Stainless Steel legend plate

Optional:

Backlight - may be loop or separately powered
Alarm/Control Outputs

Display Readability
	No backlight Display readable in daylight.
	Backlight, loop powered Display readable in poor lighting conditions.
	Backlight, separately powered Display contrast enhanced in all lighting conditions. Backlight color is orange on Model BA326C only.

Get A Quote

Ex eb and Ex tb certification
Lower cost alternative for flameproof Ex d indicators
May be connected into any Zone 1, 2, 21 or 22 non IS loop
Large non multiplexed displays, models with:
4 digits: 34mm high
5 digits: 29mm high + bargraph
IP66 GRP or Stainless Steel enclosures
-40°C to +60°C operation
Root extractor, lineariser and tare function
Internal calibrator
Optional:
Backlight
Scale and tag labelling for no additional charge
Engraved Stainless Steel legend plate

Optional:

Backlight - may be loop or separately powered
Alarm/Control Outputs

Display Readability
	No backlight Display readable in daylight.
	Backlight, loop powered Display readable in poor lighting conditions.
	Backlight, separately powered Display contrast enhanced in all lighting conditions. Backlight color is orange on Model BA326C only.

Description
Technical Data
Resources

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-336-9070.

These loop powered increased safety Ex eb certified indicators are a lower cost alternative to flameproof Ex d indicators, featuring large high contrast displays with a very wide viewing angle. They may be connected into any 4/20mA Zone 1 or 2 loop with any type of explosion protection apart from intrinsic safety.

No additional charge is made for factory calibration or for scale and tag marking, however the indicators can easily be recalibrated on-site.

We are an authorized BEKA distributor shipping to locations in the United States.

Technical Data

BA324SG
Mounting & Enclosure	Field 122 x 120
Protection	IP66
Display	5 digits 29mm high + bargraph
Certification
International IECEx	Gas - Ex eb ib mb IIC T5 Gb Increased safety Ex eb Dust - Ex ib mb tb T80°C Db Protection by enclosure Ex tb -40°C ≤ Ta ≤ 60°C Cert. No. IECEx ITS 19.0018X
Europe ATEX	Gas - II 2G Ex eb ib mb IIC T5 Gb Increased safety Ex eb Dust - II 2D Ex ib mb tb T80°C Db Protection by enclosure Ex tb -40°C ≤ Ta ≤ 60°C Cert. No. ITS19ATEX304891X
UK UKEX	Gas - II 2G Ex eb ib mb IIC T5 Gb Increased safety Ex eb Dust - II 2D Ex ib mb tb T80°C Db Protection by enclosure Ex tb -40°C ≤ Ta ≤ 60°C Cert. No. ITS21UKEX0100X
USA ETL & Canada cETL	Class I Zone 1 AEx eb ib mb IIC T5 Gb (USA) Ex eb ib mb IIC T5 Gb (Canada) -40°C ≤ Ta ≤ +60°C
Optional
Backlight	Yes
Escutcheon scale and tag labelling (no charge)	Yes
Etched stainless steel legend plate	Yes
