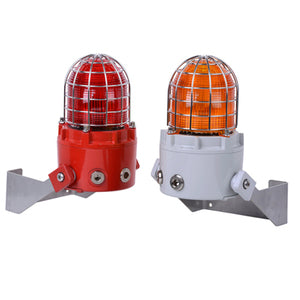

Two E2S D1xB2LD2 Explosion Proof LED Multi-function Beacons with stainless steel guards, one red and one orange, have UV stable lenses and are mounted on metal brackets against a white background.

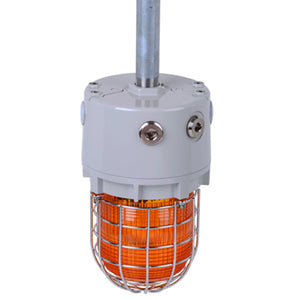

The E2S D1xB2LD2 Explosion Proof LED Multi-function Beacon features an industrial orange warning light with a UV stable lens, stainless steel protective guard, gray fixture, and connection to a vertical metal conduit.

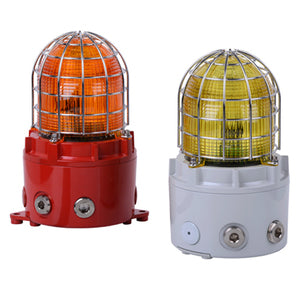

Two E2S D1xB2LD2 explosion-proof LED beacons with stainless steel guards: one has an orange UV-stable lens on a red base, the other a yellow UV-stable lens on a white base.
Roll over image to zoom in Click on image to zoom
Two E2S D1xB2LD2 Explosion Proof LED Multi-function Beacons with stainless steel guards, one red and one orange, have UV stable lenses and are mounted on metal brackets against a white background.The E2S D1xB2LD2 Explosion Proof LED Multi-function Beacon features an industrial orange warning light with a UV stable lens, stainless steel protective guard, gray fixture, and connection to a vertical metal conduit.Two E2S D1xB2LD2 explosion-proof LED beacons with stainless steel guards: one has an orange UV-stable lens on a red base, the other a yellow UV-stable lens on a white base.

E2S D1xB2LD2 Explosion Proof LED Multi-function Beacon

E2S

Highlights

Get A Quote

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals
  • Video

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

The D1xB2LD2 is a globally approved explosion proof multi-function LED beacon. The robust Type 4/4X corrosion proof LM6 marine grade aluminum alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications.

Ex trans logo IECEx Logo trans Ce Trans logo C UL US Listed Trans Logo – industrial safety device from Exloc Instruments UKCA Trans logo CSFM Logo
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Specifications:
Source Array of 4 x High Power Cree® LED’s
Modes 1Hz flash (60 fpm) 1.33Hz flash (80 fpm) 2Hz flash (120 fpm) Double strike flash Triple strike flash High Power Steady Low Power Steady
Eff. Intensity cd: 338 cd – 1Hz flash
Eff. Intensity cd: 174 cd – High Power Steady
Lens Colors Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltage DC 24Vdc (18-30Vdc)
Voltages AC 115Vac (110-120Vac), 230Vac (220-240Vac)
Voltages AC: 110-120Vac, 220-240Vac
In-rush @ 24Vdc 1890mA within 0.22ms
LED life 60,000 hours+
Safety Integrity Level SIL1 and SIL2 Route 2H IEC61508 (2010)
Ingress protection IP rating per EN60529:IP66/67 Type rating per UL50E/NEMA250:4/4X/3R/13
Lens material High impact Borosilicate glass
Enclosure material Marine grade LM6 aluminum alloy
Enclosure color Red or Grey, custom colors available on request
Enclosure finish Chromate & powder coated finish
Cable Entries Side: 2 × 3/4"NPT & 2 x M20x1.5mm Pendant: 1 × 3/4"NPT Stopping plugs included
Stopping plugs Brass, Nickel Plated or Stainless Steel
Terminals 0.5 – 2.5mm² (20-14AWG) – 12AWG solid core conductor Duplicated terminals
Ground/Earth stud M5
Line monitoring Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
Enclosure volume <2 liters
Instillation temp -55 to +80°C [-67° to +176°F]
Storage temp -55 to +80°C [-67° to +176°F]
Relative humidity 99% – tropicalized/conformal coated electronics
MTBF DC 212.90 years / 1,865,671 hours – MIL 217
MTBF AC 204.40 years / 1,790,510 hours – MIL 217
Weight 3.2kg/7.1Ibs

Resources

Approvals

  • NEC Class / Zone
    Class I Zone 1 AEx db IIC T5 Ta -55°C to +80°C
    Class I Zone 1 AEx db IIC T6 Ta -55°C to +70°C
    Zone 21 AEx tb IIIC T100°C Ta -55°C to +80°C
  • CEC Class / Zone
    Ex db IIC T4 Ta -55°C to +80°C (T5: +70°C)
    Ex tb IIIC T100°C Ta -55°C to +80°C
  • NEC Class / Div
    Class I Div 1 Group ABCD T5 Ta -55°C to +80°C
    Class I Div 1 Group ABCD T6 Ta -55°C to +75°C
    Class II Div 1 Group EFG T4 Ta -55°C to +80°C
  • IECEx / ATEX
    II 2G Ex db IIC T5 Gb Ta -55°C to +80°C (T6: +70°C)
    II 2D Ex tb IIIC T95°C Db Ta -55°C to +80°C
    • See product manual for full voltage specific coding.
