Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

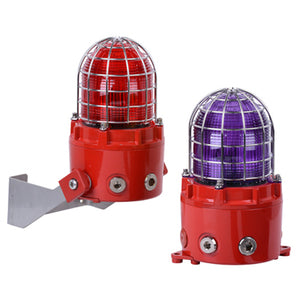

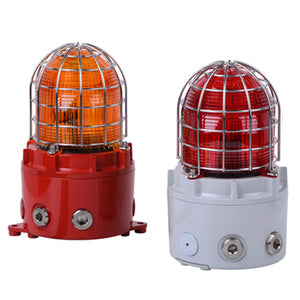

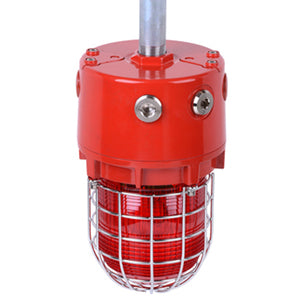

The D1xB2X10 is a globally approved explosion proof 10 Joule Xenon beacon. The robust Type 4/4X corrosion proof LM6 marine grade aluminium alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications. Approved to UL1638 and CAN/ULC S526 for fire alarm use the D1xB2X10 beacons produce a high output Xenon flash for effective visual signalling. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The robust enclosure features a threaded flame path and multiple cable entries. Mounting options include surface via integrated lugs, pendant or multi directional by addition of the optional stainless steel bracket. SIL1 & SIL2 compliant to IEC61508 (2010) as standard, with optional diagnostic module for Route 1H SIL2 compliance.
Technical Data
| Specifications: | |
|---|---|
| Source | Xenon Strobe |
| Energy | 10 Joules (10Ws) |
| Flash Rates | 1Hz flash (60 fpm) 1.3Hz flash (80 fpm) 1.5Hz flash (90 fpm) Double flash (120 fpm) |
| Eff. Intensity cd: | 69.81cd UL1638 Private mode fire |
| Eff. Intensity cd: | 645.21cd measured ref to I.E.S |
| Eff. Intensity cd: | 500 cd – calculated from energy (J) |
| Peak candela | 1,000,000 cd – calculated from energy (J) |
| Lens Colors | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltage DC | 24V dc (20-28Vdc), 48Vdc (42-54Vdc) |
| Voltages AC | 115Vac (110-120Vac), 230Vac (220-240Vac) |
| Voltages AC: | 115Vac (110-120Vac), 230Vac (220-240Vac) |
| In-rush @ 24Vdc | 753mA within 6ms @ 24Vdc |
| Safety Integrity Level | Product version A: SIL1 and SIL2 Route 2H Product version S: SIL2 Route 1H with diagnostics SFF: >99% See install manual for reliability & functional safety data |
| Ingress protection | IP rating per EN60529:IP66/67 Type rating per UL50E/NEMA250:4/4X/3R/13 |
| Lens material | High impact Borosilicate glass |
| Enclosure material | Marine grade LM6 aluminum alloy |
| Enclosure color | Red or Grey, custom colors available on request |
| Enclosure finish | Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H |
| Cable Entries | Side: 2 × 3/4"NPT & 2 x M20x1.5mm Pendant: 1 × 3/4"NPT Stopping plugs included |
| Stopping plugs | Brass, Nickel Plated or Stainless Steel |
| Terminals | 0.5 – 2.5mm² (20-14AWG) – 12AWG solid core conductor Duplicated terminals |
| Ground/Earth stud | M5 |
| Line monitoring | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| Enclosure volume | <2 liters |
| Instillation temp | -55 to +80°C [-67° to +176°F] |
| Storage temp | -55 to +80°C [-67° to +176°F] |
| Relative humidity | 99% – tropicalized/conformal coated electronics |
| MTBF DC | 198.88 years / 1,742,161 hours – MIL 217 |
| MTBF AC | 253.68 years / 2,222,223 hours – MIL 217 |
| Weight | 3.2kg/7.1Ibs |
Resources
Approvals
- NEC Class / Zone
Class I Zone 1 AEx db IIC T4 Ta -55°C to +80°C (AC: +65°C)
Class I Zone 1 AEx db IIC T5 Ta -55°C to +45°C
Zone 21 AEx tb IIIC T132°C Ta -55°C to +80°C (AC: T153°C +70°C) - CEC Class / Zone
EEx db IIC T4 Ta -55°C to +80°C (AC: +65°C) T5 to +45°C
Ex tb IIIC T132°C Ta -55°C to +80°C (AC: T153°C +70°C) - NEC / CEC Class / Div
Class I Div 1 Group ABCD T4 Ta -55°C to +80°C (AC: +70°C)
Class I Div 1 Group ABCD T4A Ta -55°C to +70°C (AC: +55°C)
Class I Div 1 Group ABCD T5 Ta -55°C to +50°C
Class II Div 1 Group EFG T4 Ta -55°C to +80°C (AC: +40°C)
- IECEx / ATEX
II 2G Ex db IIC T4 Gb Ta -55°C to +80°C (AC: +65°C) T5 to +45°C
II 2D Ex tb IIIC T135°C Db Ta -55°C to +80°C (AC: T139°C +70°C)
See product manual for full voltage specific coding.
