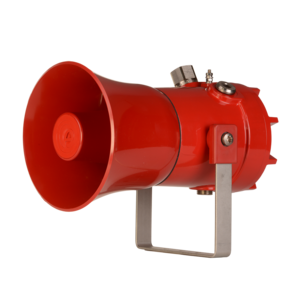

The E2S D1xS1F 115dB(A) Alarm Horn Sounder, in red, is shown mounted on a metal bracket against a plain white background.

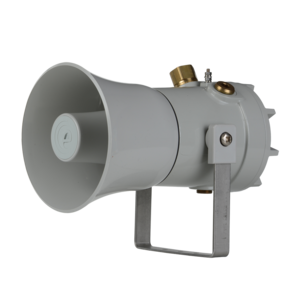

The E2S D1xS1F 115dB(A) Alarm Horn Sounder is a gray industrial loudspeaker, ideal for fire alarms or multi-sounder systems, shown mounted on a metal bracket against a white background.

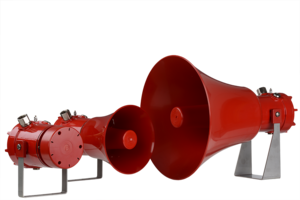

Three E2S D1xS1F 115dB(A) Alarm Horn Sounders in red, each a different size, are side by side on metal stands against a plain white background—ideal for use in a multi-sounder system.
Roll over image to zoom in Click on image to zoom
The E2S D1xS1F 115dB(A) Alarm Horn Sounder, in red, is shown mounted on a metal bracket against a plain white background.The E2S D1xS1F 115dB(A) Alarm Horn Sounder is a gray industrial loudspeaker, ideal for fire alarms or multi-sounder systems, shown mounted on a metal bracket against a white background.Three E2S D1xS1F 115dB(A) Alarm Horn Sounders in red, each a different size, are side by side on metal stands against a plain white background—ideal for use in a multi-sounder system.

E2S D1xS1F 115dB(A) Alarm Horn Sounder

E2S

Highlights

Get A Quote

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals
  • Video

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

The D1xS1F is a high performance globally certified alarm horn sounder featuring a sound output of up to 115dB(A). The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX Zone 1, 2, 21 & 22 explosion proof signalling applications. Featuring 64 alarm tones with 4 remotely activated stage/channels. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc version is EN54-3 EU, UK CPR, MED and MER compliant, plus UL464 NFPA compliant for public mode fire alarm use. SIL1 & SIL2 Route 2H to IEC61508 (2010), with optional diagnostics for Route 1H SIL2 compliance.

Ex trans logo IECEx Logo trans C UL US Listed Trans Logo – industrial safety device from Exloc Instruments Inmetro Trans Logo – industrial safety device from Exloc Instruments
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Specifications:
Maximum output 115dB(A) @ 1 metre [106dB(A) @ 10ft/3m] Class II version: 98dB(A) @ 1 metre [88dB(A) @ 10ft/3m]
Nominal output 110dB(A) @ 1m +/- 3dB – Tone 4 [101dB(A) @ 10ft/3m] Class II version: 94dB(A) @ 1 metre [84dB(A) @ 10ft/3m]
No. of tones 64 (UKOOA / PFEER compliant)
No. of stages 4
Volume control Full range
Effective range 125m/410ft @ 1KHz
Voltage DC 24Vdc (11.5-54Vdc)
Voltages AC 230Vac (100-240Vac)
In-rush 815mA within 4ms @ 24Vdc
Stage switching DC units: positive or negative AC units: common supply line
Safety Integrity Level Product version A: SIL1 and SIL2 Route 2H Product version S: SIL2 Route 1H with diagnostics SFF: >99% See install manual for reliability & functional safety data
Ingress protection EN60529: IP66/67 UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material Marine grade LM6 aluminum alloy
Enclosure color Red or Grey, custom colors available on request
Enclosure finish Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H
Cable Entries 1×1/2"NPT & 2xM20 Thread adaptors available
Stopping plugs Brass, Nickel Plated or Stainless Steel
Terminals 0.5 – 2.5mm² (20-14AWG) – 12AWG solid core conductor Pluggable & duplicated terminals
Ground/Earth stud M5
Line monitoring Blocking diode included EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor or diode (DC versions) can be fitted
Enclosure volume <2 liters
Instillation temp -55 to +80°C [-67° to +176°F]
Storage temp -55 to +80°C [-67° to +176°F]
Relative humidity 99%
Vibration test 35Hz for a duration 4Hr (UL464)
Jarring test 3ft/lb Energy (UL464)
Impact test 3x 5lb (UL464)
MTBF DC 225.16 years / 1,972,386 hours – MIL 217
MTBF AC 138.96 years / 1,217,285 hours – MIL 217
Weight 4.00kg/8.80lbs
Accessories SP65-0001-A4: Pole Mount Bracket Kit St/St A4 (316); SP65-0003-A4: Sunshade – St/St A4 (316)

Resources

Approvals

  • NEC / CEC Class / Zone
    Class I Zone 1 IIC T5 Ta -55°C to +85°C (T6 +75°C)
  • NEC / CEC Class / Div
    Class I Div 1 ABCD T5 Ta -55°C to +85°C (T6 +75°C)
  • IECEx / ATEX
    II 2G Ex db IIC T5 Gb Ta -55°C to +75°C (T6 +70°C)
    II 2D Ex tb IIIC T82°C Db Ta ‐55°C to +75°C
  • Product version: D: NEC / CEC Class / Zone
    Zone 20 IIIB Ta -55°C to +70°C
  • Version: D:
    Class II Div 1 FG T6 Ta -55°C to +70°C
    • See product manual for full voltage specific coding.
