Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

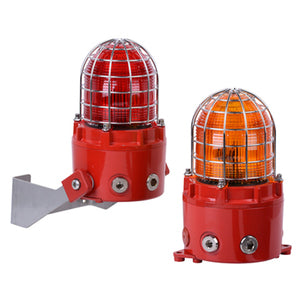

The D1xB2X05 is a globally approved explosion proof 5 Joule Xenon beacon. The robust IP66, Type 4/4X corrosion proof LM6 marine grade aluminum alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications.
Approved to EN54-23, MER, MED, UL1638 and CAN/ULC S526 for fire alarm use the D1xB2X05 beacons produce a high output Xenon flash required for effective signalling. The field replaceable UV stable PC colour filter enhances the strobe output. The robust enclosure features a threaded flame path and four cable entries. Mounting options include surface via integrated lugs, pendant or via addition of optional multi direction stainless steel bracket. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010), with optional diagnostic module for Route 1H SIL2 compliance.
Technical Data
| Specifications: | |
|---|---|
| Source | Xenon Strobe |
| Energy | 5 Joules (5Ws) |
| Flash rates | 1Hz flash (60 fpm) 1.3Hz flash (80 fpm) 1.5Hz flash (90 fpm) Double flash (120 fpm) |
| Eff. Intensity cd: | 20.44cd UL1638 Private mode fire |
| Eff. Intensity cd | 156.65cd measured ref to I.E.S |
| Eff. Intensity cd | 250 cd – calculated from energy (J) |
| Peak Intensity cd | 500,000 cd – calculated from energy (J) |
| Lens colors | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltage DC | 12Vdc (10-14Vdc), 24V dc (20-28Vdc), 48Vdc (42-54Vdc) |
| Voltage AC | 115Vac (110-120Vac), 230Vac (220-240Vac) |
| In-rush | 828mA within 6ms @ 24Vdc |
| Safety Integrity Level | Product version A: SIL1 and SIL2 Route 2H Product version S: SIL2 Route 1H with diagnostics SFF: >99% See install manual for reliability & functional safety data |
| Ingress protection | IP rating per EN60529:IP66/67 Type rating per UL50E/NEMA250:4/4X/3R/13 |
| Lens material | High impact Borosilicate glass |
| Enclosure material | Marine grade LM6 aluminum alloy |
| Enclosure color | Red or Grey, custom colors available on request |
| Enclosure finish | Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H |
| Cable Entries | Side: 2 × 3/4"NPT & 2 x M20x1.5mm Pendant: 1 × 3/4"NPT Stopping plugs included |
| Stopping plugs | Brass, Nickel Plated or Stainless Steel |
| Terminals | 0.5 – 2.5mm² (20-14AWG) – 12AWG solid core conductor Duplicated terminals |
| Ground/Earth stud | M5 |
| Line monitoring | Blocking diode included EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor or diode (DC versions) can be fitted |
| Enclosure volume | <2 liters |
| Instillation temp | -55 to +80°C [-67° to +176°F] |
| Storage temp | -55 to +80°C [-67° to +176°F] |
| Relative humidity | 99% – tropicalized/conformal coated electronics |
| MTBF DC | 198.88 years / 1,742,161 hours – MIL 217 |
| MTBF AC | 253.68 years / 2,222,223 hours – MIL 217 |
| Weight | 3.2kg/7.1Ibs |
Resources
Approvals
- NEC Class / Zone
Class I Zone 1 AEx db IIC T4 Ta -55°C to +80°C (T5: +75°C)
Class I Zone 1 AEx db IIC T6 Ta -55°C to +60°C (DC only)
Zone 21 AEx tb IIIC T99°C Ta -55°C to +80°C - CEC Class / Zone
Ex db IIC T4 Ta -55°C to +80°C (T5: +75°C, T6: +60°C)
Ex tb IIIC T99°C Ta -55°C to +80°C - NEC Class / CEC Class/ Div
Class I Div 1 Group ABCD T5 Ta -55°C to +80°C (T6: +70°C)
Class II Div 1 Group EFG T5 Ta -55°C to +80°C - IECEx / ATEX
II 2G Ex db IIC T4 Gb Ta -55°C to +80°C (T5: +75°C)
II 2G Ex db IIC T6 Gb Ta -55°C to +60°C (DC only)
II 2D Ex tb IIIC T104°C Db Ta -55°C to +80°C
See product manual for full voltage specific coding.
