Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-688-9468.

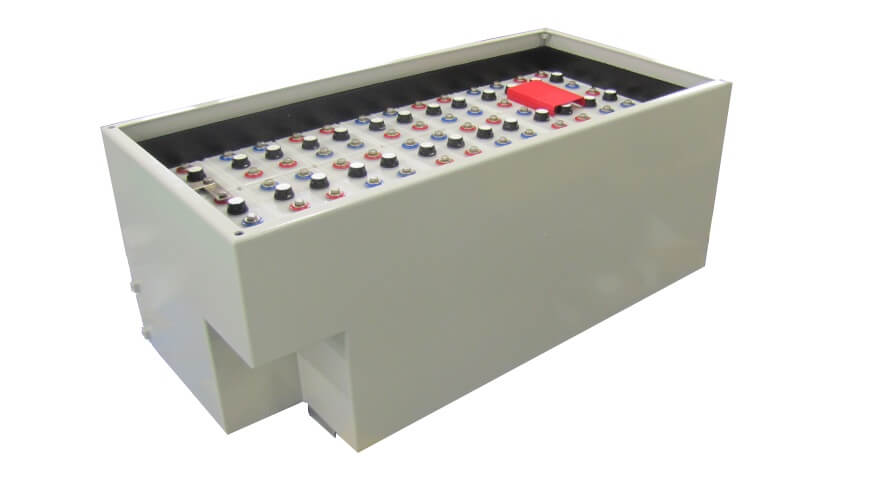

The iBATT5xx is designed to be configured to suit your application. It is available in a wide range of sizes and will contain the batteries of your choice.
Universal enclosure system

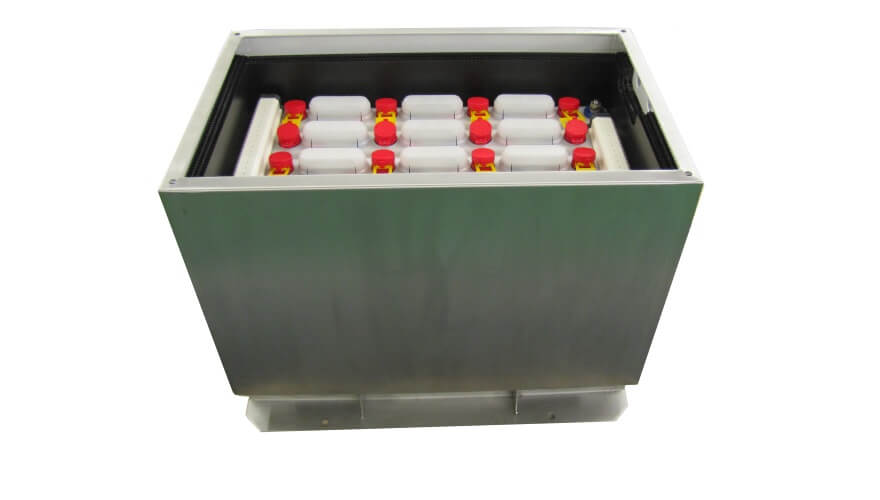

The iBATT5xx is designed to house a variety of different lead acid, nickel cadmium, and nickel iron batteries.
Flexible charging
As well as safe area charging, the iBATT5xx may be charged in the hazardous area in line with the battery manufacturer’s instructions, providing that a method of protecting against overvoltage and overcurrent is used.
Tailored to your application
Scalable to suit the installation requirements, the iBATT5xx is available in a number of sizes and can incorporate up to 36 battery cells.
Use standalone or as part of a UPS
The iBATT5xx can be used as an independent battery enclosure, providing the special conditions for safe use (as per the ATEX/IECEx certificates) are met. The iBATT5xx can also be easily used in conjunction with Extronics’ range of UPS solutions, such as the iUPS101.
Technical Data
| Certification | Ex II 2 G Ex e IIC T6 Gb |
|---|---|
| Housing | 316L stainless steel |
| Ingress Protection Rating | IP43 (Ex rating), IP56 (on request) |
| Dimensions | Up to maximum 71.26 x 63.39 x 27.56 (1810 x 1610 x 700 mm) |
| Capacity | Up to maximum 2500 Ah |
| Batteries | Up to 36 rechargeable cells of lead-acid, nickel-iron, or nickel-cadmium |
| Connections | Via ATEX/IECEx approved Ex e cable glands, in accordance with the requirements of EN 60079-14 |
| Ambient Temperature Range | -40°C to +55°C (dependent on battery type) |
| Charge Voltage | Dependent on battery type |
| Maximum Charge Current | Dependent on battery type |
| Charging Environment | Hazardous or safe area |
| Lid | Hinged or lift off |
Approvals
See Section 6 of Operating Manual
