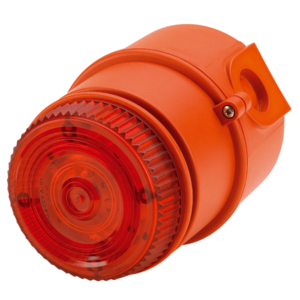

The E2S IS-mC1 IS-minialert is an orange industrial warning beacon with a ribbed, circular red lens, input overload protection, and mounting bracket, shown at an angle against a plain background.

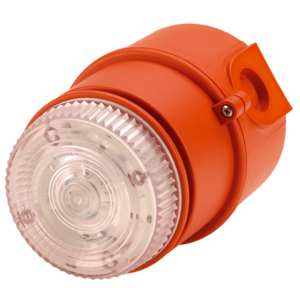

The E2S IS-mC1 IS-minialert is an orange industrial warning beacon with a clear, ridged lens, side mounting bracket, and offers input overload protection for enhanced operational safety.
Roll over image to zoom in Click on image to zoom
The E2S IS-mC1 IS-minialert is an orange industrial warning beacon with a ribbed, circular red lens, input overload protection, and mounting bracket, shown at an angle against a plain background.The E2S IS-mC1 IS-minialert is an orange industrial warning beacon with a clear, ridged lens, side mounting bracket, and offers input overload protection for enhanced operational safety.

E2S IS-mC1 IS-minialert

E2S
Color: Amber
Price:
$807.00

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

The IS-mC1 is a compact, combined, intrinsically safe 100dB(A) alarm sounder and L.E.D. beacon – only one Zener barrier or galvanic isolator required to run both sounder & beacon or alternatively the unit can be operated as individual signals.

Ex trans logo IECEx Logo trans Ce Trans logo UKCA Trans logo CSFM Logo
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Alarm sounder:
Nominal output 100dB(A) @ 1m ± 3dB – Tone 2* [91dB(A) @ 10ft/3m]
No. of tones 49 (UKOOA/PFEER compliant)
No. of stages 3
Volume control Max. 100dB(A); Min. 90dB(A) – Tone 2
Effective range 40m / 131ft @ 1KHz
L.E.D. Beacon:
Light source Array of 6 high intensity L.E.D’s
L.E.D. colours Red, Amber, Blue, Green & Clear
Flash modes Double flash at 2Hz and 1Hz
Effective intensity cd 23cd* – measured ref. to I.E.S.
General:
Voltage 16-28vdc via Zener barrier or galvanic isolator
Combined current Approx. 30mA typical when powered from 24v supply via 28v 300Ω Zener barrier
Ingress protection IP65
Rating Continuous
Enclosure material UL94V0 & 5VA FR ABS & PC
Enclosure colour RAL3000 Red
Fixings Stainless Steel
Cable entries 2 x M20 clearance gland knockouts. Custom configurations also available.
MTBF 141.63 years / 1,240,694 hours – MIL 217
Terminals 0.5 to 2.5mm²
Operating temp -40° to +60°C [-40° to +140°F]
Storage temp -40° to +70°C [-40° to +158°F]
Relative humidity 90% at 20°C [68°F]
Weight 0.44Kg / 0.97Ibs

Resources

Approvals

  • ATEX / IECEx / FM
    II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
    IS Class l, Division 1, Groups A, B, C, D T4
    IS Class I, Zone 0, AEx ia IIC T4 Ta = +60°C
Ex trans logo IECEx Logo trans Ce Trans logo UKCA Trans logo CSFM Logo
