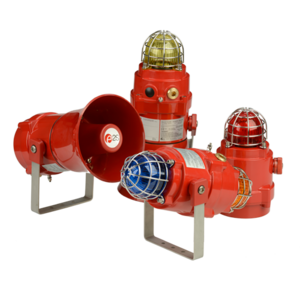

Three E2S BExBG10 Explosion Proof Xenon Beacons (10 Joule), red with marine grade aluminium enclosures, horn, and two xenon lights with protective metal cages, are shown against a plain white background.

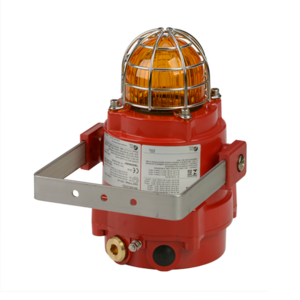

The E2S BExBG10 Explosion Proof Xenon Beacon 10 Joule features an orange warning light, metal protective cage, and mounting bracket—ideal for safety or alert systems and integration into multi-beacon setups.
Roll over image to zoom in Click on image to zoom
The E2S BExBG10 Explosion Proof Xenon Beacon 10 Joule is a red industrial beacon with a clear caged dome and rugged marine grade aluminium enclosure, complete with metal mounting bracket—ideal for hazardous or emergency environments.Three E2S BExBG10 Explosion Proof Xenon Beacons (10 Joule), red with marine grade aluminium enclosures, horn, and two xenon lights with protective metal cages, are shown against a plain white background.The E2S BExBG10 Explosion Proof Xenon Beacon 10 Joule features an orange warning light, metal protective cage, and mounting bracket—ideal for safety or alert systems and integration into multi-beacon setups.

E2S BExBG10 Explosion Proof Xenon Beacon 10 Joule

E2S

Highlights

Get A Quote

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

The flameproof BExBG10 10 Joule, 380 candela Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. Available as SIL 1 and SIL 2 compliant. The BExBG10 10 Joule Xenon strobe beacons robust construction enables installation in the harshest of environments. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard. The explosion proof Ex d BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Ex trans logo IECEx Logo trans Ce Trans logo UKCA Trans logo Inmetro Trans Logo – industrial safety device from Exloc Instruments
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Specifications:
Energy 10 Joules (10Ws)
Flash Rates 1Hz (60 fpm)
Peak candela 1,000,000 cd – calculated from energy (J)
Eff. Intensity cd: 500 cd – calculated from energy (J)
Peak candela 87,590 cd* – measured ref. to I.E.S.
Eff. Intensity cd: 380 cd* – measured ref. to I.E.S.
Lens Colors Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltage DC 12vdc; 24vdc; 48vdc
Voltages AC 115vac; 230vac
Ingress protection BG15D : IP66/67 BG15E : IP66
Enclosure material Marine grade copper free LM6 aluminum alloy
Enclosure finish Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H
Color Red (others available on request)
Cable Entries Dual M20 ISO (one stopping plug included)
Terminals 0.5 – 2.5mm² (20-14 AWG)
Ground/Earth stud M5
Line monitoring Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
Enclosure volume <2 liters
Instillation temp -50° to +70°C (-58°F to +158°F)
Relative humidity 95% – Additional topicalization is recommended for applications where both high relative humidity and high ambient temperatures exist
Tube life Emissions are reduced to 70% after 5 million flashes
Weight DC:2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs
*All candela data is representative of performance with clear lens at optimum voltage.

Resources

Approvals

  • II 2G Ex db IIC T4 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T120°C Db Ta. -50°C to +40°C
  • II 2D Ex tb IIIC T129°C Db Ta. -50°C to +70°C
