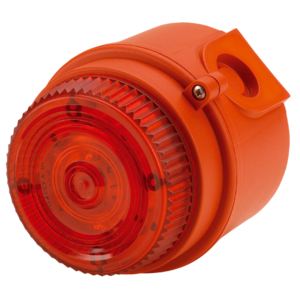

The E2S IS-mB1 IS-minialite is an orange and red industrial warning beacon with a prismatic lens and robust mounting bracket for increased visibility.
Roll over image to zoom in Click on image to zoom
The E2S IS-mB1 IS-minialite is an orange and red industrial warning beacon with a prismatic lens and robust mounting bracket for increased visibility.

E2S IS-mB1 IS-minialite

E2S
Price:
$496.00

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

The IS-mB1 is a compact beacon with an array of six high output L.E.D’s. Approvals include ATEX, IECEx and EAC Ex for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications. The IS-mB1 is suitable for all intrinsically safe signalling applications including fire, security and process control.

Ex trans logo IECEx Logo trans Ce Trans logo UKCA Trans logo
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Specifications:
Light source Red, Amber, Blue, Green & Clear
Eff. Intensity cd: 23cd* – measured ref. to I.E.S.
Voltage 16-28vdc via Zener barrier or galvanic isolator
Current 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier
Ingress protection IP65
Rating Continuous
Enclosure material UL94V0 & 5VA FR ABS & PC
Enclosure color RAL3000 Red
Fixings Stainless steel
Cable Entries 2 x M20 clearance gland knockouts. Custom configurations also available.
Terminals 0.5 to 2.5mm²
Operation temp -40° to +60°C [-40 to +140°F]
Storage temp -40° to +70°C [-40 to +158°F]
Relative humidity 90% at 20°C [68°F]
MTBF 294.6 years / 2,580,645 hours – MIL 217
Weight 0.32Kg / 0.71Ibs

Resources

Approvals

  • ATEX / IECEx / FM
  • II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
  • IS Class l, Division 1, Groups A, B, C, D
  • IS Class I, Zone 0, AEx ia IIC T4
Ex trans logo IECEx Logo trans Ce Trans logo UKCA Trans logo
