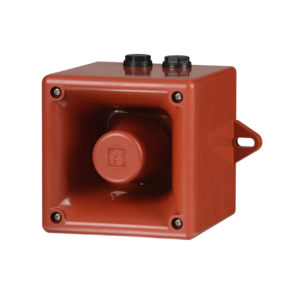

The E2S IS-A105N Alarm Sounder is a red industrial alarm with two cable entry points, a mounting bracket, and input overload protection, shown on a plain white background.

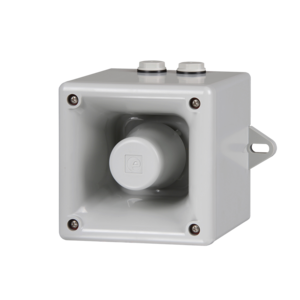

The E2S IS-A105N Alarm Sounder is a gray industrial wall-mounted unit with a square housing, two cable entries on top, and optional input overload protection.
Roll over image to zoom in Click on image to zoom
The E2S IS-A105N Alarm Sounder is a red industrial alarm with two cable entry points, a mounting bracket, and input overload protection, shown on a plain white background.The E2S IS-A105N Alarm Sounder is a gray industrial wall-mounted unit with a square housing, two cable entries on top, and optional input overload protection.

E2S IS-A105N Alarm Sounder

E2S
Price:
$405.00

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-545-3968.

The IS-A105N is a high output, 105dB(A) alarm sounder. Approvals include ATEX, IECEx and Ex EAC for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications. The IS-A105N is suitable for all intrinsically safe signalling applications including fire, security and process control.

Ex trans logo IECEx Logo trans Ce Trans logo UKCA Trans logo
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Nominal output: 105dB(A) @ 1m +/- 3dB – Tone 2*[96dB(A) @ 10ft/3m]
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A); Min. 96dB(A) – Tone 2
Effective range: 60m/197ft @ 1KHz
Voltages 16-28vdc via Zener barrier or galvanic isolator
Current 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier
Ingress protection: IP66
Rating Continuous
Enclosure material UL94V0 & 5VA FR ABS
Enclosure color RAL3000 Red, RAL7038 Grey
Fixings Stainless steel
Cable entries: 2 x M20 entries – stopping plugs included
Terminals: 0.5 – 2.5mm²
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
MTBF 227.40 years / 1,992,031 hours – MIL 217
Weight: 0.75kg/1.65Ibs

Resources

Approvals

  • ATEX / IECEx / FM
  • II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
  • IS Class I, Zone 0, AEx ia IIC T4 Ta = +60°C
  • IS Class l, Division 1, Groups A, B, C, D T4
  • Ex EAC
  • 0ExiaIICT4 IP66 -40° to +60°C
