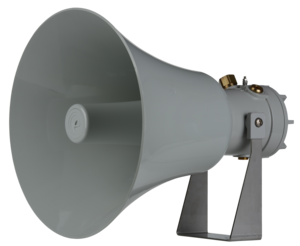

The E2S D1xS2H 128dB(A) Alarm Horn Sounder is a gray marine grade aluminum loudspeaker with a wide cone and mounting bracket, shown from the side against a plain background—ideal as an audible signaling device.

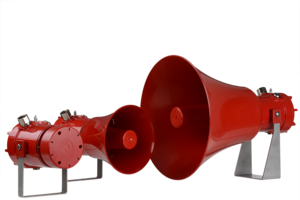

Three E2S D1xS2H 128dB(A) Alarm Horn Sounders in red, made from marine grade aluminium and designed for effective audible signaling, are displayed side by side on a white background.

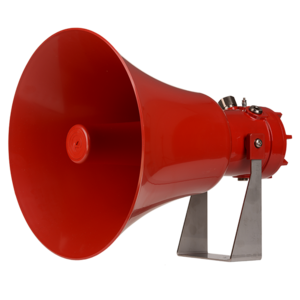

A red E2S D1xS2H 128dB(A) alarm horn sounder, constructed from marine grade aluminium with a metal stand, is showcased on a plain white background—a durable audible signaling device.
Roll over image to zoom in Click on image to zoom
The E2S D1xS2H 128dB(A) Alarm Horn Sounder is a gray marine grade aluminum loudspeaker with a wide cone and mounting bracket, shown from the side against a plain background—ideal as an audible signaling device.Three E2S D1xS2H 128dB(A) Alarm Horn Sounders in red, made from marine grade aluminium and designed for effective audible signaling, are displayed side by side on a white background.A red E2S D1xS2H 128dB(A) alarm horn sounder, constructed from marine grade aluminium with a metal stand, is showcased on a plain white background—a durable audible signaling device.

E2S D1xS2H 128dB(A) Alarm Horn Sounder

E2S

Highlights

Get A Quote

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals
  • Video

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

The D1xS2H alarm horn sounder has a sound output of up to 128dB(A) – a class leading, high performance globally certified audible notification signal. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I Div 1, Zone 1, IECEx and ATEX Zone 1, 2, 21 & 22 explosion proof signalling applications. Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output with a choice of two power modes. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc version is approved for public mode fire alarm use. SIL1 & SIL2 compliant to IEC61508 (2010) as standard.

Ex trans logo IECEx Logo trans C UL US Listed Trans Logo – industrial safety device from Exloc Instruments Inmetro Trans Logo – industrial safety device from Exloc Instruments Ce Trans logo UKCA Trans logo CSFM Logo
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Specifications:
Maximum output High power level: 128dB(A) @ 1 m +/- 3dB [119dB(A) @ 10ft/3m +/- 3dB] Medium power level: 125dB(A) @ 1 m +/- 3dB [118dB(A) @ 10ft/3m +/- 3dB]
Nominal output High power level: 126dB(A) @ 1m +/- 3dB [117dB(A) @ 10ft/3m] +/- 3dB Medium power level: 122dB(A) @ 1m +/- 3dB [113dB(A) @ 10ft/3m +/- 3dB]
No. of tones 64 (UKOOA / PFEER compliant)
No. of stages 4
Volume control Full range
Effective range >350m/1148ft @ 1KHz
Voltage DC 24Vdc (11.5-54Vdc)
Voltages AC 230Vac (100-240Vac)
In-rush 815mA within 4ms @ 24Vdc
Stage switching DC units: positive or negative AC units: common supply line
Safety Integrity Level SIL1 and SIL2 Route 2H IEC61508 (2010)
Ingress protection EN60529: IP66/67 UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material Marine grade LM6 aluminum alloy
Enclosure color Red or Grey, custom colors available on request
Enclosure finish Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H
Cable Entries 1×1/2"NPT & 2xM20 Thread adaptors available
Stopping plugs Brass, Nickel Plated or Stainless Steel
Terminals 0.5 – 2.5mm² (20-14AWG) – 12AWG solid core conductor Pluggable & duplicated terminals
Line monitoring Blocking diode included EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor or diode (DC versions) can be fitted
Ground/Earth stud M5
Enclosure volume <2 liters
Instillation temp -55 to +85°C [-67° to +185°F]
Storage temp -55 to +85°C [-67° to +185°F]
Relative humidity 99%
Jarring test 3ft/lb Energy (UL464)
Impact test 3x 5lb (UL464)
Vibration test 35Hz for a duration 4Hr (UL464)
MTBF DC 225.16 years / 1,972,386 hours – MIL 217
MTBF AC 138.96 years / 1,217,285 hours – MIL 217
Weight 4.6kg/10.1lbs

Resources

Approvals

  • NEC / CEC Class / Zone
    Class I Zone 1 IIC T4A Ta -55°C to +85°C
    Class I Zone 1 IIC T5 Ta -55°C to +75°C (T6 +65°C)
  • NEC / CEC Class / Div
    Class I Div 1 ABCD T4A Ta -55°C to +85°C
    Class I Div 1 ABCD T5 Ta -55°C to +80°C (T6 +65°C)
  • IECEx / ATEX
    II 2G Ex db IIC T5 Gb Ta -55°C to +75°C
    II 2G Ex db IIC T6 Gb Ta -55°C to +60°C
    II 2D Ex tb IIIC T93°C Db Ta ‐55°C to +75°C
    • See product manual for full voltage specific coding.
