Description
GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

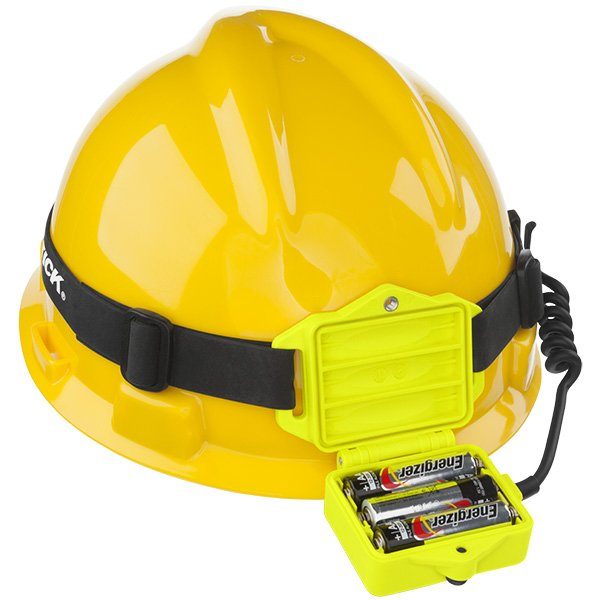

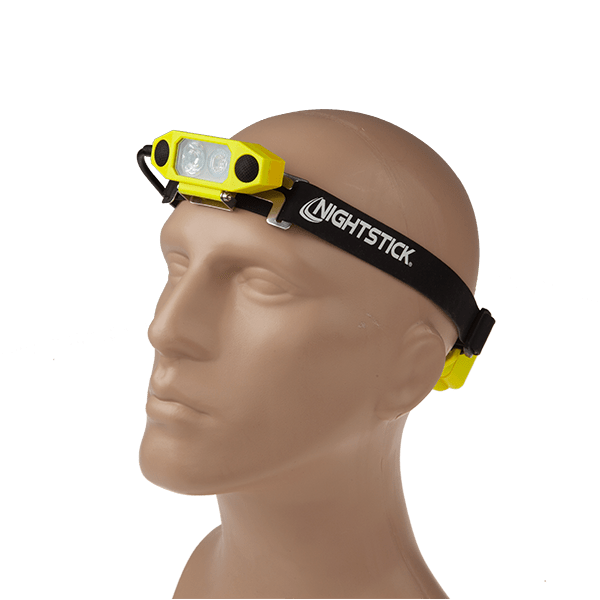

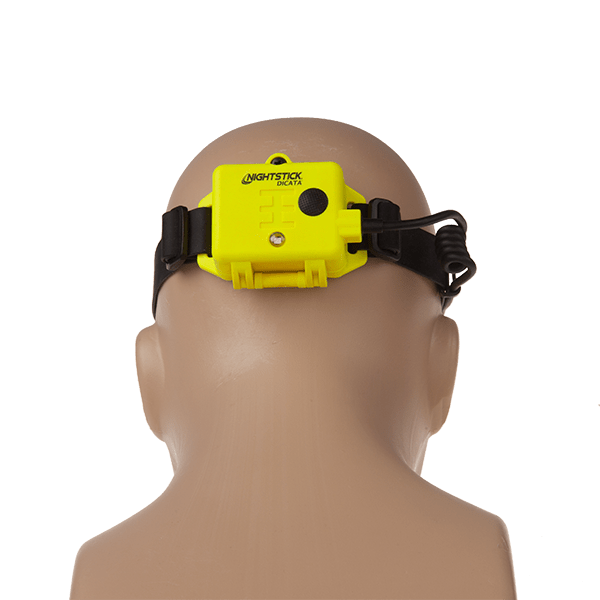

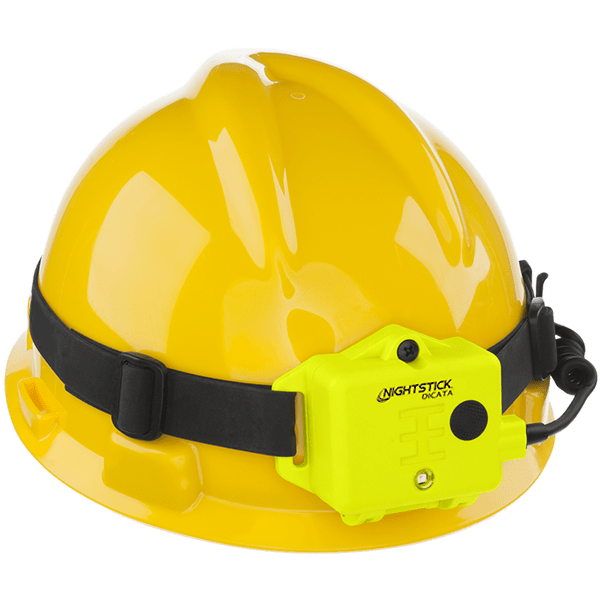

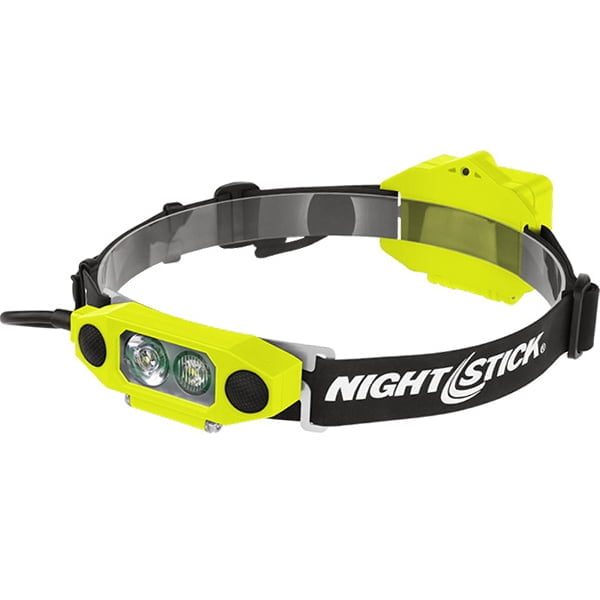

The DICATA™ Intrinsically Safe Low-Profile Dual-Light™ Headlamp is cULus, ATEX and IECEx listed Intrinsically Safe and is designed specifically to work on fire helmets and hard-hats that have a flip-up face shield. The unique low-profile shape allows the user to work without having to remove the headlamp when raising or lowering their face shield. The XPP-5462GX is manufactured from glass-filled nylon polymer and features a multi-position tilt head design. Both the spotlight and the floodlight use LED’s and an advanced (TIR) Total Internal Reflection lens designed to optimize lumen output and beam pattern. Front-mounted dual switches provide easy access to the spotlight for distance illumination, the floodlight for close-up illumination, and Dual-Light for maximum lighting, versatility and user safety. The XPP-5462GX meets the requirements of NFPA-1971-8.6 (2013), includes a heavy-duty rubber head strap for use on a fire helmet or hard-hat and is powered by 3 AA batteries (included).
Minimum Order Quantity: 2
Technical Data
| Dual-Light | Yes |
|---|---|
| Multi-Function | Yes |
| Spotlight Lumens | 275 / 100 |
| Floodlight Lumens | 250 / 100 |
| Dual-Light Lumens | 310 |
| Beam Distance | 120 m |
| Candela | 3,660 |
| Drop Rating | 2 m |
| Dust/Water Rating | ANSI IP-67 Dustproof/Waterproof |
| Spotlight Runtime | 6.75 / 25 h |
| Floodlight Runtime | 7 / 25 h |
| Dual-Light Runtime | 6 h |
| Floodlight Color | White |
| Type of Floodlight | Solid |

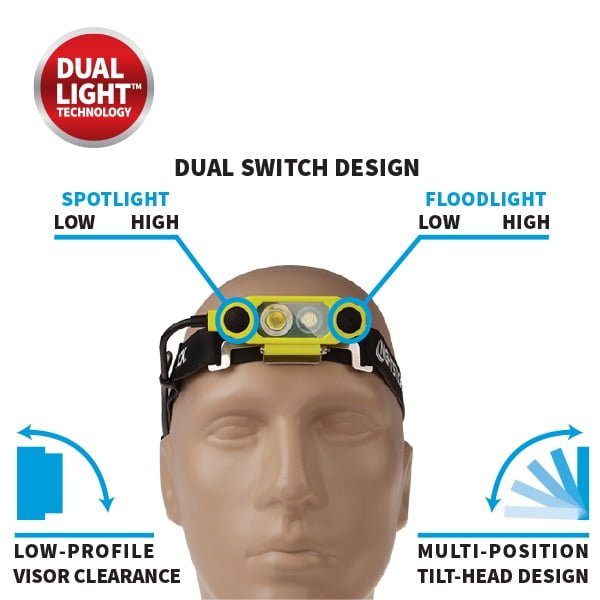

| Switch Function | Two switches - right: spotlight (H/L), left: floodlight (H/L) |
| Length | 1.25 in (32 mm) |
| Width | 3.75 in (95 mm) |
| Depth | 1 in (25 mm) |
| Weight | 9.3 oz (265 g) |
| Light Source | LED |
| Case Material | Glass-filled nylon polymer |
| Body Color | Green/Black |
| Quantity of Batteries | 3 |
| Power Source | AA Primary Batteries |
| Package Contents | Headlamp, 3 AA Batteries, and Heavy-duty Rubber Head Strap |
| Warranty | Limited Lifetime |

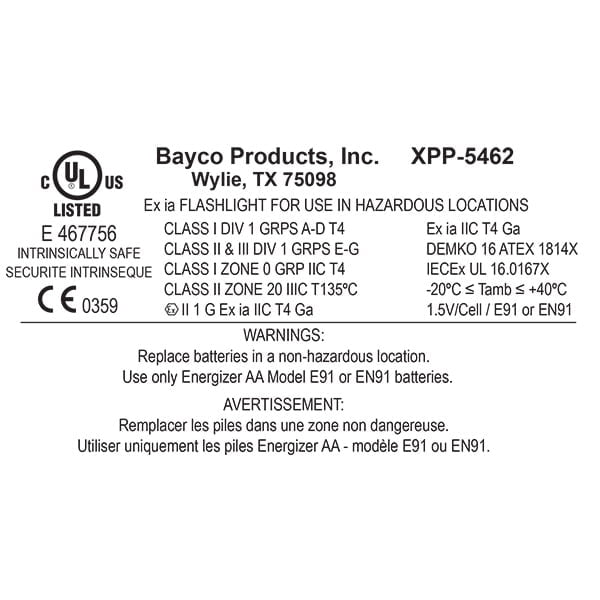

Approvals
- CLASS I DIV 1: GRPS A-D T4
- CLASS II & III DIV 1: GRPS E-G
- CLASS I ZONE 0: GRP IIC T4
- CLASS II ZONE 20: IIIC T135°C
- ATEX Certification: II 1 G Ex ia IIC T4 Ga
- IECEx Certification: Ex ia IIC T4 Ga
Resources
Includes
- Headlamp
- Heavy-duty Rubber Head Strap
- 3 AA Batteries
