Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

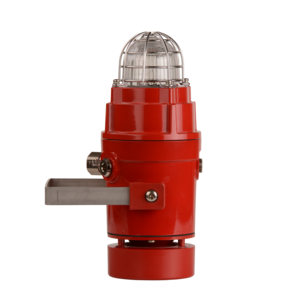

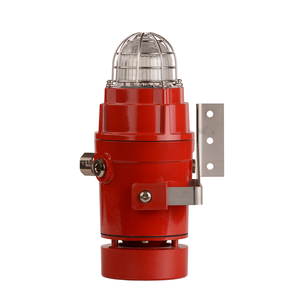

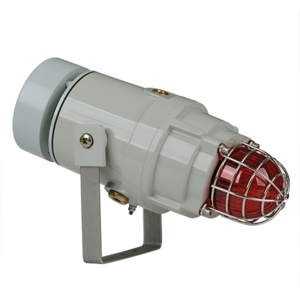

The D1xC2X05R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 5 Joule Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I Div 1, Zone 1, IECEx and ATEX Zone 1, 2, 21 & 22 explosion proof signalling applications. Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output with a choice of two power modes. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc Class I version is approved for public (alarm horn) and private mode fire alarm use. SIL1 & SIL2 compliant to IEC61508 (2010) as standard.
Technical Data
| Alarm Horn: | |
|---|---|
| Maximum output: | High power level: 114dB(A) @ 1 m +/- 3dB [105dB(A) @ 10ft/3m +/- 3dB] Default power level: 112dB(A) @ 1 m +/- 3dB [103dB(A) @ 10ft/3m +/- 3dB] |
| Nominal output: | High power level: 114dB(A) @ 1 m +/- 3dB [105dB(A) @ 10ft/3m +/- 3dB] Default power level: 112dB(A) @ 1 m +/- 3dB [103dB(A) @ 10ft/3m +/- 3dB] |
| No. of tones: | 64 (UKOOA / PFEER compliant) |
| No. of stages: | 4 |
| Volume control: | Full range |
| Effective range: | 125m/410ft @ 1KHz |
| Voltages DC: | 24Vdc (20-28Vdc) |
| Voltages AC: | 110-120Vac, 220-240Vac |
| Stage switching: | DC units: negative or positive AC units: common supply line |
| Strobe Beacon: | |
| Energy: | 5 Joules (5Ws) |
| Flash rates: | Option 1: 1Hz (60 fpm) Option 2: 1.5Hz (90 fpm) Option 3: Double Strike |
| Eff. Intensity: | 143 cd* – measured ref. to I.E.S. |
| Peak Candela: | 46,976 cd* – measured ref. to I.E.S. |
| Eff. Intensity: | 250 cd – calculated from energy (J) |
| Peak Candela: | 500,000 cd – calculated from energy (J) |
| Lens colors: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Tube life: | Emissions reduced to 70% > 5 million flashes |
| General: | |
| Safety Integrity Level: | SIL1 and SIL2 Route 2H IEC61508 (2010) |
| Ingress protection: | EN60529: IP66/67 UL50E / NEMA250: 4 / 4X / 3R / 13 |
| Enclosure material: | Marine grade aluminum LM6 – copper free |
| Enclosure finish: | Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H |
| Enclosure color: | Red or Grey, custom colors available on request |
| Cable entries: | 1×1/2"NPT & 2xM20 – thread adaptors available |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) Pluggable, duplicated terminals |
| Grounding stud: | M5 |
| Line monitoring: | Blocking diode included. EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor or diode (DC versions) can be fitted |
| Enclosure volume: | <2 liters |
| Installation temp: | -55 to +85°C [-67° to +185°F] |
| Storage temp: | -55 to +85°C [-67° to +185°F] |
| Relative humidity: | 99% |
| Vibration test: | 35Hz for a duration 4Hr (UL464) |
| Jarring test: | 3ft/lb Energy (UL464) |
| Impact test: | 3x 5lb (UL464) |
| Weight: | 4.9kg/10.9lbs |
Resources
Approvals
- NEC Class / Zone
Class I Zone 1 IIC T4 Gb Ta -55°C to +85°C
Class I Zone 1 IIC T4A Gb Ta -55°C to +80°C
Class I Zone 1 IIC T5 Gb Ta -55°C to +60°C (T6: +45°C) - CEC Class / Zone
Class I Zone 1 IIC T5 Gb Ta -55°C to +55°C (T6: +45°C) - NEC Class / Div
Class I Div 1 ABCD T4 Ta -55°C to +85°C
Class I Div 1 ABCD T4A Ta -55°C to +80°C
Class I Div 1 ABCD T5 Ta -55°C to +60°C (T6: +45°C)
li>CEC Class / Div - IECEx / ATEX
II 2G Ex db IIC T4/T5 Gb Ta -55°C to +75°C
II 2G Ex db IIC T5 Gb Ta -55°C to +55°C
II 2G Ex db IIC T6 Gb Ta -55°C to +40°C (DC only)
II 2D Ex tb IIIC T115°C Db Ta ‐55°C to +75°C
See product manual for full voltage specific coding.
Class I Div 1 ABCD T5 Ta -55°C to +55°C (T6: +45°C)
